DTC 47

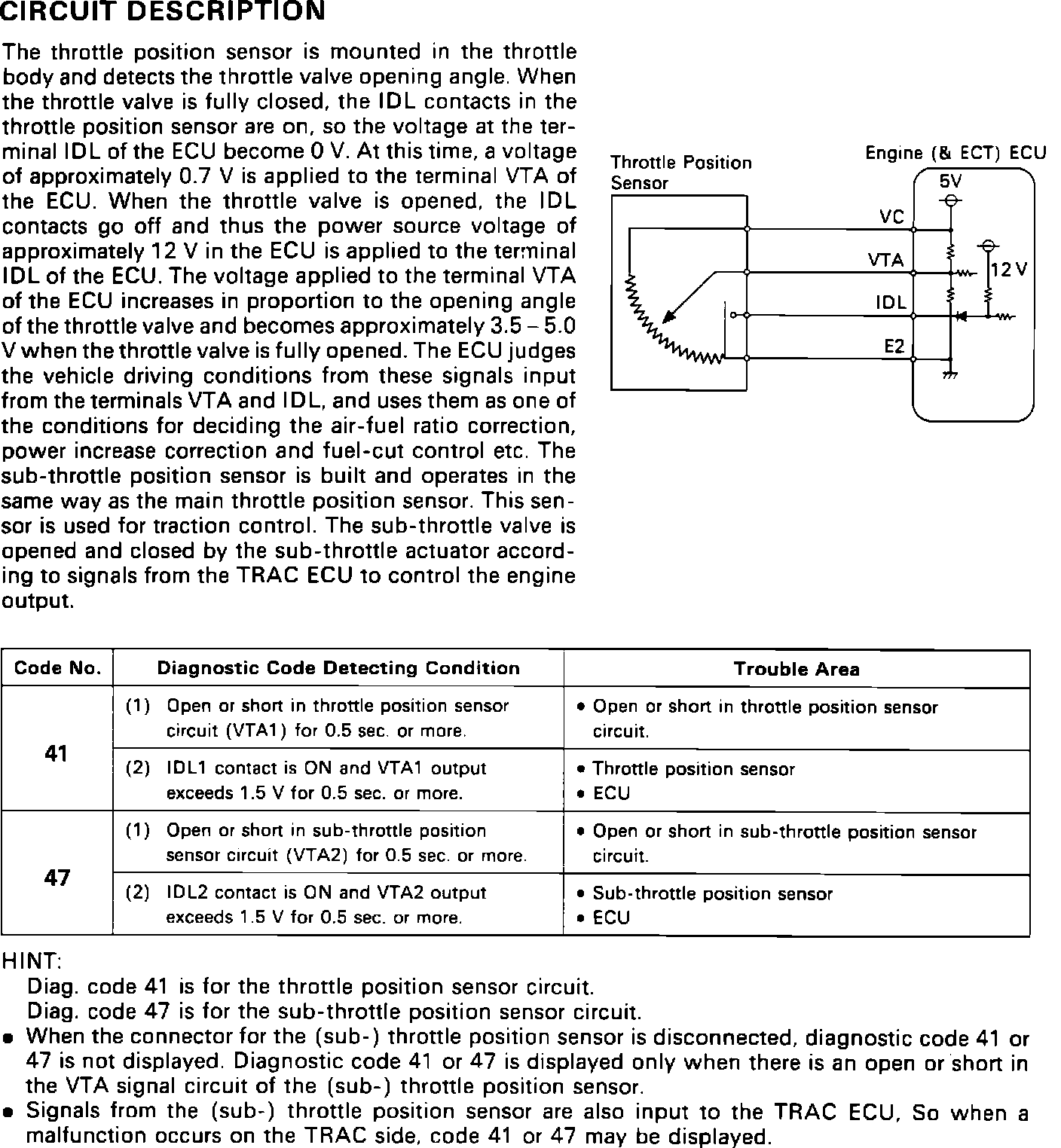

Fig. 16 Diagnostic Code 41 & 47 (Sub-throttle Position Sensor Circuit, Part 1 Of 4):

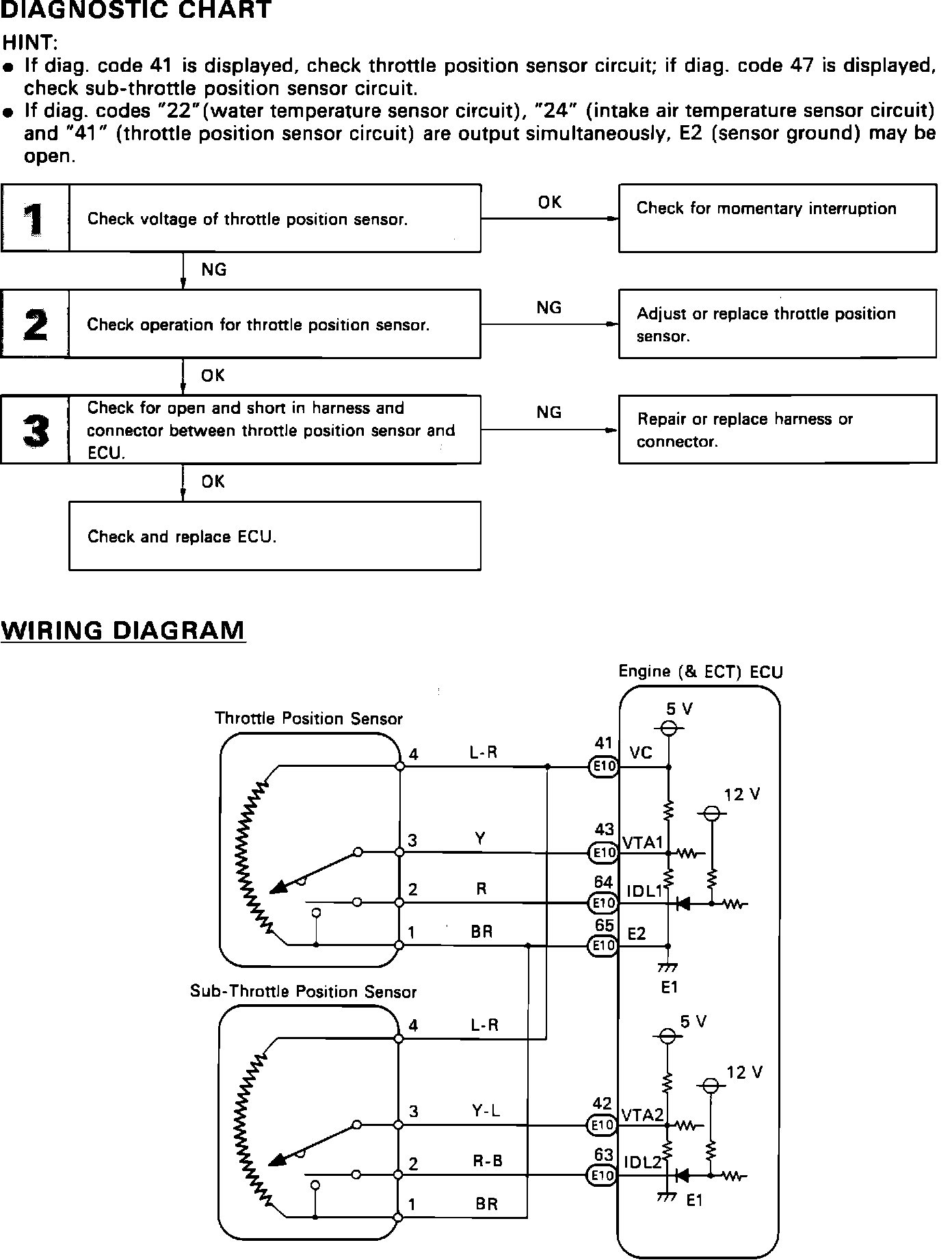

Fig. 16 Diagnostic Code 41 & 47 (Sub-throttle Position Sensor Circuit, Part 2 Of 4):

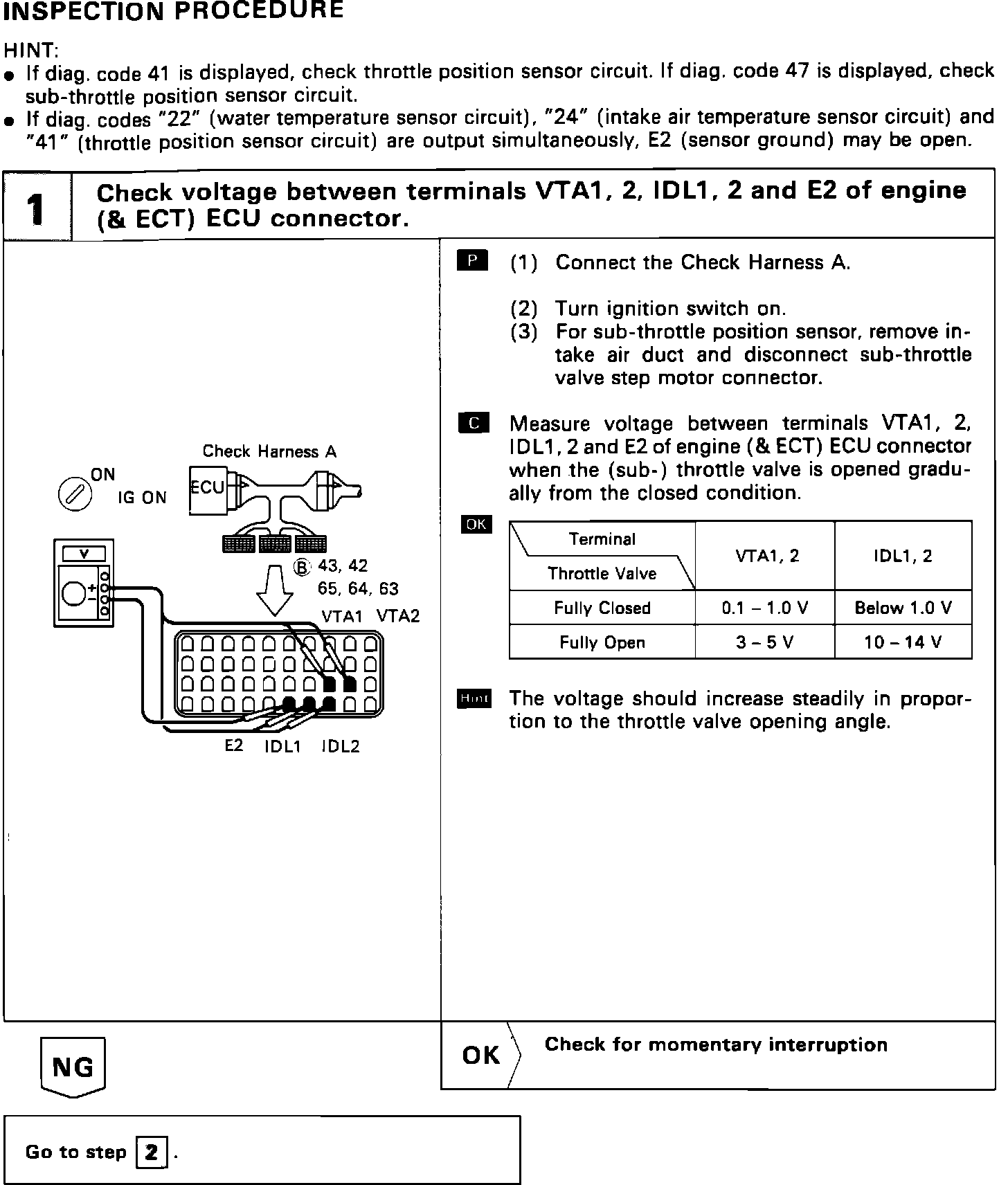

Fig. 16 Diagnostic Code 41 & 47 (Sub-throttle Position Sensor Circuit, Part 3 Of 4):

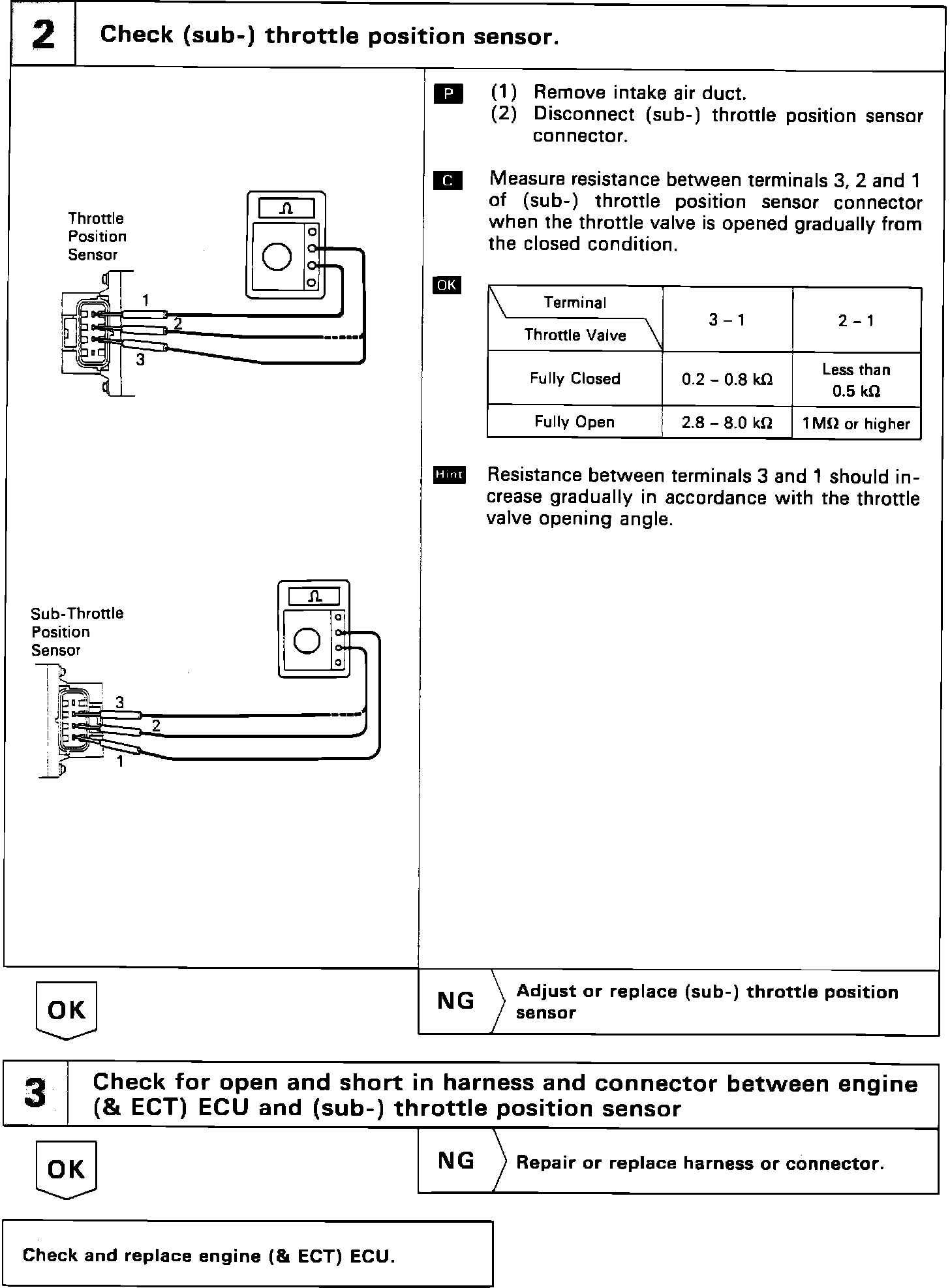

Fig. 16 Diagnostic Code 41 & 47 (Sub-throttle Position Sensor Circuit, Part 4 Of 4):
