DTC 27

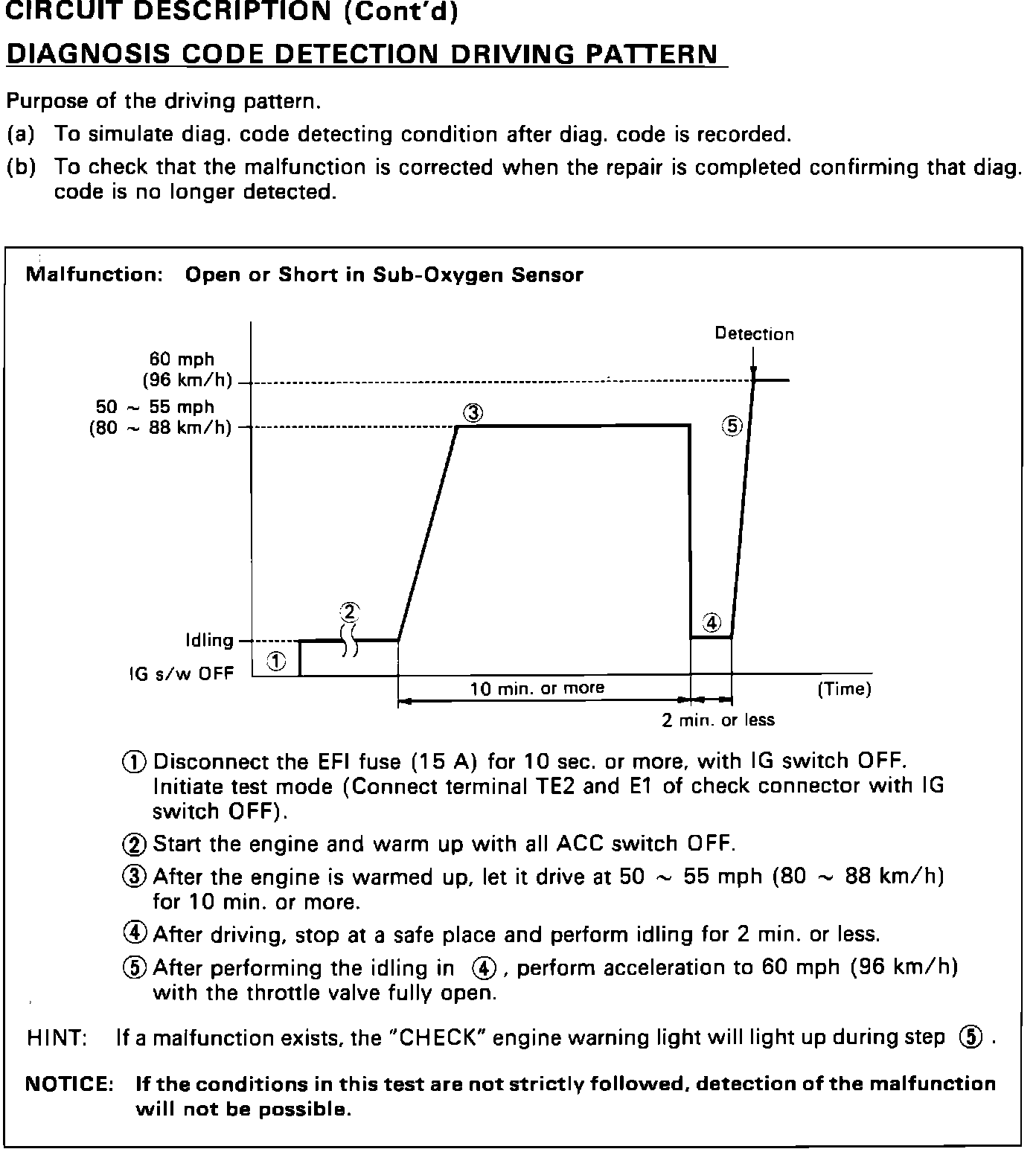

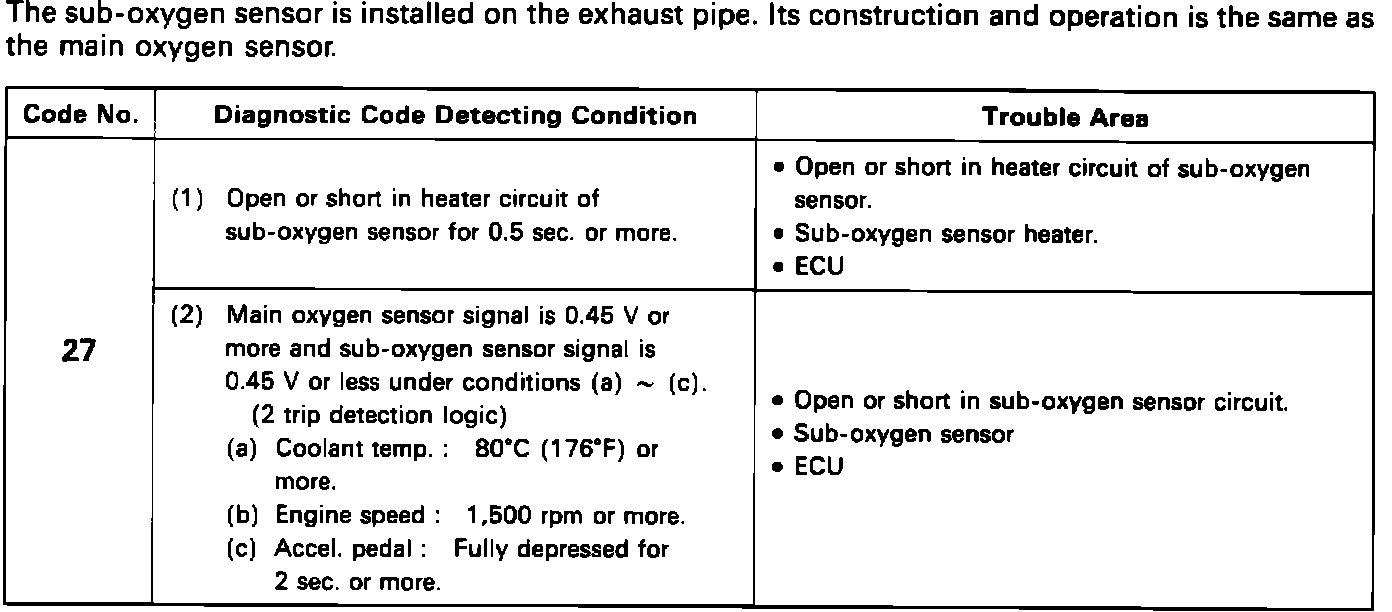

Fig. 13 Diagnostic Code 27 (Sub Oxygen Sensor Circuit, Part 1 Of 5). California Models:

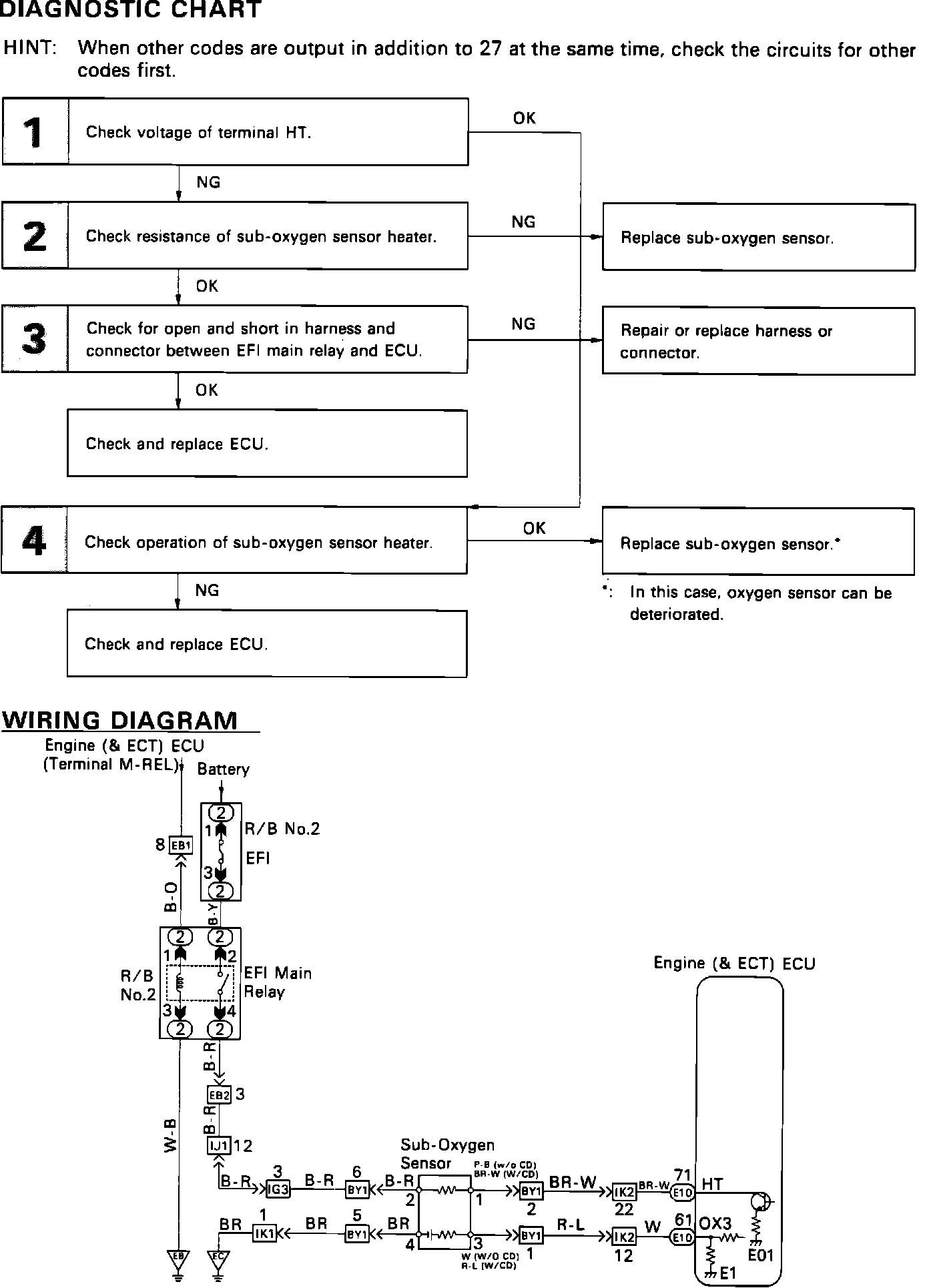

Fig. 13 Diagnostic Code 27 (Sub Oxygen Sensor Circuit, Part 2 Of 5). California Models:

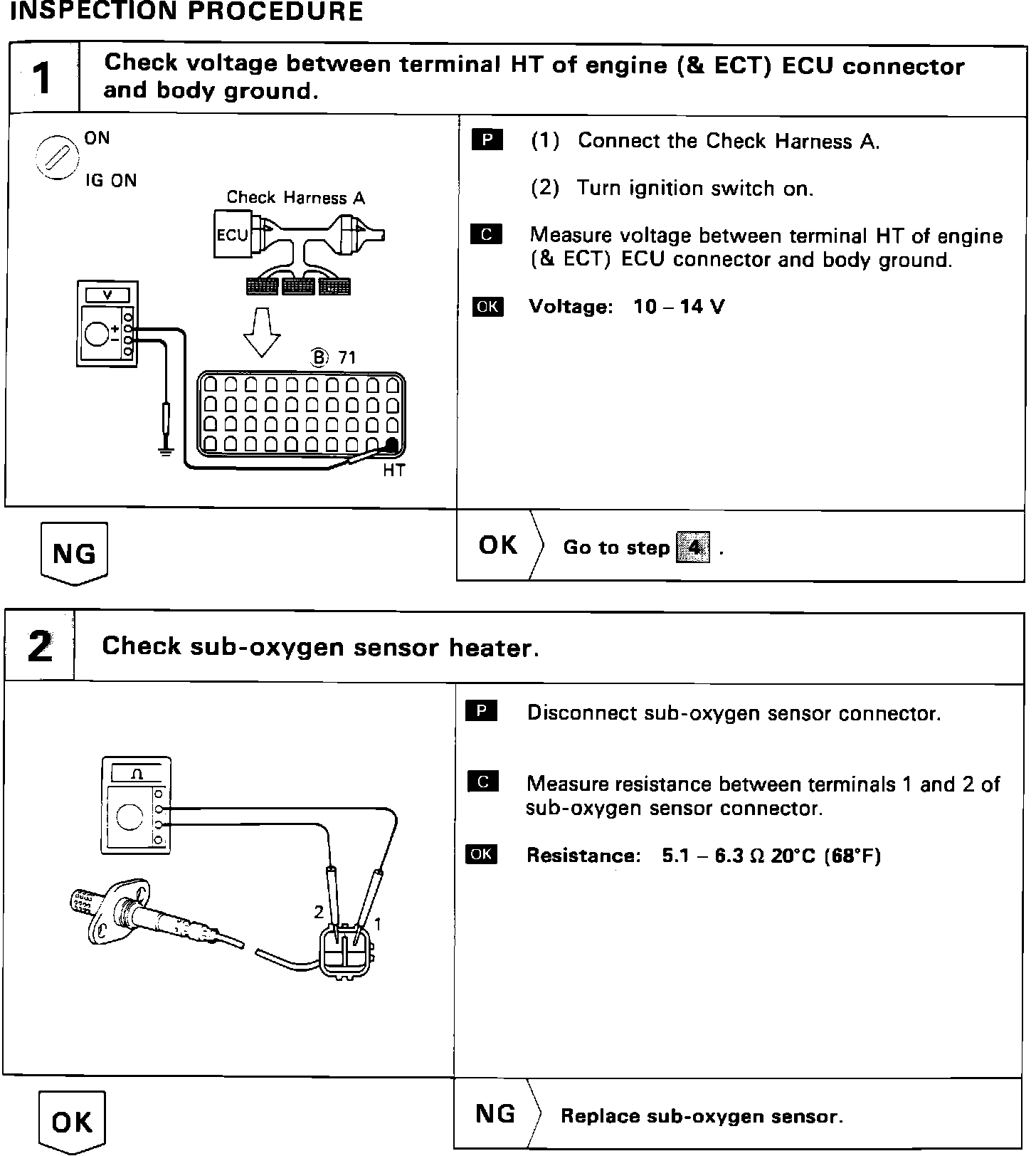

Fig. 13 Diagnostic Code 27 (Sub Oxygen Sensor Circuit, Part 3 Of 5). California Models:

Fig. 13 Diagnostic Code 27 (Sub Oxygen Sensor Circuit, Part 4 Of 5). California Models:

Fig. 13 Diagnostic Code 27 (Sub Oxygen Sensor Circuit, Part 5 Of 5). California Models:
