DTC 26

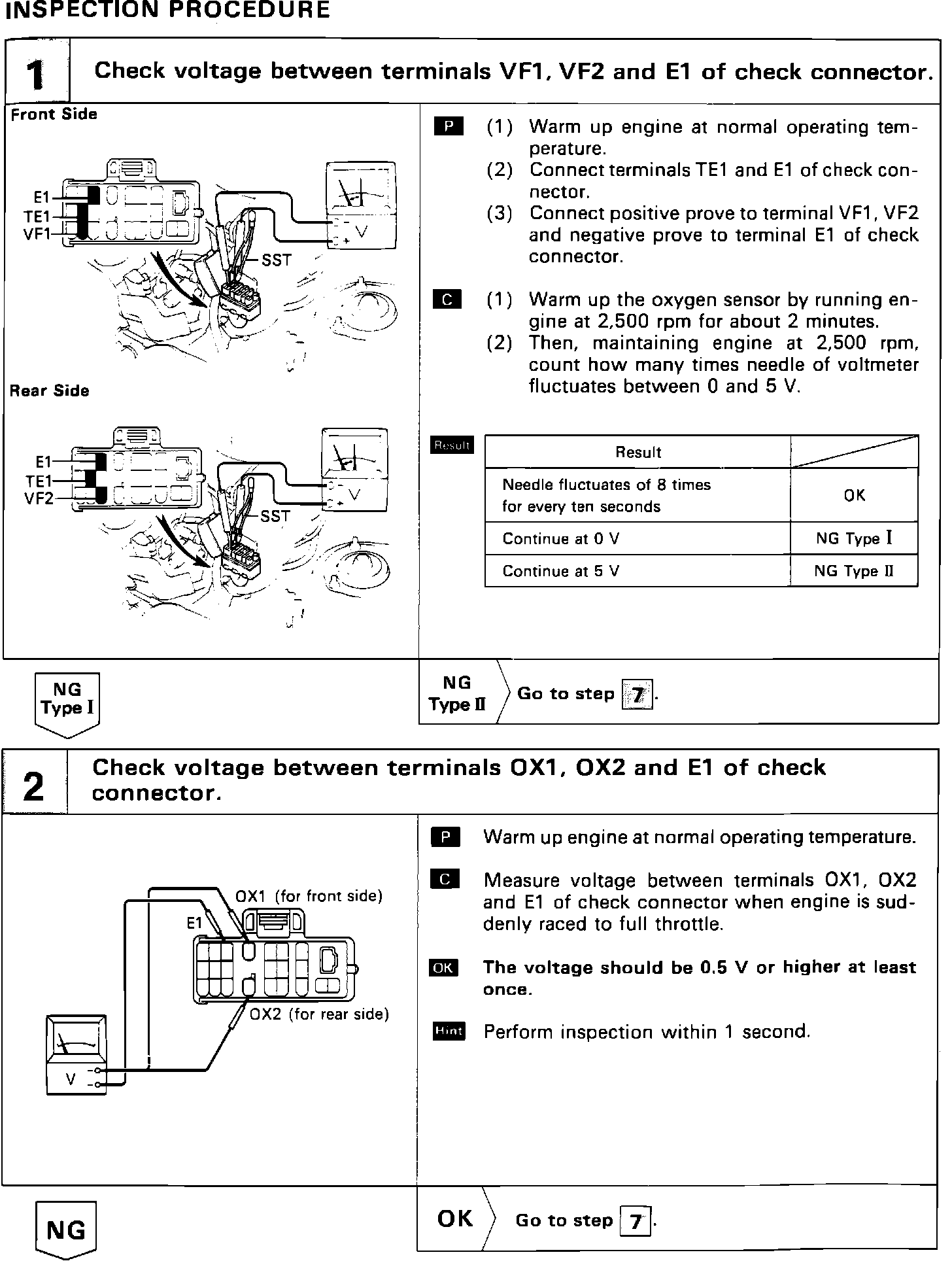

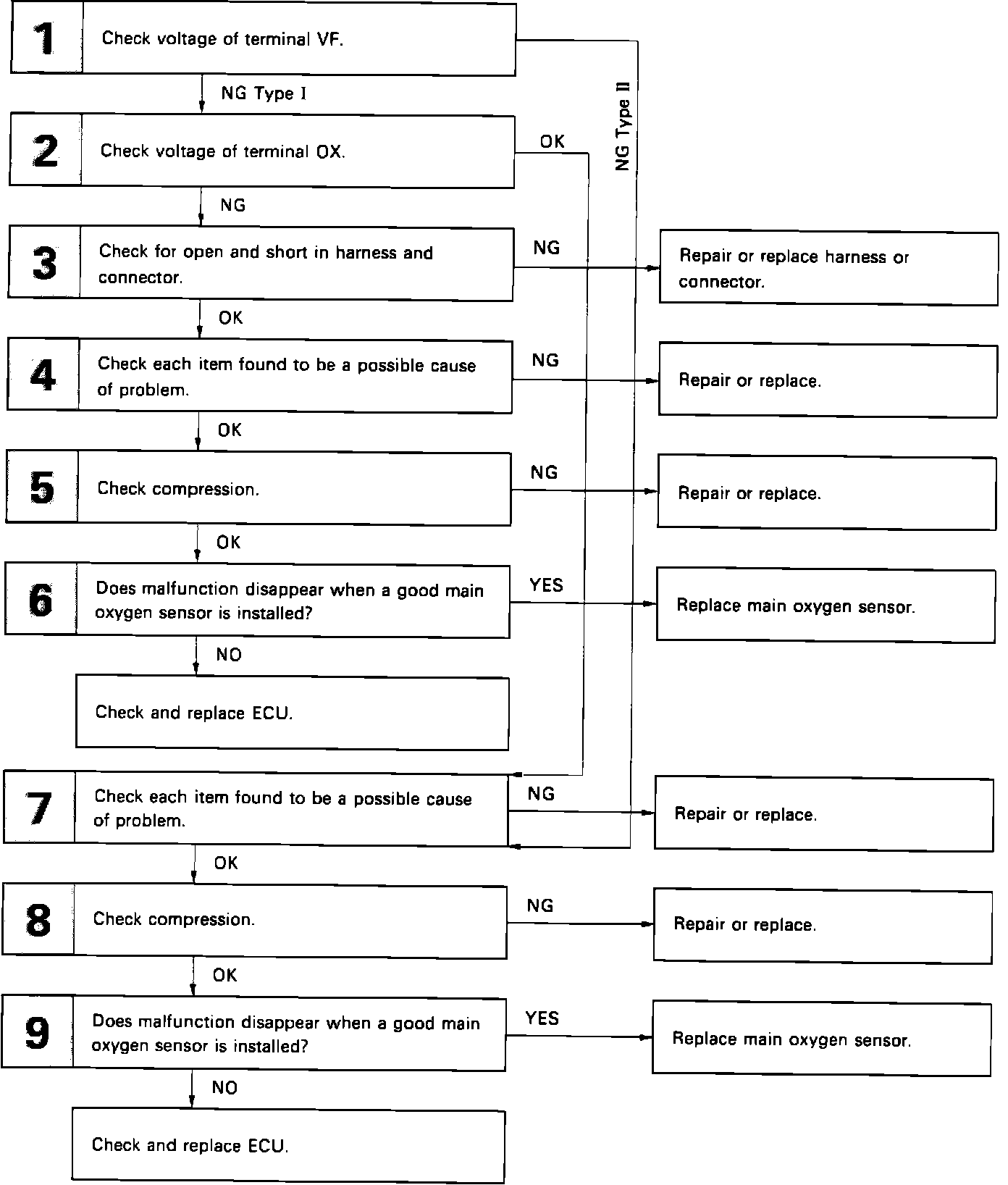

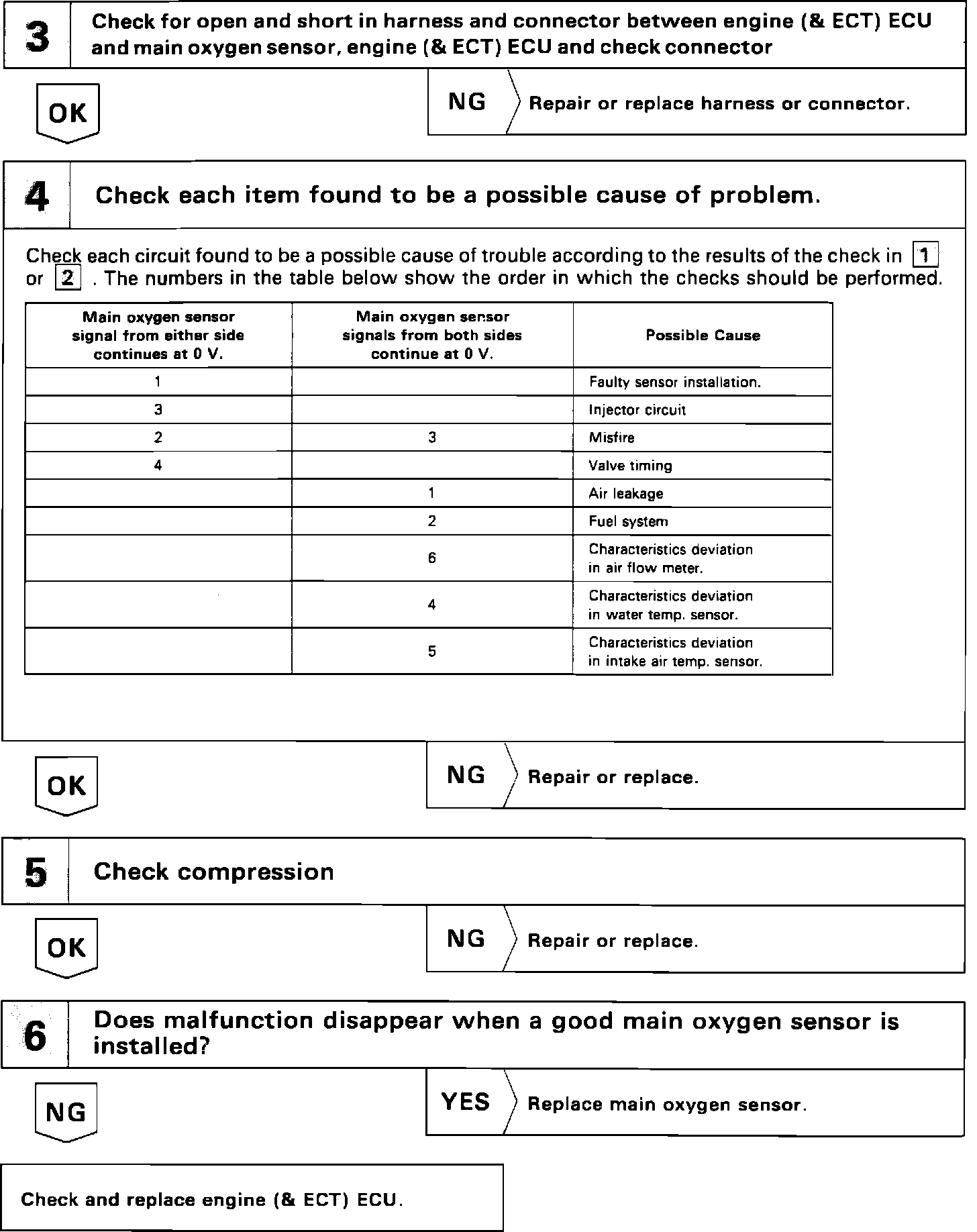

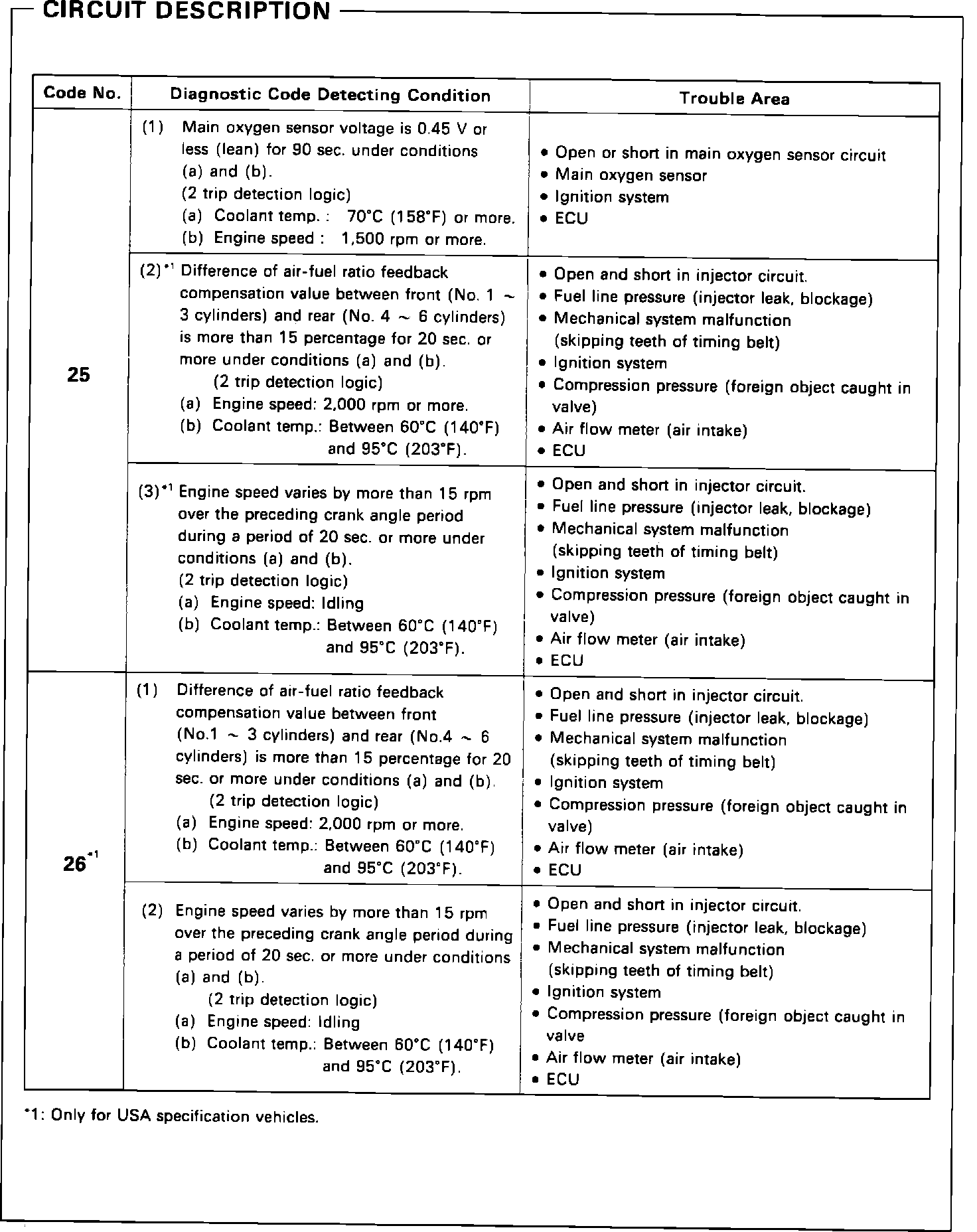

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 1 Of 6):

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 2 Of 6):

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 3 Of 6):

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 4 Of 6):

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 5 Of 6):

Fig. 12 Diagnostic Codes 25 & 26 (Air-fuel Ratio Malfunction, Part 6 Of 6):
