DTC 24
DTC 24

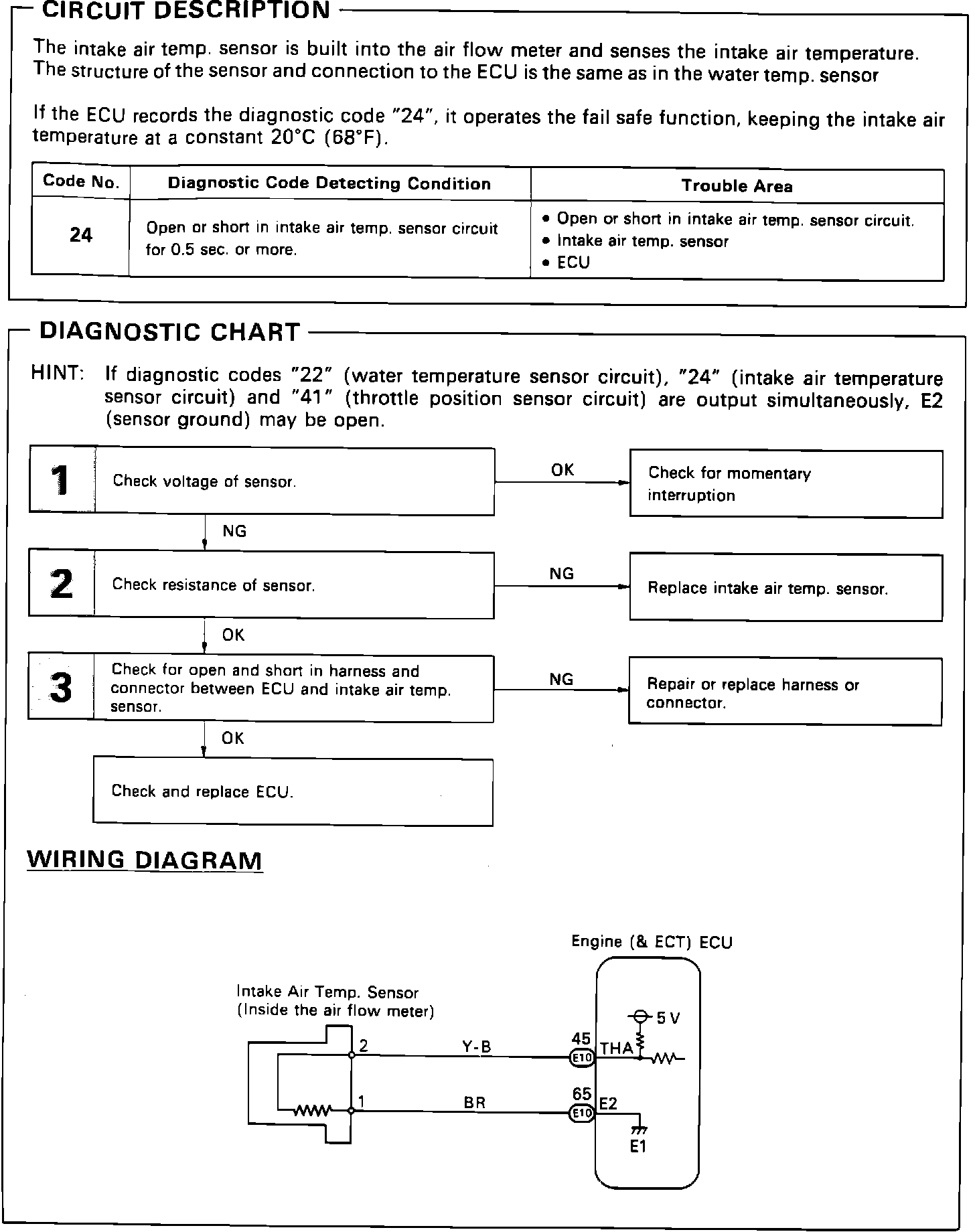

Fig. 11 Diagnostic Code 24 (Intake Air Temperature Sensor Circuit, Part 1 Of 2):
Fig. 11 Diagnostic Code 24 (Intake Air Temperature Sensor Circuit, Part 2 Of 2):
