DTC 22

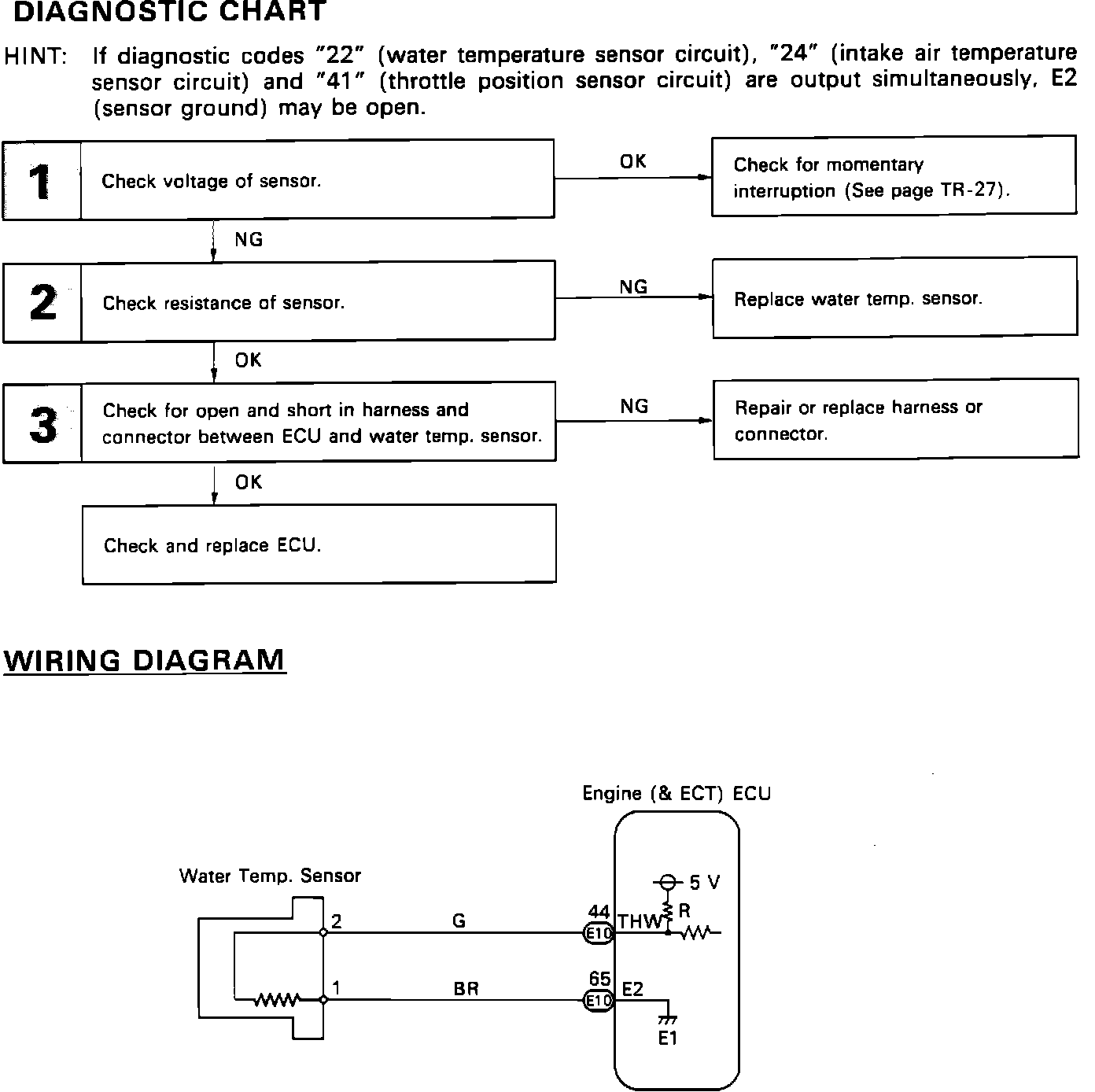

Fig. 10 Diagnostic Code 22 (Water Temperature Sensor Circuit, Part 1 Of 3):

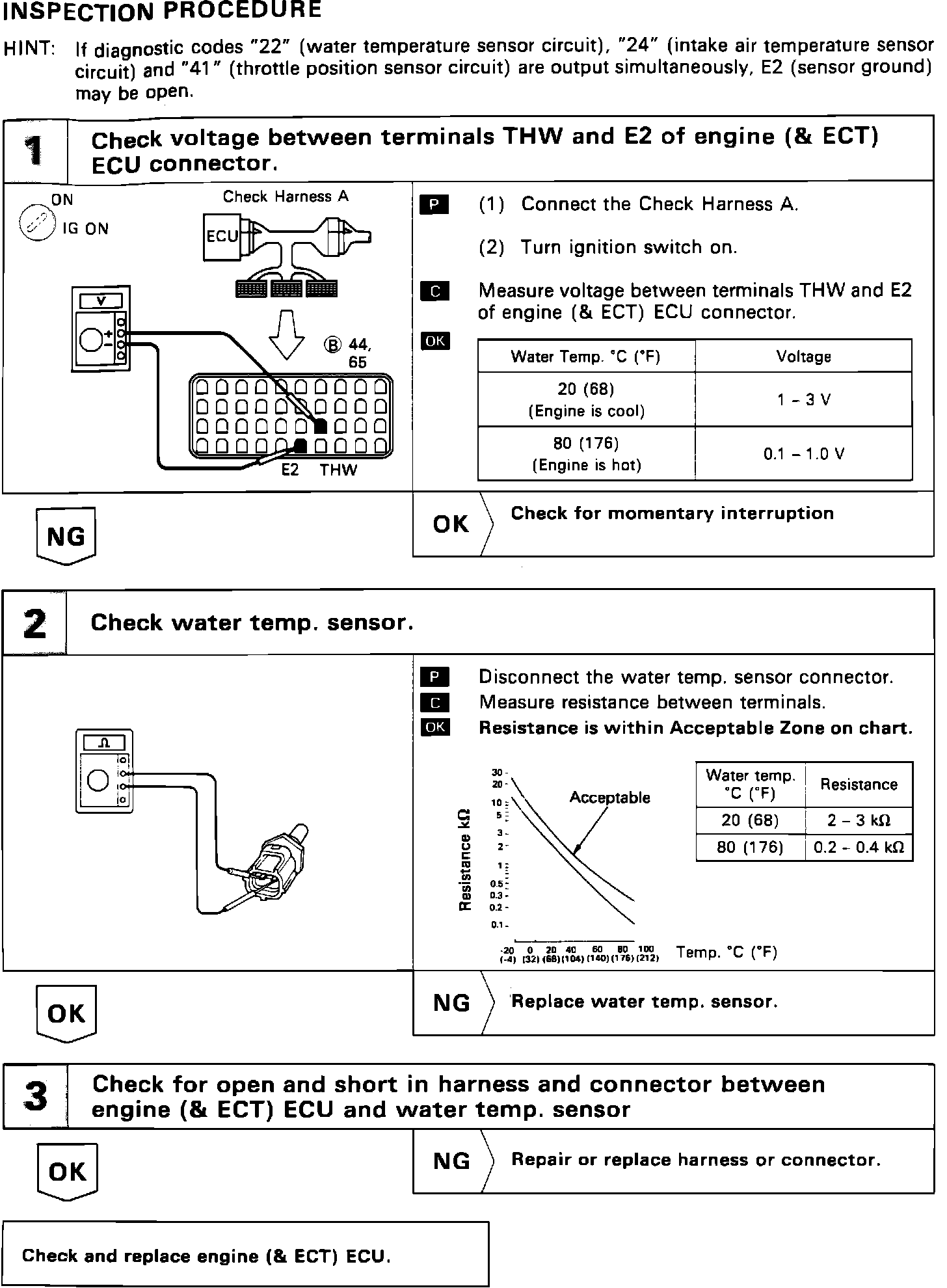

Fig. 10 Diagnostic Code 22 (Water Temperature Sensor Circuit, Part 2 Of 3):

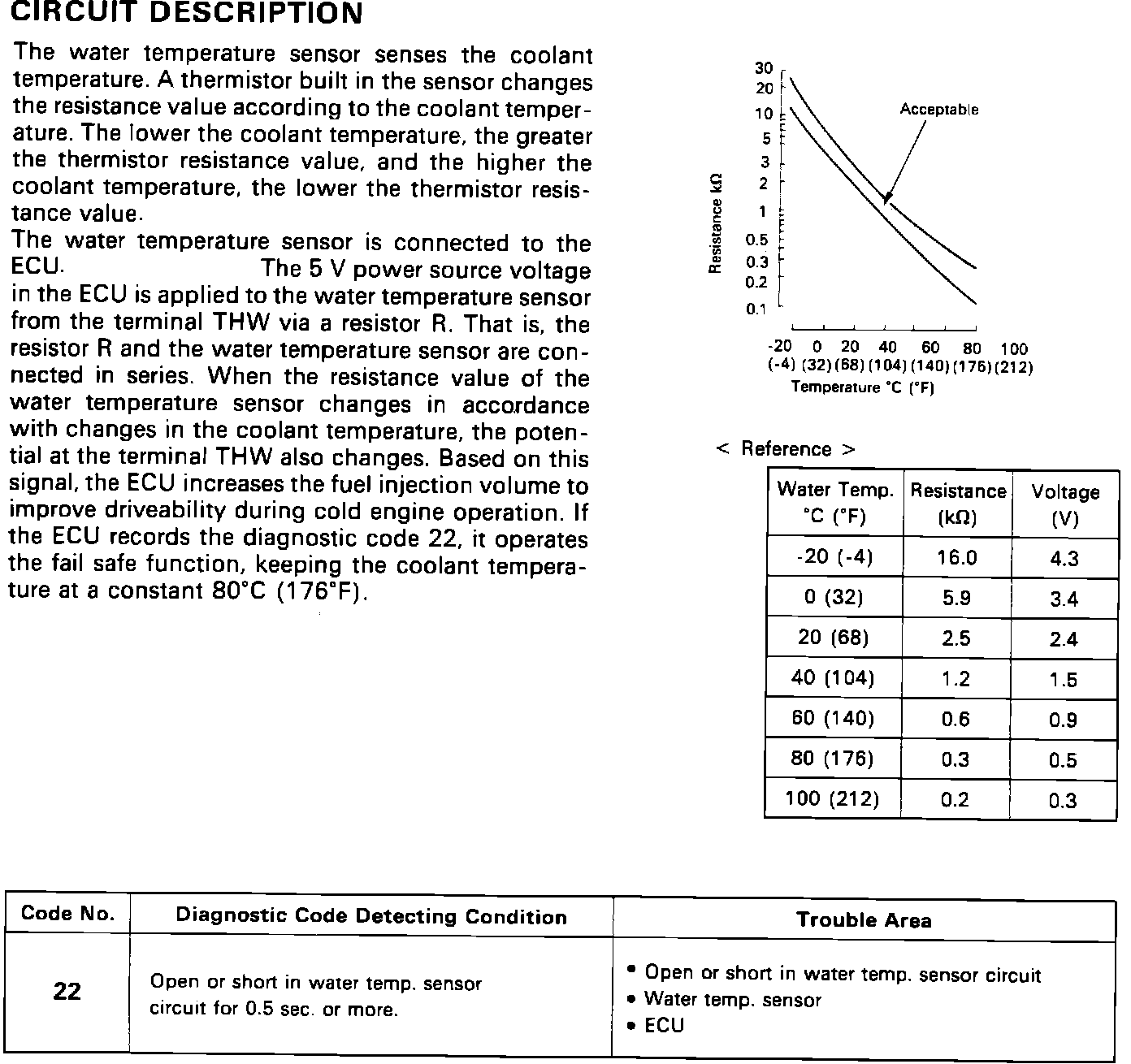

Fig. 10 Diagnostic Code 22 (Water Temperature Sensor Circuit, Part 3 Of 3):
