DTC 14

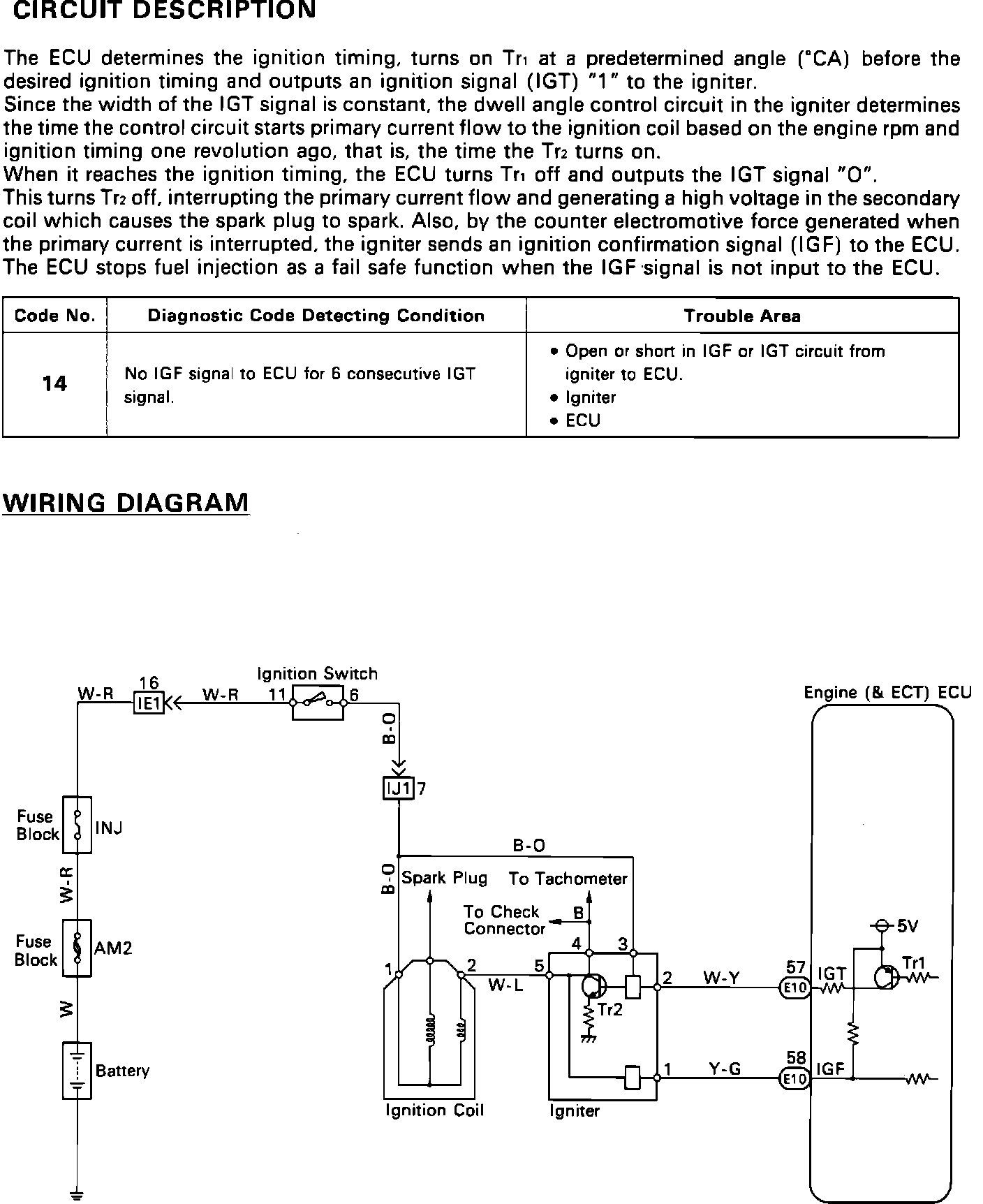

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 1 Of 6):

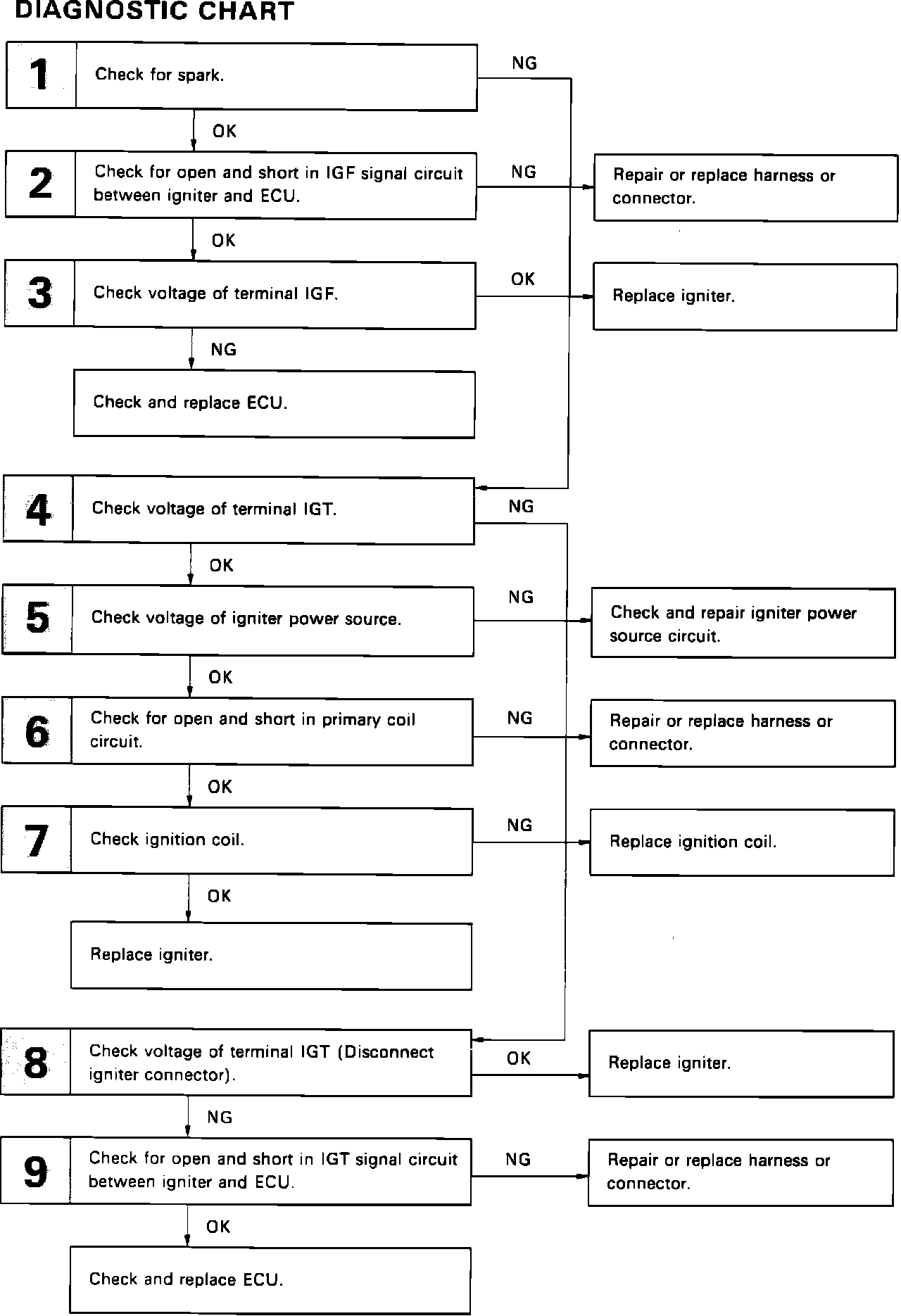

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 2 Of 6):

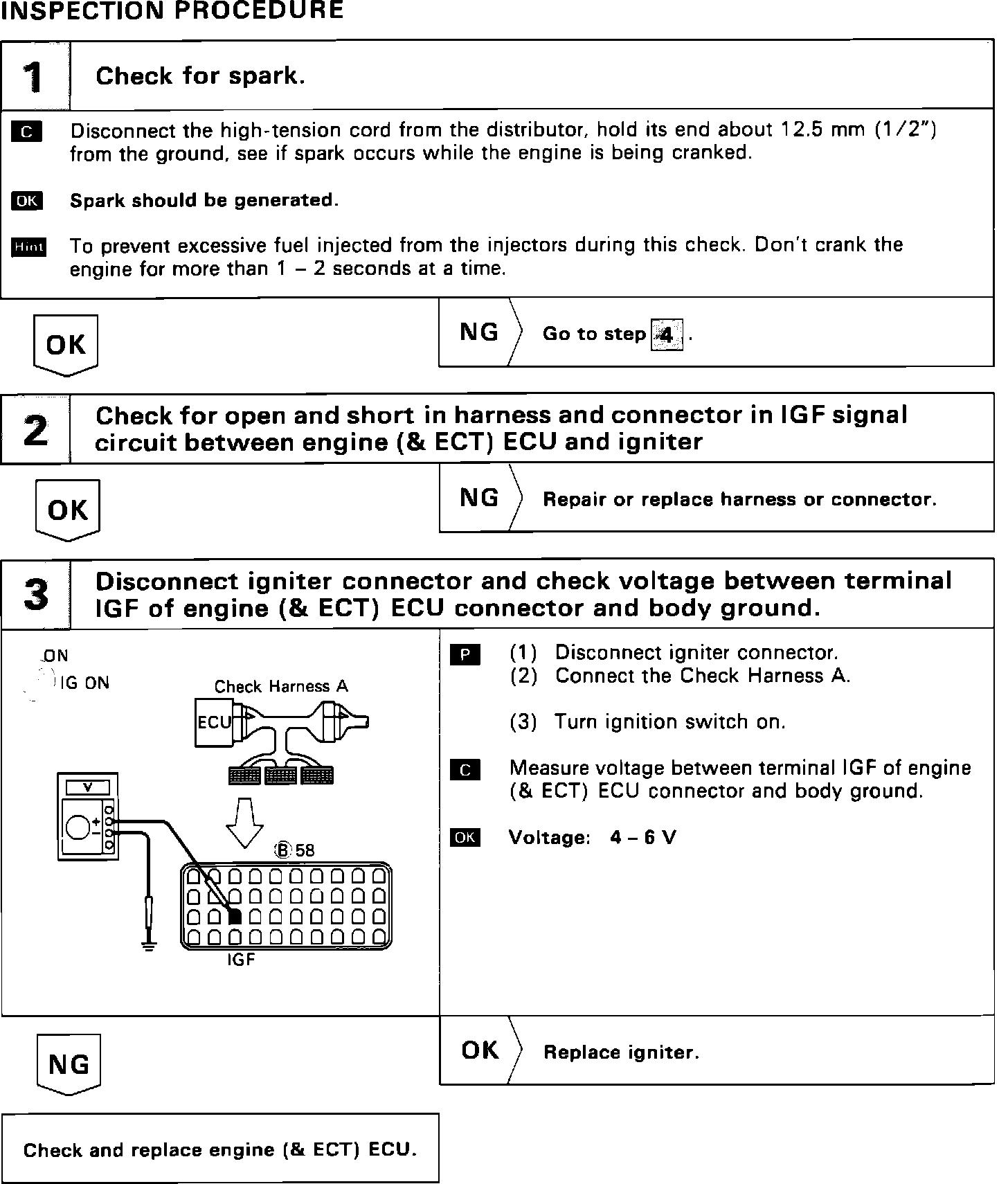

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 3 Of 6):

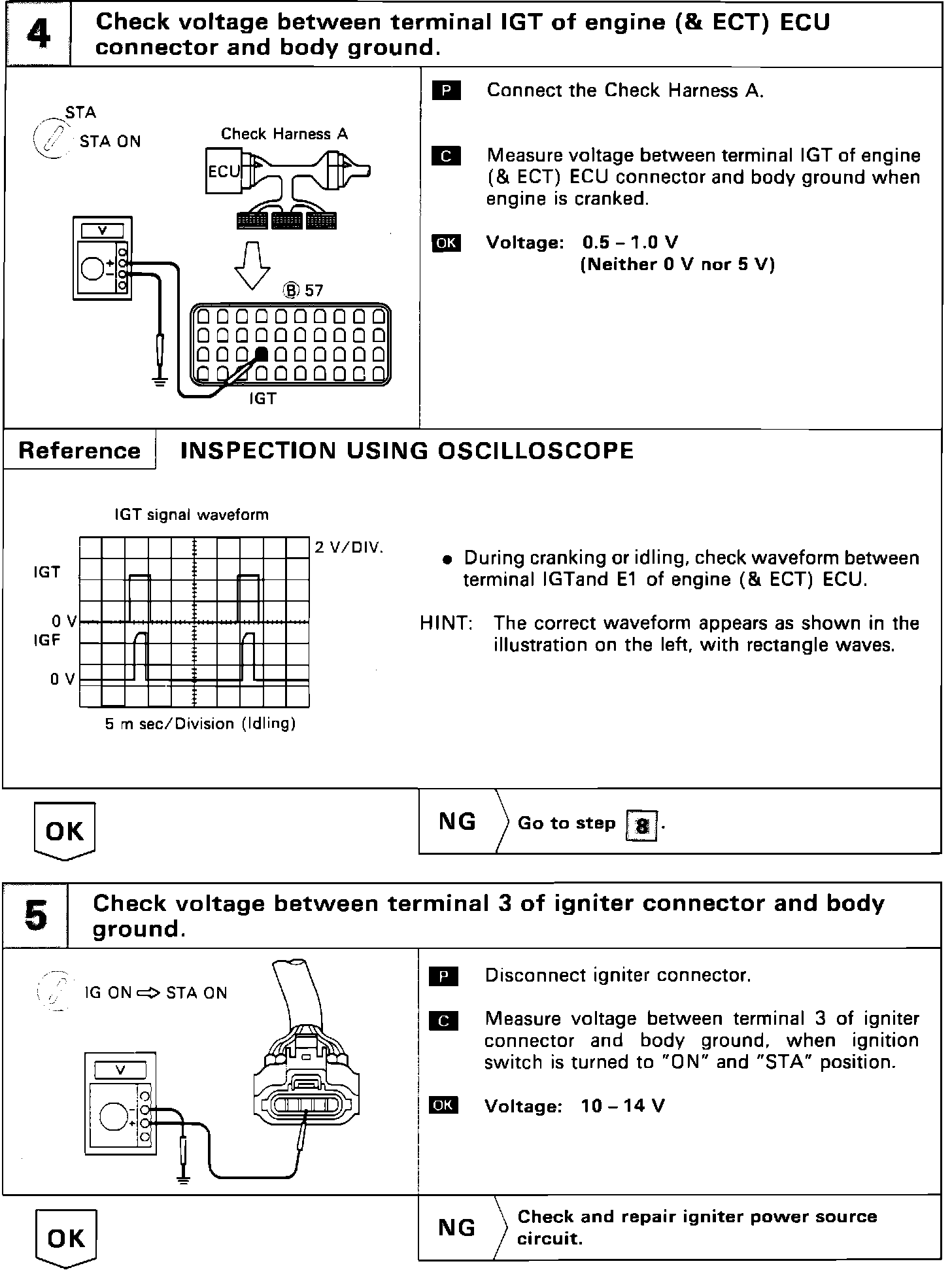

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 4 Of 6):

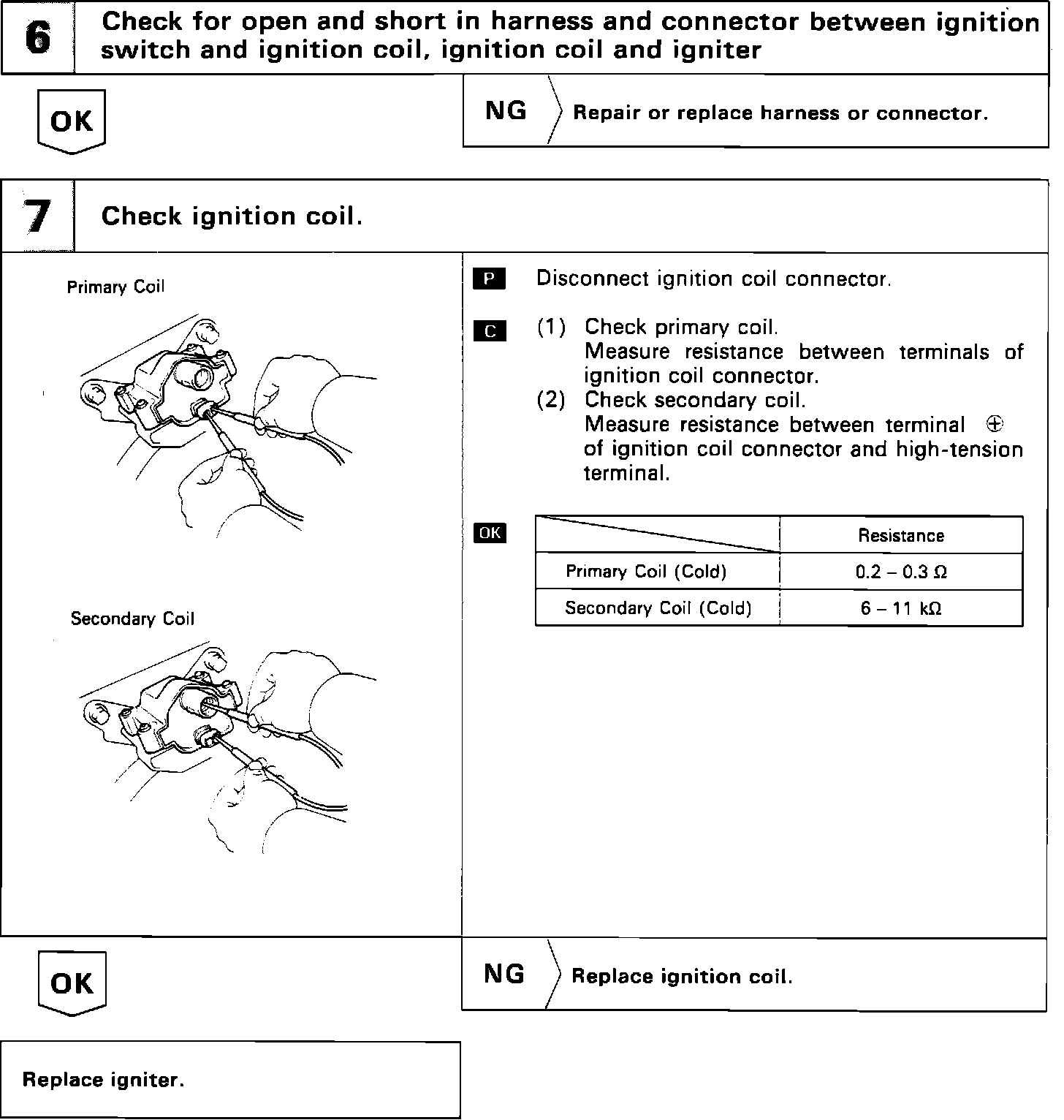

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 5 Of 6):

Fig. 7 Diagnostic Code 14 (Ignition Signal, Part 6 Of 6):
