Home >> Lexus >> 1993 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 13

DTC 13

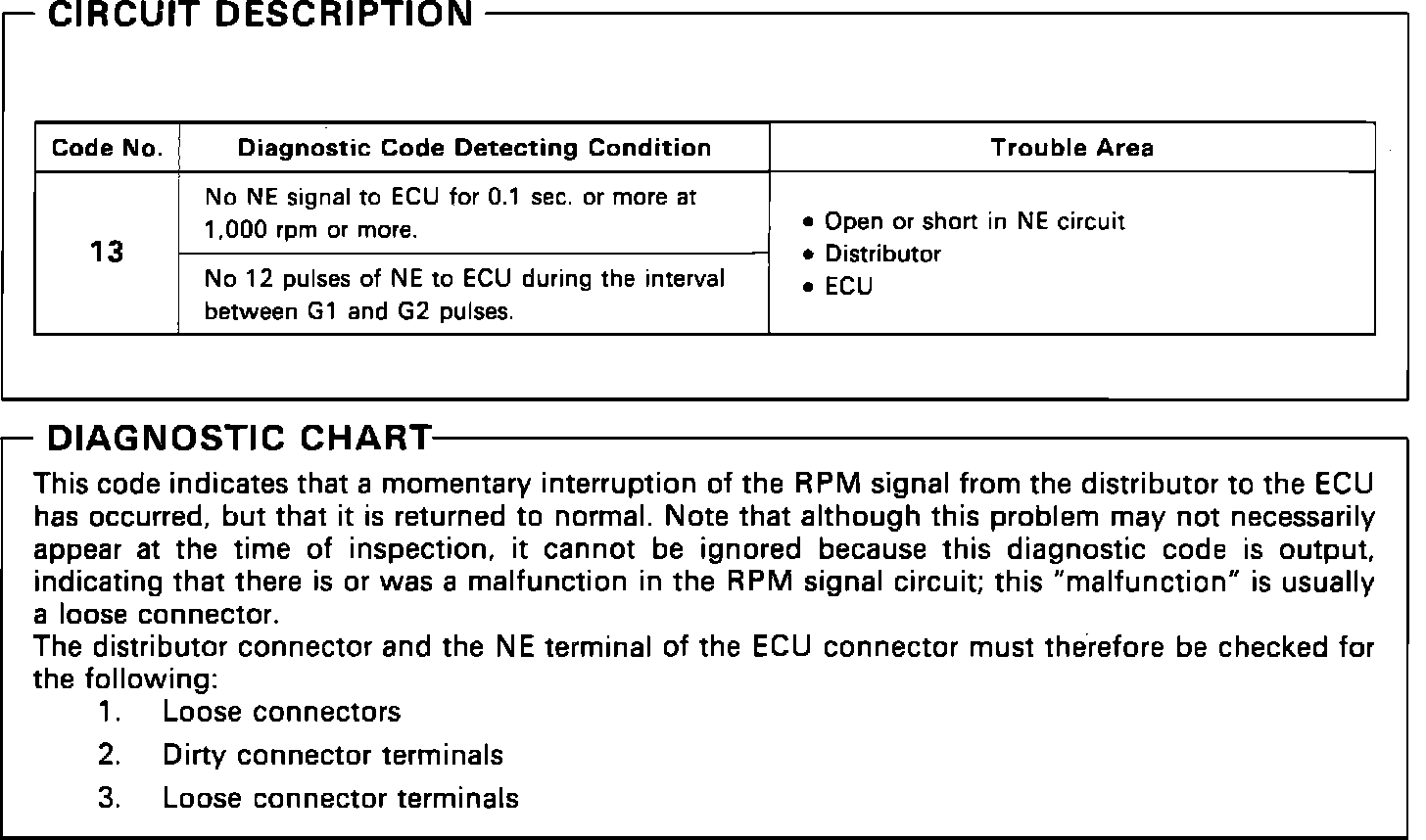

Fig. 6 Diagnostic Code 13 (RPM Signal Circuit No. 2):
