FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1993
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
ABS w/ Traction Control (TRAC)
>>

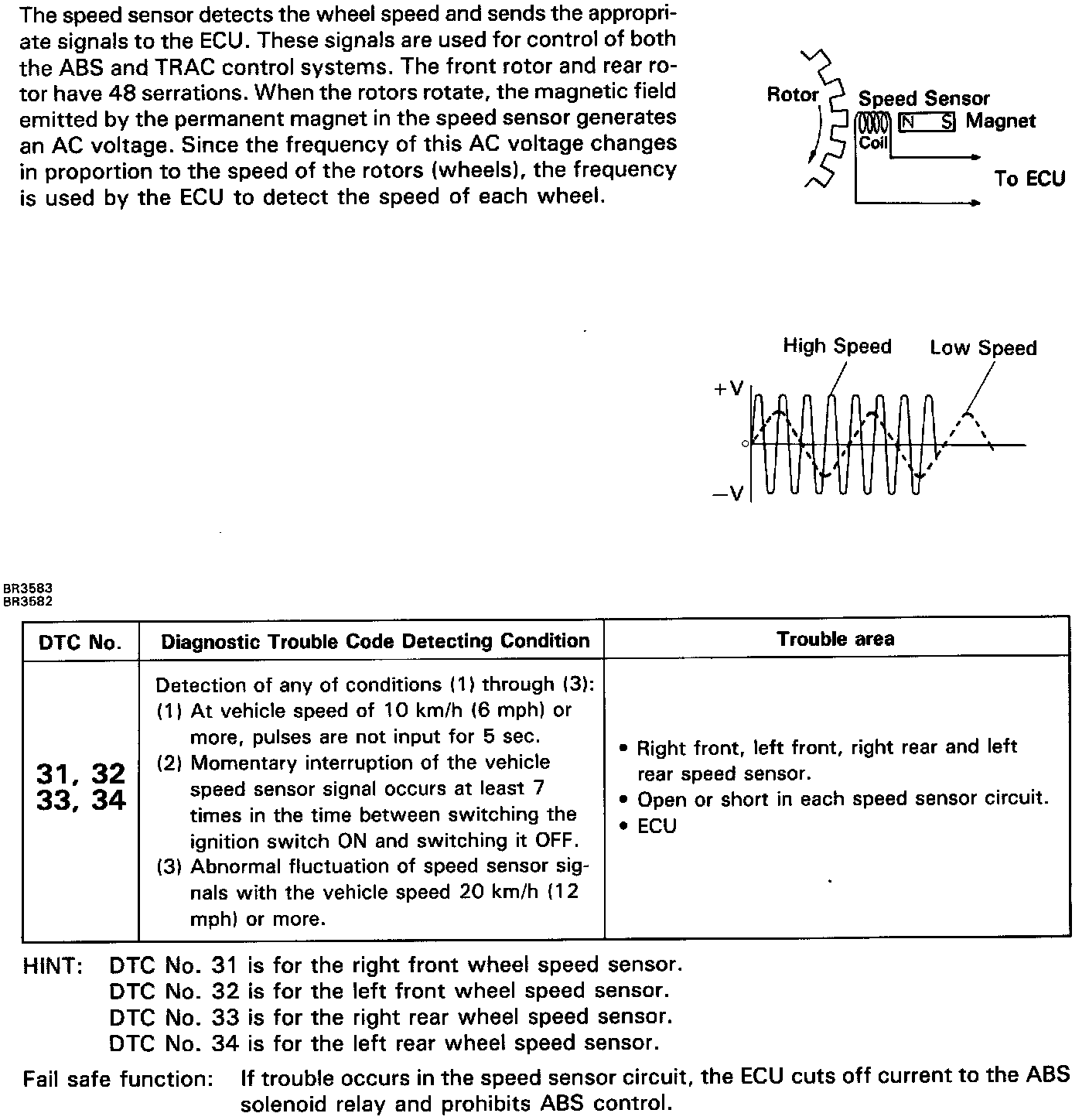

DTC 34
DTC 34

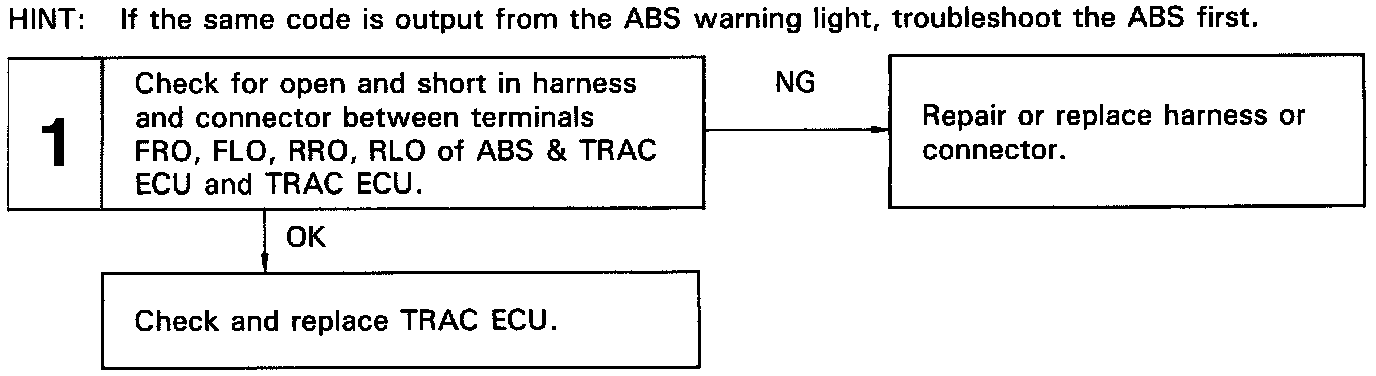

TRAC Code 31,32,33 & 34 Flow Chart (Part 1 Of 2):
TRAC Code 31,32,33 & 34 Flow Chart (Part 2 Of 2):
