Air Conditioning System

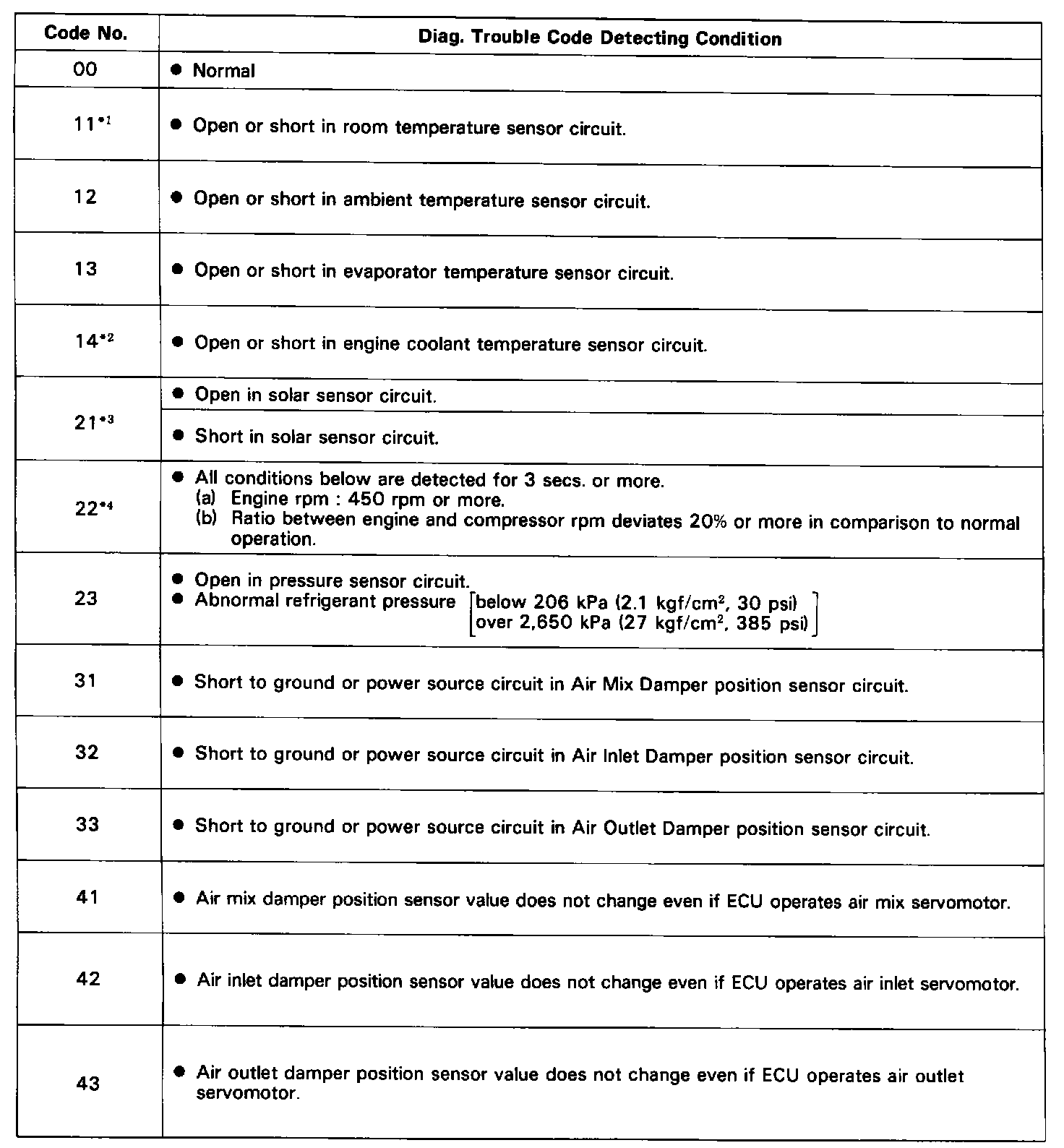

Trouble Code Description Chart:

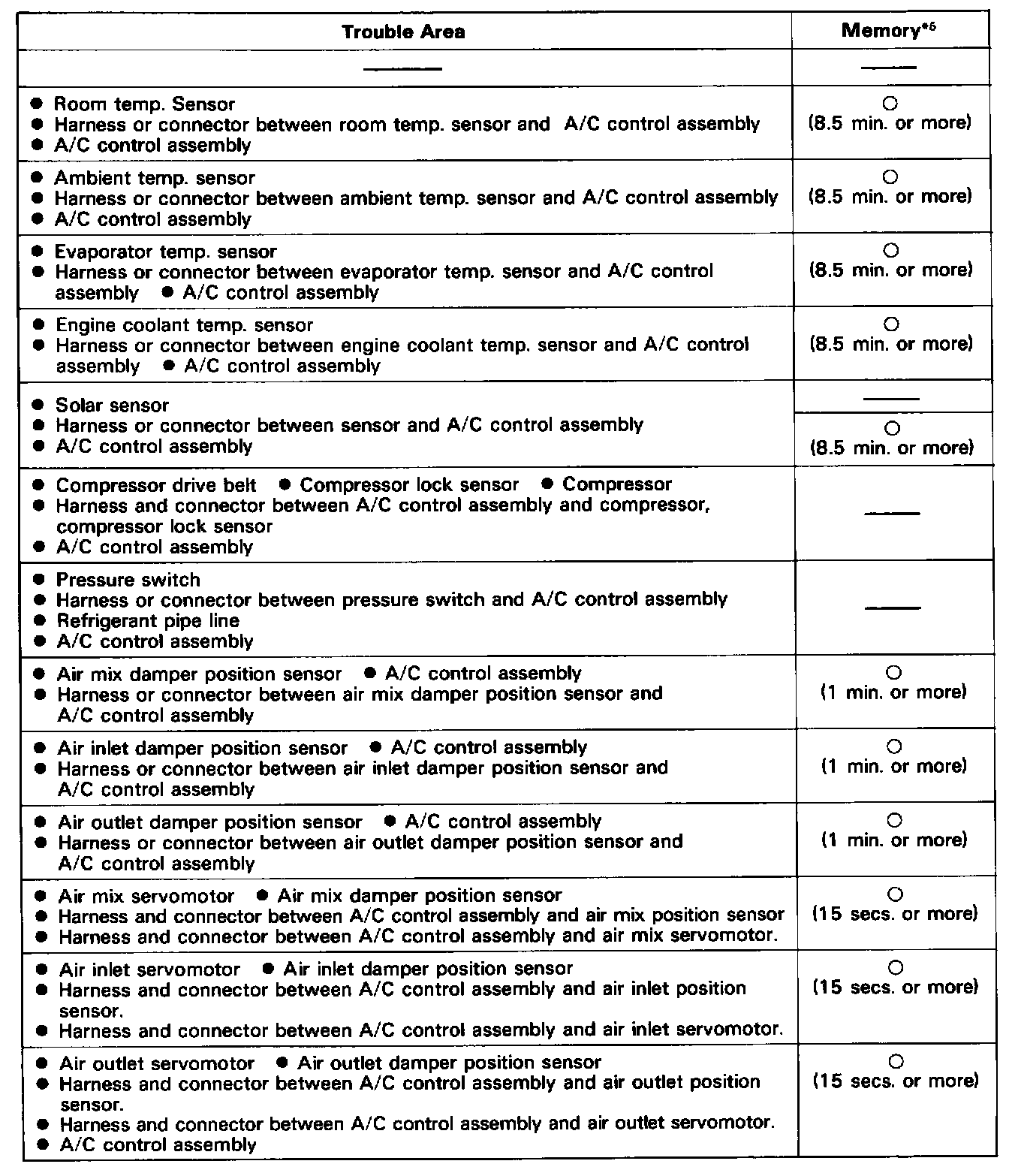

Trouble Code Description Chart (Cont'd):

If a malfunction code is displayed during the diagnostic trouble code check (sensor check), check the circuit listed for that code in the table.

HINT:
*1 If the room temp. is approx. -20°C (-4°F) or lower, code 11 may be output even though the system is normal.
*2 If the ambient temperature is approx. -50°C (-58°F) or lower, a malfunction code may be output even though the system is normal.
*3 If the check is being performed in a dark place, diagnostic trouble code 21 (solar sensor circuit abnormal) could be displayed. In this case, perform diagnostic trouble code check again while shining a light, such as an inspection light, on the solar sensor.
If code 21 is still displayed, there could be trouble in the solar sensor circuit.
*4 Compressor lock (Diag. trouble code 22) is indicated only for a currently occurring malfunction.
To confirm diagnostic trouble code 22, perform the following steps:
(1) With the engine ON, enter the diagnostic trouble code check mode.
(2) Press the switch to enter actuator check mode, and set the operation to Step No.3.
(3) Press the [AUTO] switch to return to diagnostic trouble code check mode.
(4) The diagnostic trouble code is displayed after approx. 3 secs.
*5 The ECU memorizes the diag. trouble code of the respective malfunction when it has occurred for the period of time indicated in the brackets.
