Igniter Circuit



Circuit Description
The air conditioner control assembly monitors the engine speed through signals sent from the igniter. The air conditioner control assembly uses these signals and compressor speed signals to detect the compressor lock condition.

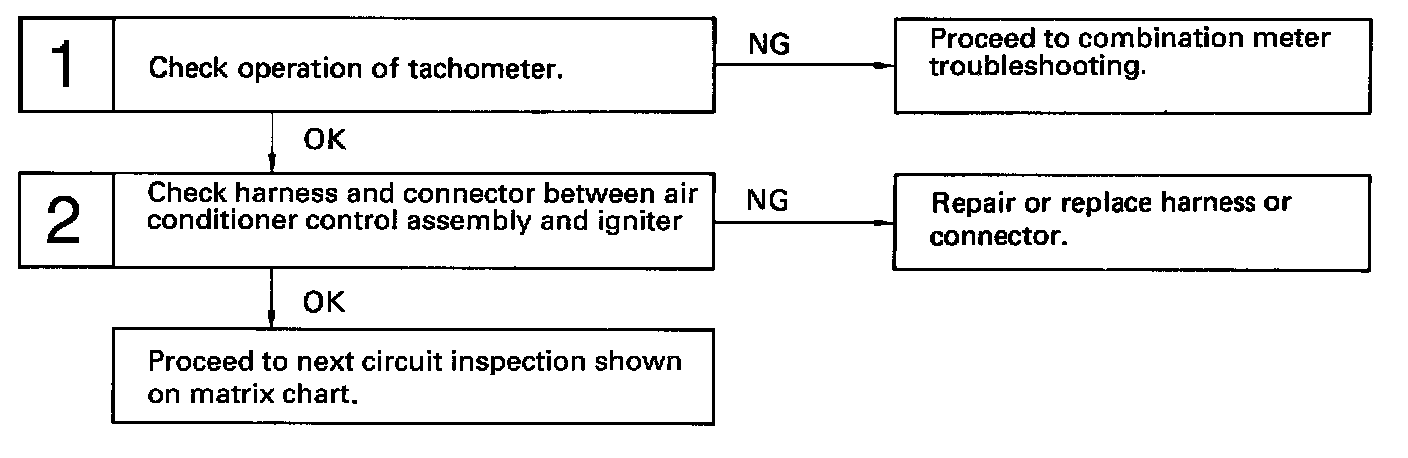

Diagnostic Chart:

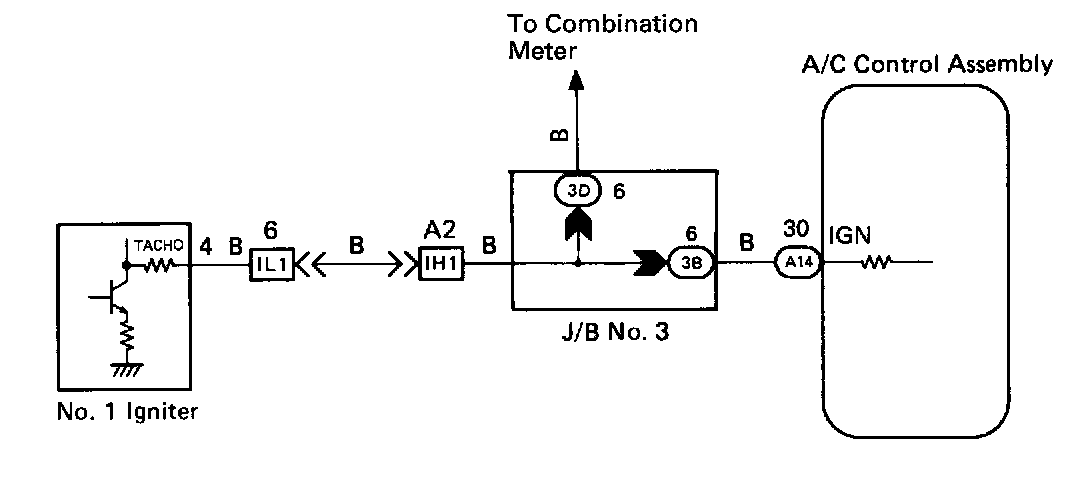

Wiring Diagram:





Inspection Procedure

Step 1:

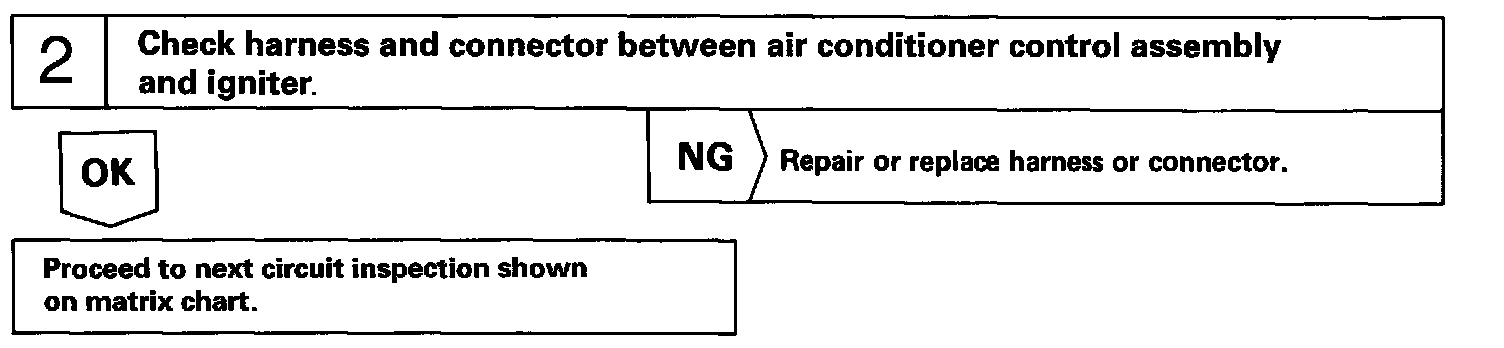

Step 2:
