Heating and Air Conditioning: Locations

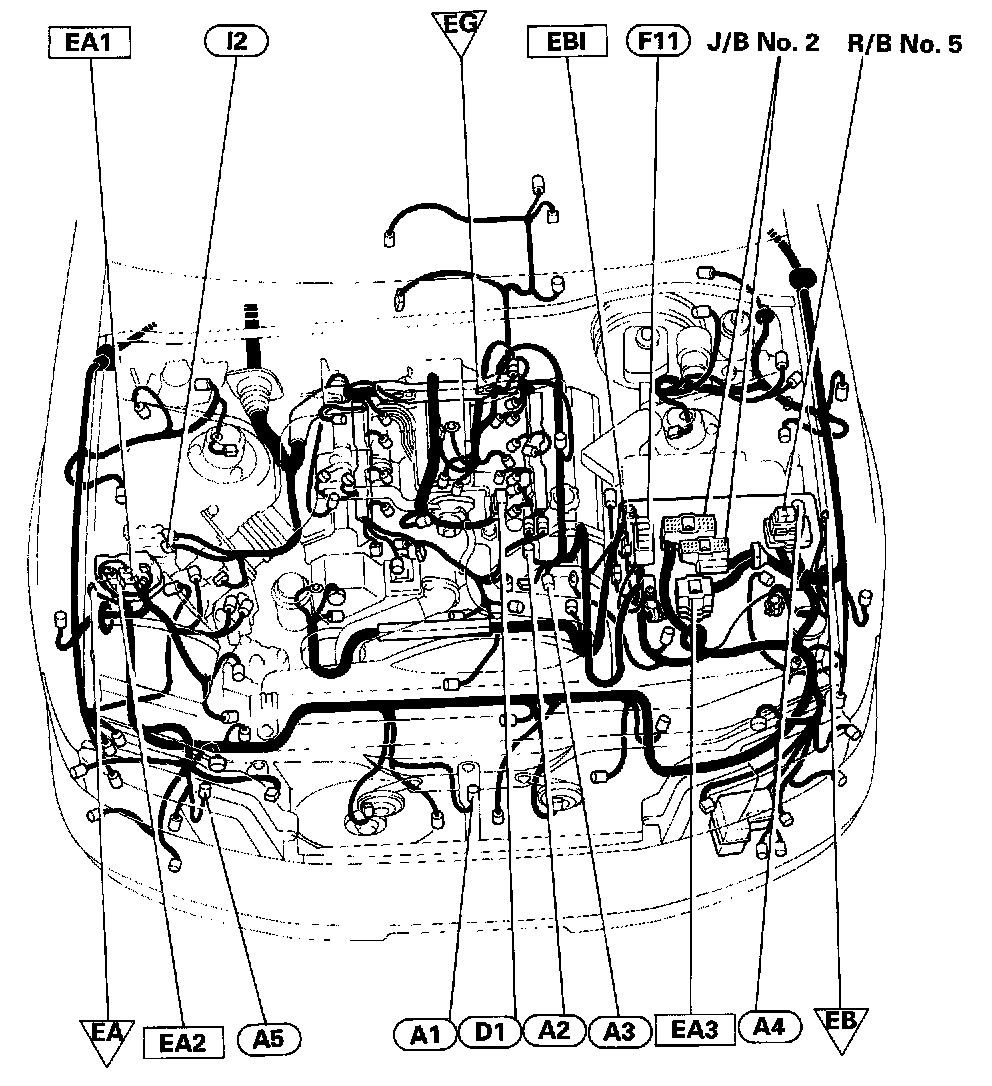

Connector Location Engine Compartment:

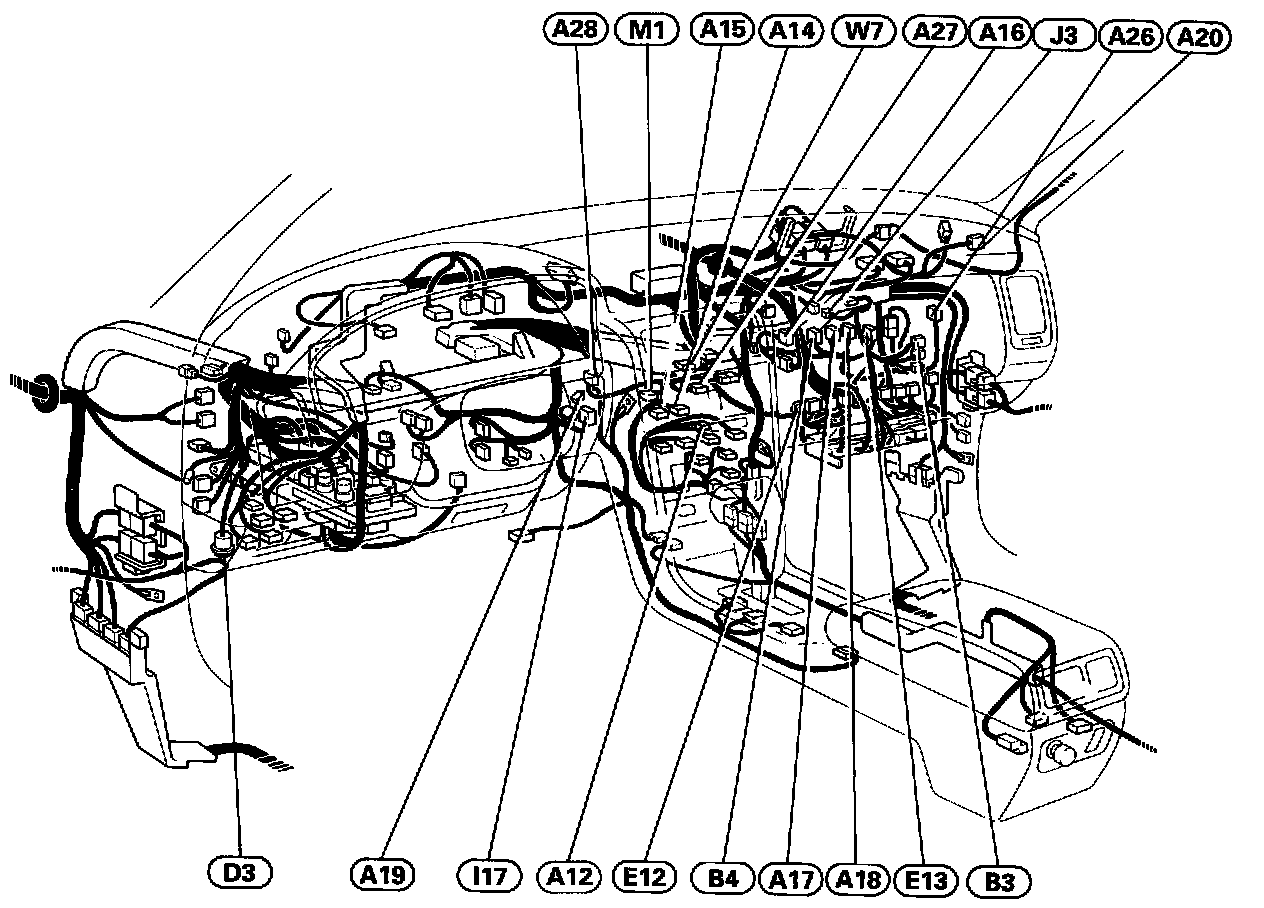

Connector Location Instrument Panel:

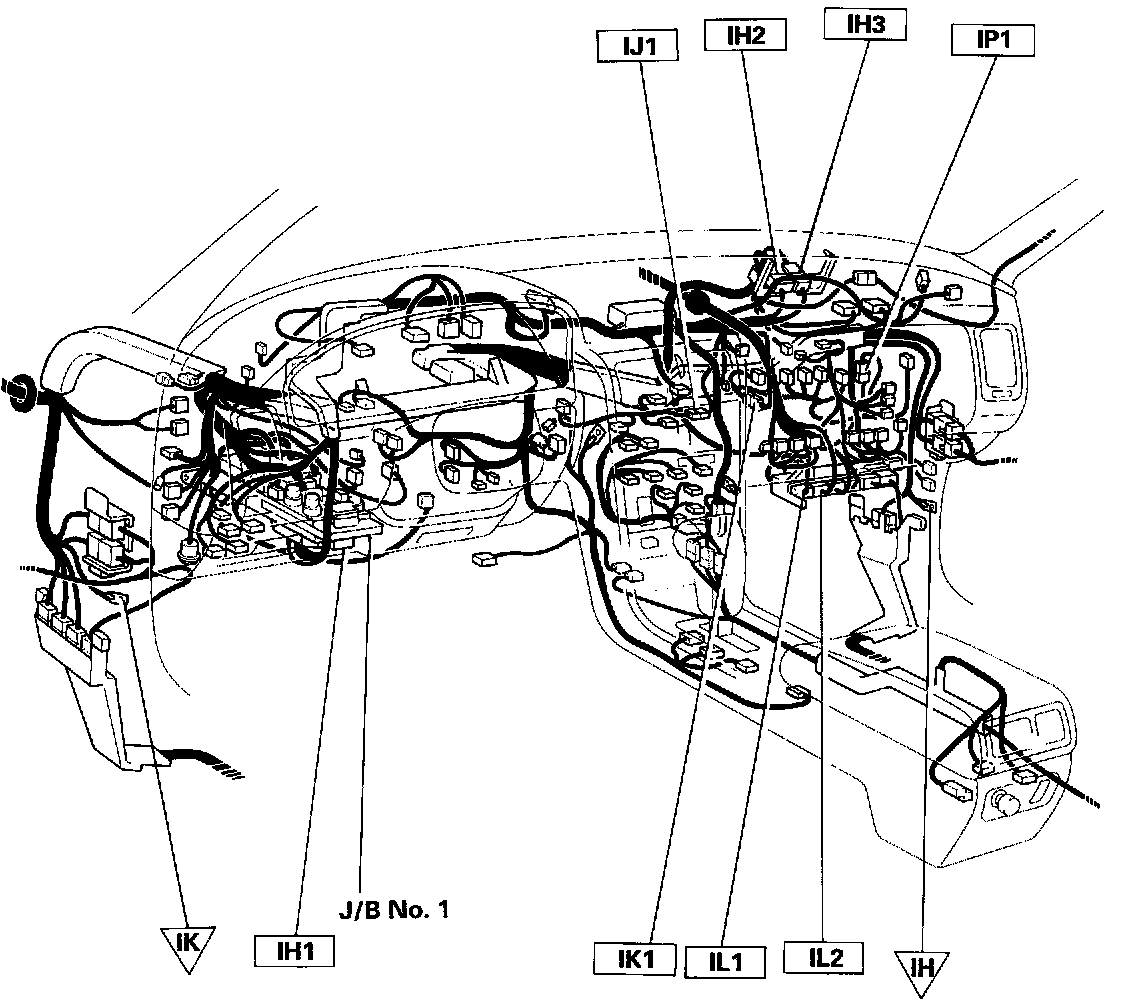

Connector Location Instrument Panel (Cont'd):

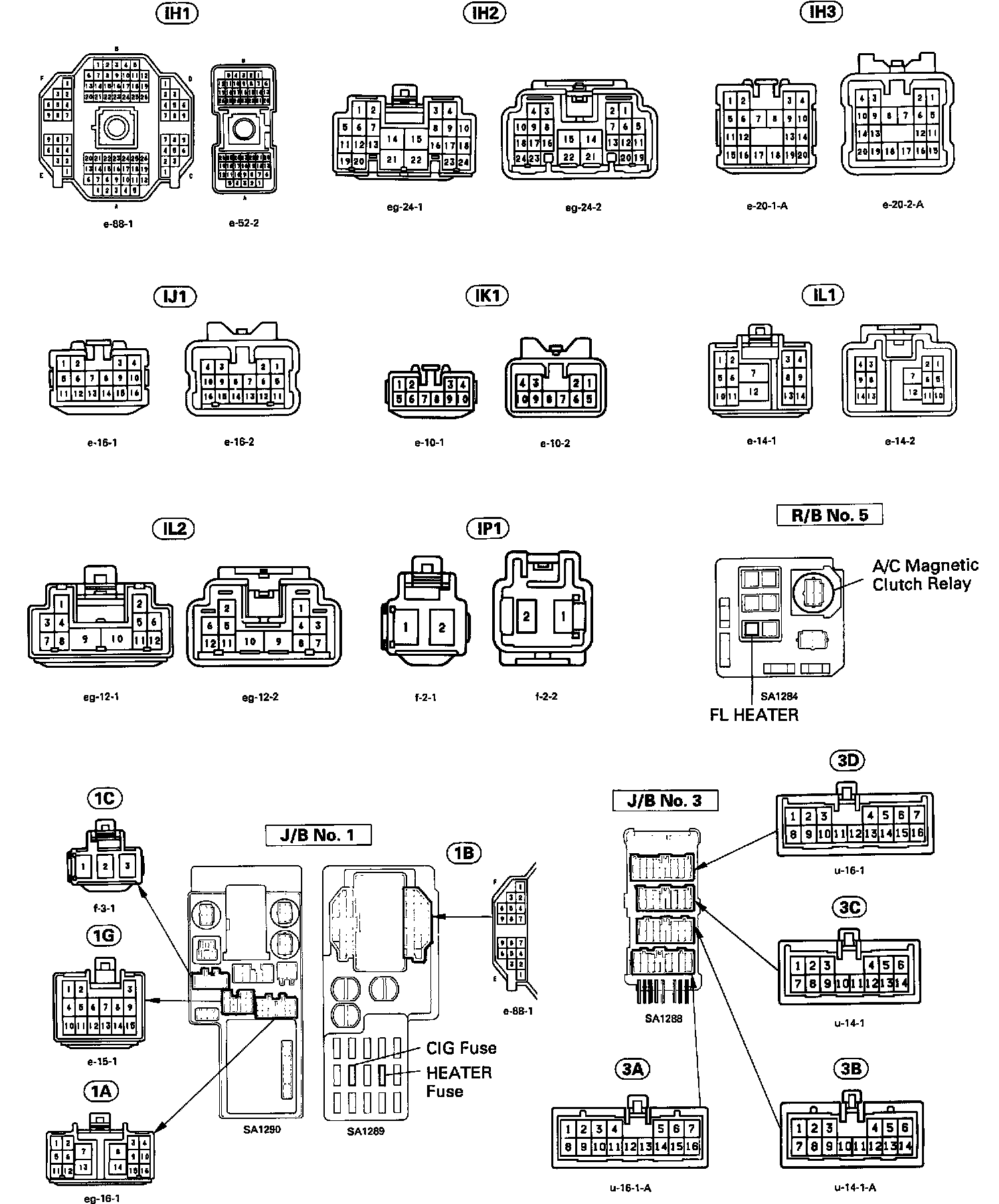

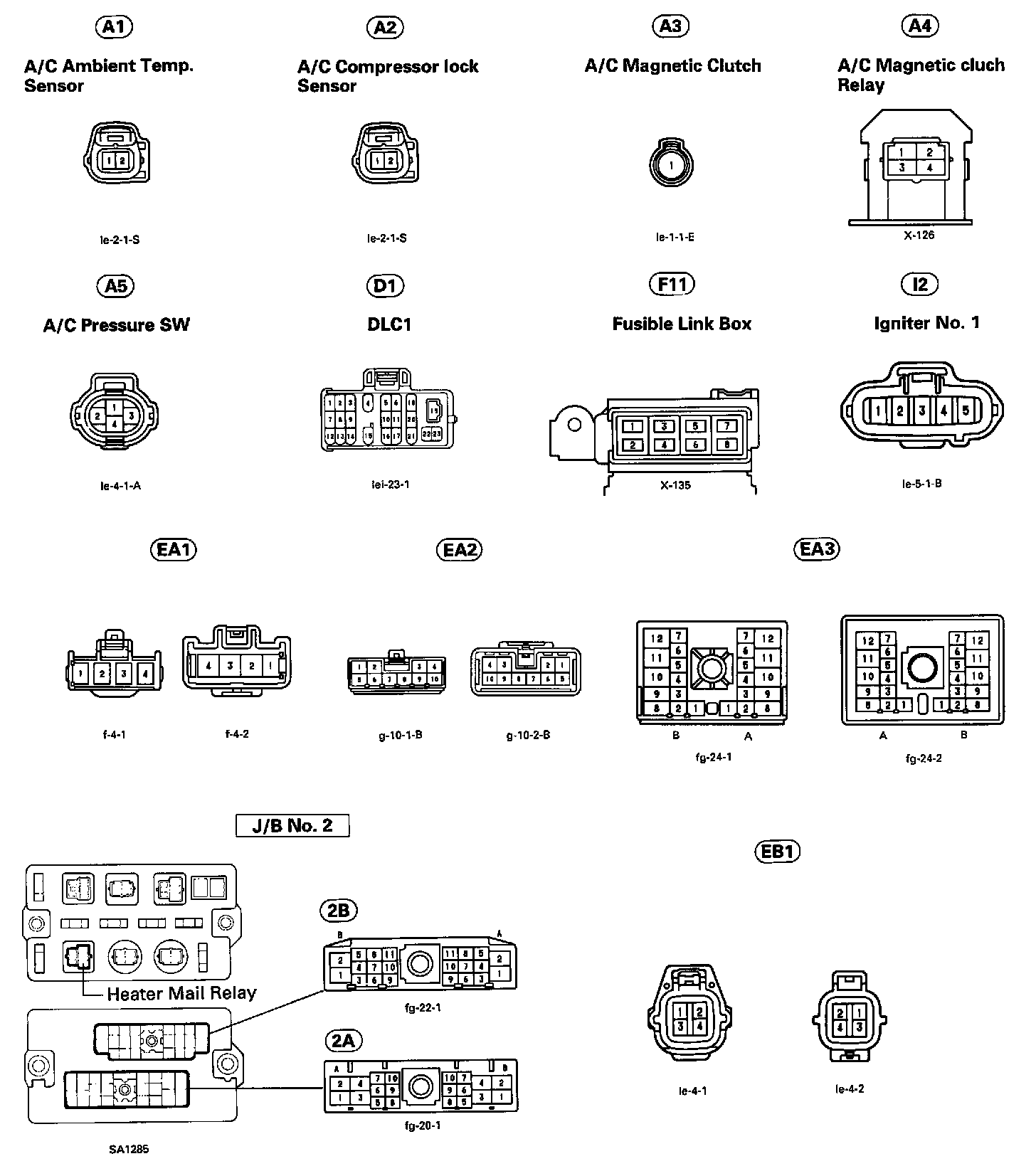

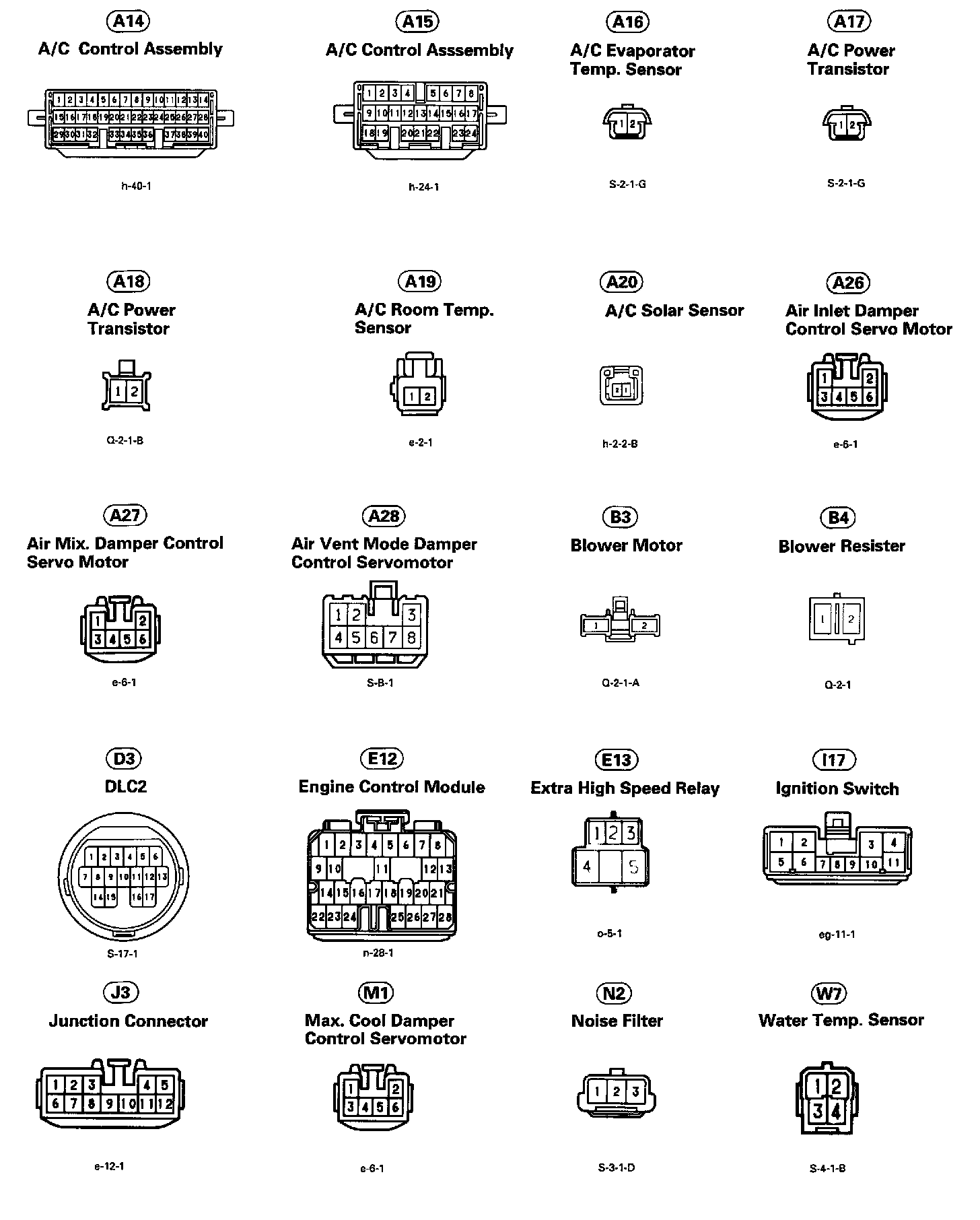

Connector Views
