Disconnection and Connection of Bolt Type Connectors

Disconnection And Connection Of Bolt Type Connectors:

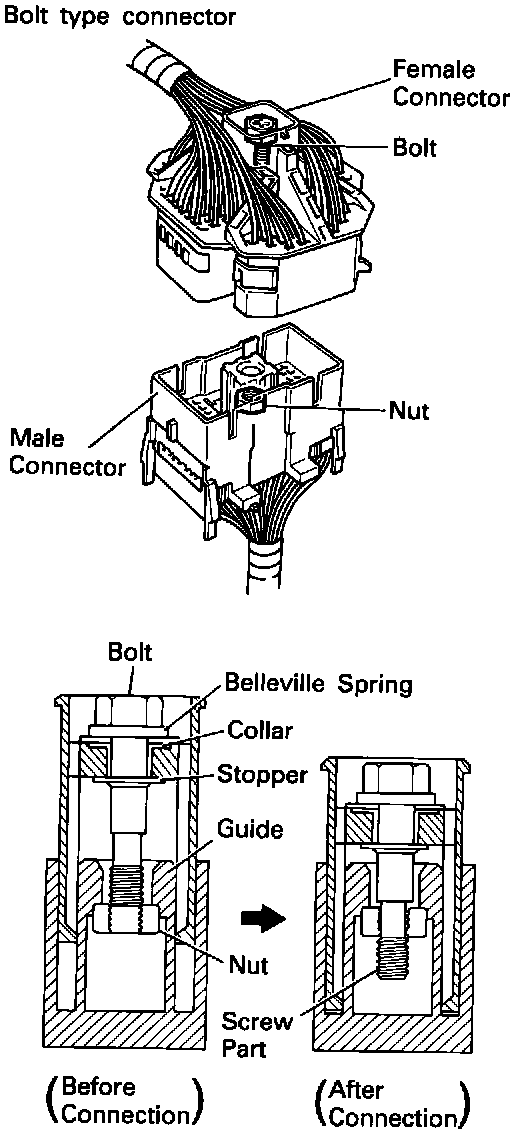

In several places in this vehicle, connectors are used which require a bolt built into the connector to be screwed down to securely connect the connector.

1. Disconnect the connector
After completely loosening the bolt, the two parts of the connector can be separated.

NOTE: Do not pull the wire harness when disconnecting the connector.

2. Connect the connector

NOTE:

Before connecting the connector, always check that the terminals are not bent or damaged.

a. Match the guide section of the male connector correctly with the female connector, then press them together.
b. Tighten the bolt.
As the bolt presses the connectors together the torque increases, but when the connectors are completely joined together the torque is suddenly reduced as the screw part of the bolt passes through the nut.

HINT: When the connector is completely connected, a clicking sound is made each time the bolt is turned once.
