CD Changer - Improvement to the Open Button

AUDIO
AU93-001
MAY 21, 1993
LS400

Title:
IMPROVEMENT TO '93 LS 400 CD CHANGER "OPEN" BUTTON

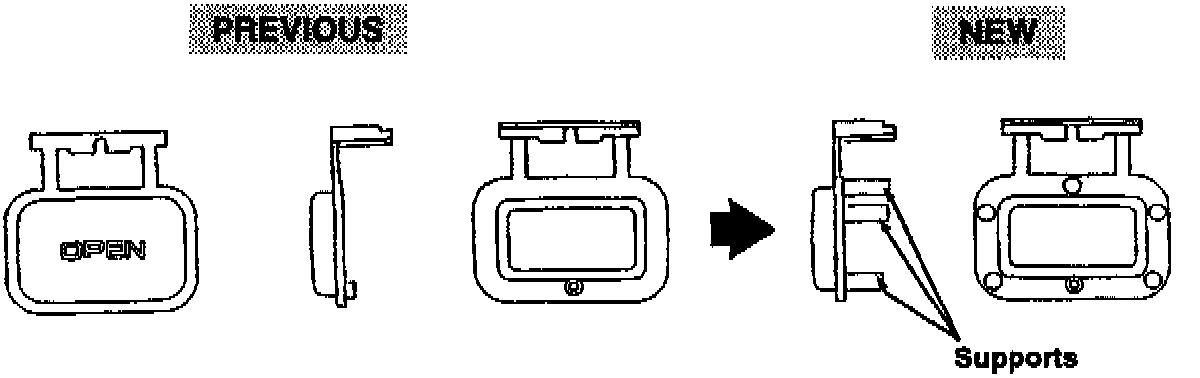

Supports were added to the "OPEN" button of the '93 LS 400 CD changer to reduce pressure applied to the button's hinges and eliminate the possibility of the hinge breaking.





PRODUCTION CHANGE INFORMATION:

Part Number remains unchanged.

EXCHANGE UNIT INFORMATION:

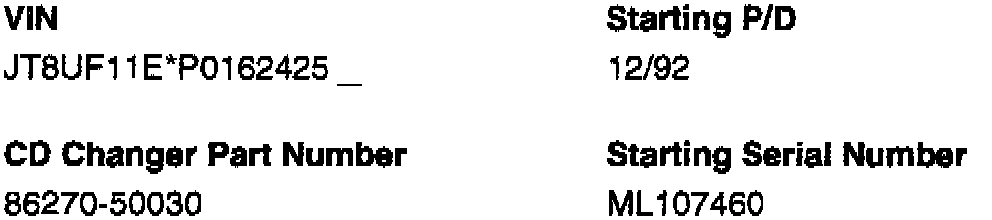

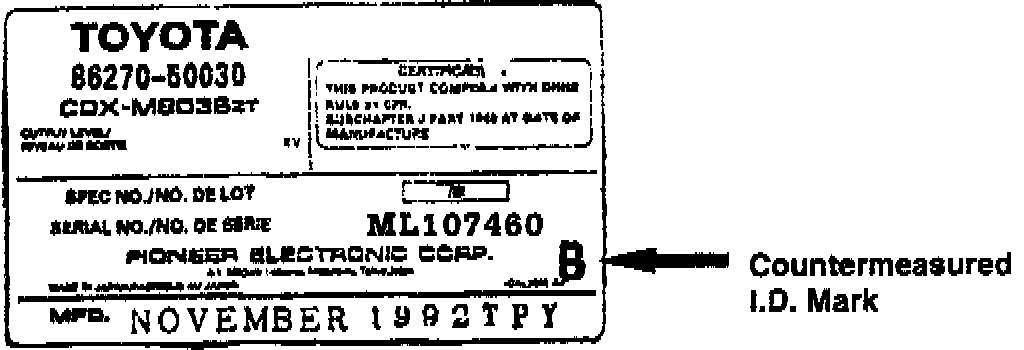

Pioneer began shipping countermeasured CD changers starting 2/93. Countermeasured CD changers will have a "B" added after the serial number:





PLEASE RETURN EXHANGED UNITS IMMEDIATELY TO PIONEER.
