DTC 38
Circuit DESCRIPTIONThe oil temperature sensor converts oil temperature into resistance values which is input into the Engine Control Module (ECM).

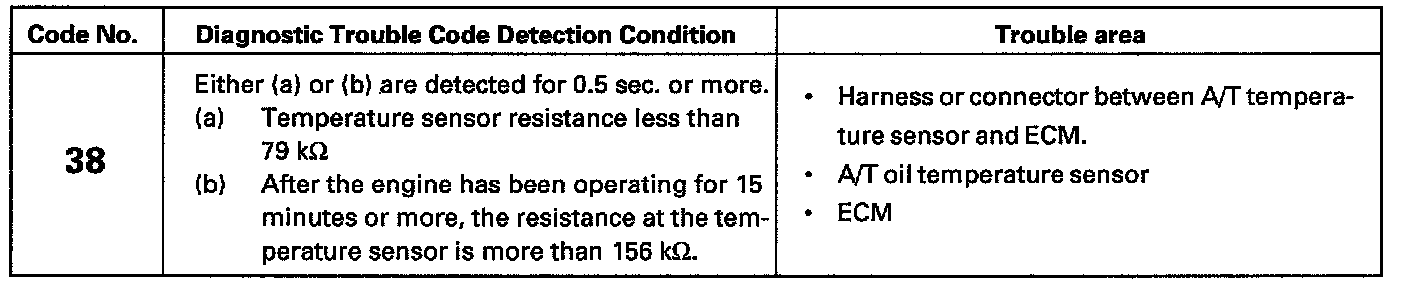

DETECTING CONDITION

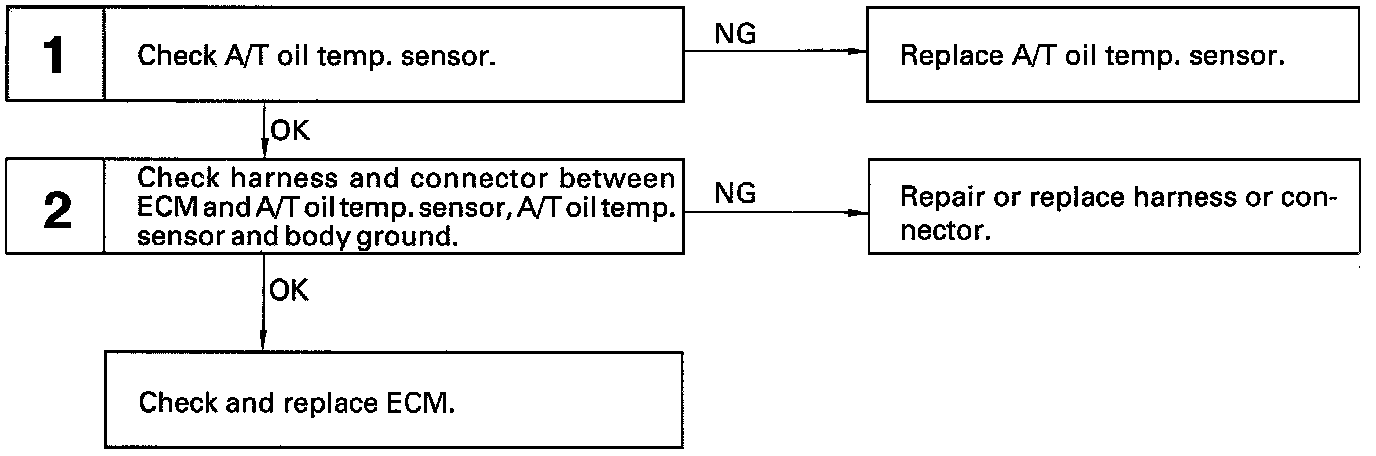

DIAGNOSTIC CHART

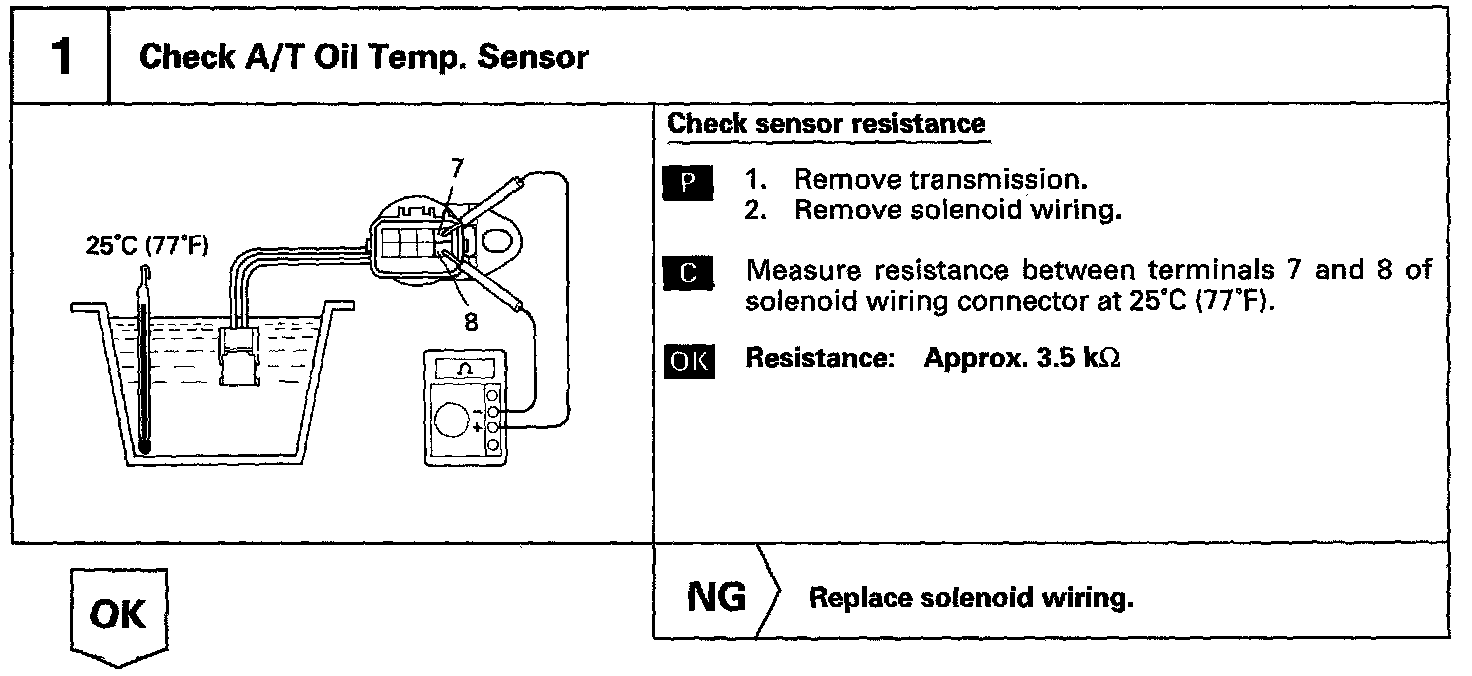

INSPECTION PROCEDURE

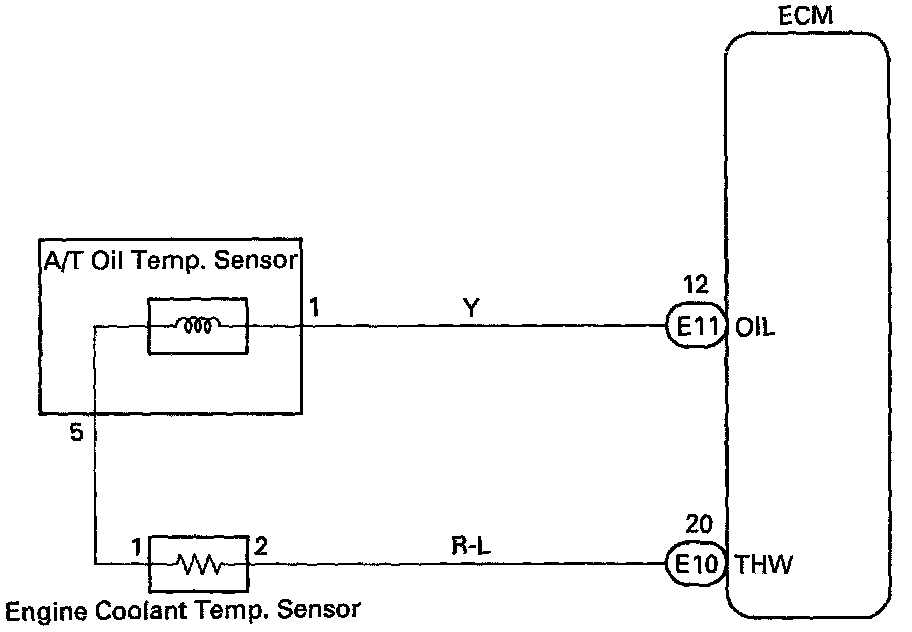

WIRING DIAGRAM
The oil temperature sensor converts oil temperature into resistance values which is input into the Engine Control Module (ECM).
DETECTING CONDITION
DIAGNOSTIC CHART
INSPECTION PROCEDURE
WIRING DIAGRAM
