DTC 22

Circuit Description
This sensor sends 4 pulses per engine revolution to the air conditioner control assembly.
If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the air conditioner control assembly turns the compressor off. And, the indicator flashes at about 1 second intervals.

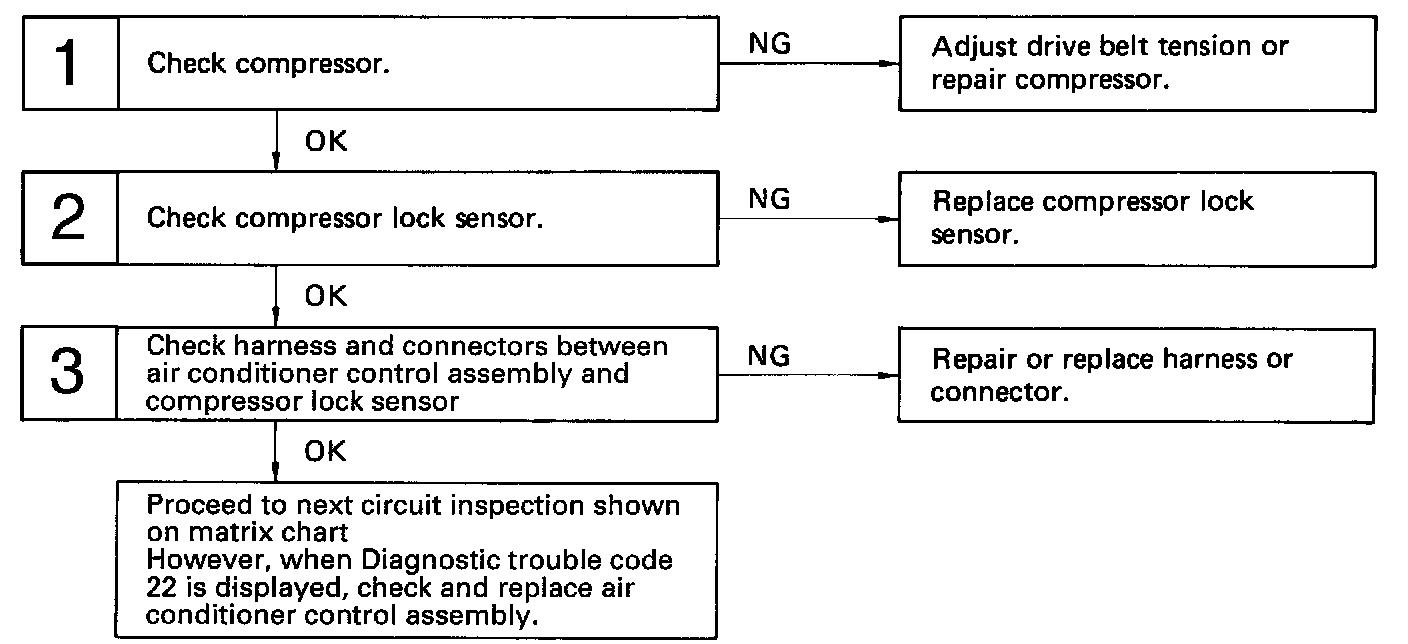

Diagnostic Chart:

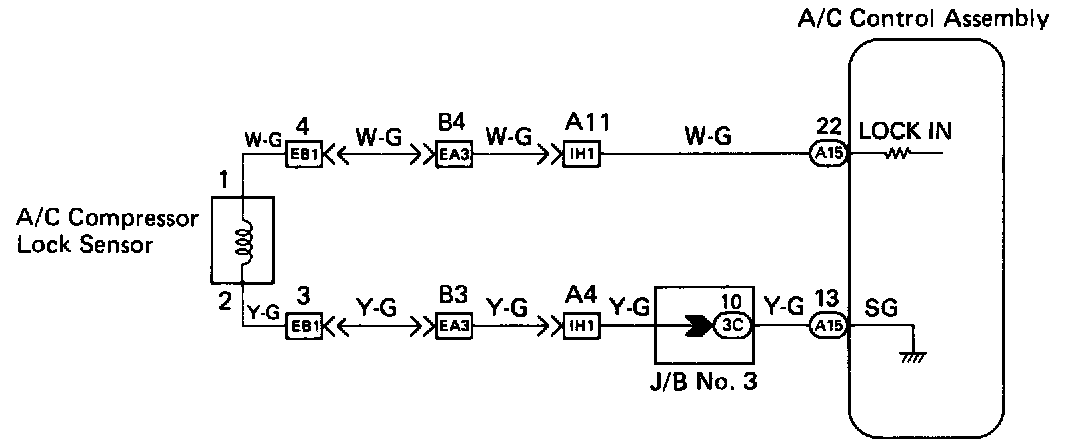

Wiring Diagram:

Inspection Procedure

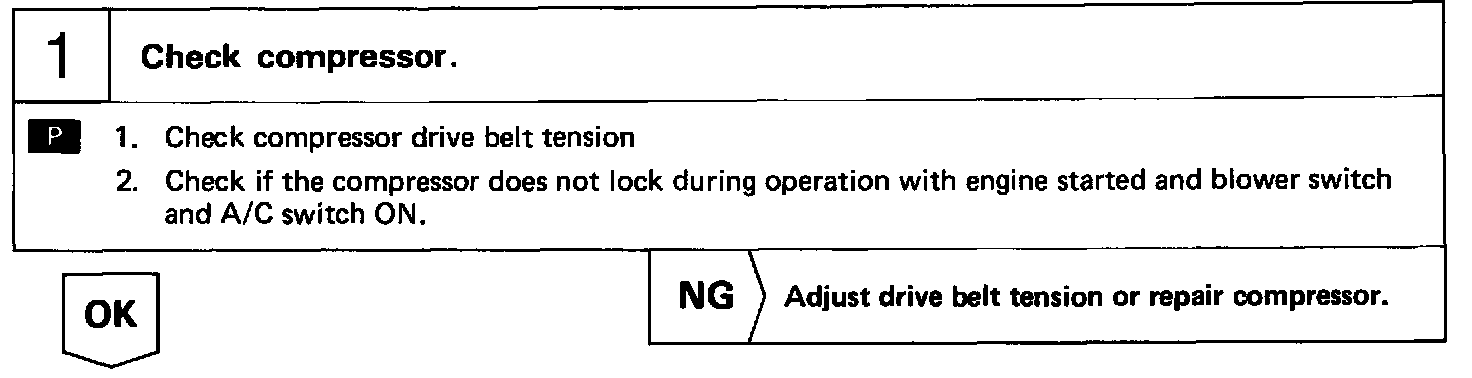

Step 1:

Step 2:

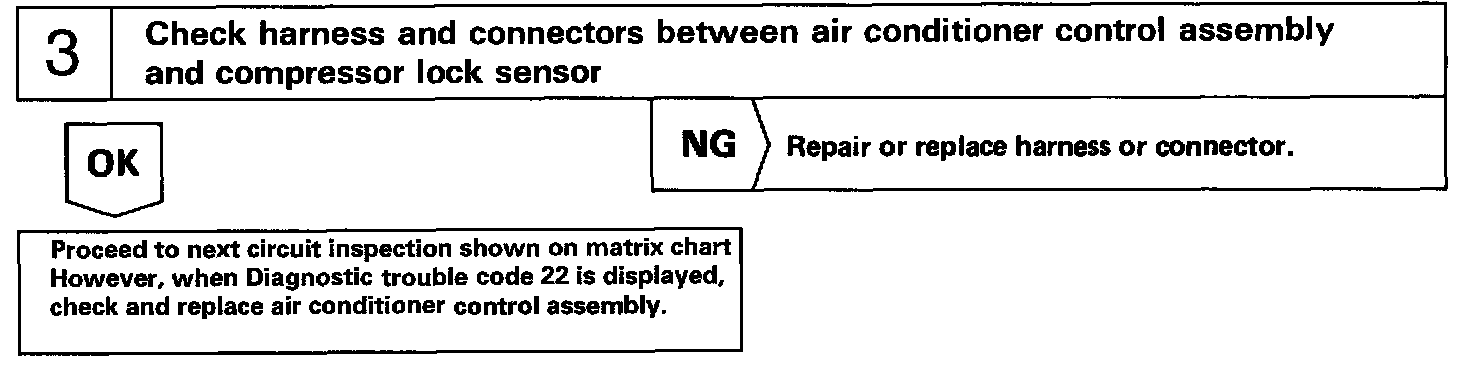

Step 3:
