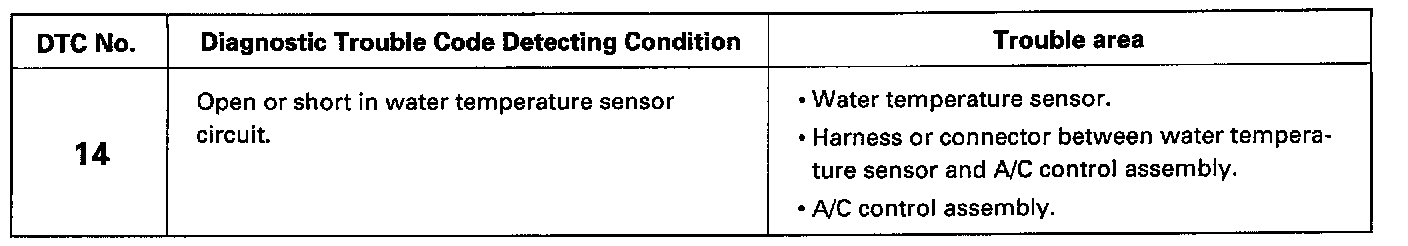

DTC 14

Circuit Description
This sensor detects the coolant temperature and sends the appropriate signals to the air conditioner control assembly. These signals are used for warm up control when the engine is cold.

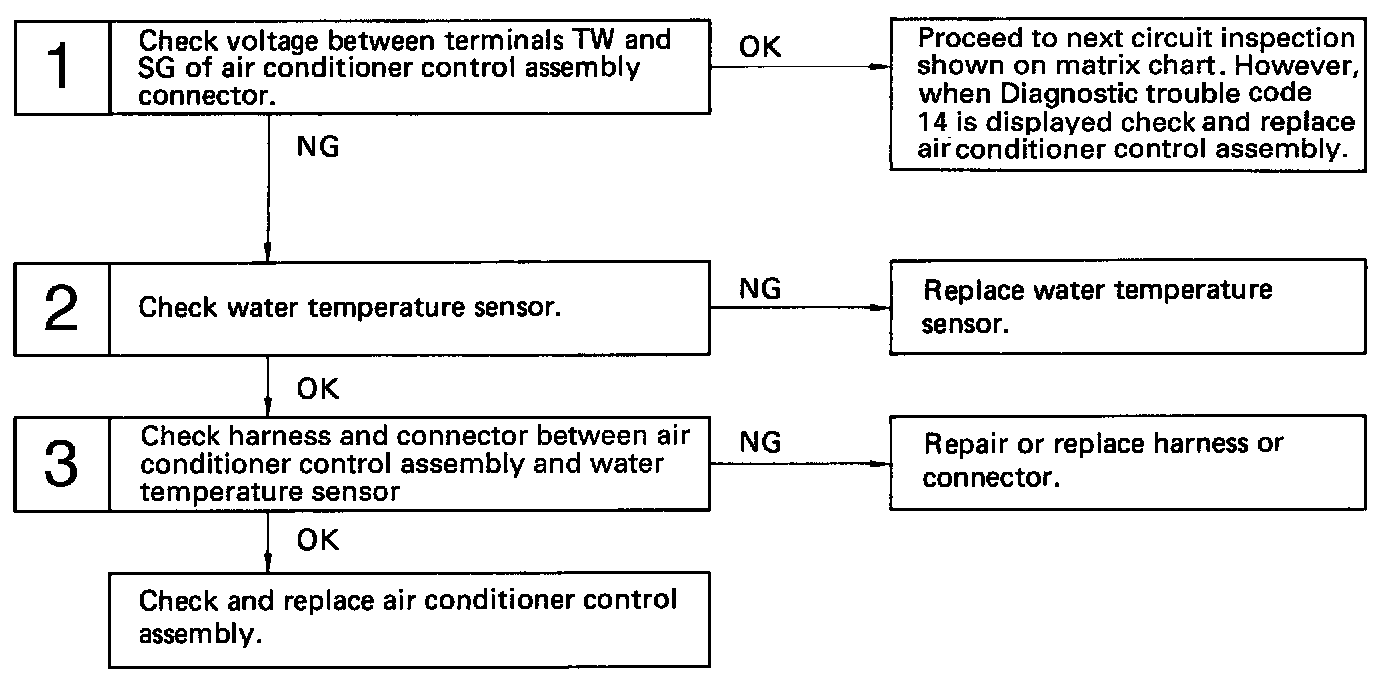

Diagnostic Chart:

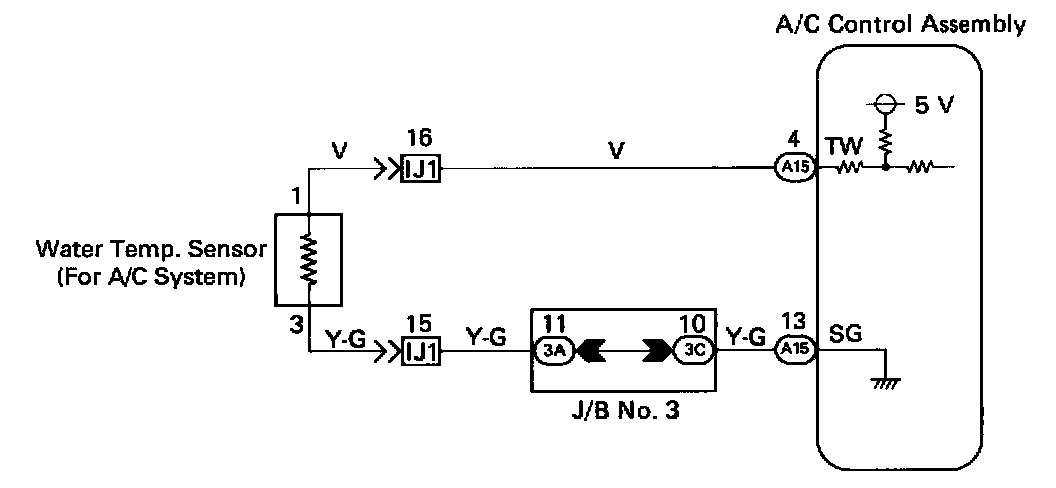

Wiring Diagram:

Inspection Procedure

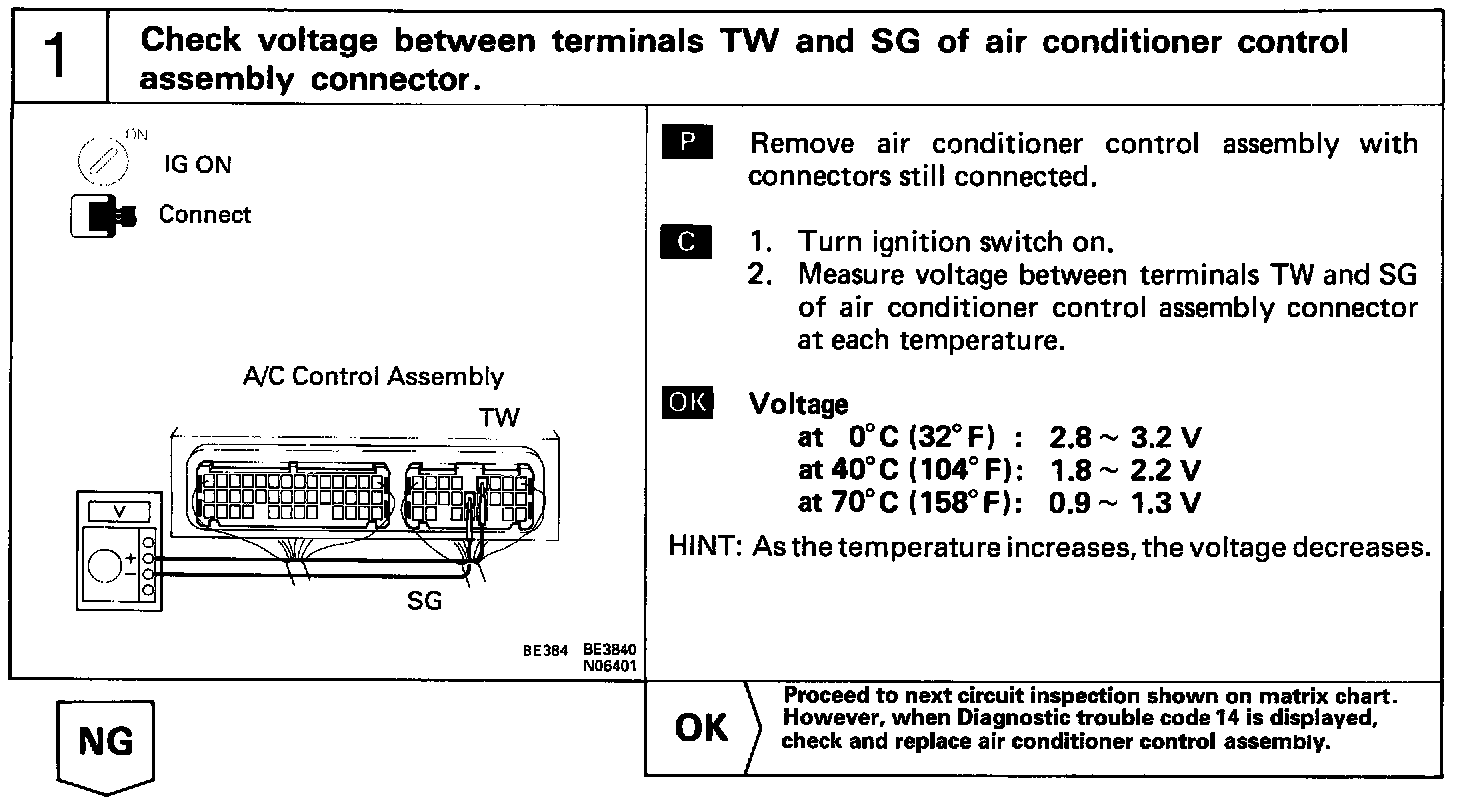

Step 1:

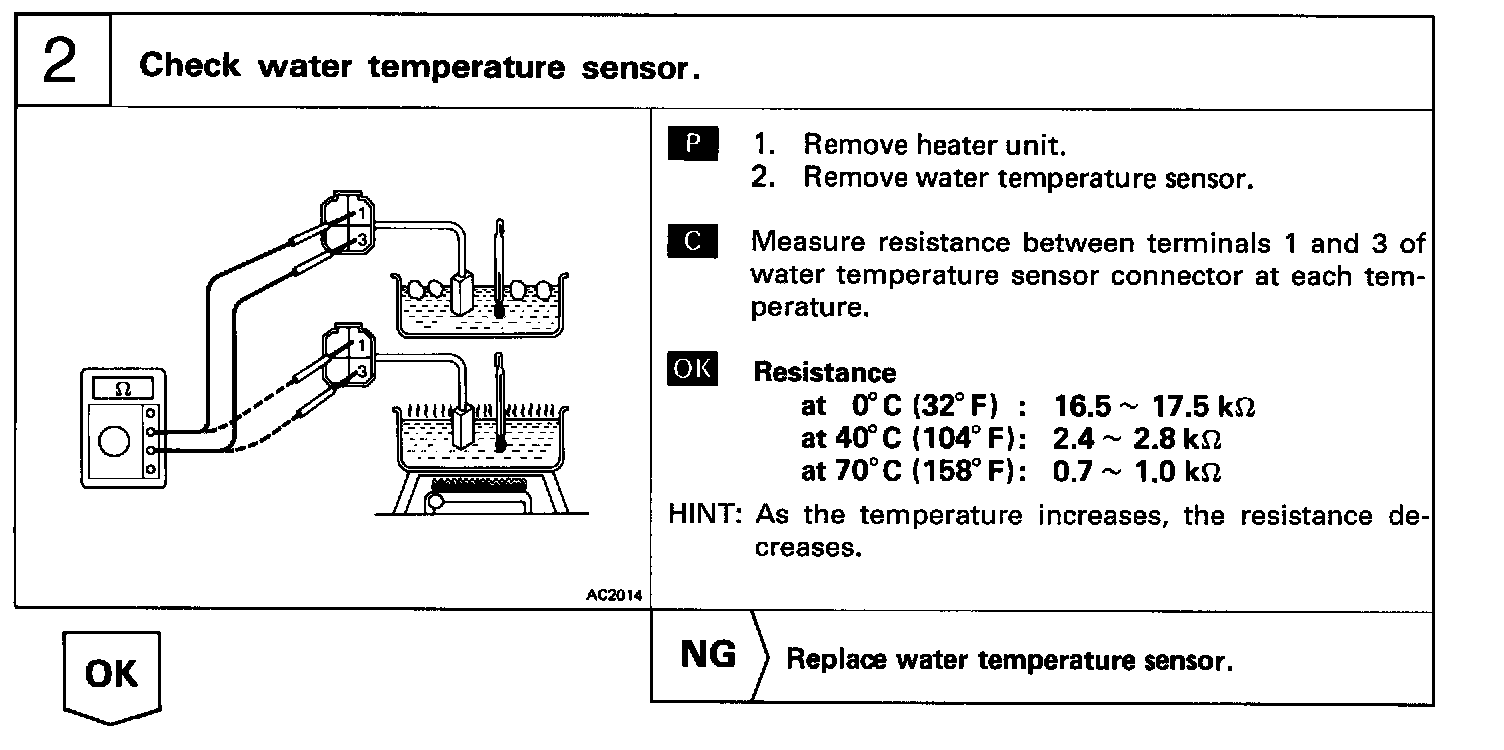

Step 2:

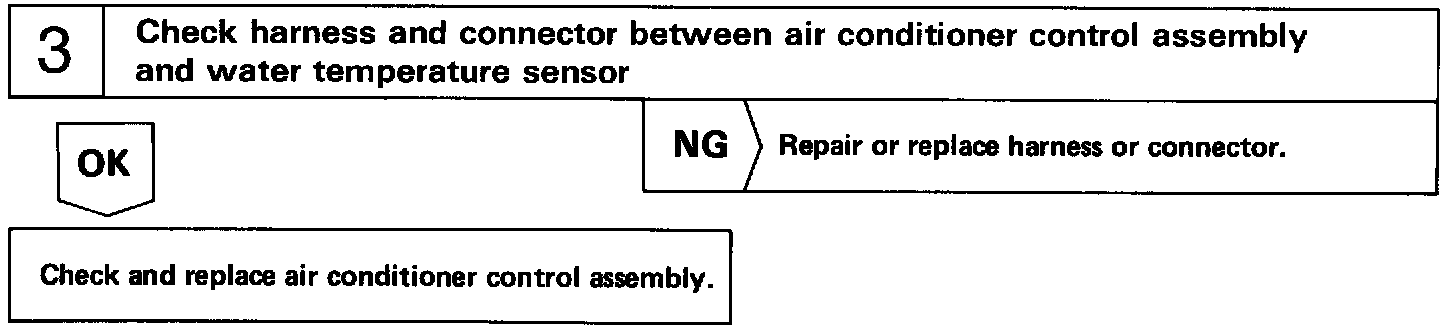

Step 3:
