Home >> Lexus >> 1993 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Motor Circuit

Motor Circuit

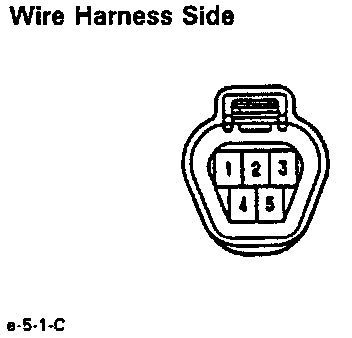

Wiper Motor Connector Pin Out:

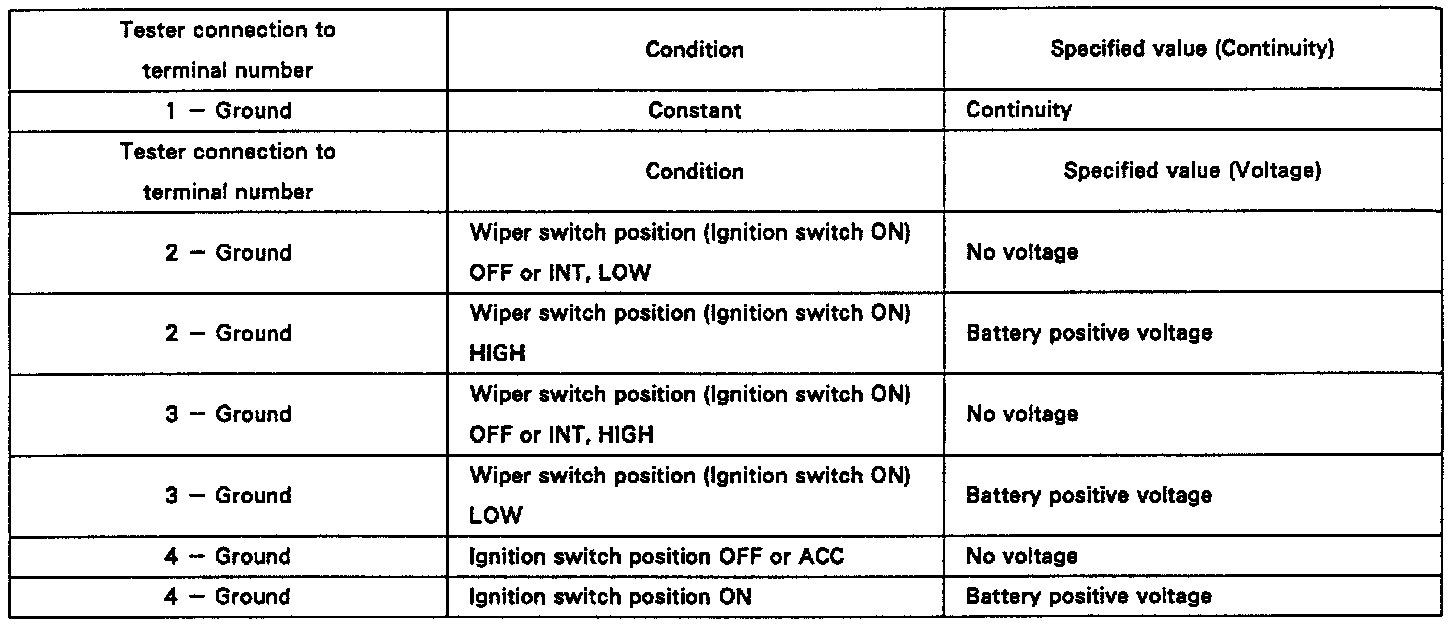

Motor Circuit Chart:






Disconnect connector from motor test connector terminals as shown in Fig. 19.
