Home >> Lexus >> 1993 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

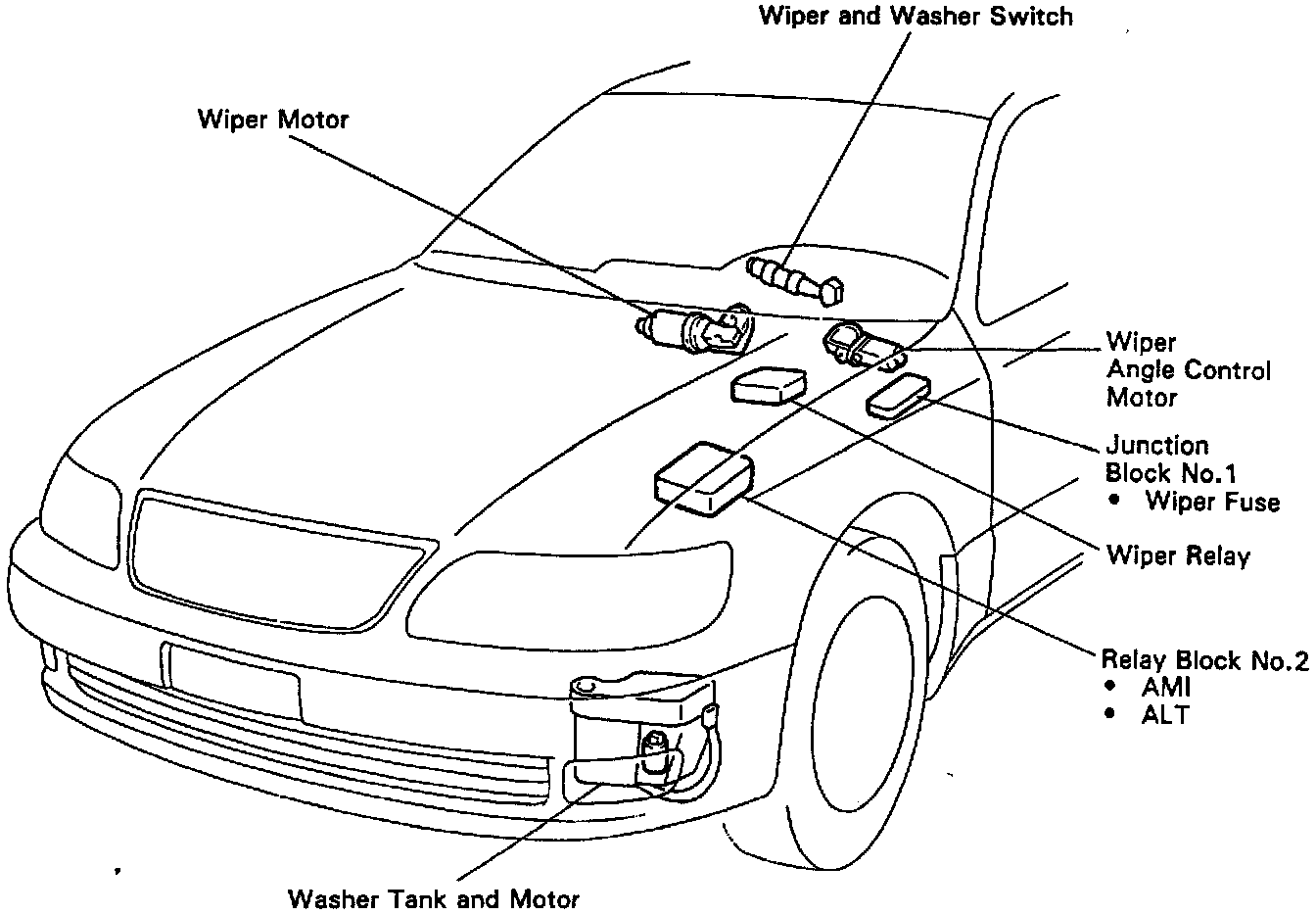

Wiper System Component Locations:
