Manual Shifting Test

MANUAL SHIFTING TEST
HINT: With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

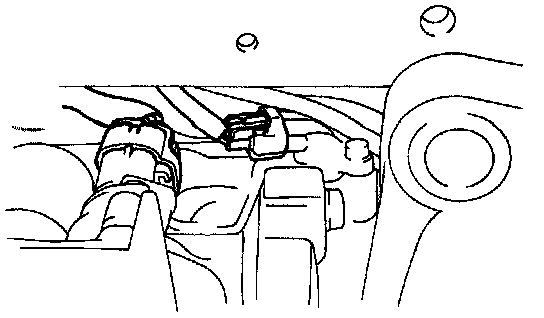

1. Disconnect solenoid wire




2. Inspect manual driving operation

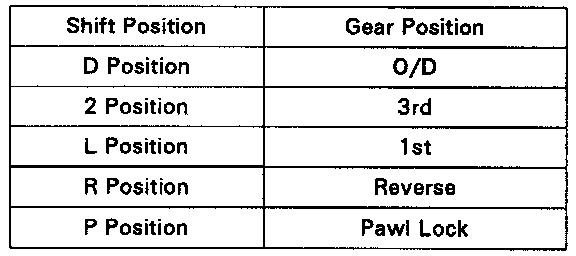

- Check that the shift and gear positions correspond with the table.

HINT: If the L, 2 and D position gear positions are difficult to distinguish, perform the following road test.
- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem is in the transaxle itself.

3. Connect solenoid wire
4. Cancel out diagnostic trouble code
