IG Power Source Circuit




CIRCUIT DESCRIPTION
This is the power source for air conditioner control assembly and servomotors, etc.

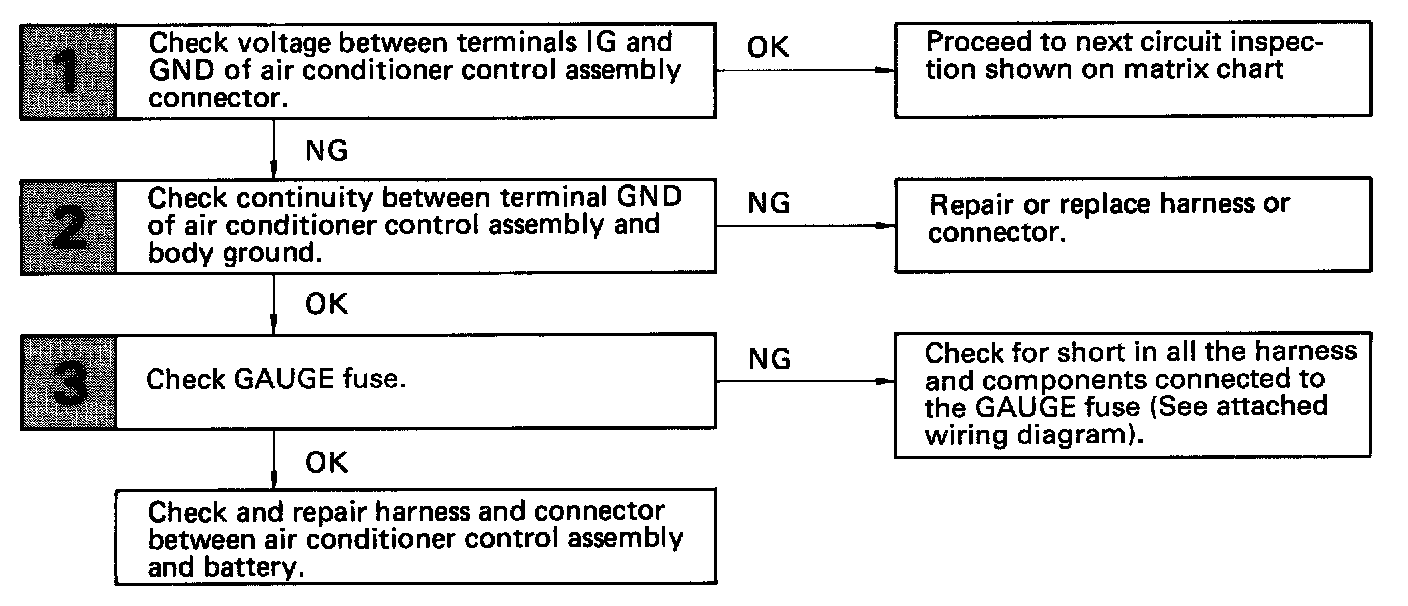

DIAGNOSTIC CHART:

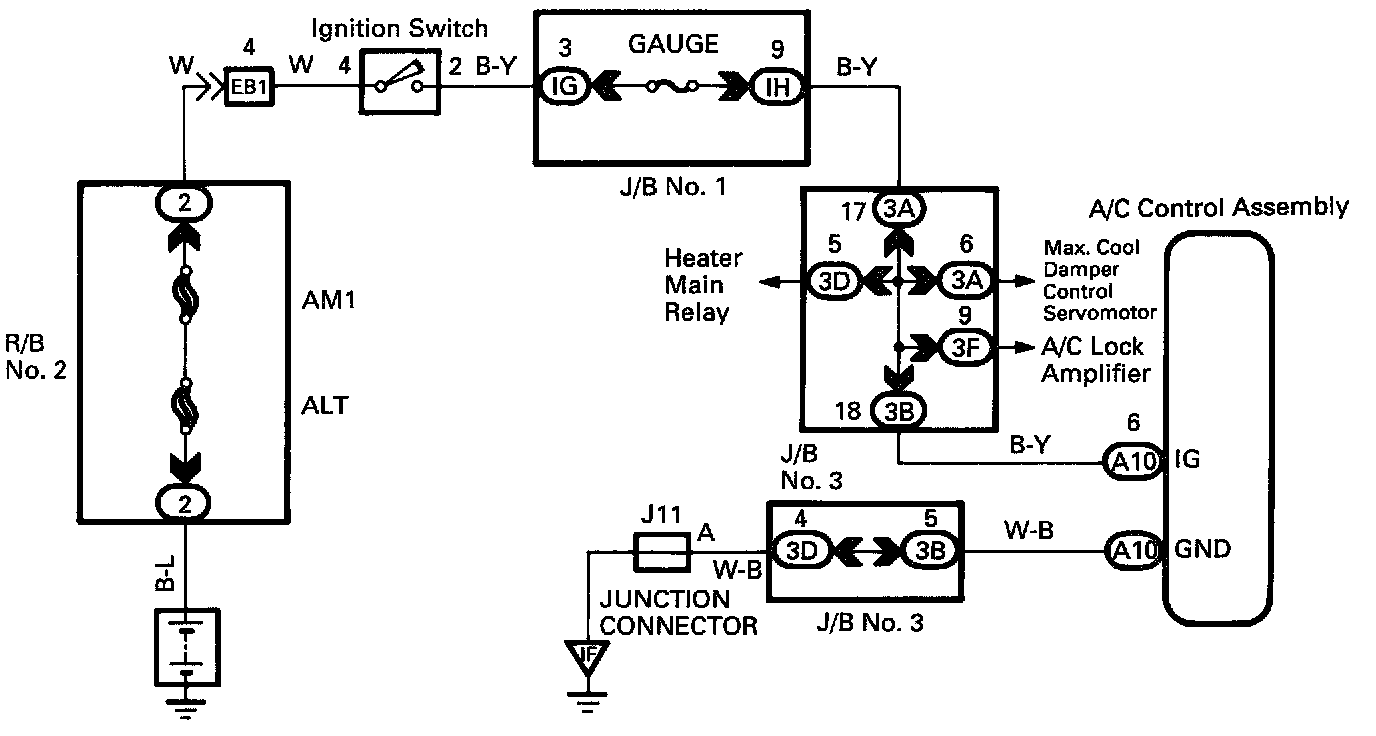

WIRING DIAGRAM:








INSPECTION PROCEDURE



STEP 1:

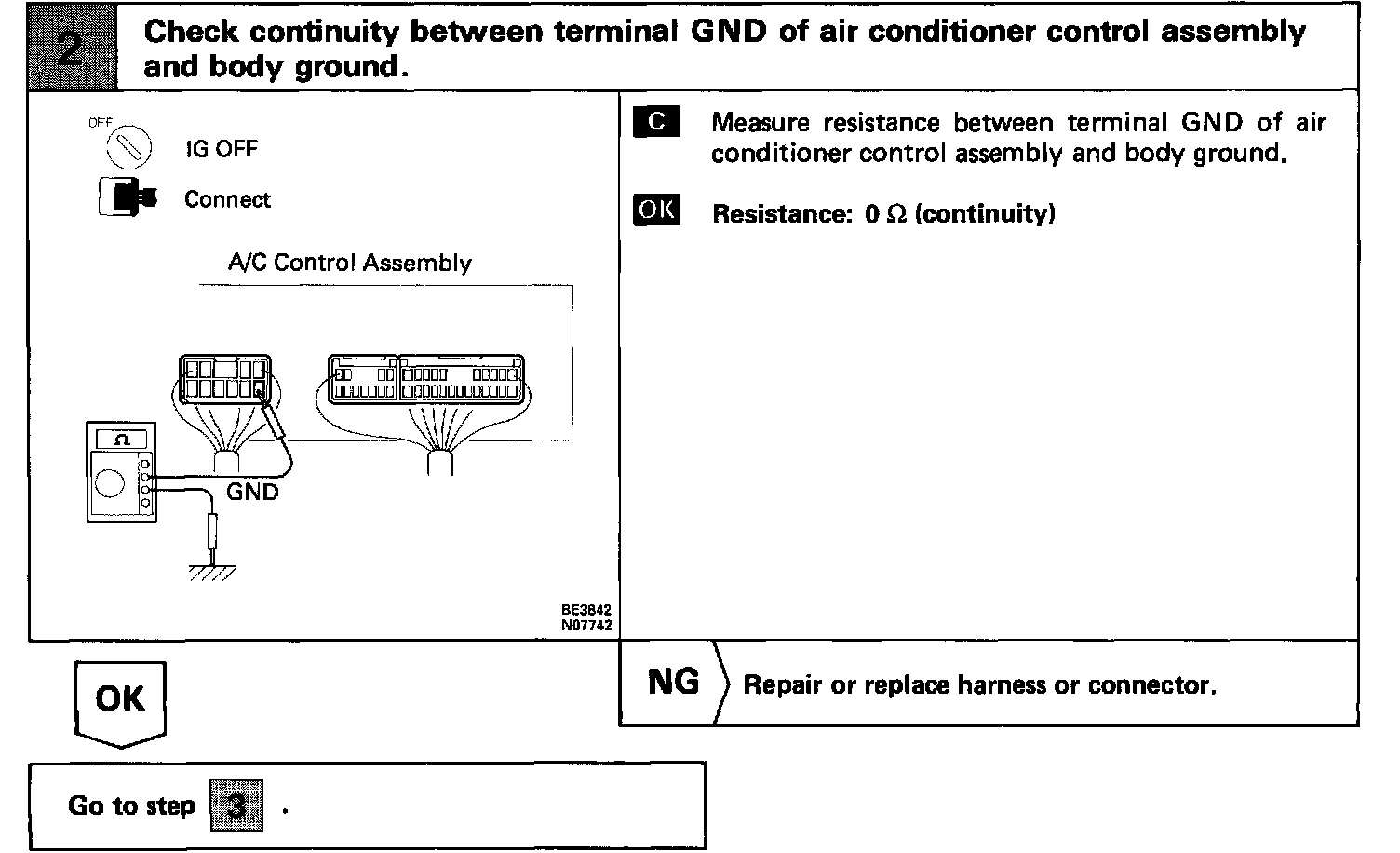

STEP 2:

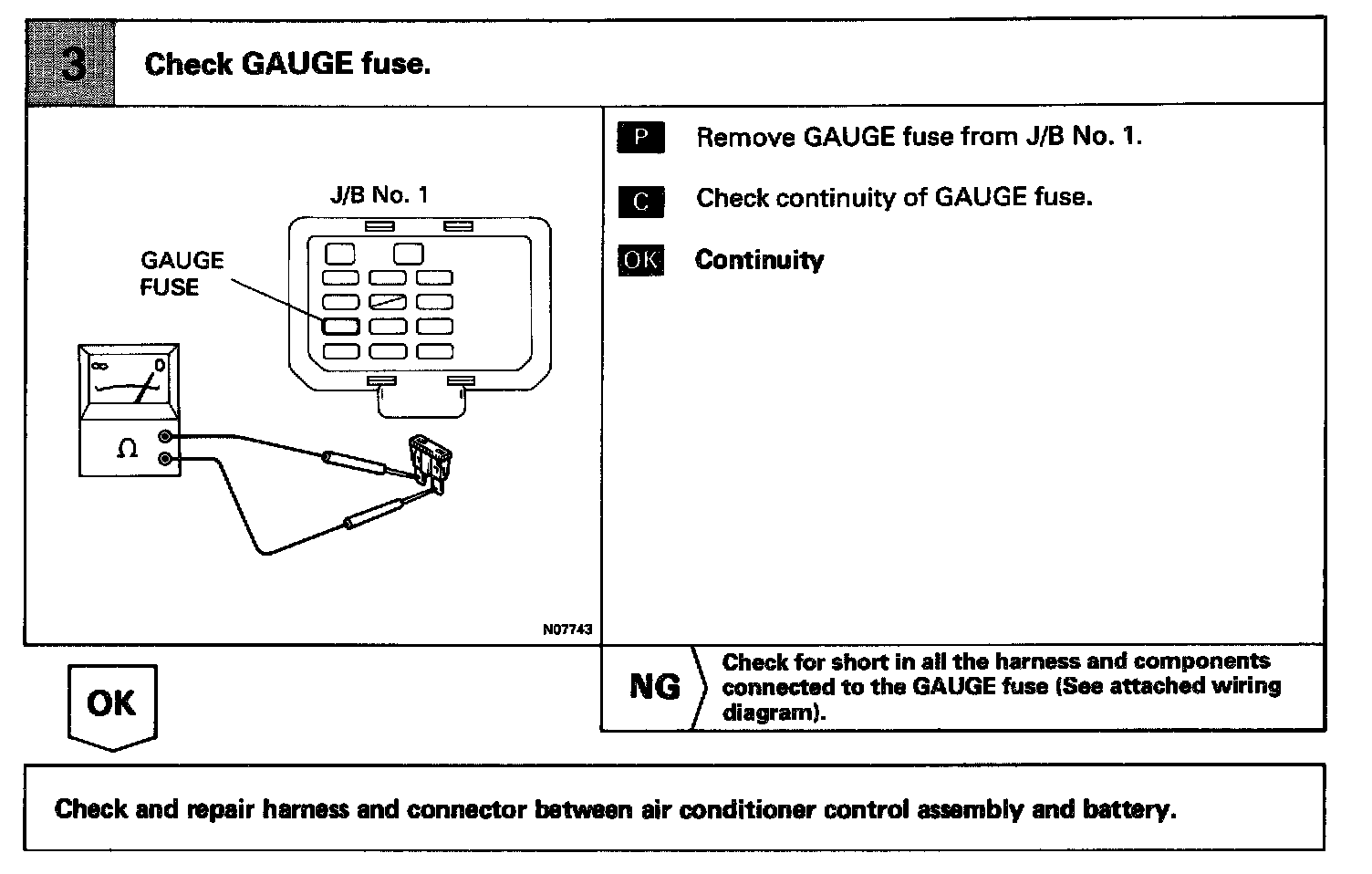

STEP 3:
