Heater Main Relay Circuit


CIRCUIT DESCRIPTION
The heater main relay is switched on by signals from the air conditioner control assembly, and switches power to the blower motor.

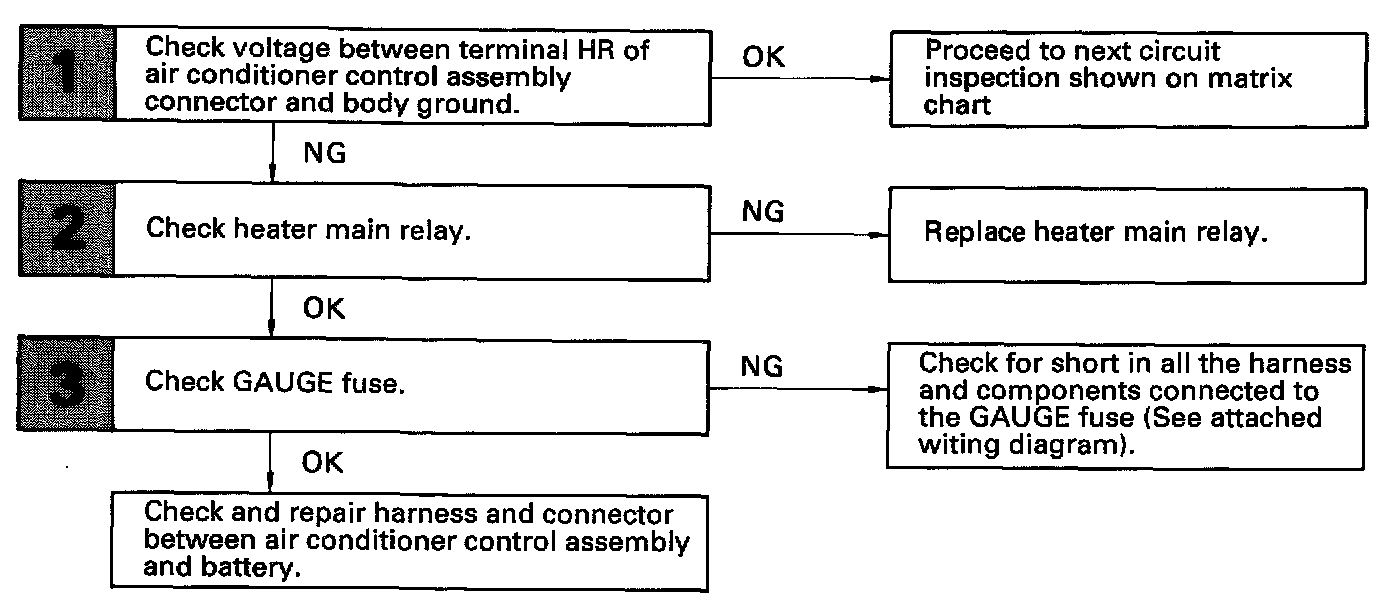

DIAGNOSTIC CHART:

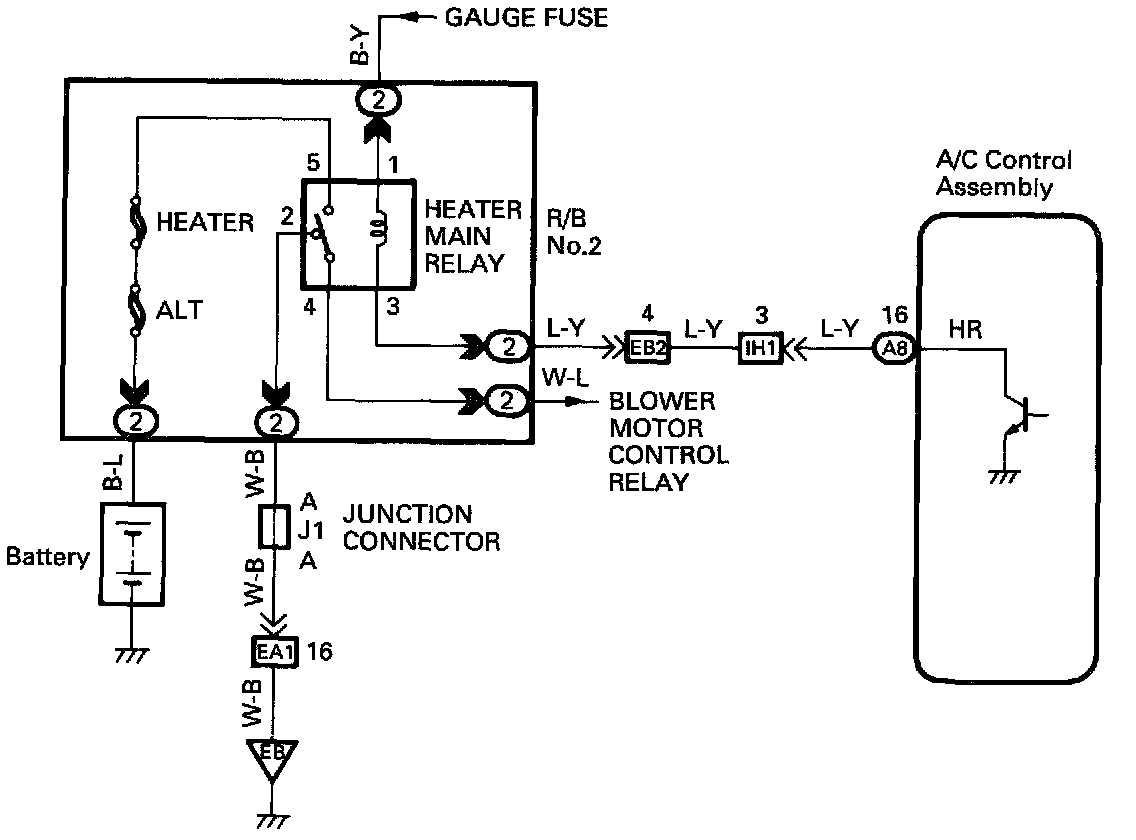

WIRING DIAGRAM:







INSPECTION PROCEDURE

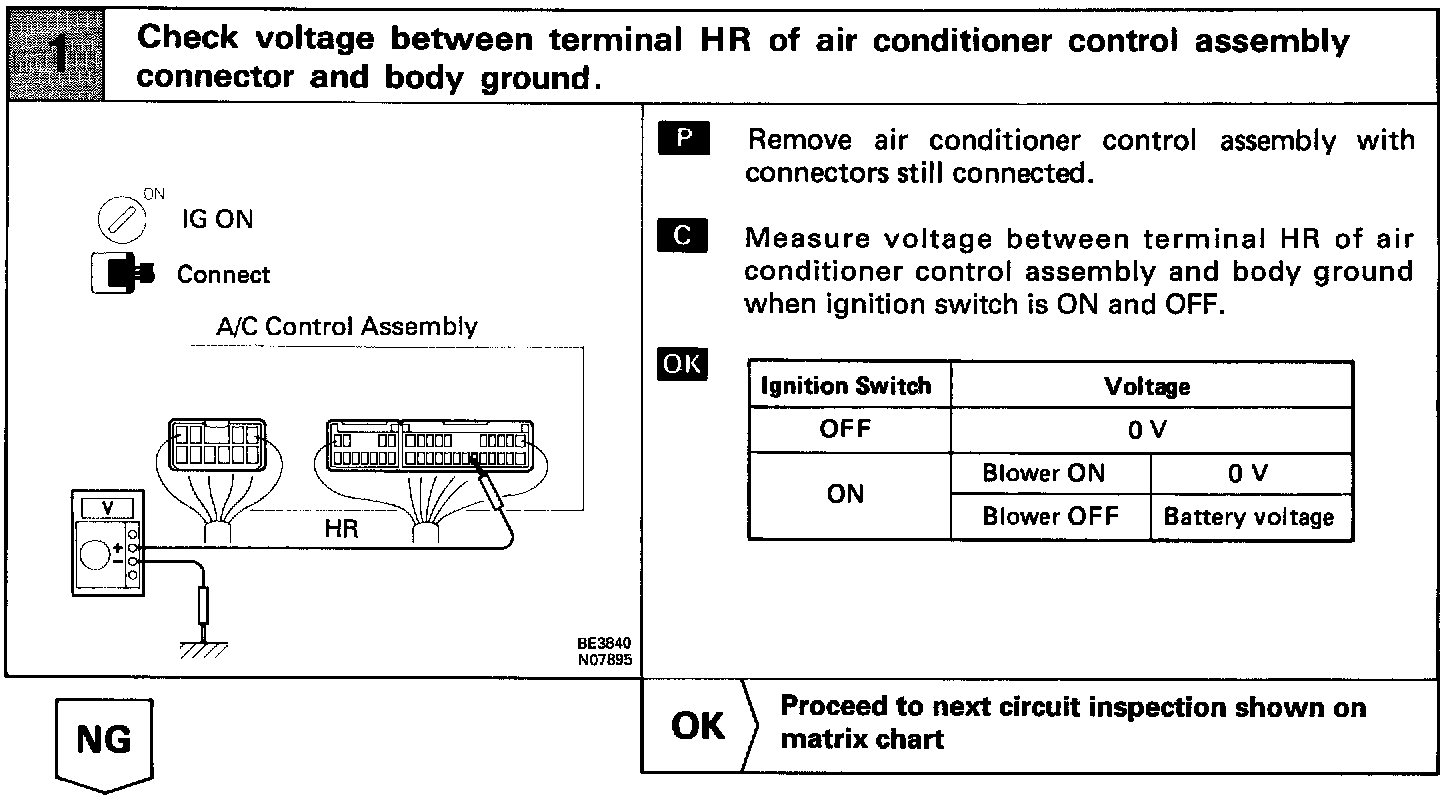

STEP 1:

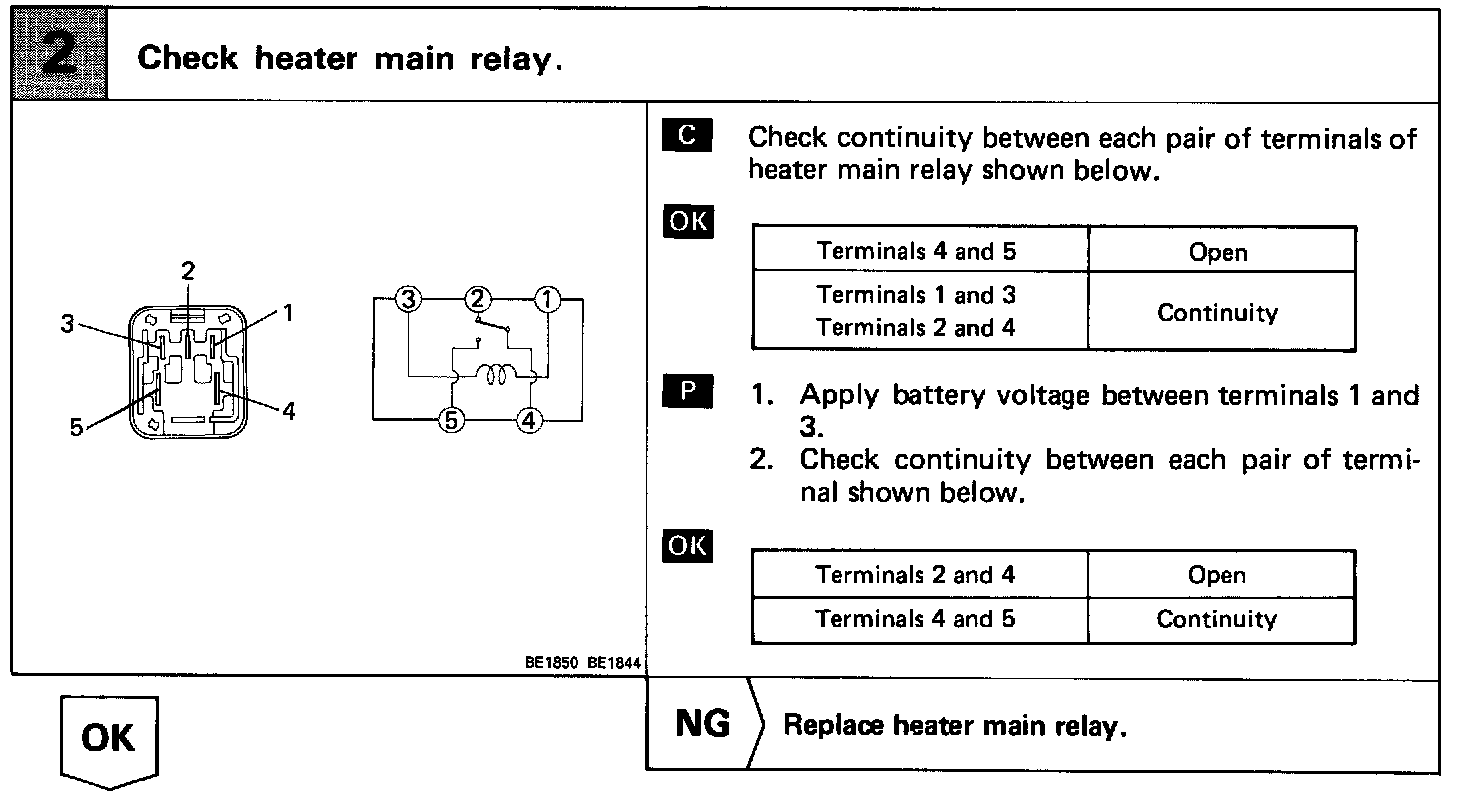

STEP 2:

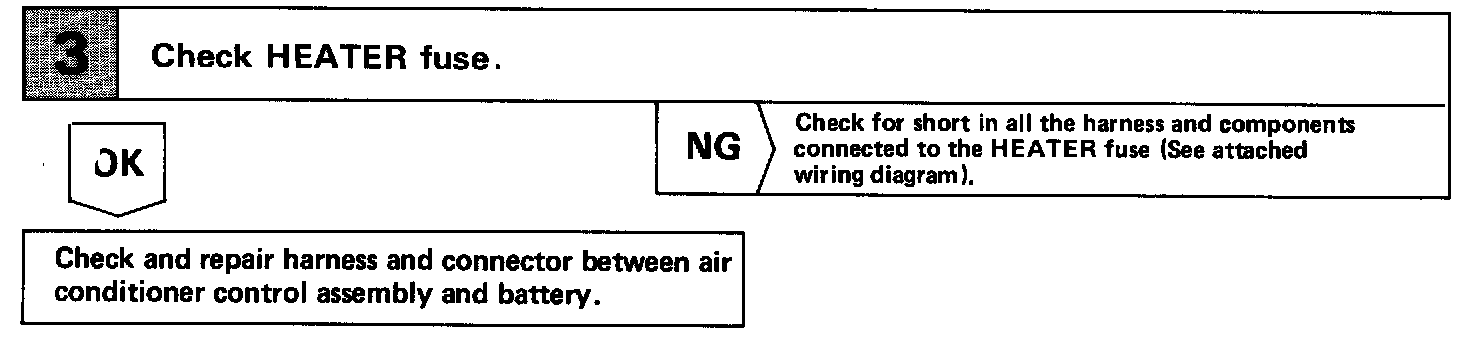

STEP 3:
