Diagnosis Circuit


CIRCUIT DESCRIPTION
This circuit sends signals to the A/C control assembly requesting output of diagnostic trouble codes.

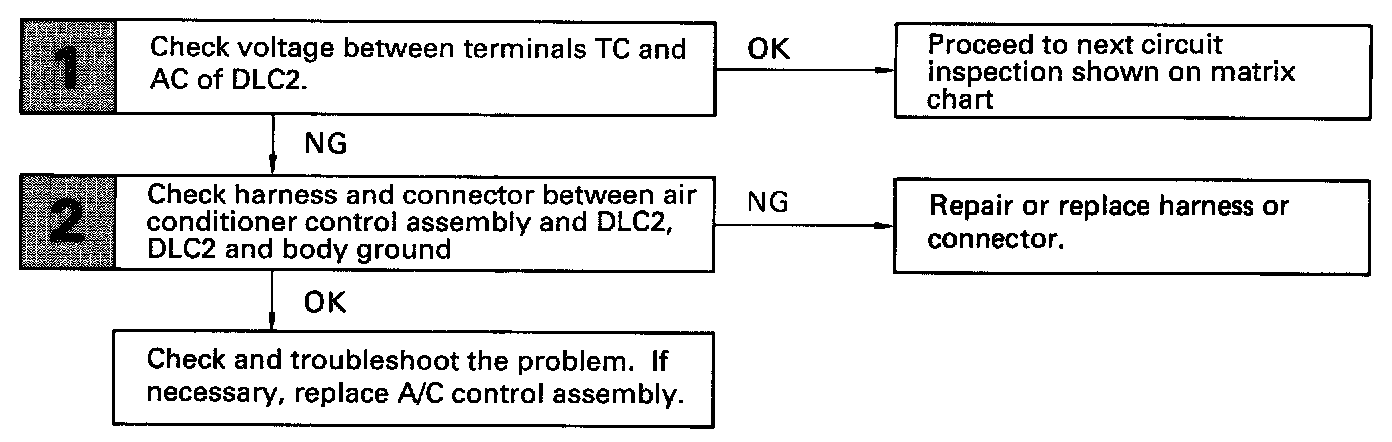

DIAGNOSTIC CHART:

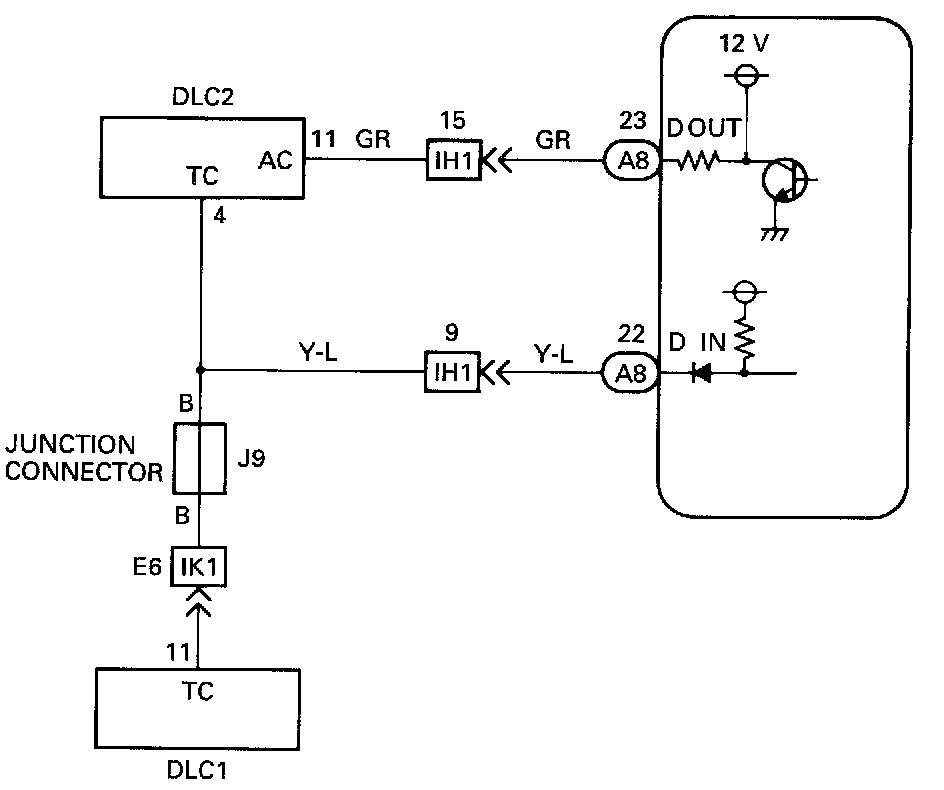

WIRING DIAGRAM:






INSPECTION PROCEDURE

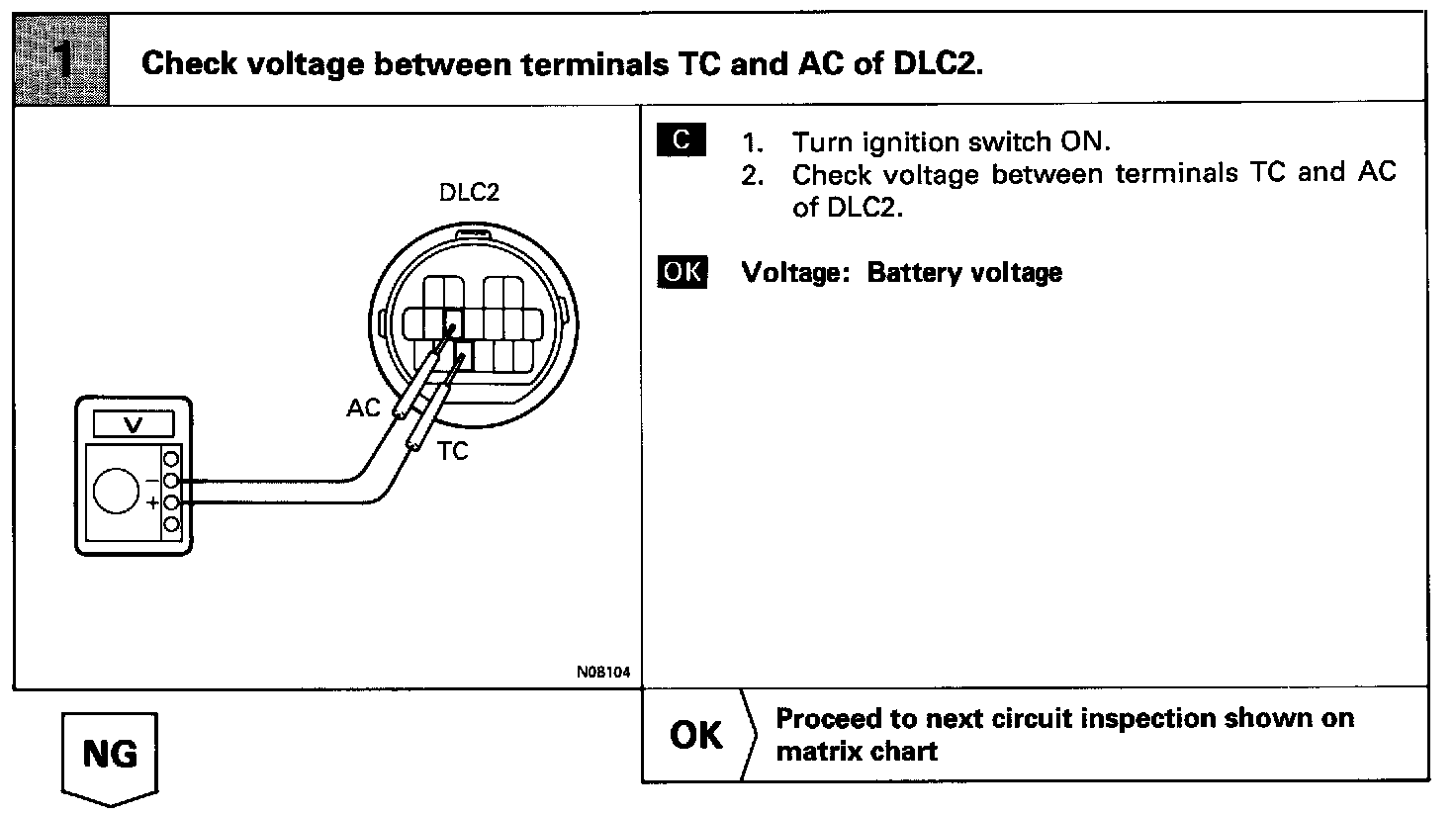

STEP 1:

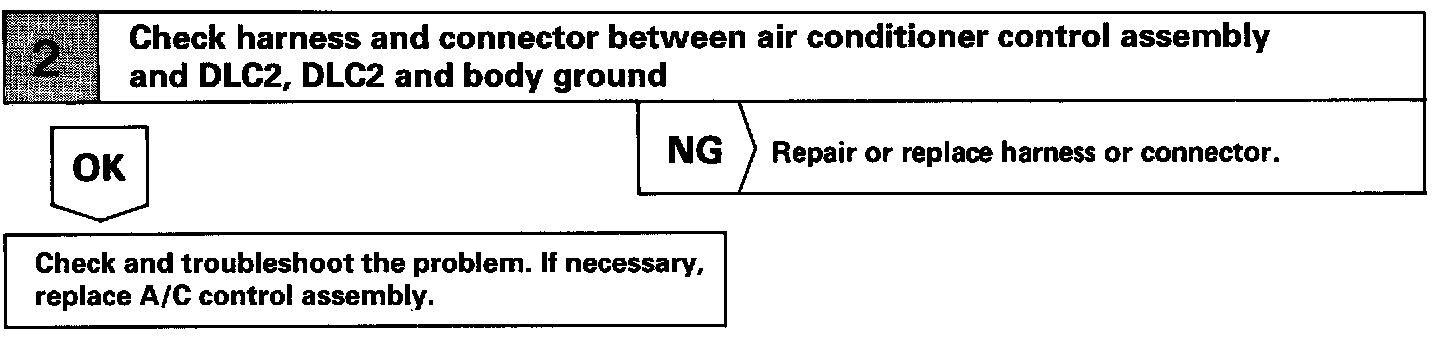

STEP 2:
