Compressor Magnetic Clutch Circuit

CIRCUIT DESCRIPTION
The air conditioner control assembly outputs the magnetic clutch ON signal from terminal MGC to the ECM. When the ECM receives this signal, it sends a signal from terminal ACMG and switches the air conditioner magnetic clutch relay ON, thus turning the air conditioner compressor magnetic clutch ON.

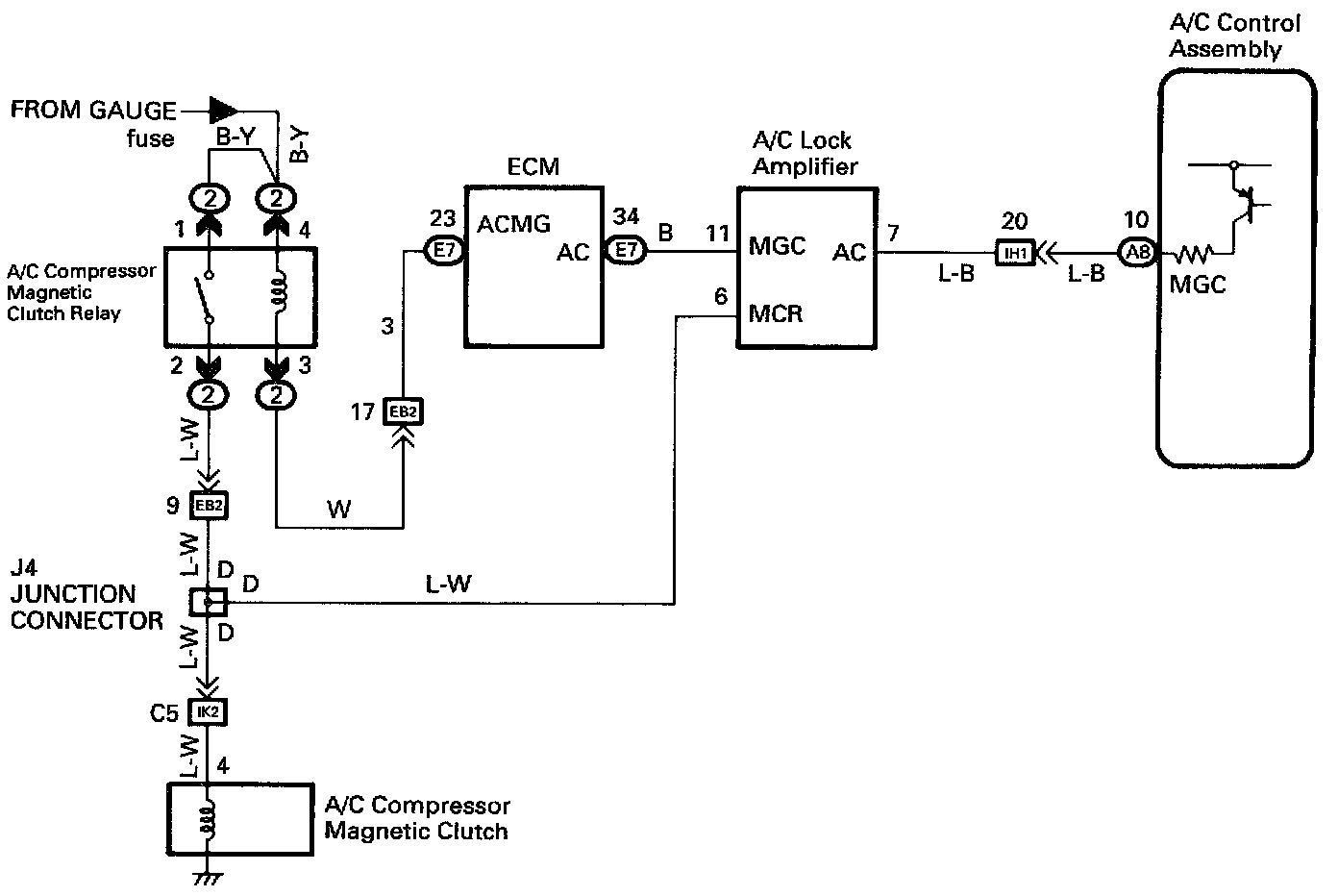

WIRING DIAGRAM:

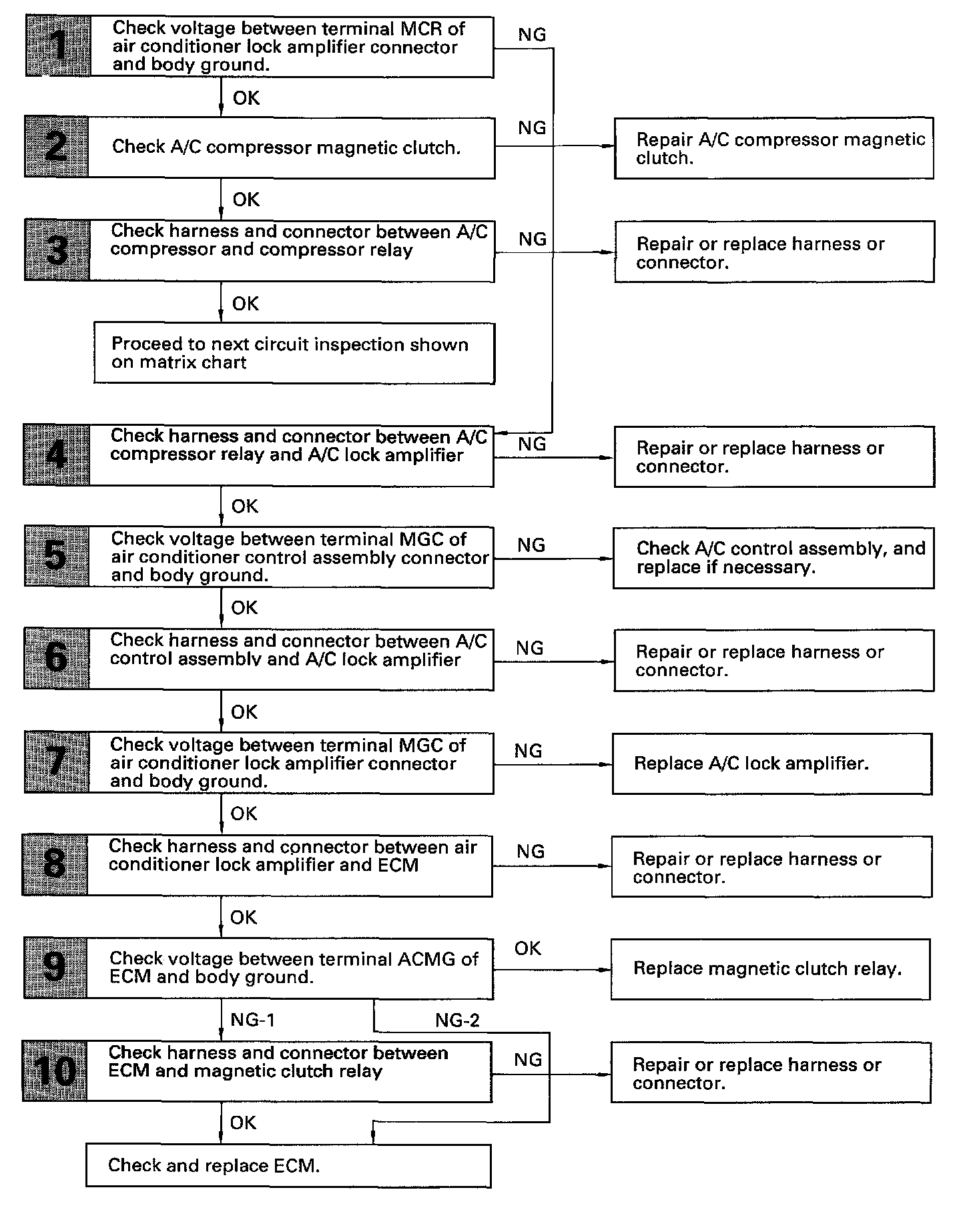

DIAGNOSTIC CHART:

INSPECTION PROCEDURE

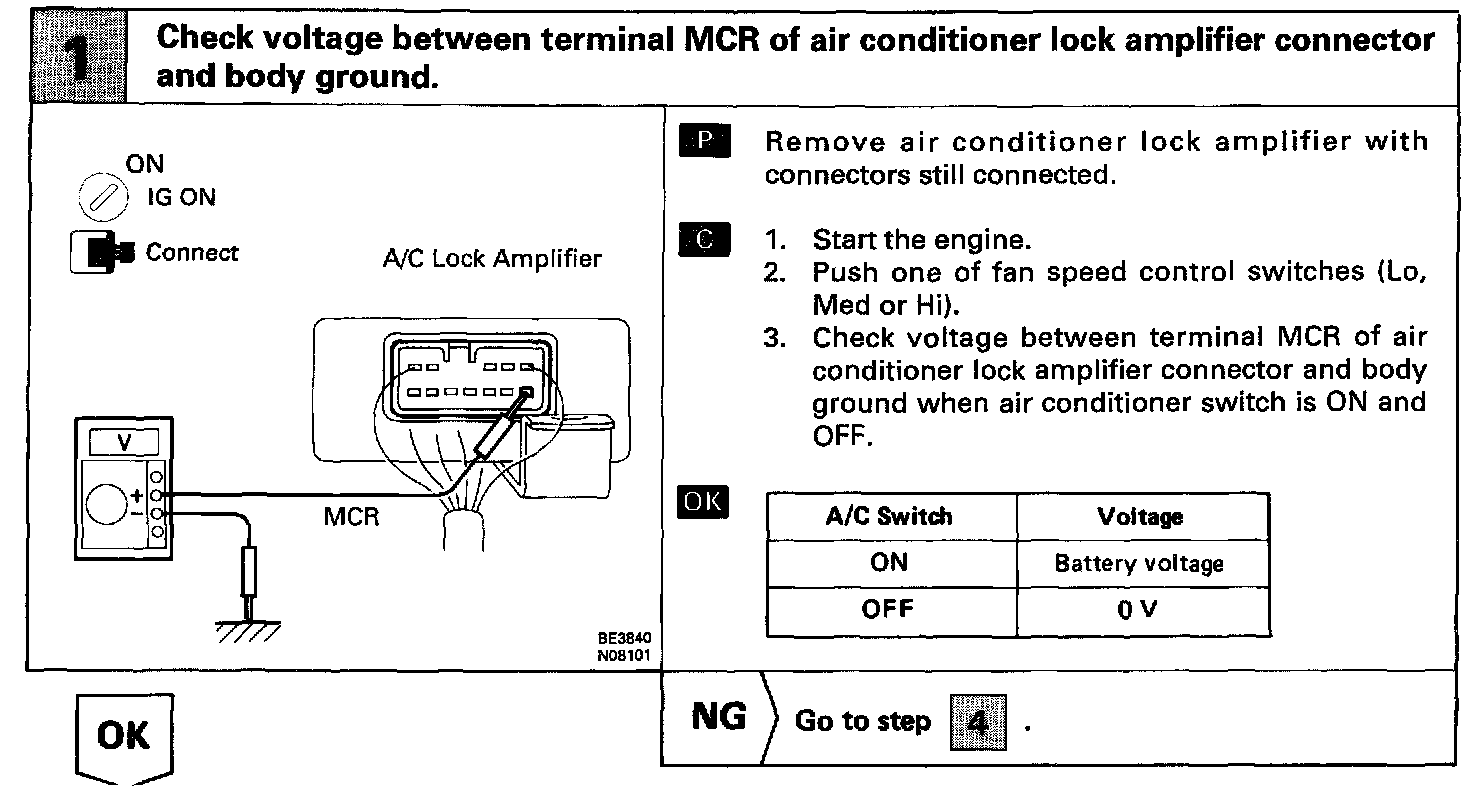

STEP 1:

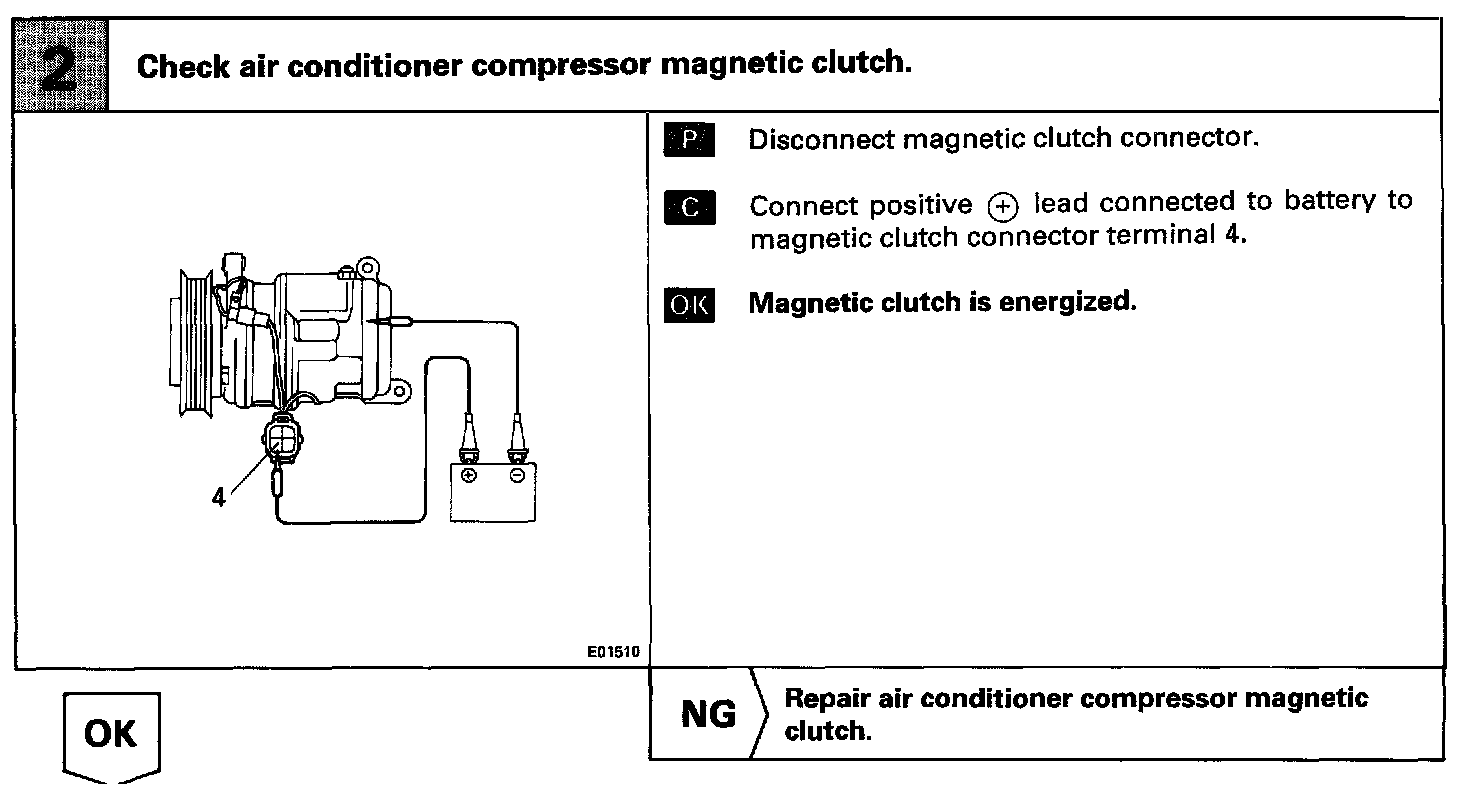

STEP 2:

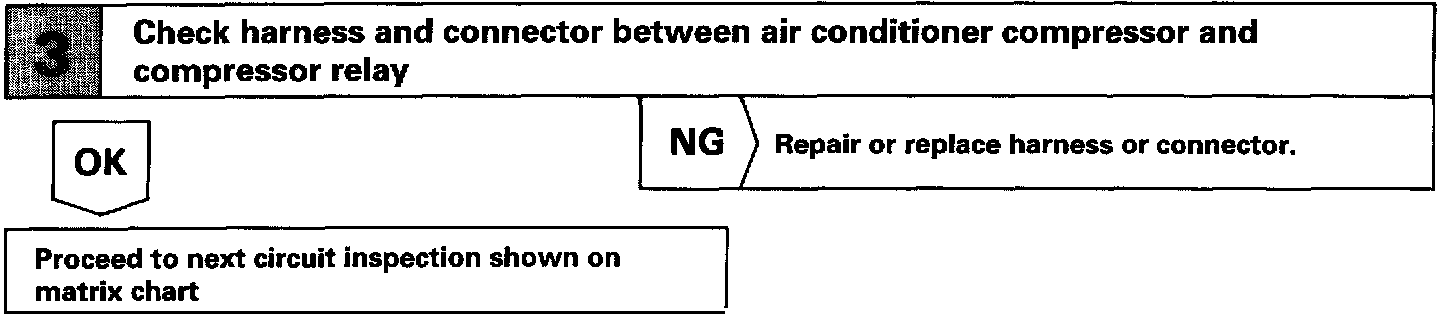

STEP 3:

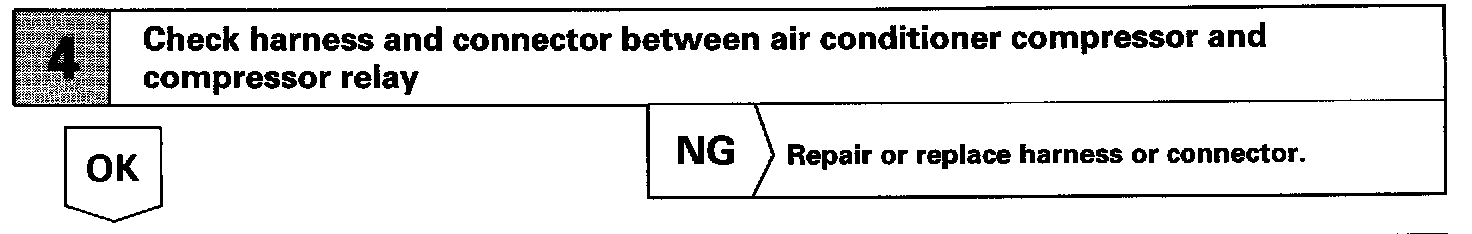

STEP 4:

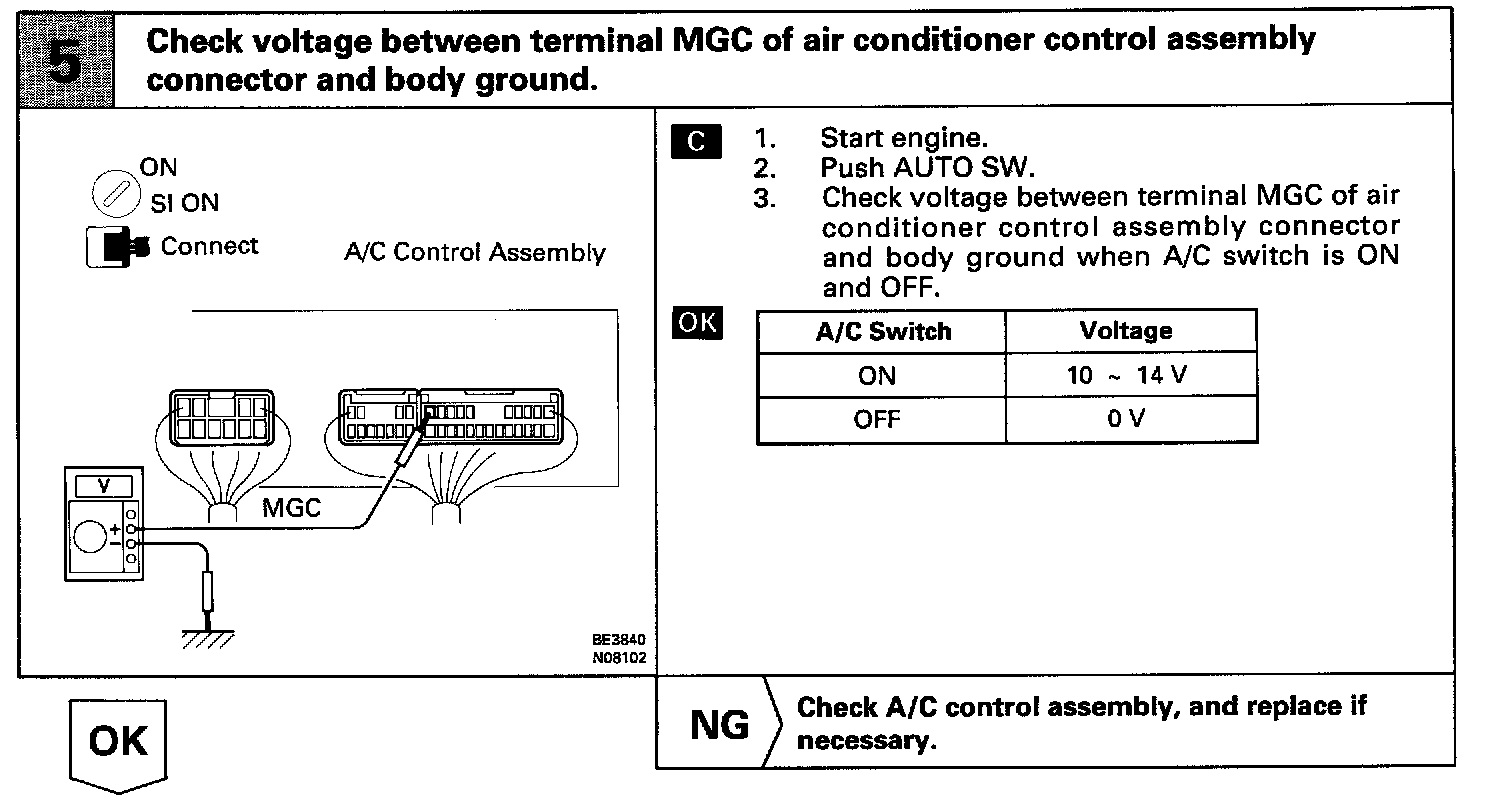

STEP 5:

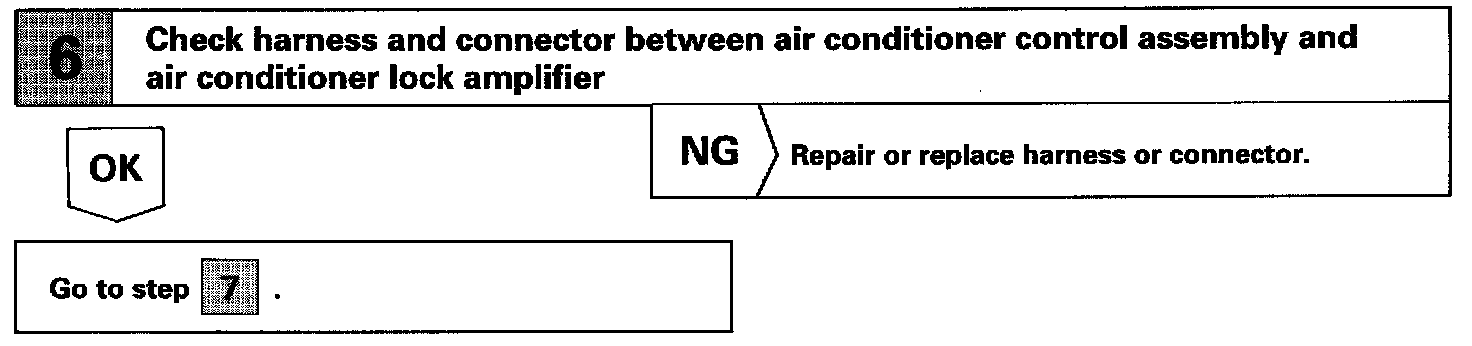

STEP 6:

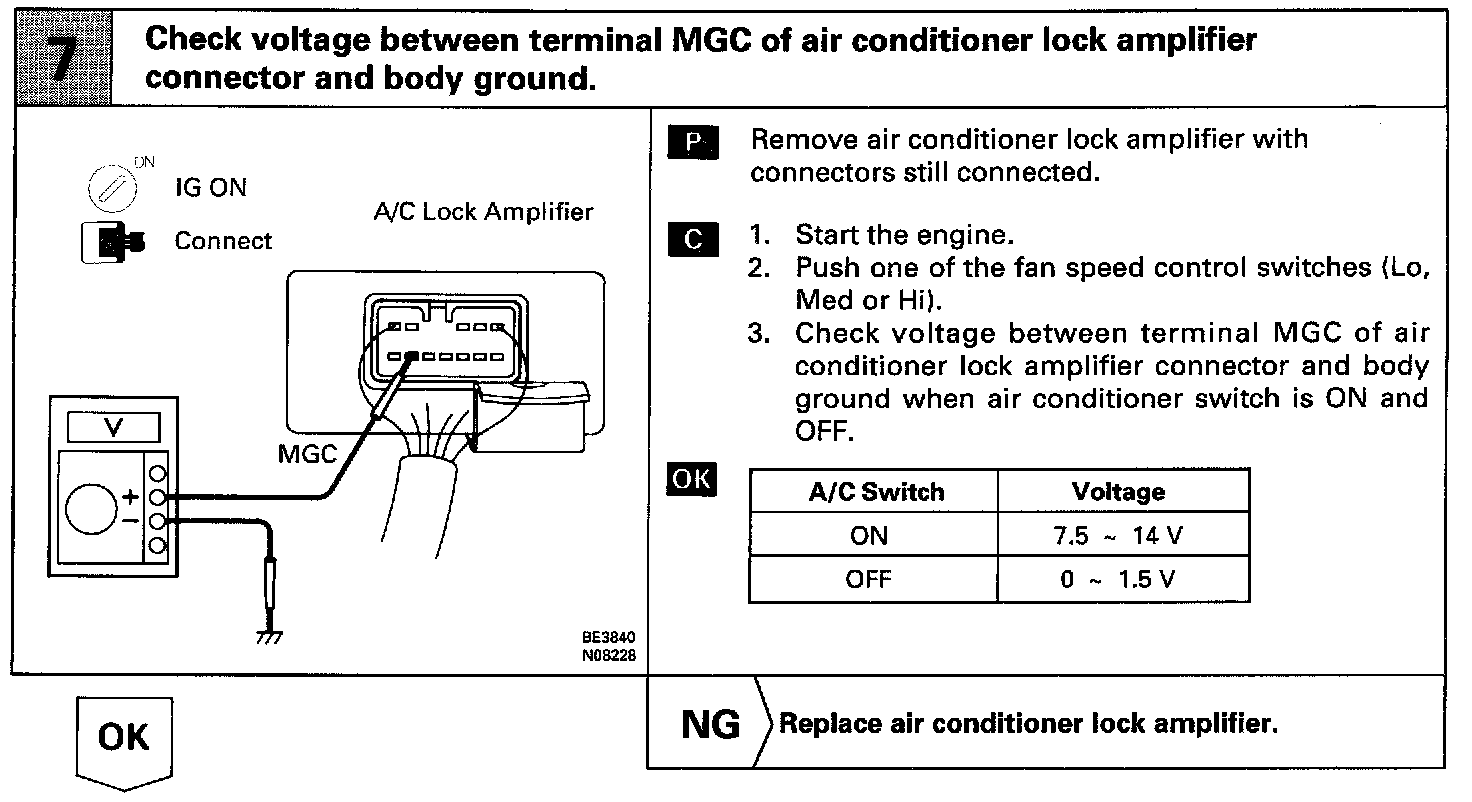

STEP 7:

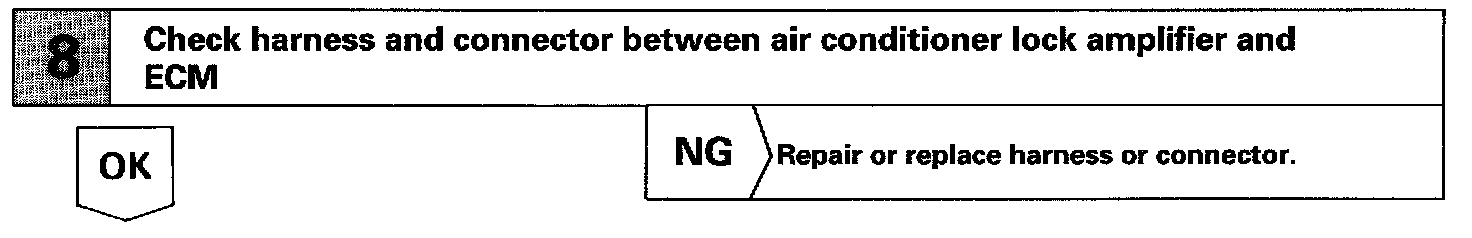

STEP 8:

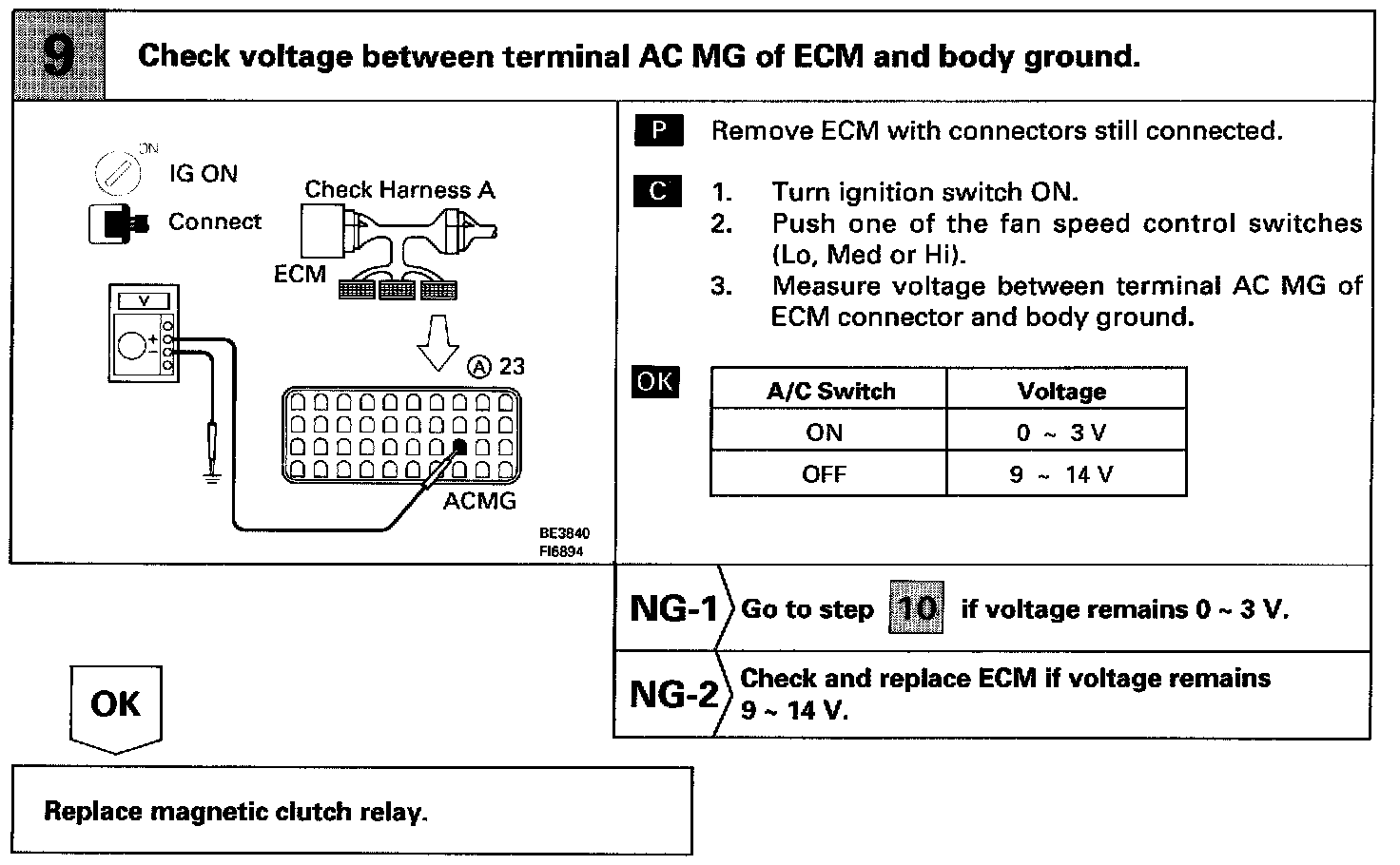

STEP 9:

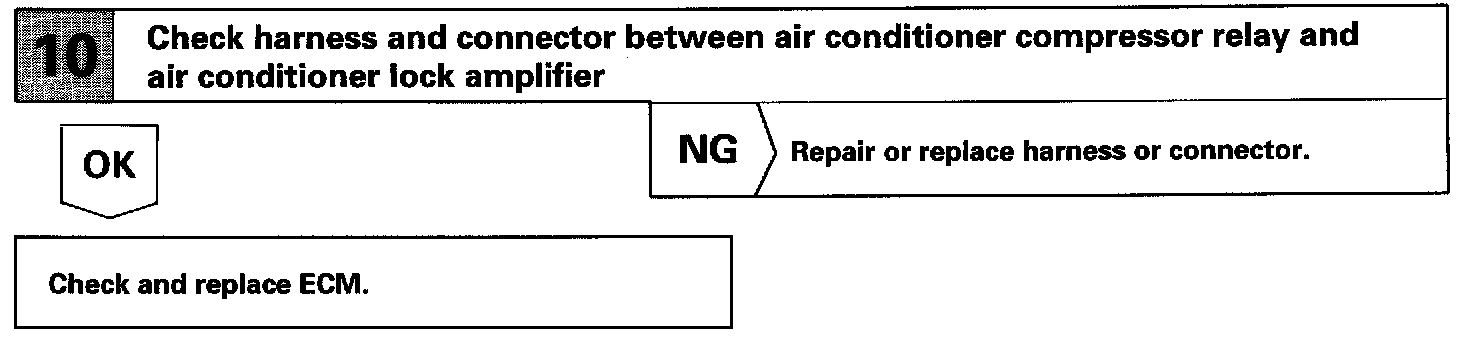

STEP 10:
