Blower Motor Circuit




CIRCUIT DESCRIPTION
This is the power source for the blower motor.


DIAGNOSTIC CHART:

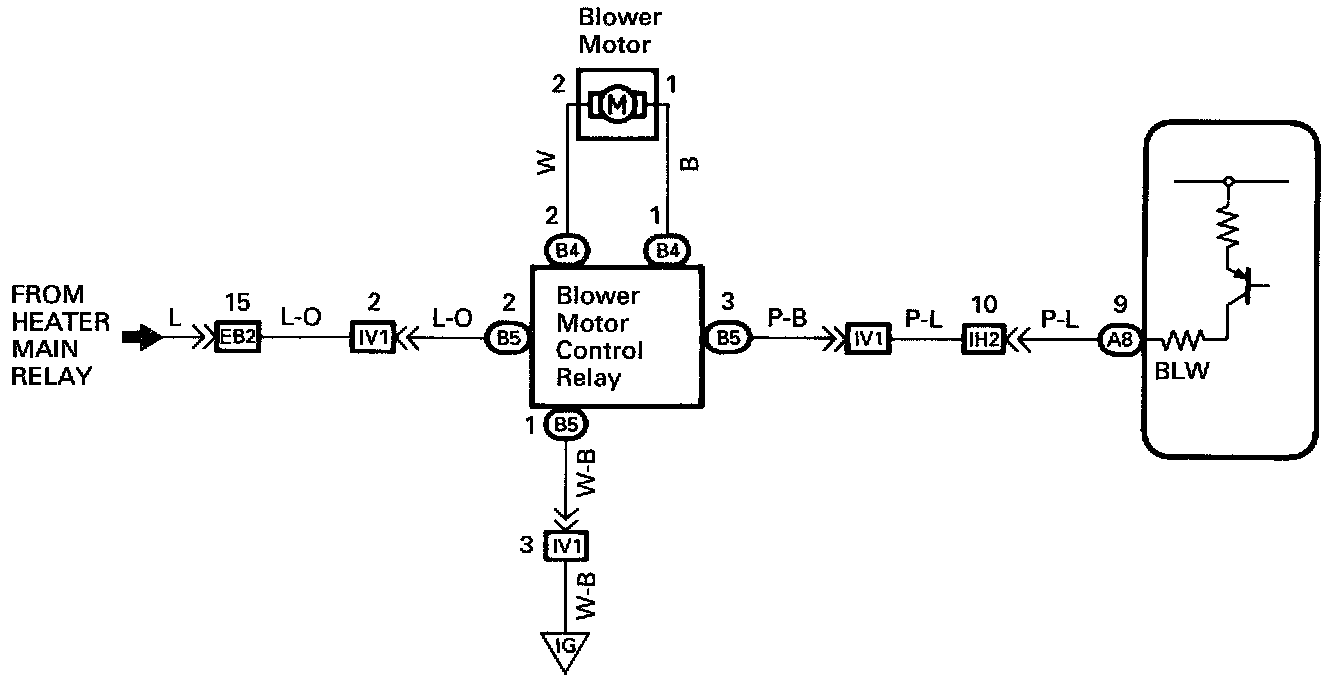

WIRING DIAGRAM:







INSPECTION PROCEDURE

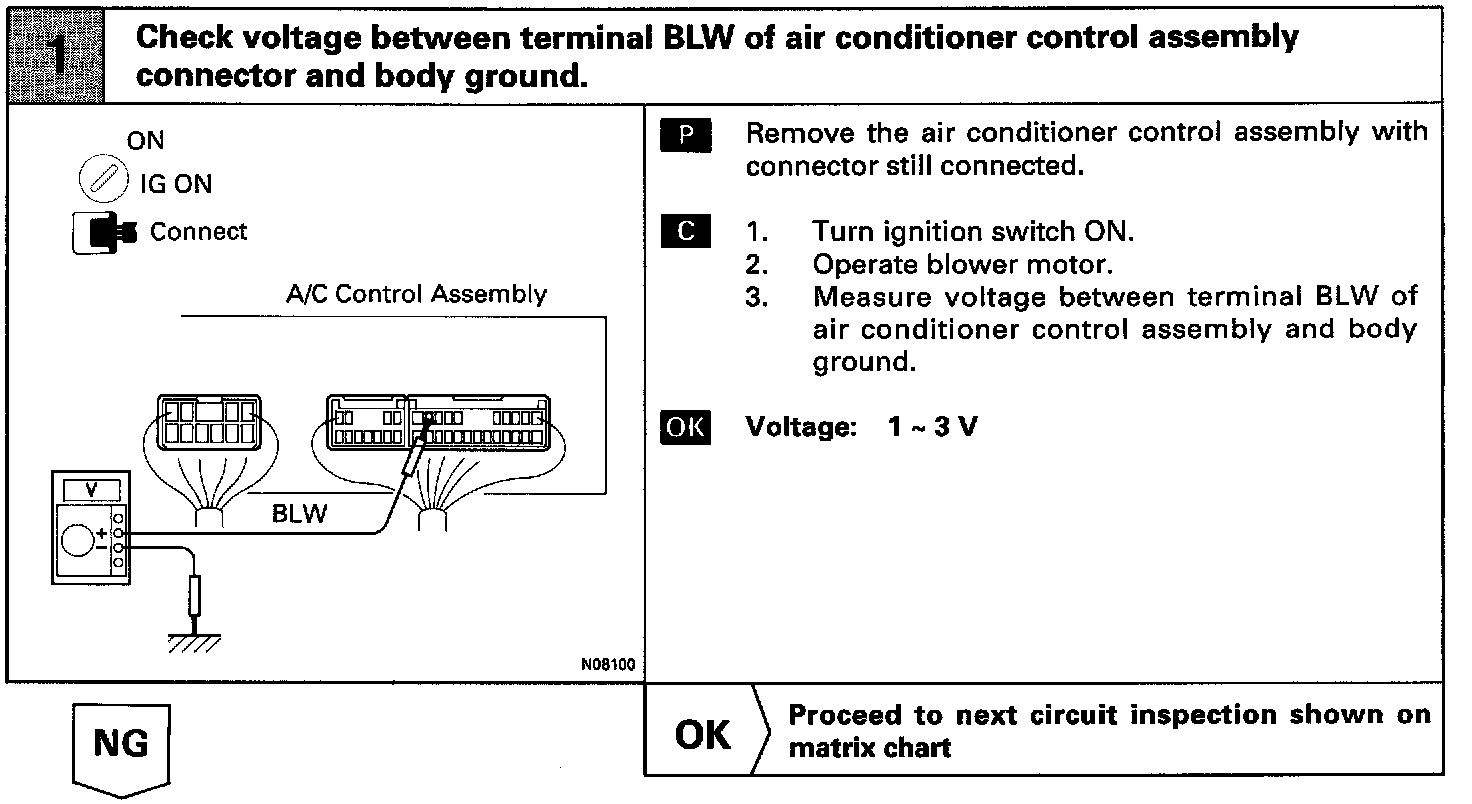

STEP 1:

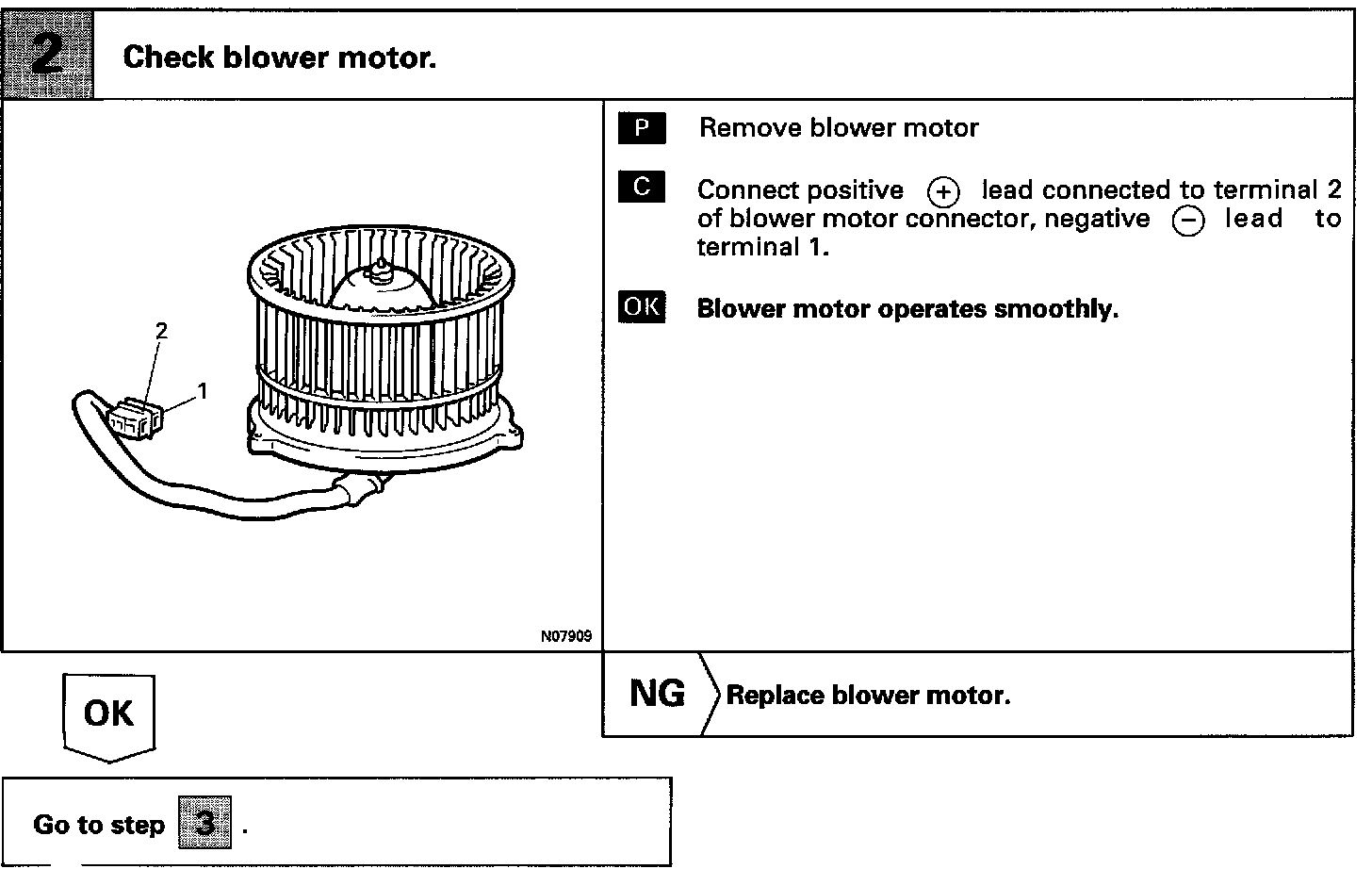

STEP 2:

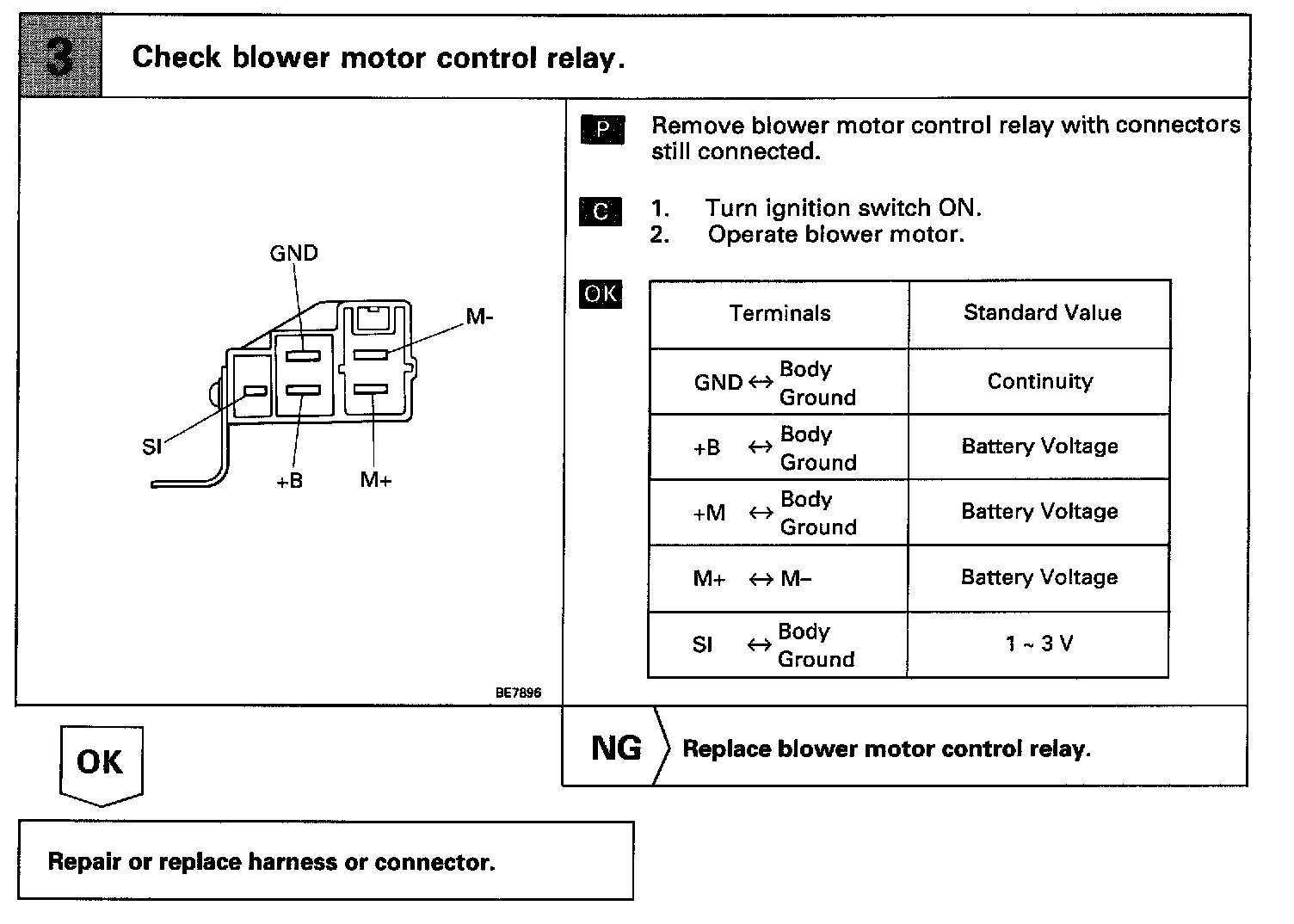

STEP 3:
