Home >> Lexus >> 1993 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> ACC Power Source Circuit

ACC Power Source Circuit

CIRCUIT DESCRIPTION
This circuit supplies power to the air conditioner control assembly.

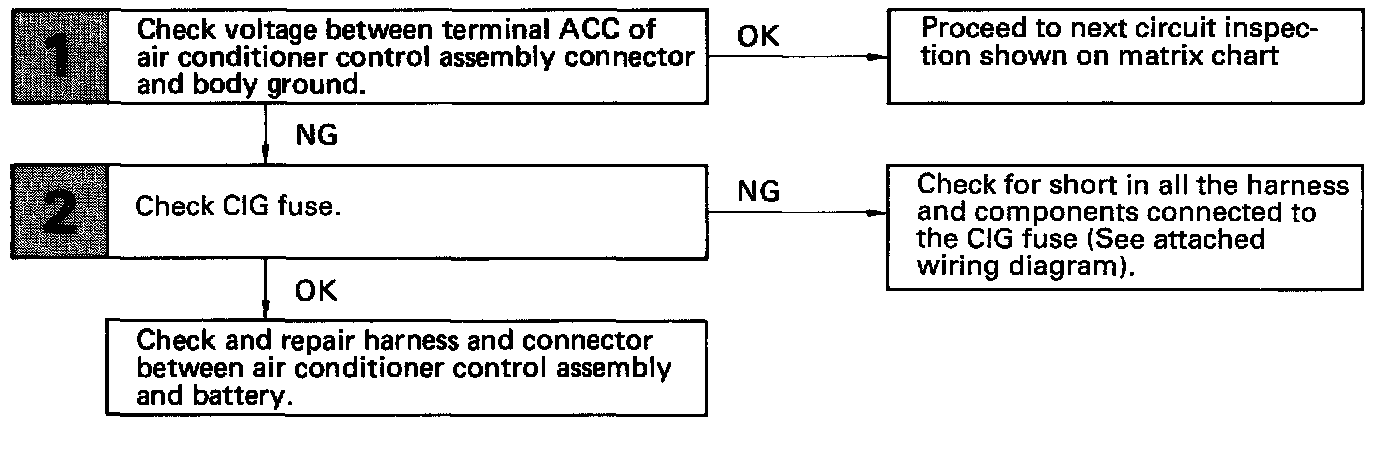

DIAGNOSTIC CHART:

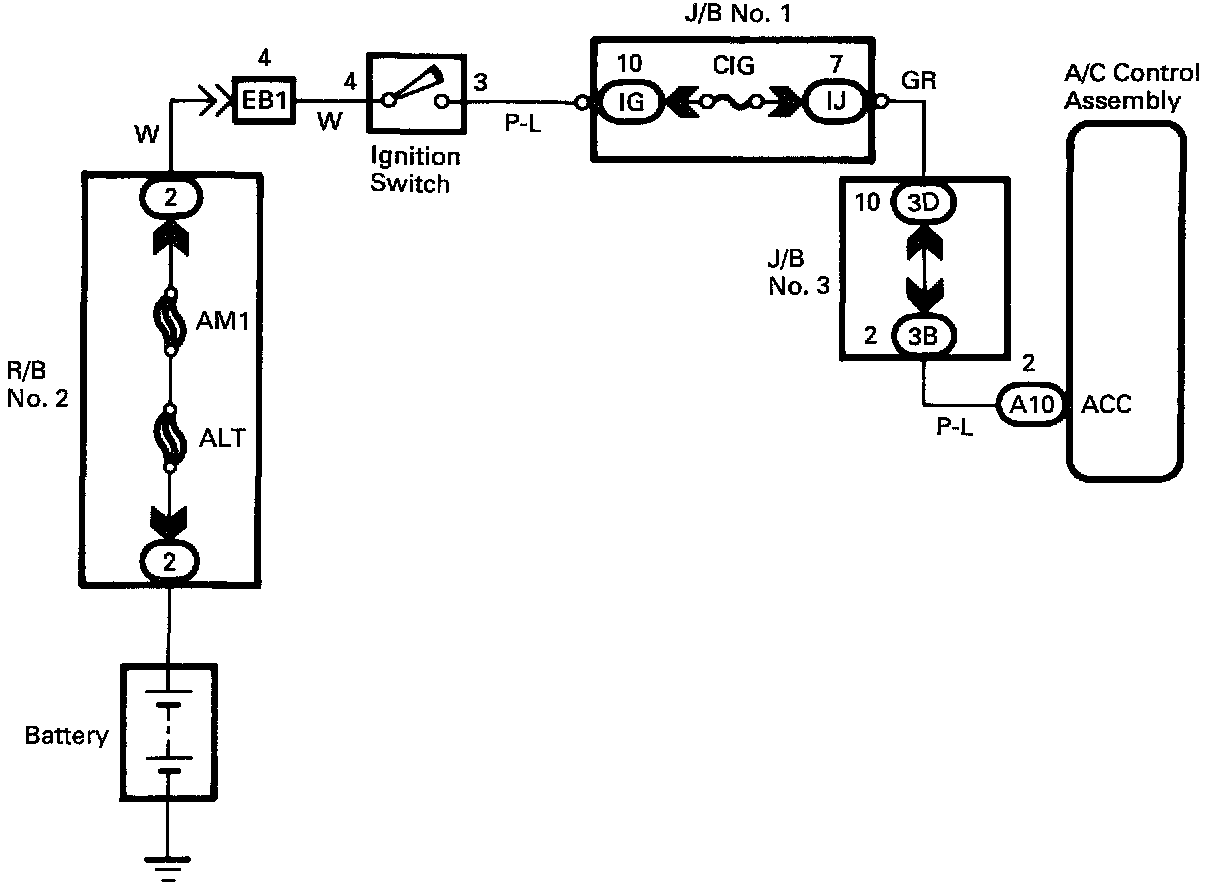

WIRING DIAGRAM:

INSPECTION PROCEDURE

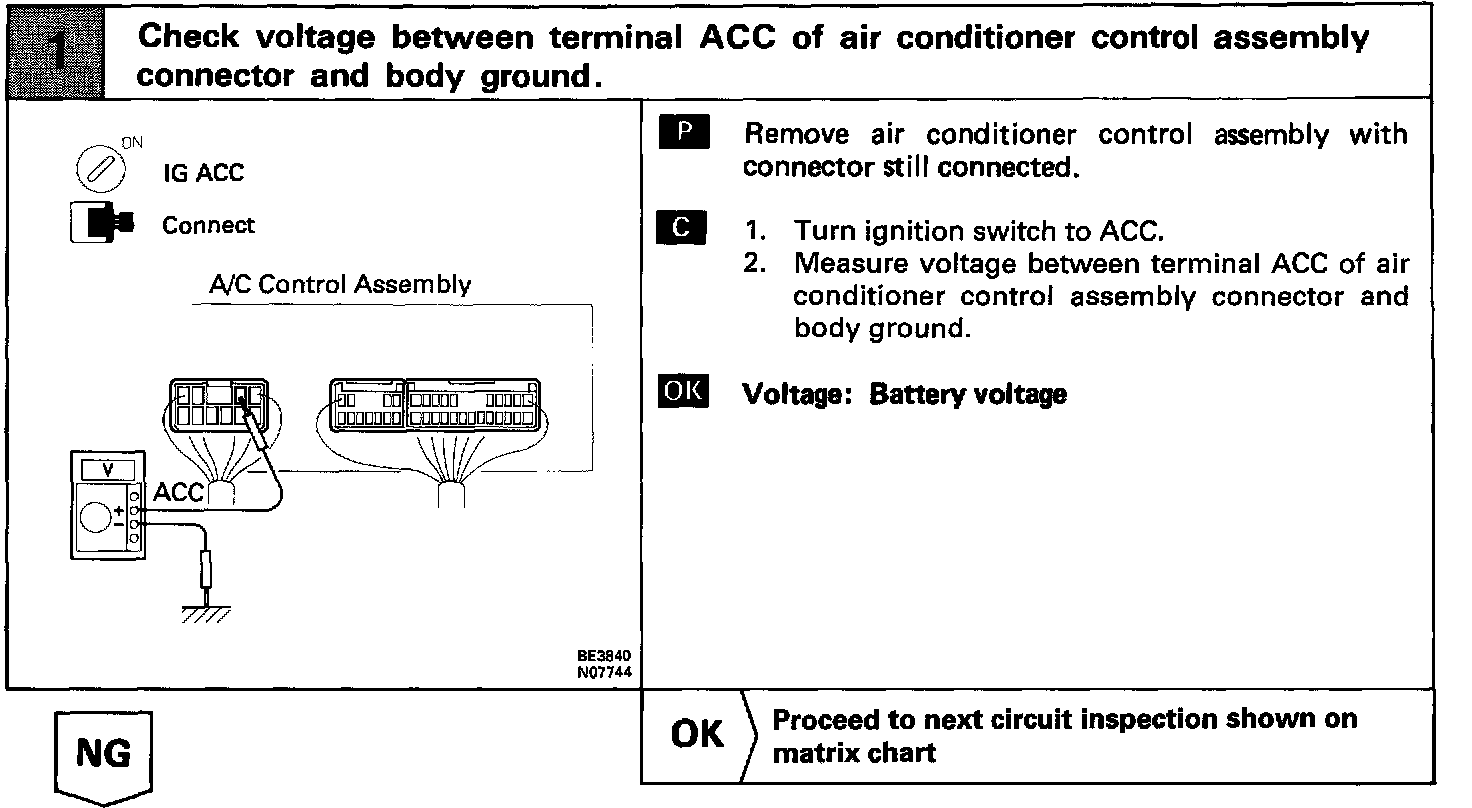

STEP 1:

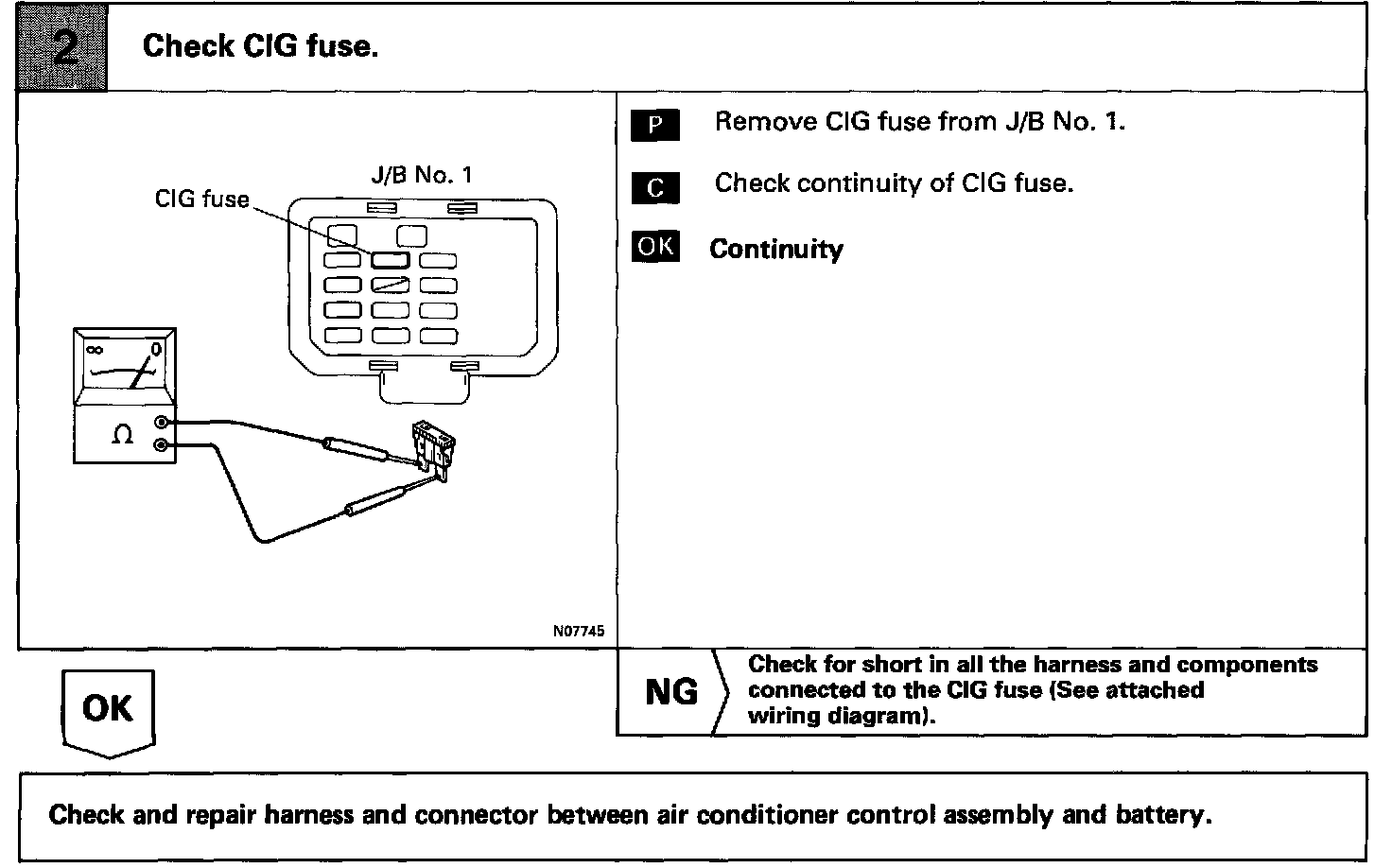

STEP 2:
