Body Dimension - Additional Drawing
BO93-006BODY
MAY 21, 1993
Title: GS 300 ADDITIONAL BODY DIMENSION DRAWING
GS 300

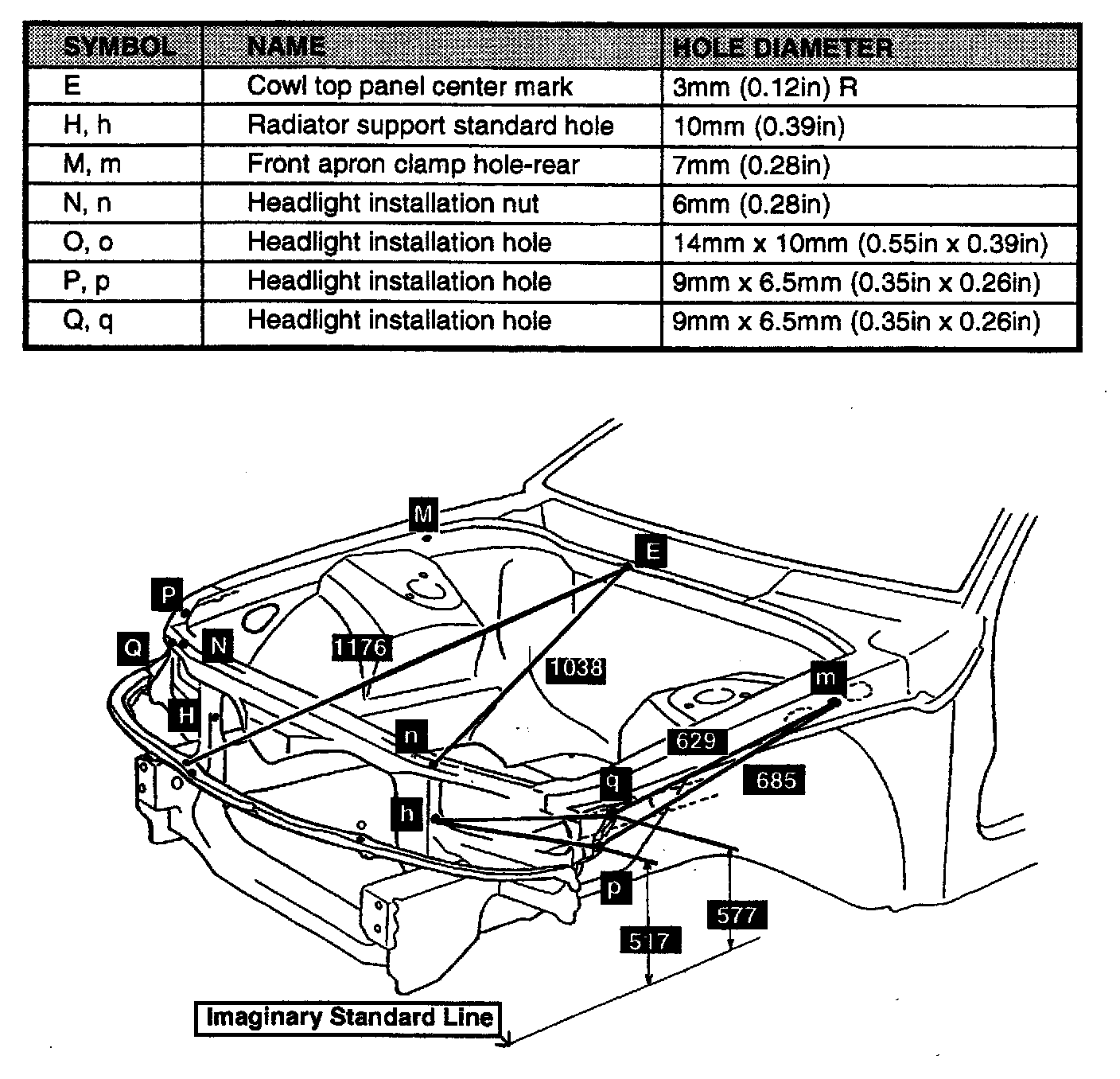

The illustrated dimensions refer to the headlamp assembly installation holes. Care should be taken to restore these dimensions when performing collision repairs. Correct dimensions will assure proper left/right headlight beam alignment.
