Removal and Installation
REAR DOOR REMOVAL1. REMOVE REAR DOOR CHECK FROM BODY
HINT: Tape a screwdriver tip before use.

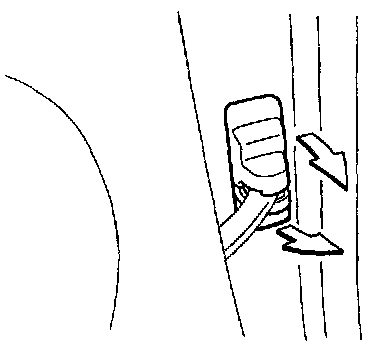

(a) Using the screwdriver, remove the door check cover.

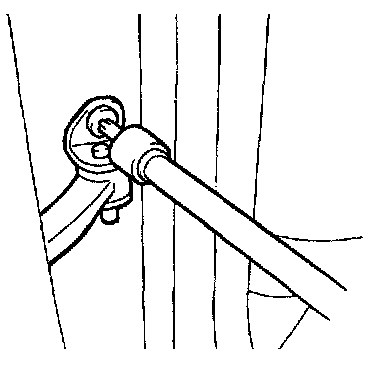

(b) Using a torx wrench, remove two screws.
(c) Remove the door check from the body.
2. REMOVE REAR DOOR PANEL
(a) Remove four bolts.
(b) Disconnect the connector.
(c) While supporting the door, remove four door side hinge bolts.
NOTICE: Do not damage the connector.
REAR DOOR HINGE REPLACEMENT
1. DISCONNECT BATTERY CABLE FROM NEGATIVE TERMINAL
CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

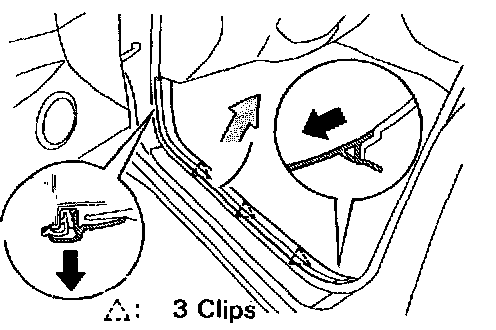

2. REMOVE FRONT DOOR SCUFF PLATE
HINT: Tape a screwdriver tip before use.
(a) Using the screwdriver, pry out the front side of the clip.
(b) Using a clip remover, remove the scuff plate.
3. REMOVE REAR DOOR SCUFF PLATE
HINT: Tape a screwdriver tip before use.
(a) Using the screwdriver, pry out the rear side of the clip.
(b) Using a clip remover, remove the scuff plate.

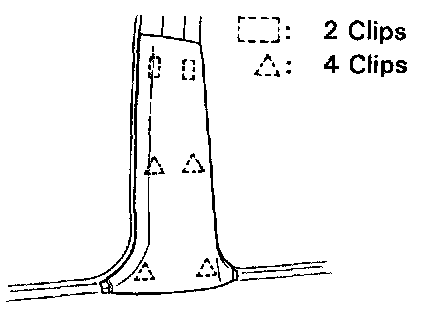

4. REMOVE CENTER PILLAR LOWER GARNISH
HINT: Tape a screwdriver tip before use.
Using the screwdriver, remove the garnish.

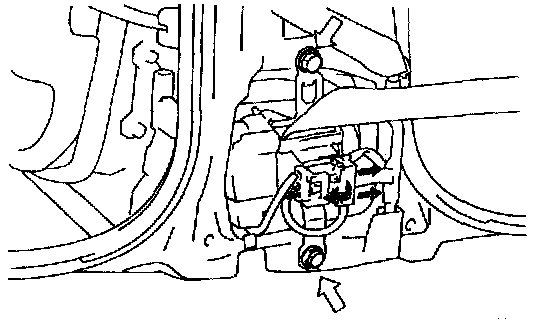

5. REMOVE FRONT SEAT BELT RETRACTOR
(a) Disconnect the connectors.
(b) Remove two bolts and the retractor.

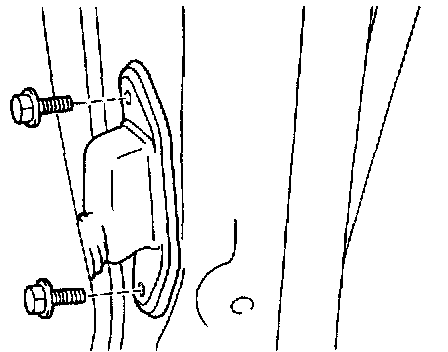

6. REMOVE REAR DOOR HINGE
(a) Remove two nuts from the body side.
(b) Remove the door hinge.
7. INSTALL REAR DOOR HINGE
Install the hinge with two nuts.
Torque: 25 N.m (260 kgf.cm, 19 ft.Ibf)
8. INSTALL FOLLOWING PARTS:
(a) Front seat belt retractor (Upper Side)
Torque: 19 N.m (195 kgf.cm, 14 ft.Ibf)
(b) Front seat belt retractor (Lower Side)
Torque: 43 N.m (440 kgf.cm, 32 ft.Ibf)
(c) Center pillar lower garnish
(d) Front and rear door scuff plates
9. CONNECT BATTERY CABLE TO NEGATIVE TERMINAL
REAR DOOR INSTALLATION
INSTALL REAR DOOR PARTS BY FOLLOWING REMOVAL SEQUENCE IN REVERSE
INSTALL REAR DOOR PANEL
Torque: 28 N.m (290 kgf.cm, 21 ft.Ibf)

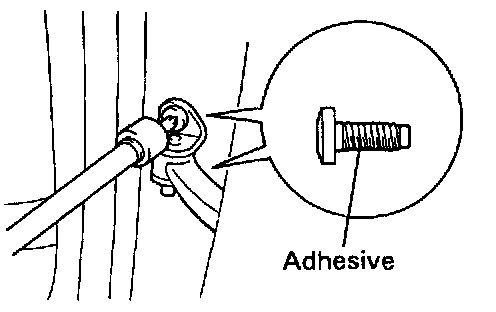

INSTALL REAR DOOR CHECK
(a) Apply adhesive to two screws.
Pert No.08833-00070,THREE BOND 1324 or equivalent
(b) Install the door check with two screws.
Torque: 8.8 N.m (90 kgf.cm, 78 in..Ibf)
