Air Outlet Damper Position Sensor Circuit

CIRCUIT DESCRIPTION

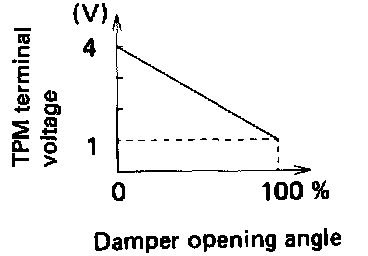

This sensor detects the position of the air mix damper and sends the appropriate signals to the air conditioner control assembly. The position sensor is built into the air outlet damper control servomotor assembly.

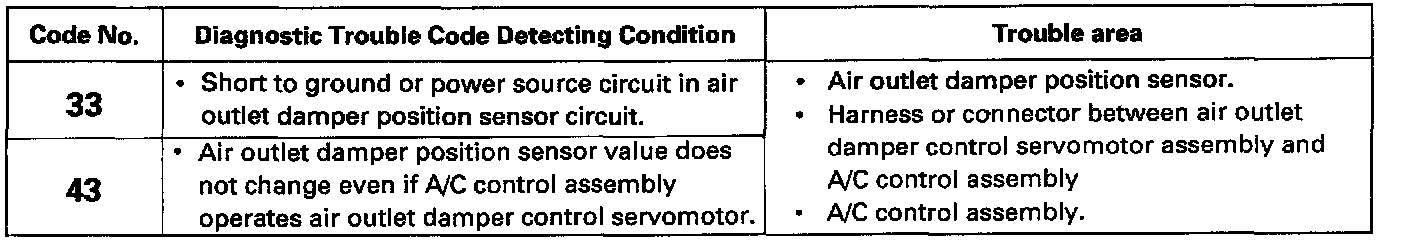

DIAGNOSTIC TROUBLE CODE DETECTING CONDITION CHART:

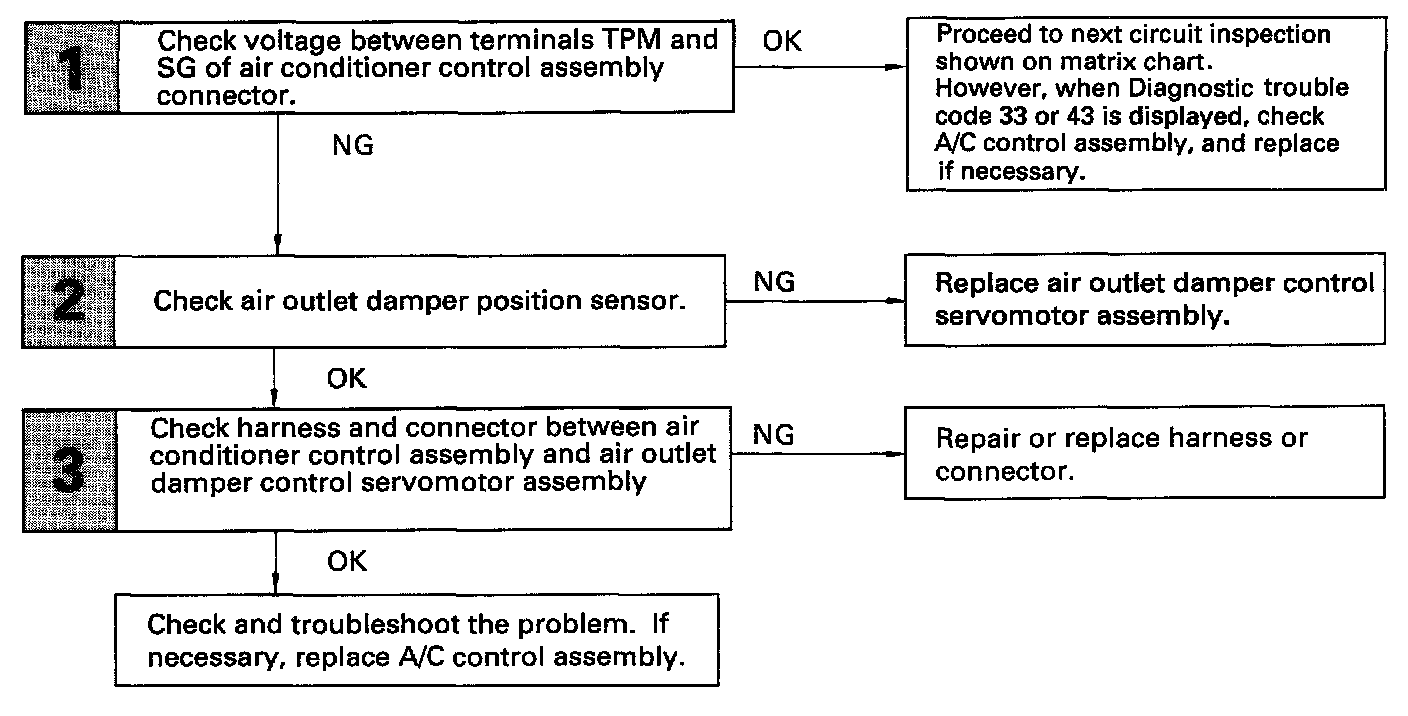

DIAGNOSTIC CHART:

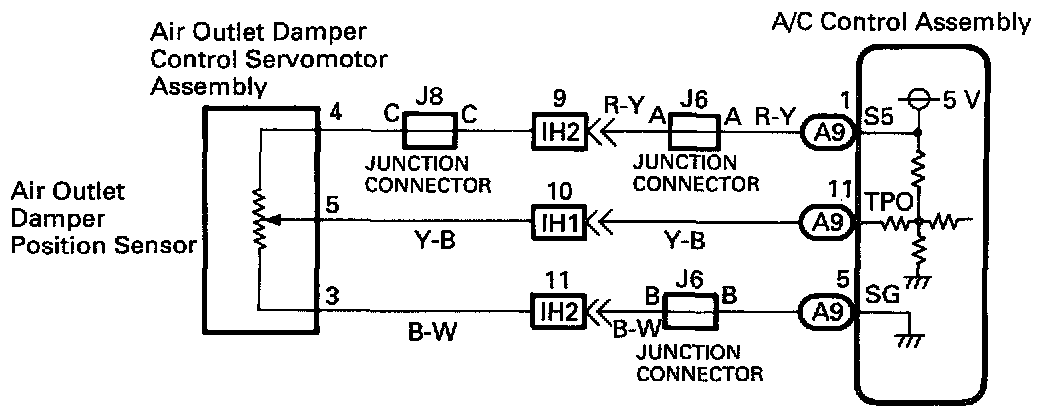

WIRING DIAGRAM:

INSPECTION PROCEDURE

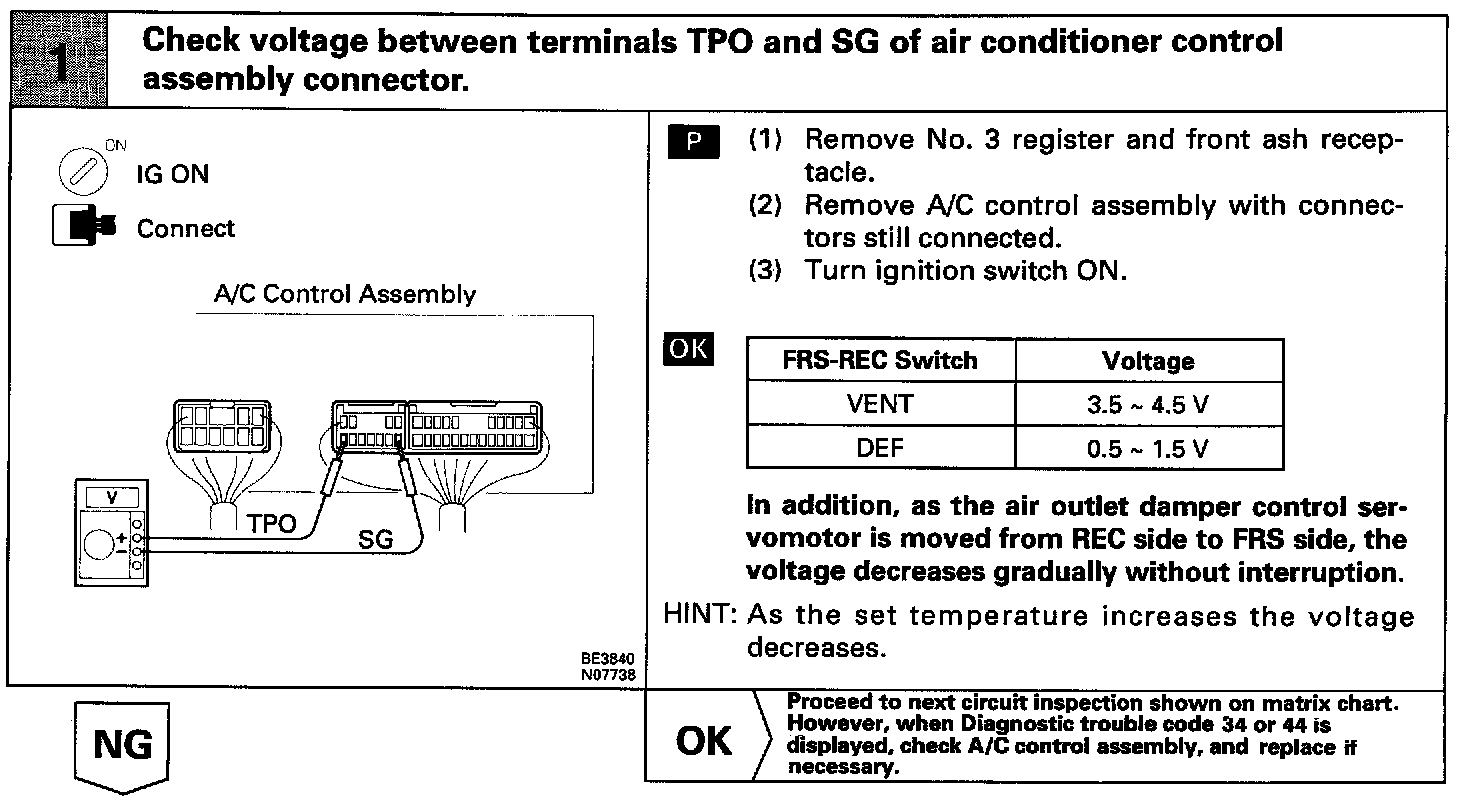

STEP 1:

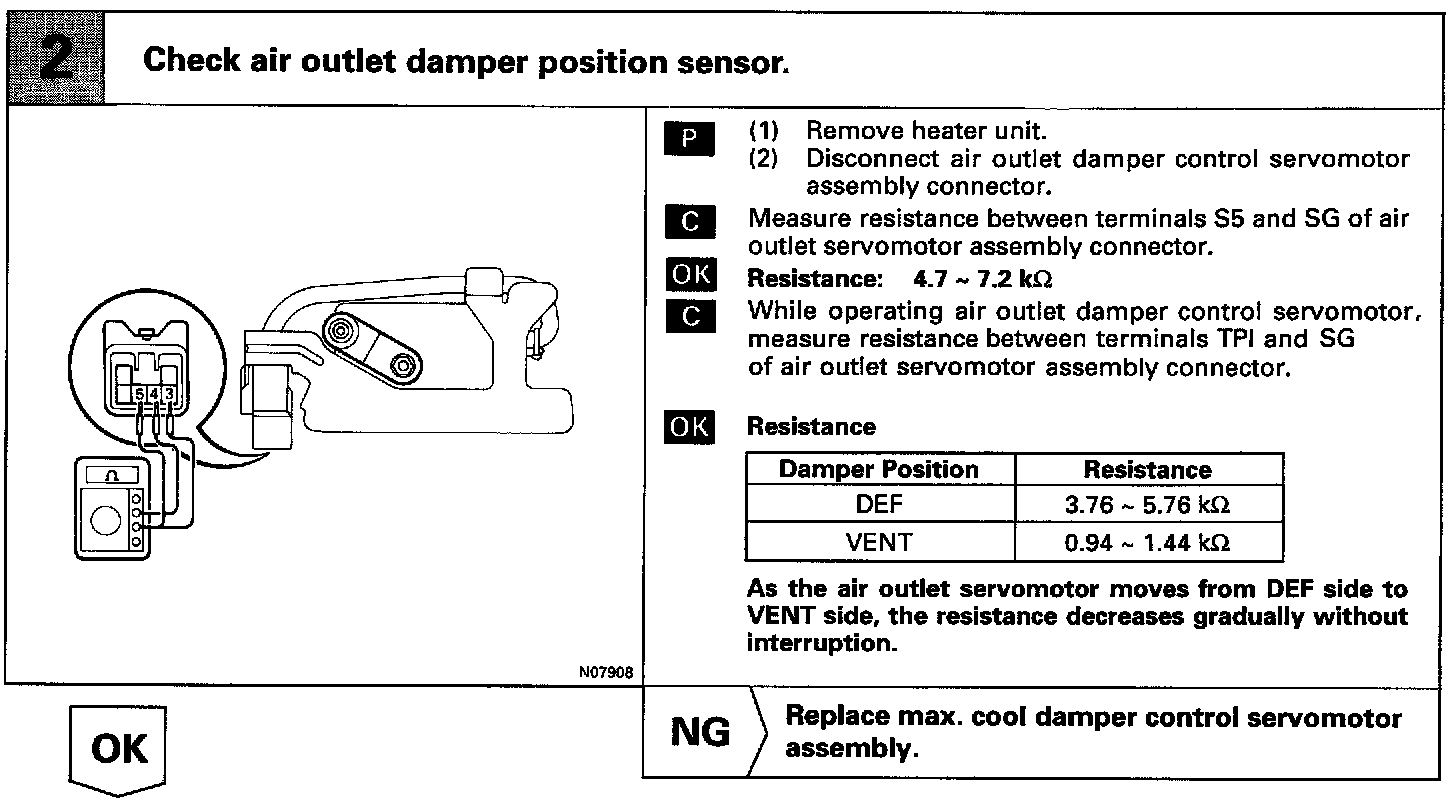

STEP 2:

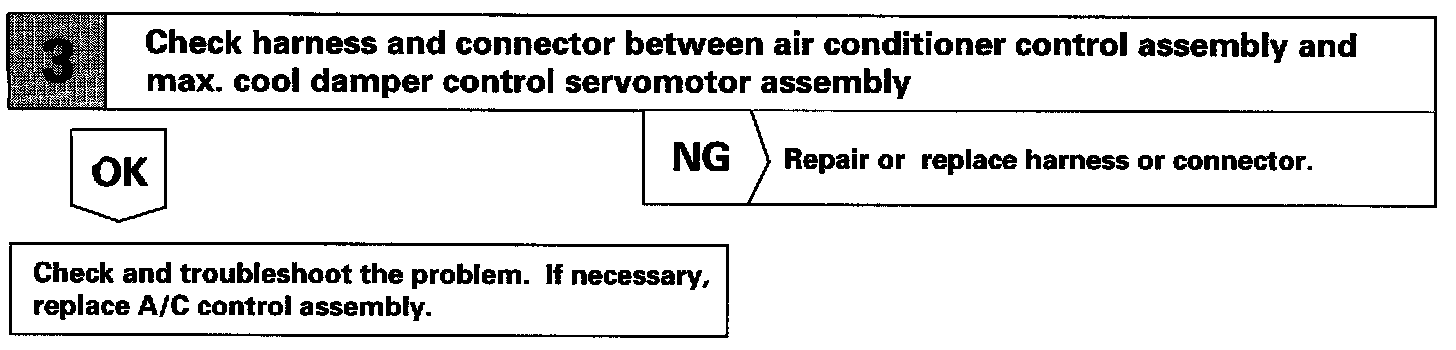

STEP 3:
