Air Inlet Damper Control Servomotor Circuit









CIRCUIT DESCRIPTION
The air inlet damper control servomotor is controlled by the air conditioner control assembly and moves the air inlet damper to the desired position.

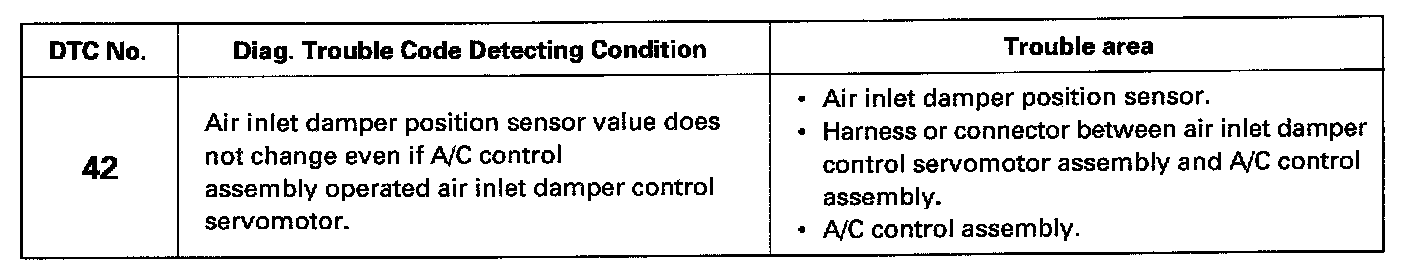

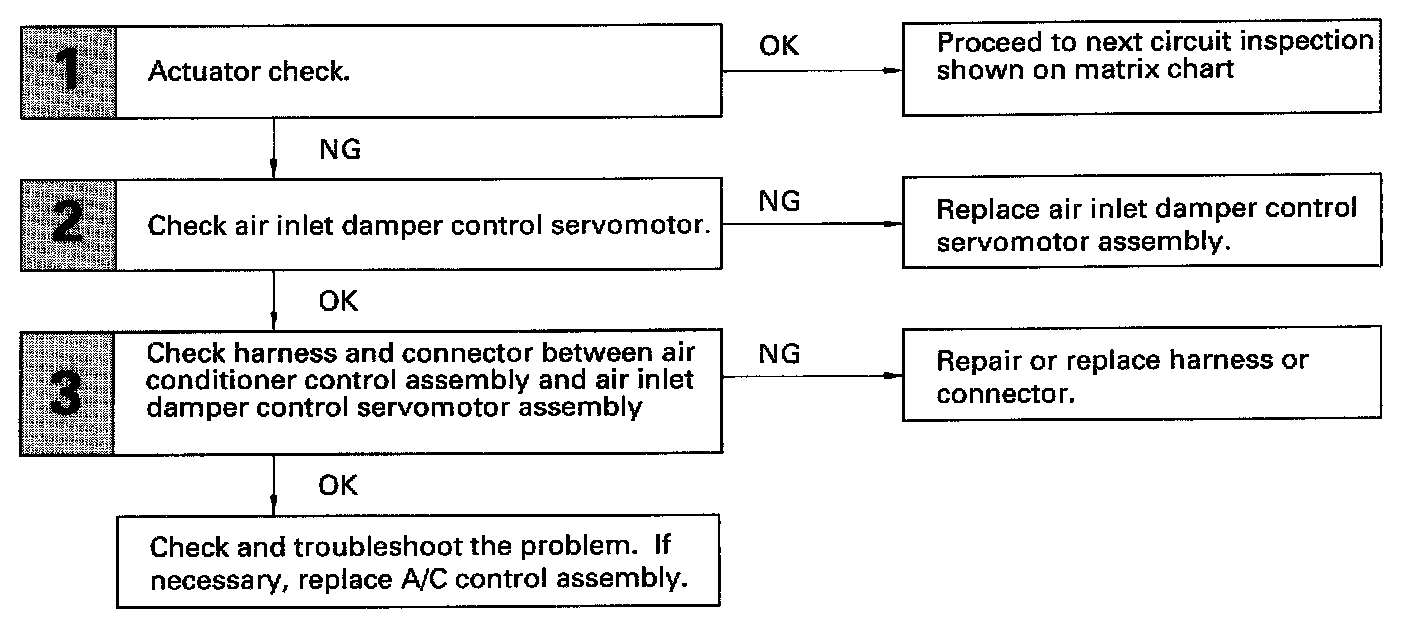

DIAGNOSTIC CHART:







WIRING DIAGRAM:







INSPECTION PROCEDURE

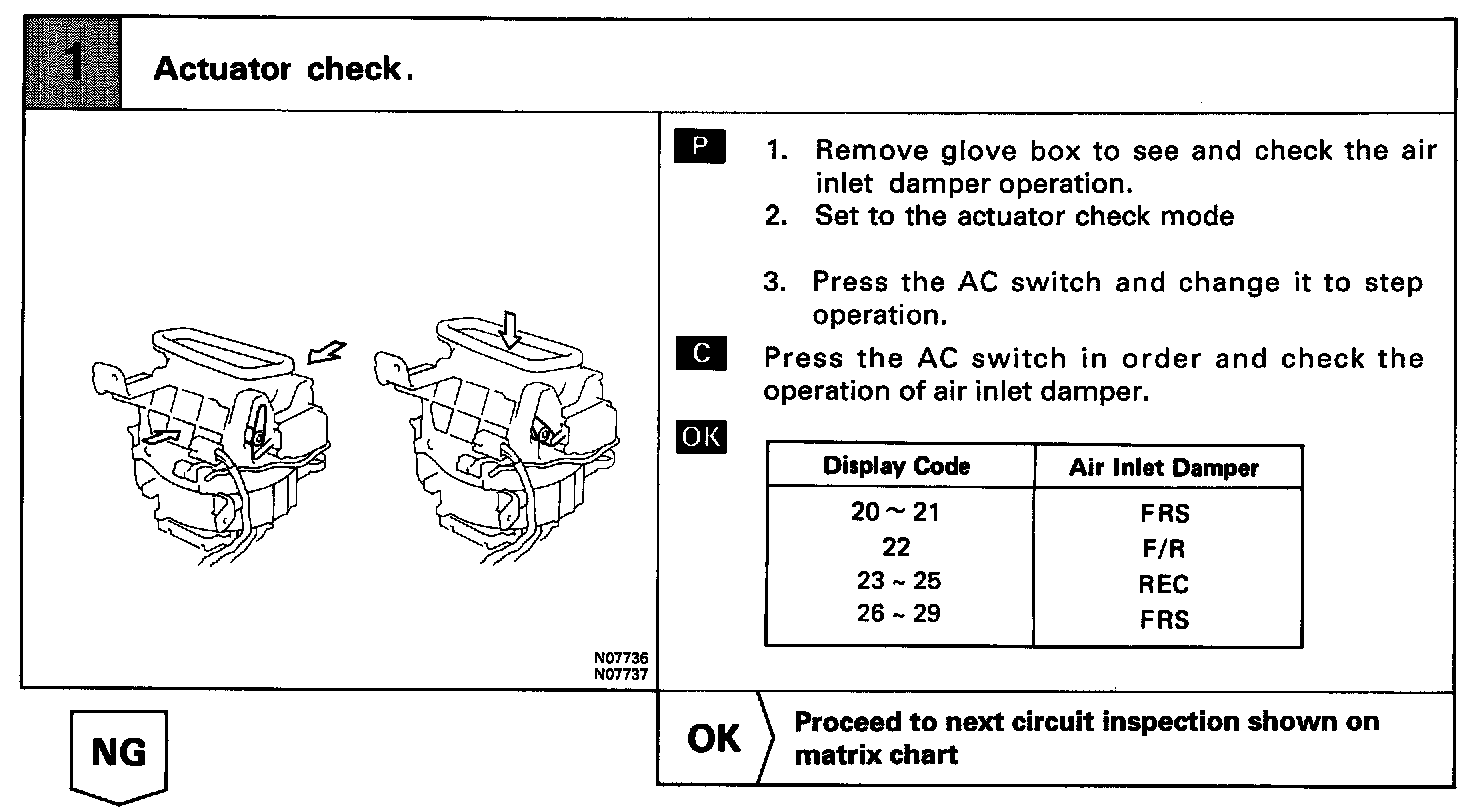

STEP 1:

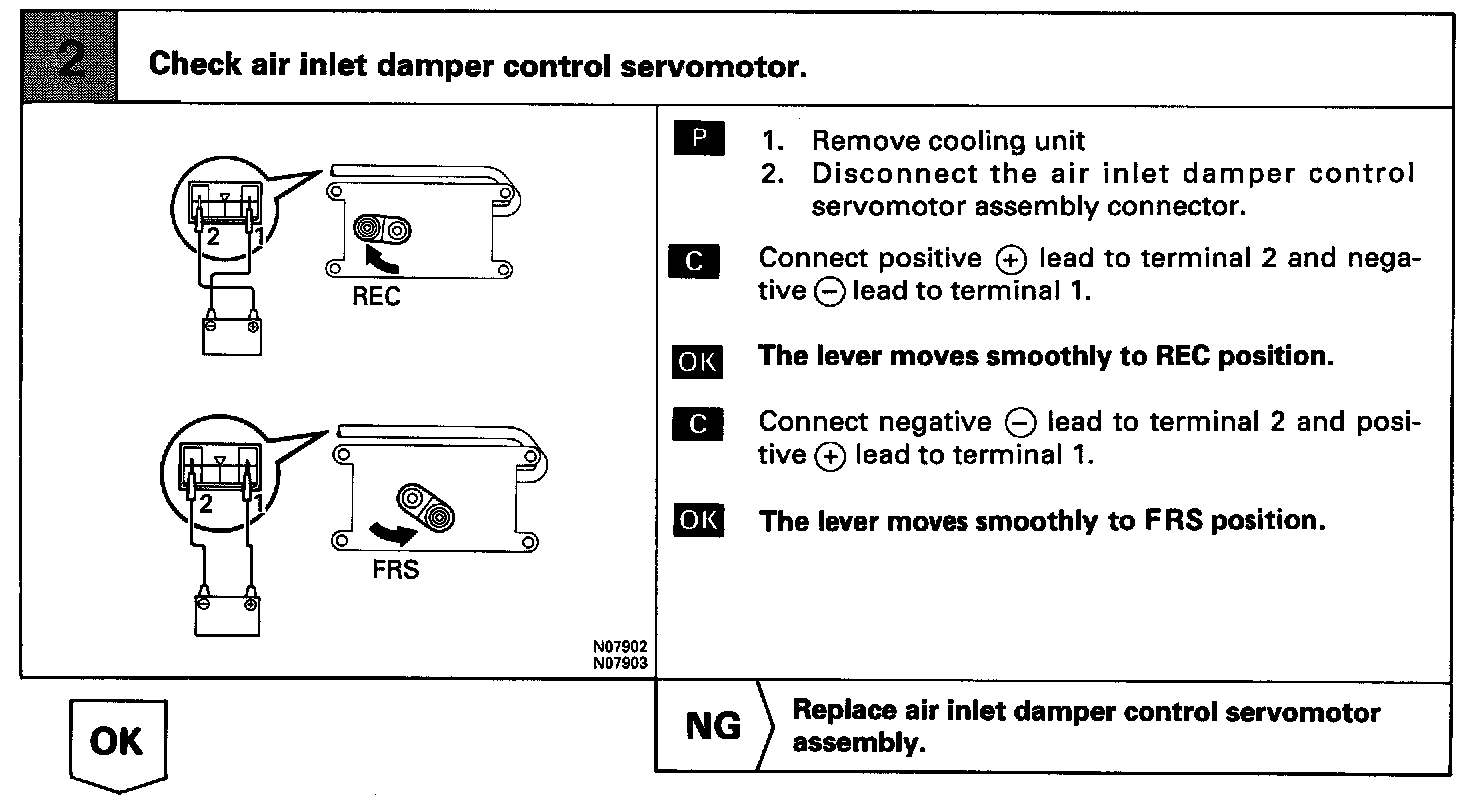

STEP 2:





STEP 3:
