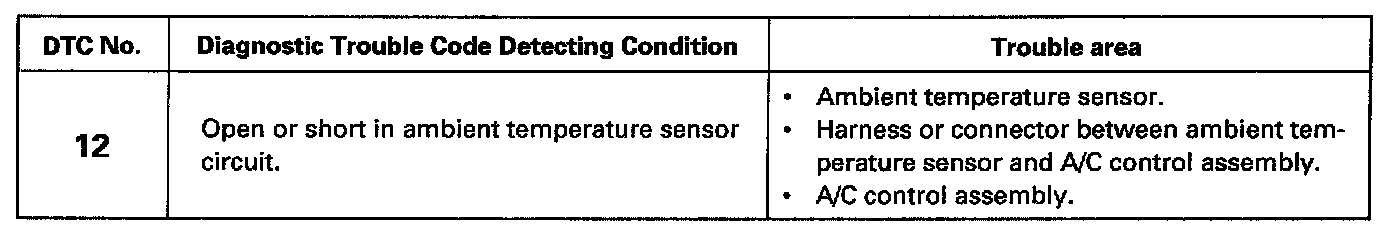

DTC 12

CIRCUIT DESCRIPTION
This sensor detects the ambient temperature and sends the appropriate signals to the NC control assembly.

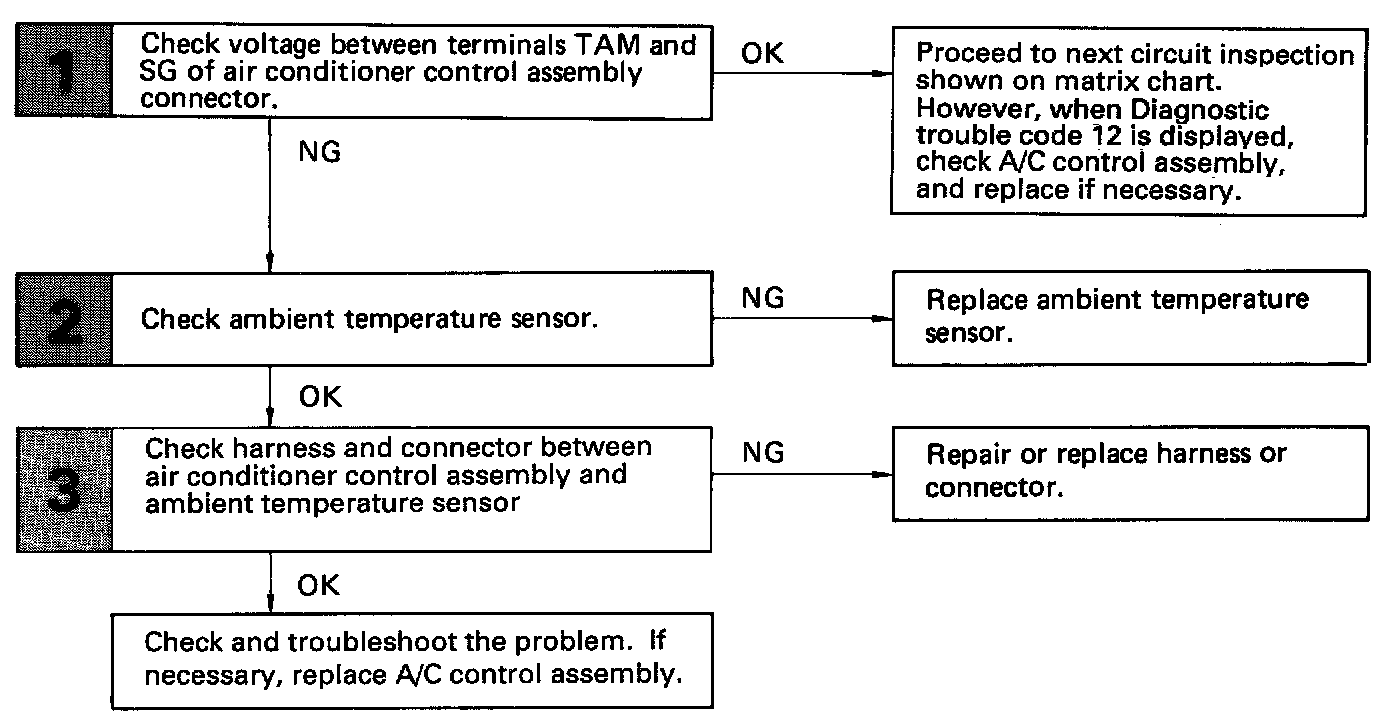

DIAGNOSTIC CHART:

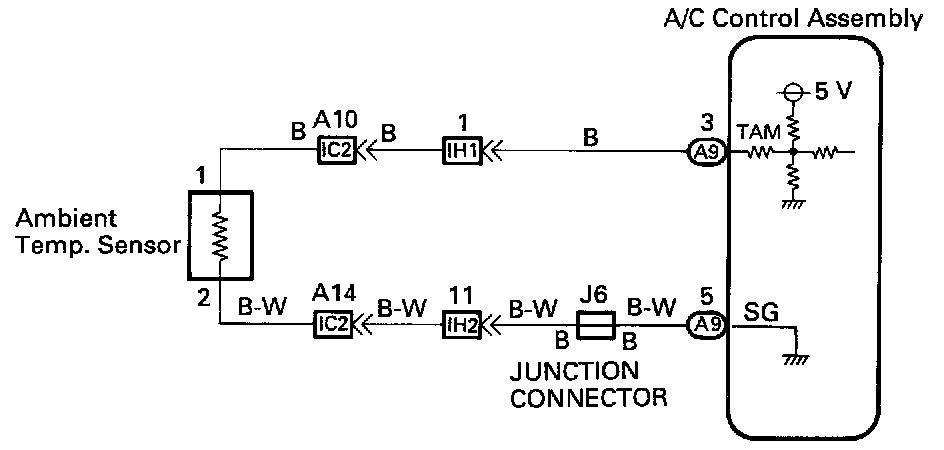

WIRING DIAGRAM:

INSPECTION PROCEDURE

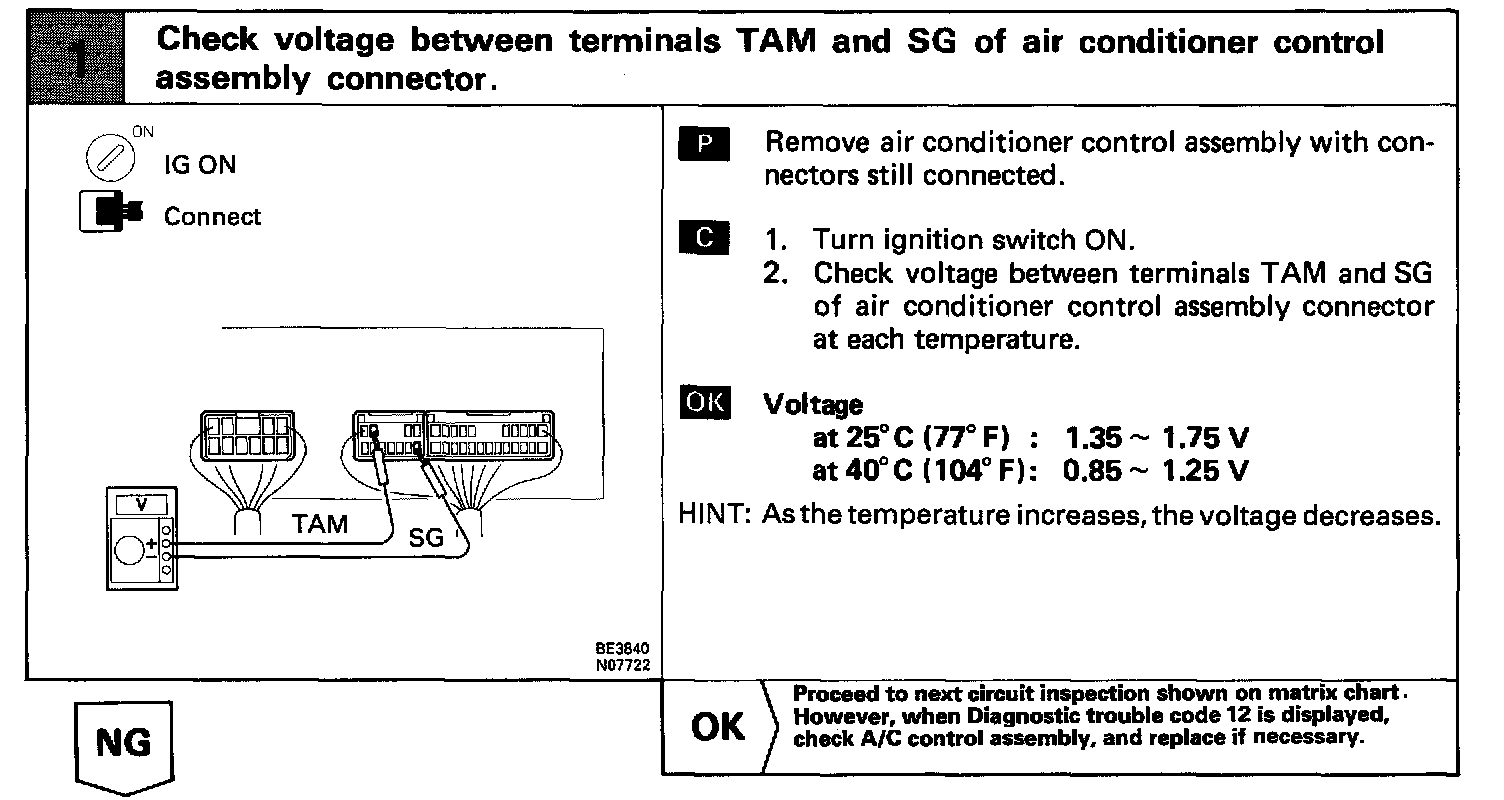

STEP 1:

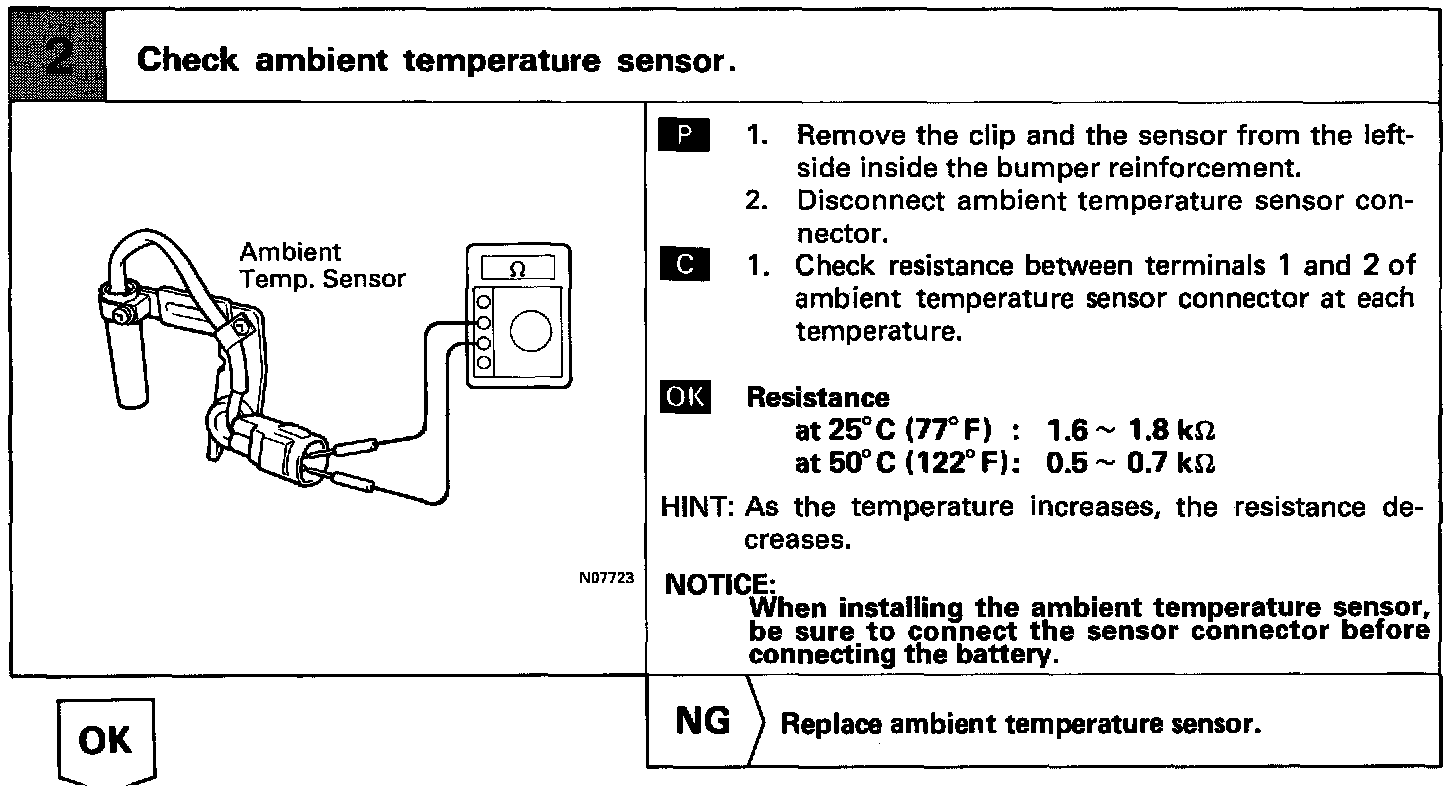

STEP 2:

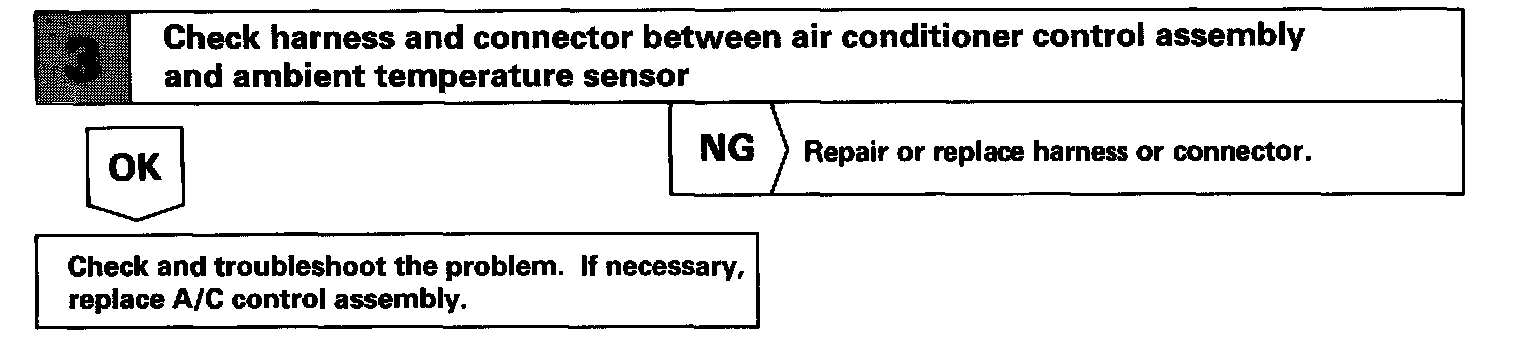

STEP 3:
