DTC 11

CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cabin and sends the appropriate signals to the air conditioner control assembly.

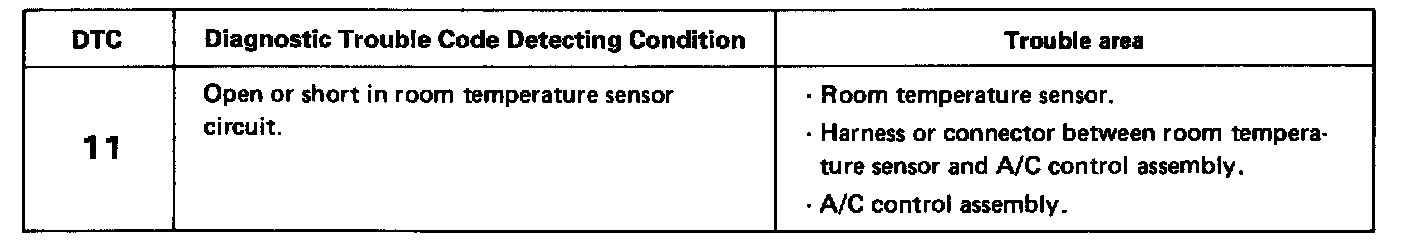

DIAGNOSTIC CHART:

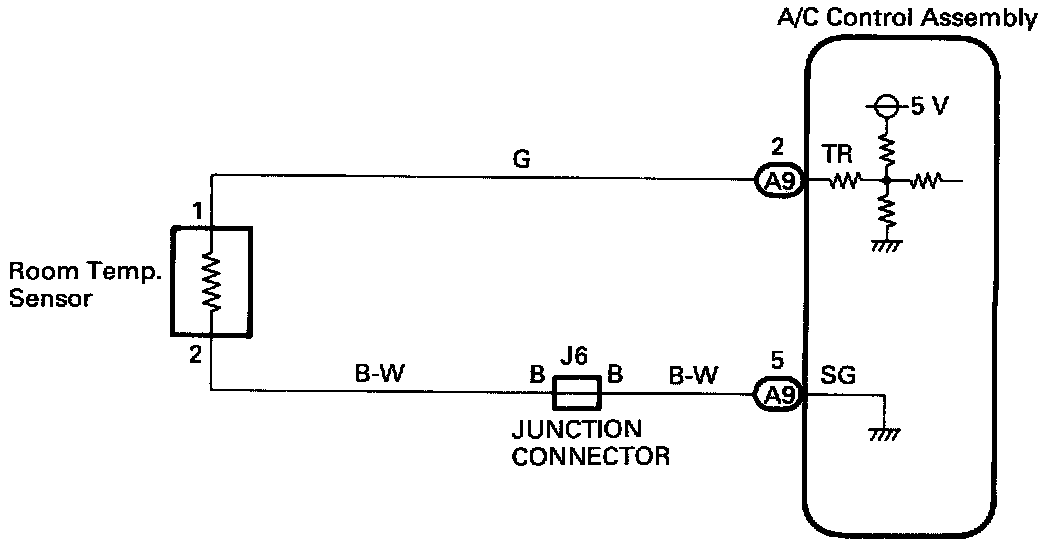

WIRING DIAGRAM:

INSPECTION PROCEDURE

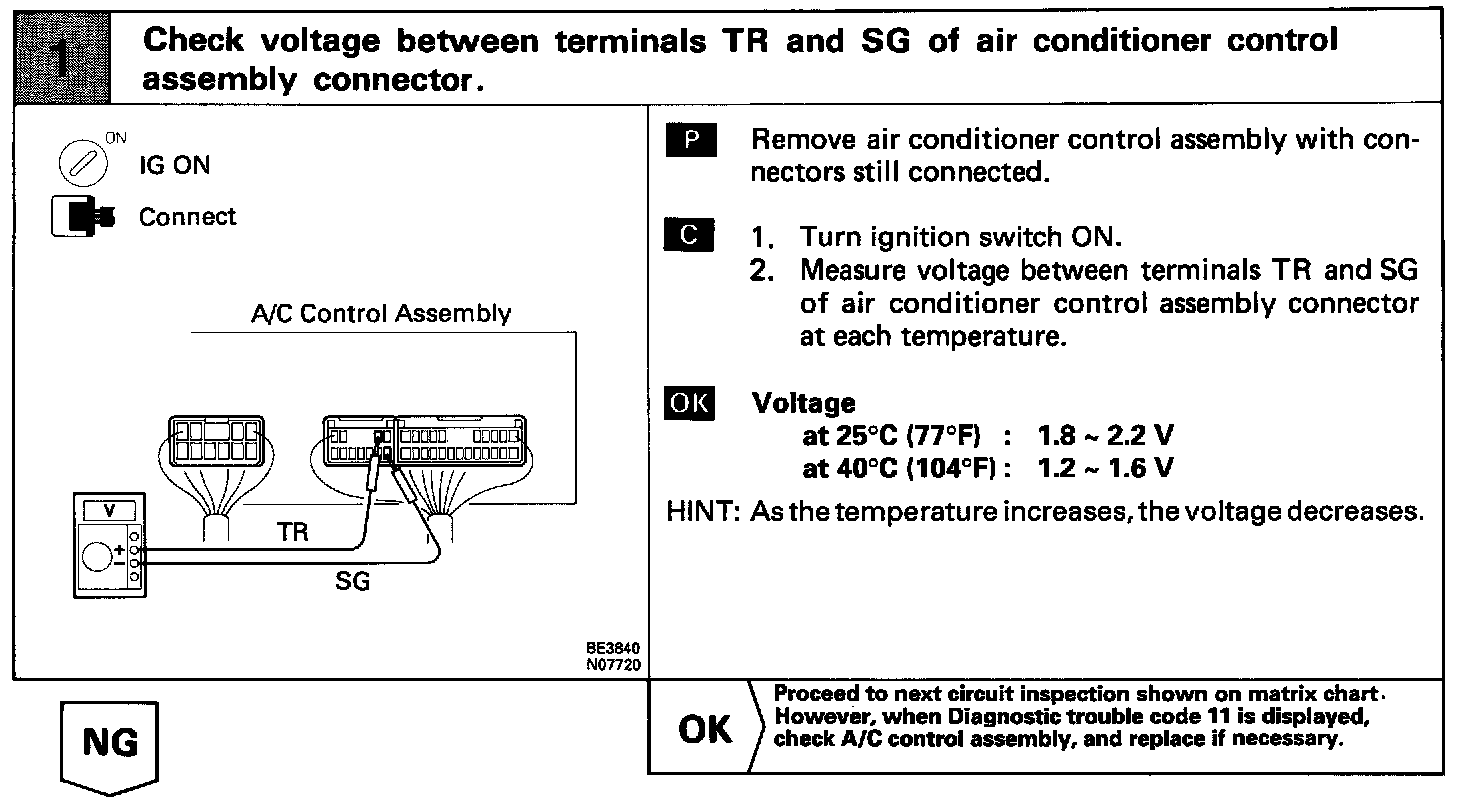

STEP 1:

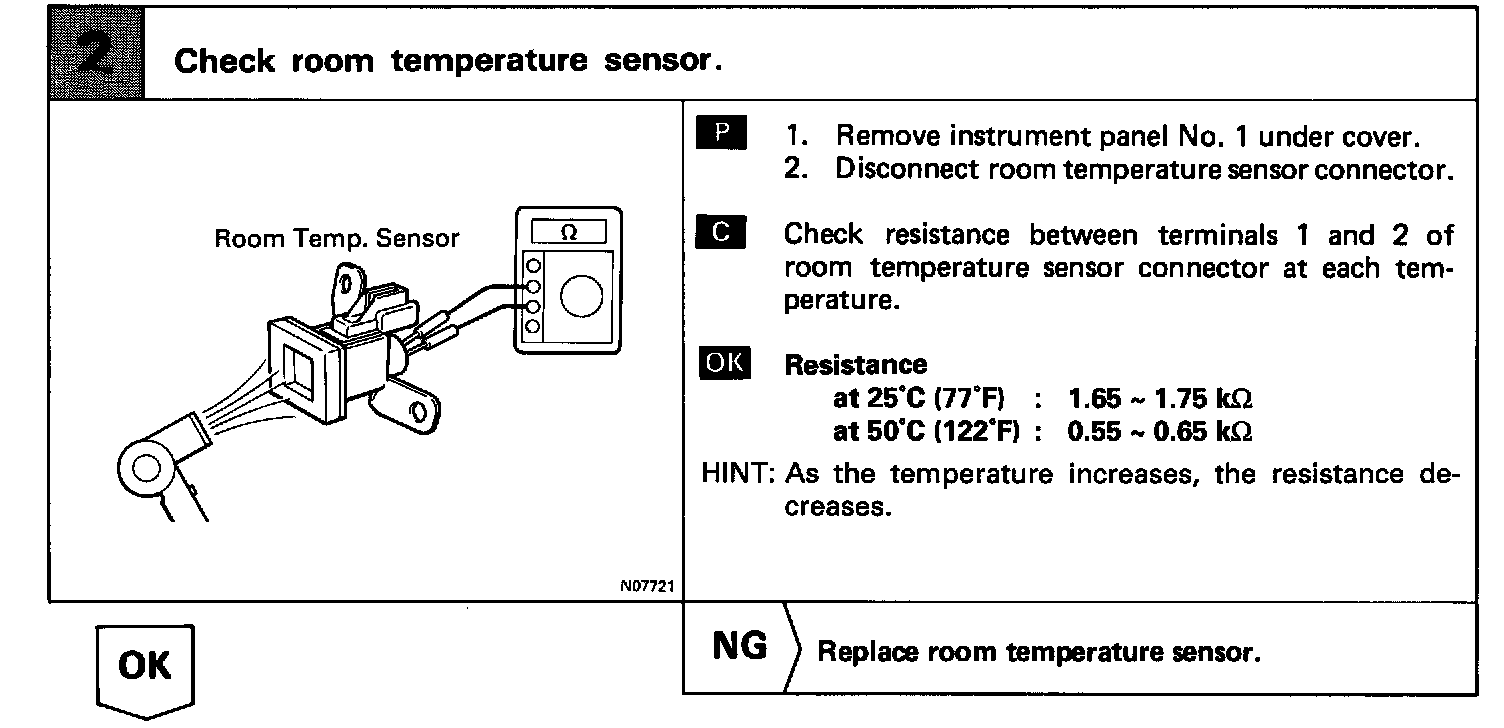

STEP 2:

STEP 3:
