Diagnostic Procedure

DIAGNOSTIC PROCEDURE

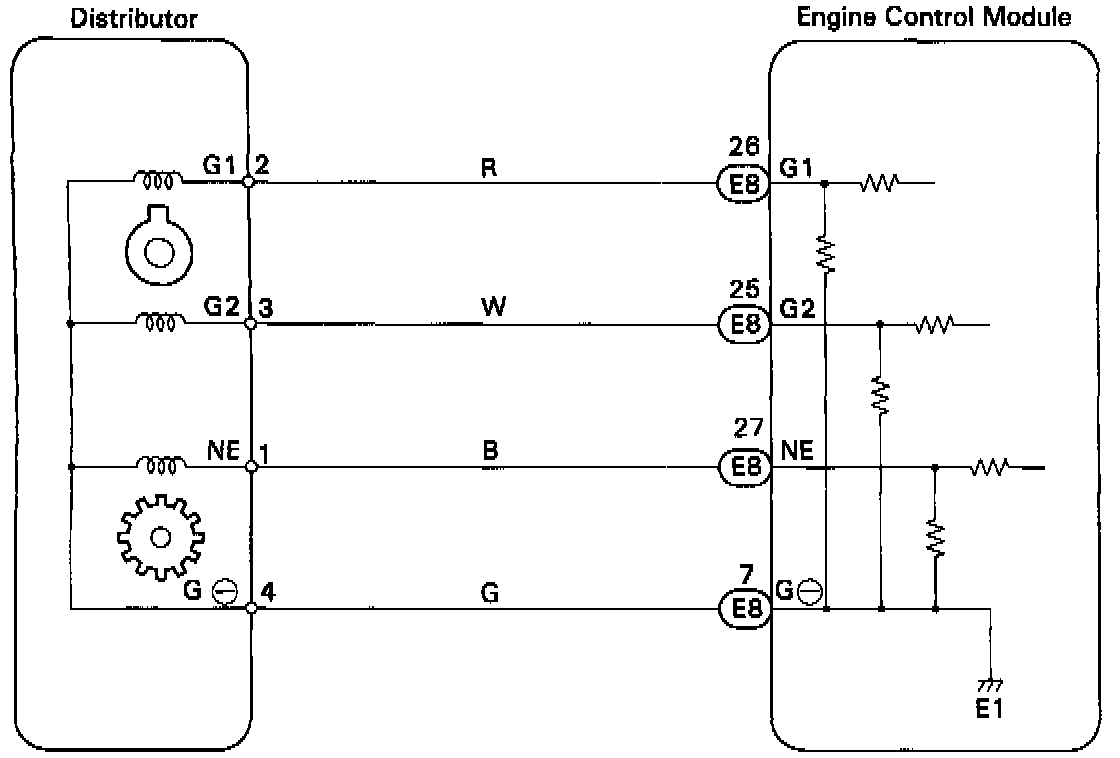

Schematic View Of The Crankshaft Position (NE) And Camshaft Position (G1, G2) Sensors:

1. Check resistance of each pickup coil in Distributor.
- If OK proceed to step 2.
- If not OK replace Distributor.
2. Check for open and short in harness and connector between Engine Control Module and Distributor.
- If OK proceed to step 3.
- If not OK repair or replace harness or connector.
3. Check air gap.
- If OK check and replace Engine Control Module.
- If not OK replace Distributor.
