DTC 73

Circuit Description

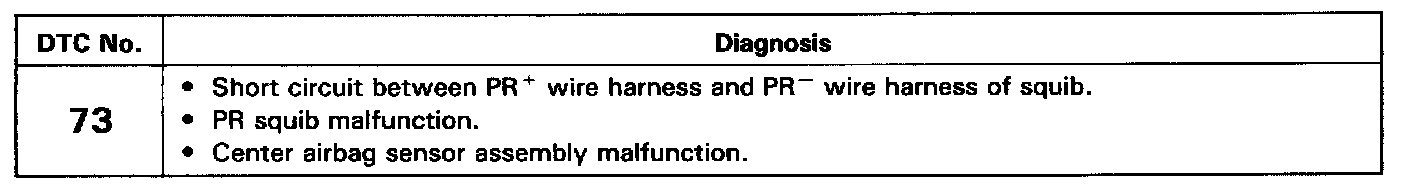

The PR squib circuit consists of the center airbag sensor assembly, seat belt pretensioner check connector and seat belt pretensioner RH (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. Diagnostic trouble code 73 is recorded when a short is detected in the PR+ wire harness and PR wire harness of the squib circuit.

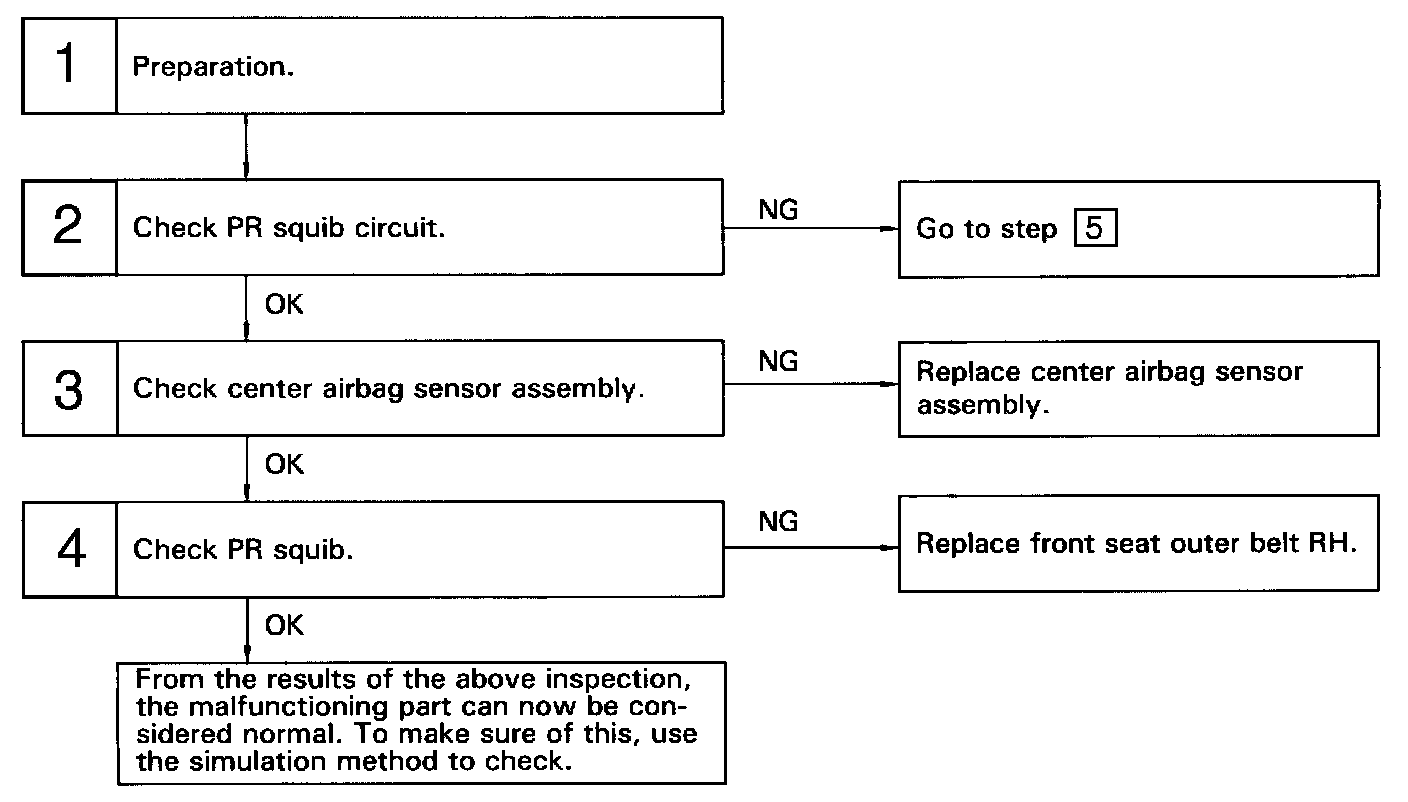

Diagnostic Chart:

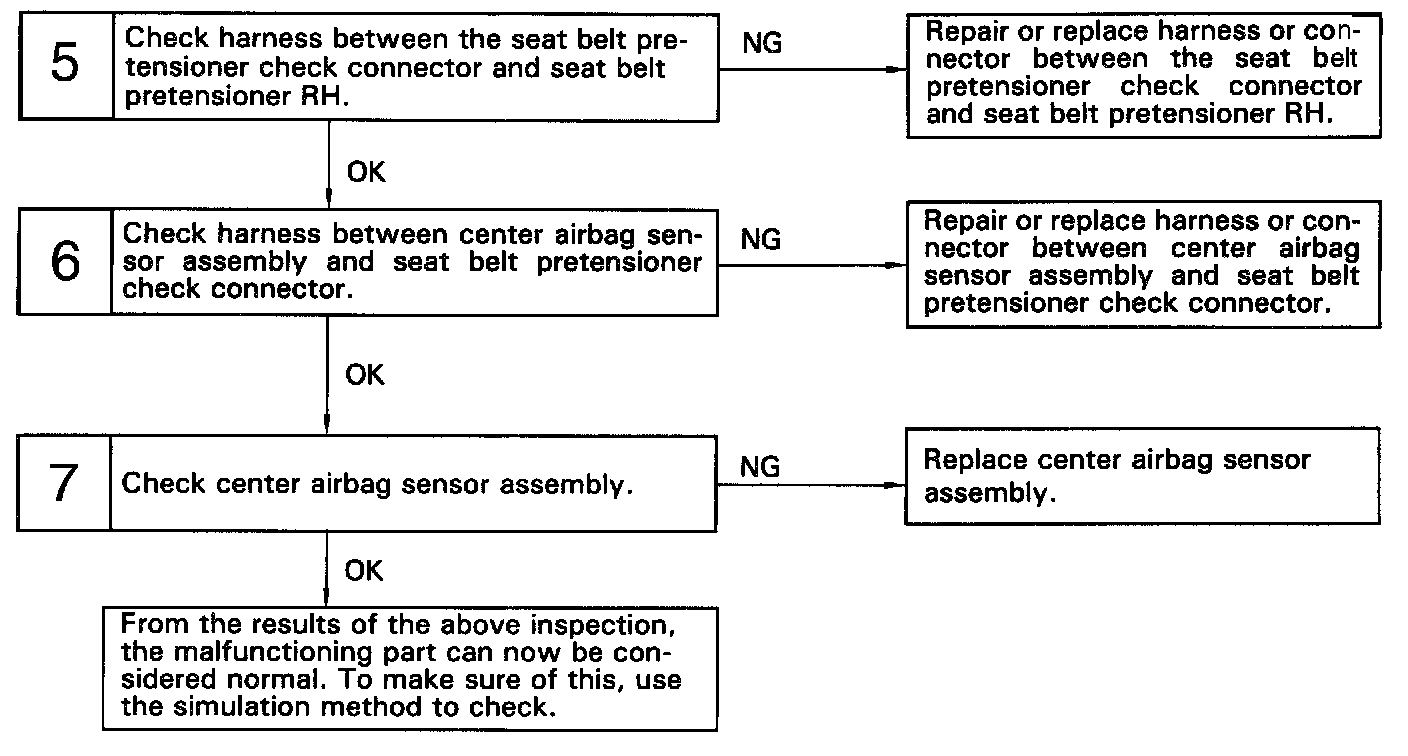

Diagnostic Chart (Cont'd):

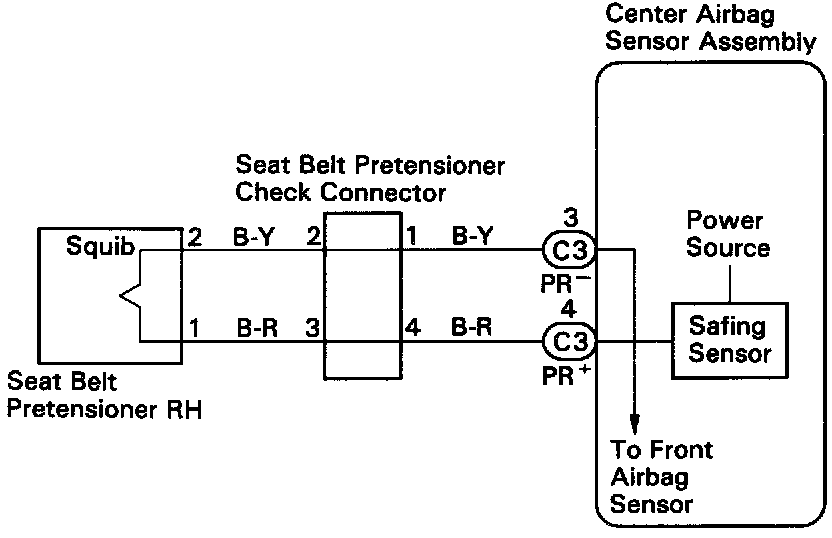

Wiring Diagram:

Inspection Procedures

Step 1:

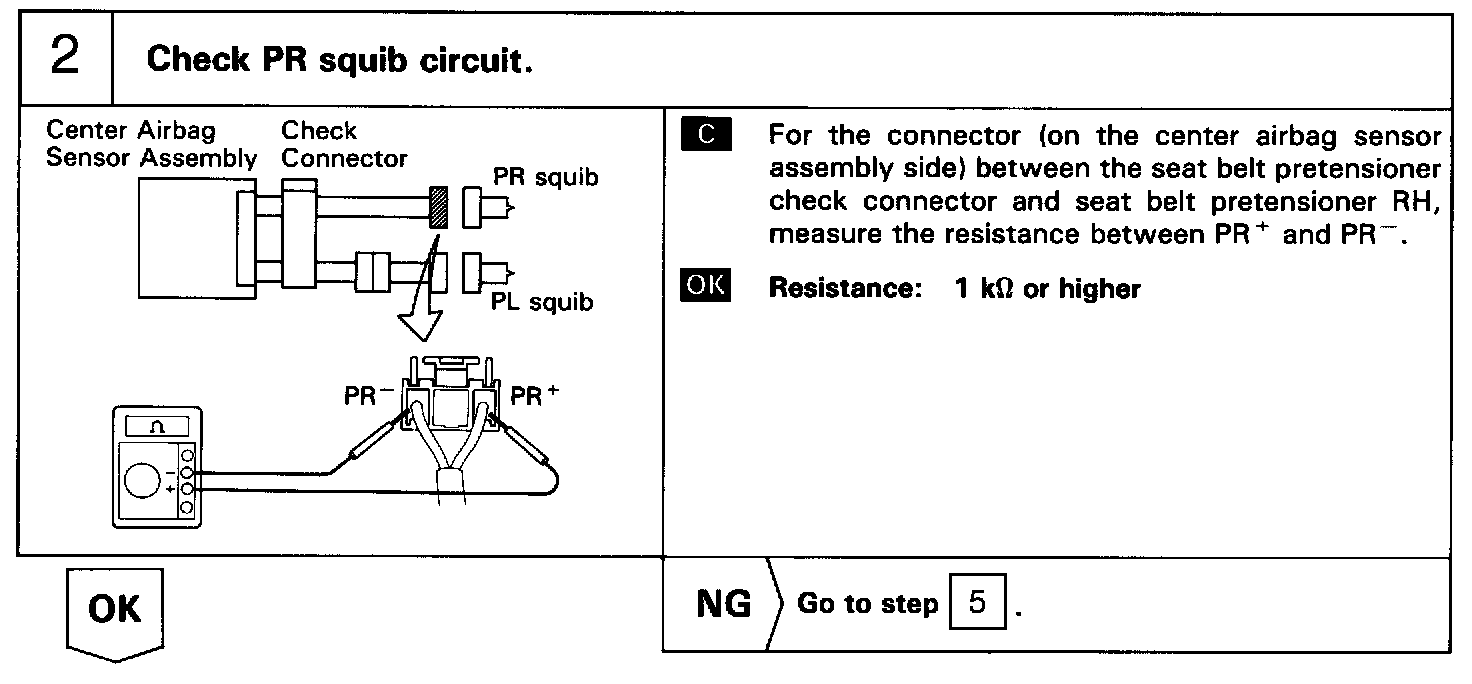

Step 2:

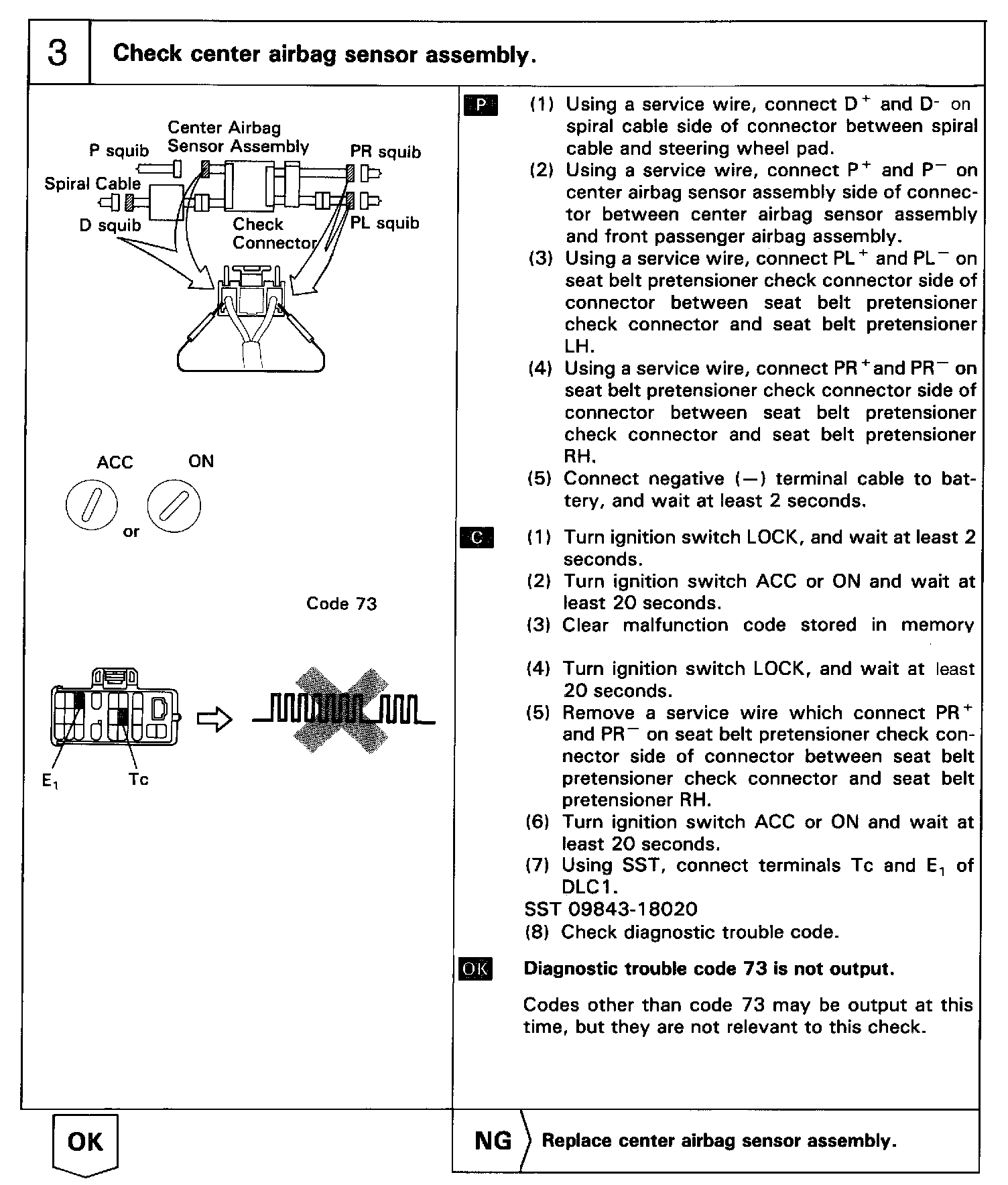

Step 3:

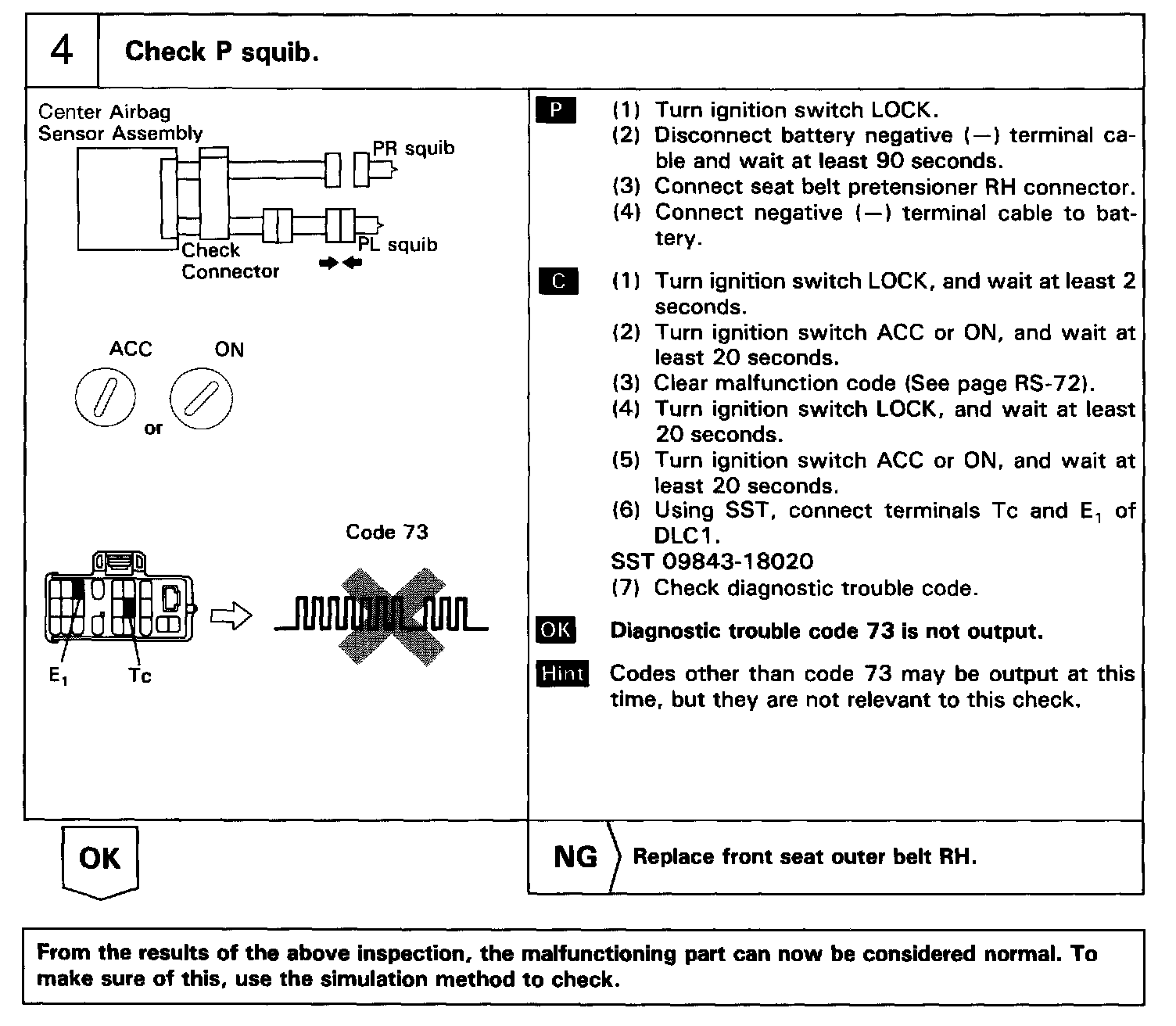

Step 4:

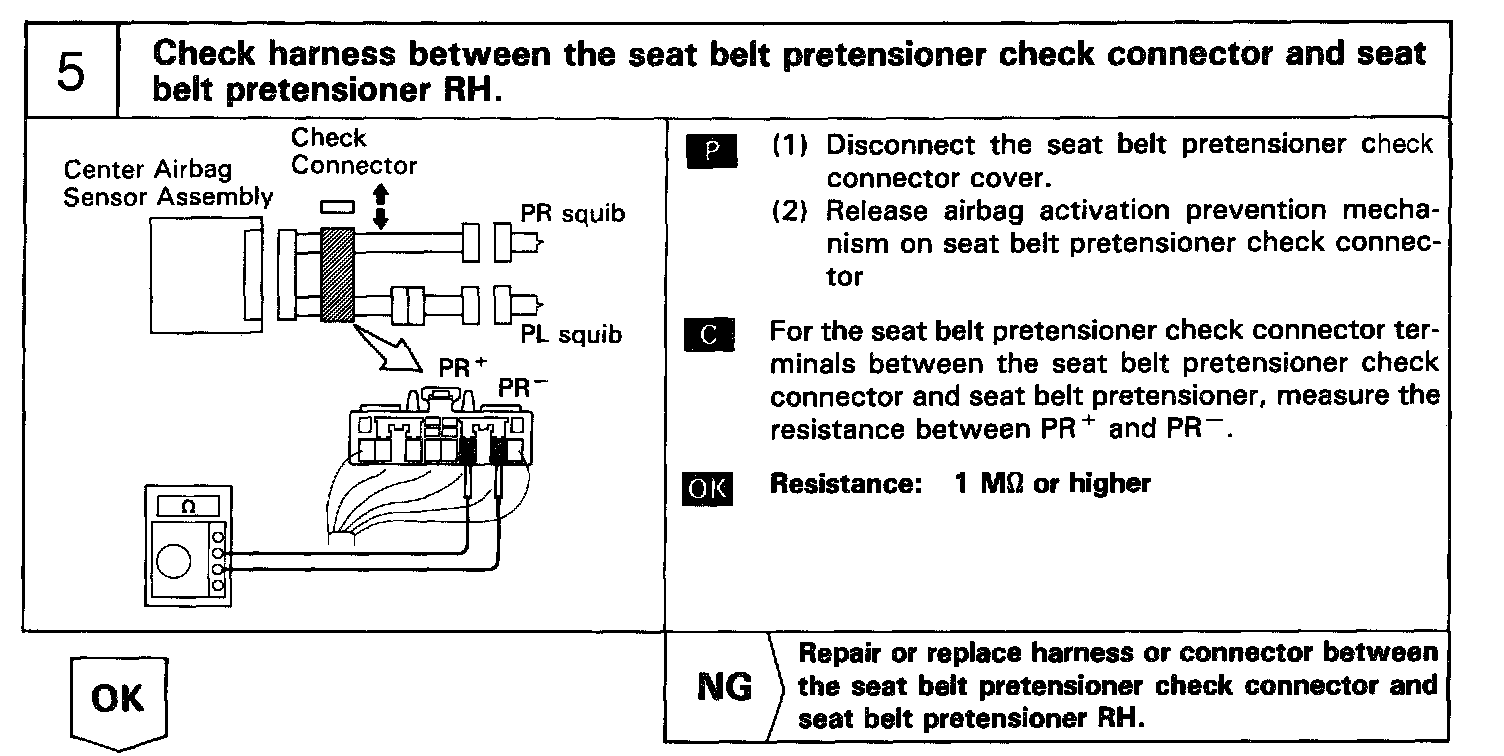

Step 5:

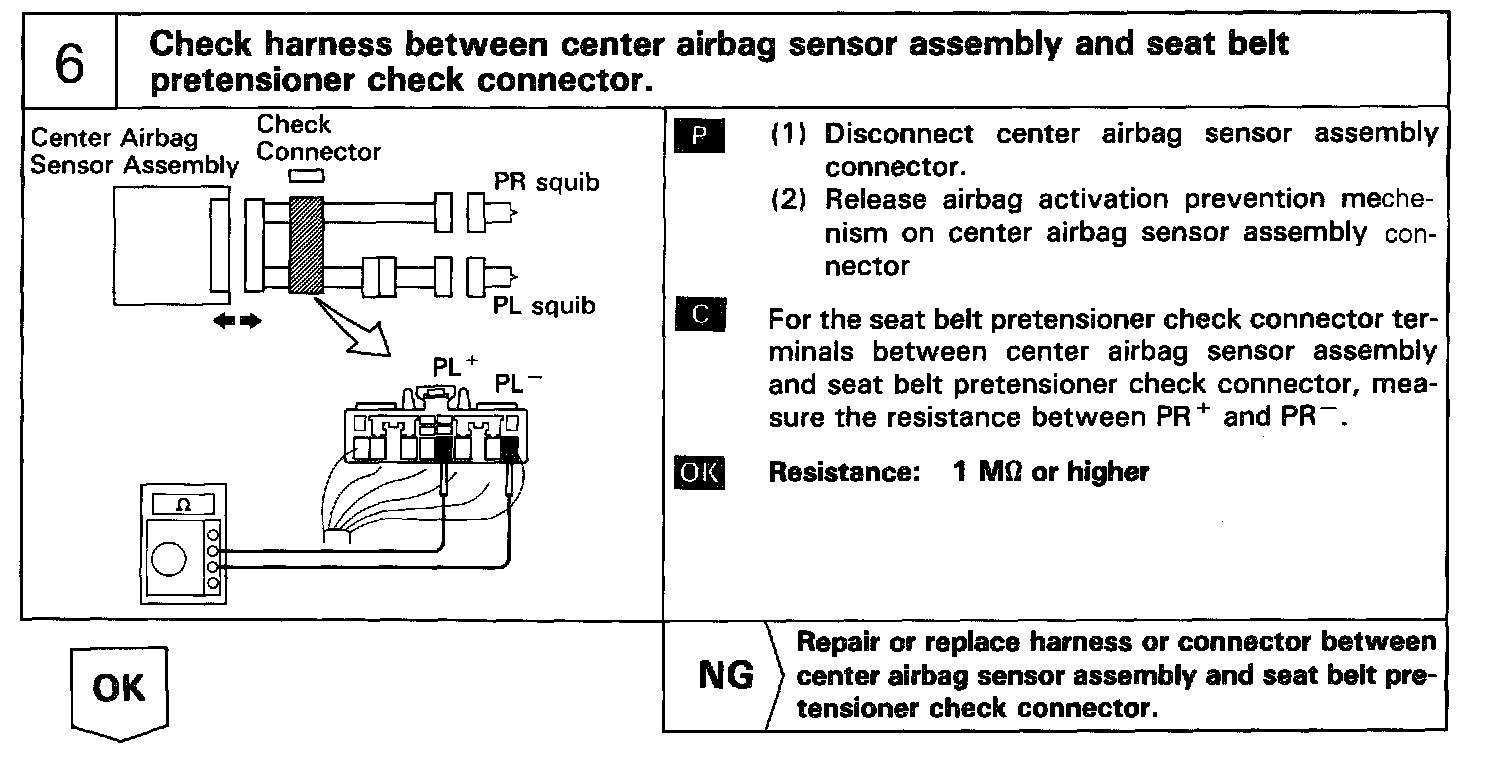

Step 6:

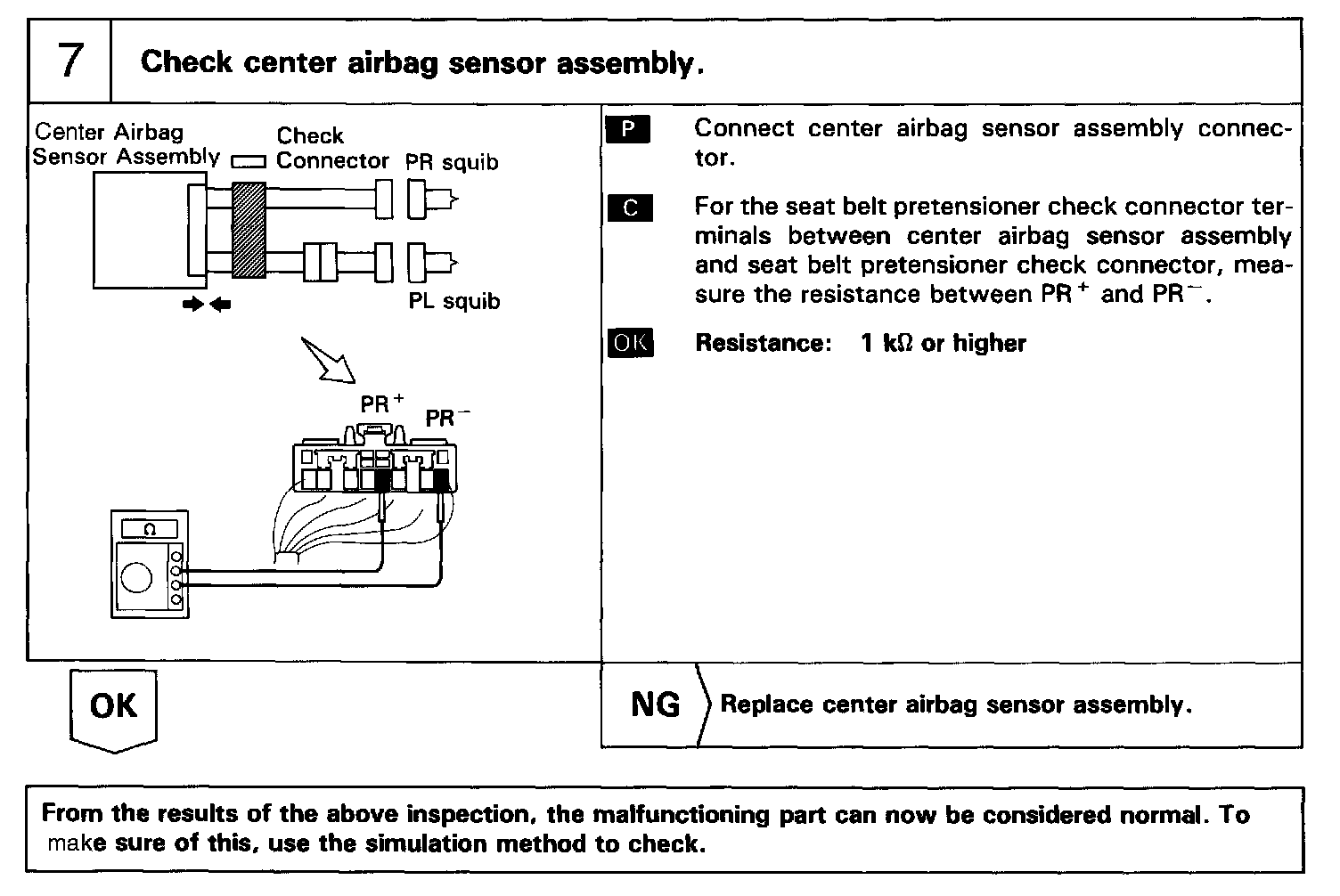

Step 7:
