DTC 64

Circuit Description

The PL squib circuit consists of the center airbag sensor assembly, seat belt pretensioner check connector and seat belt pretensioner LH (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied. Diagnostic trouble code 64 recorded when an open is detected in the PL squib circuit.

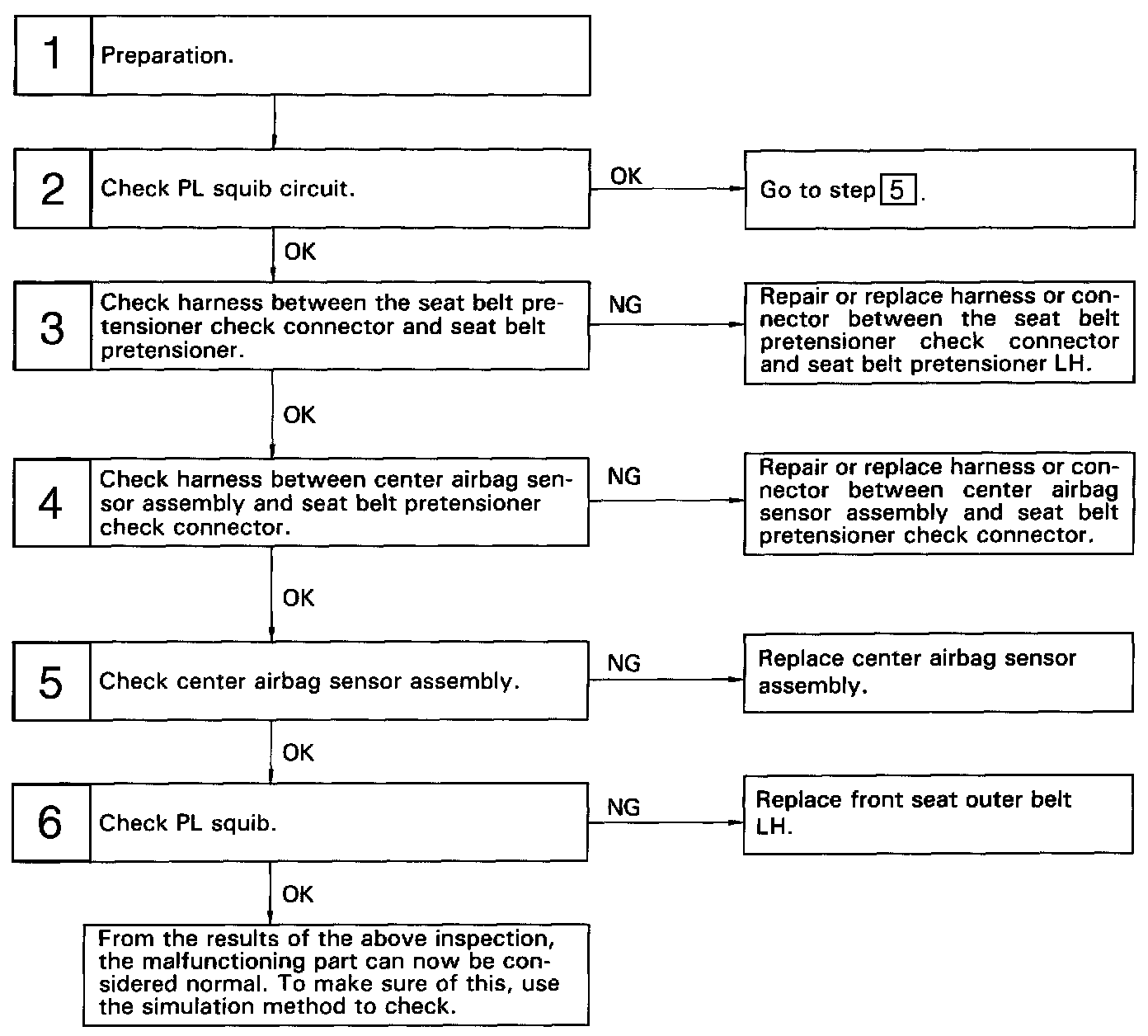

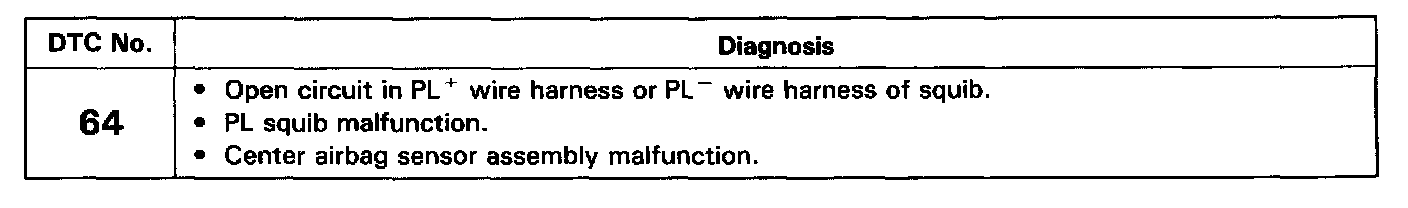

Diagnostic Chart:

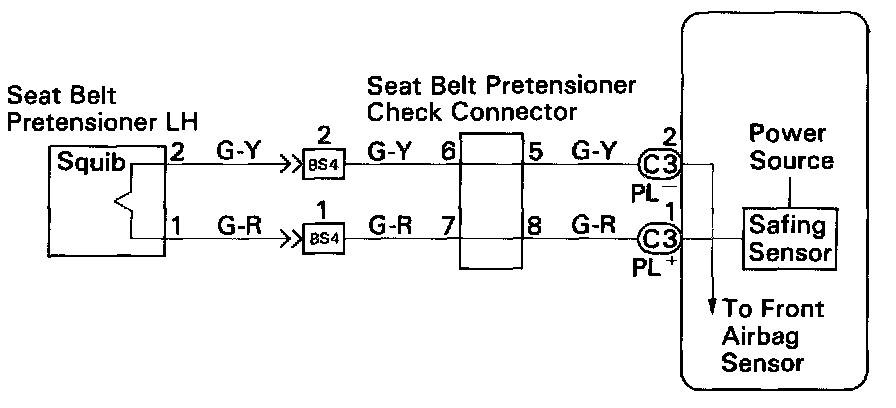

Wiring Diagram:

Inspection Procedures

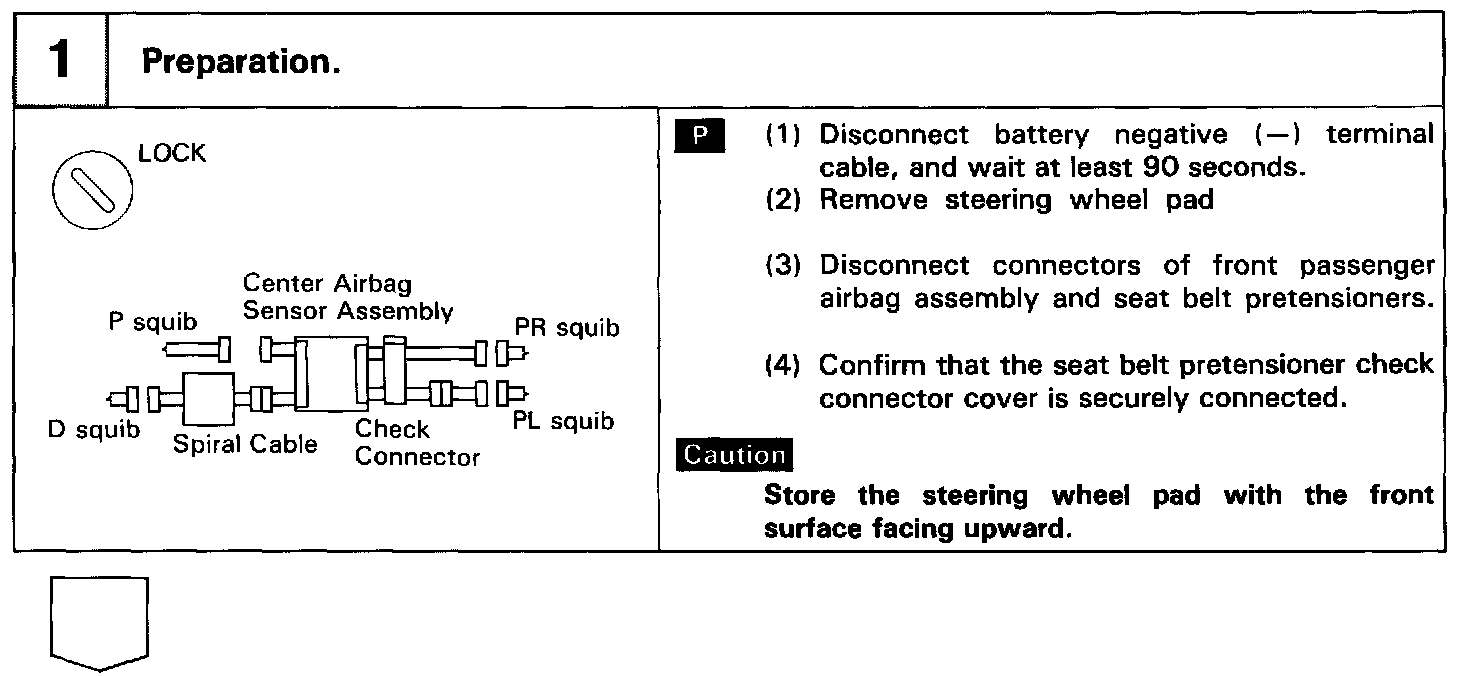

Step 1:

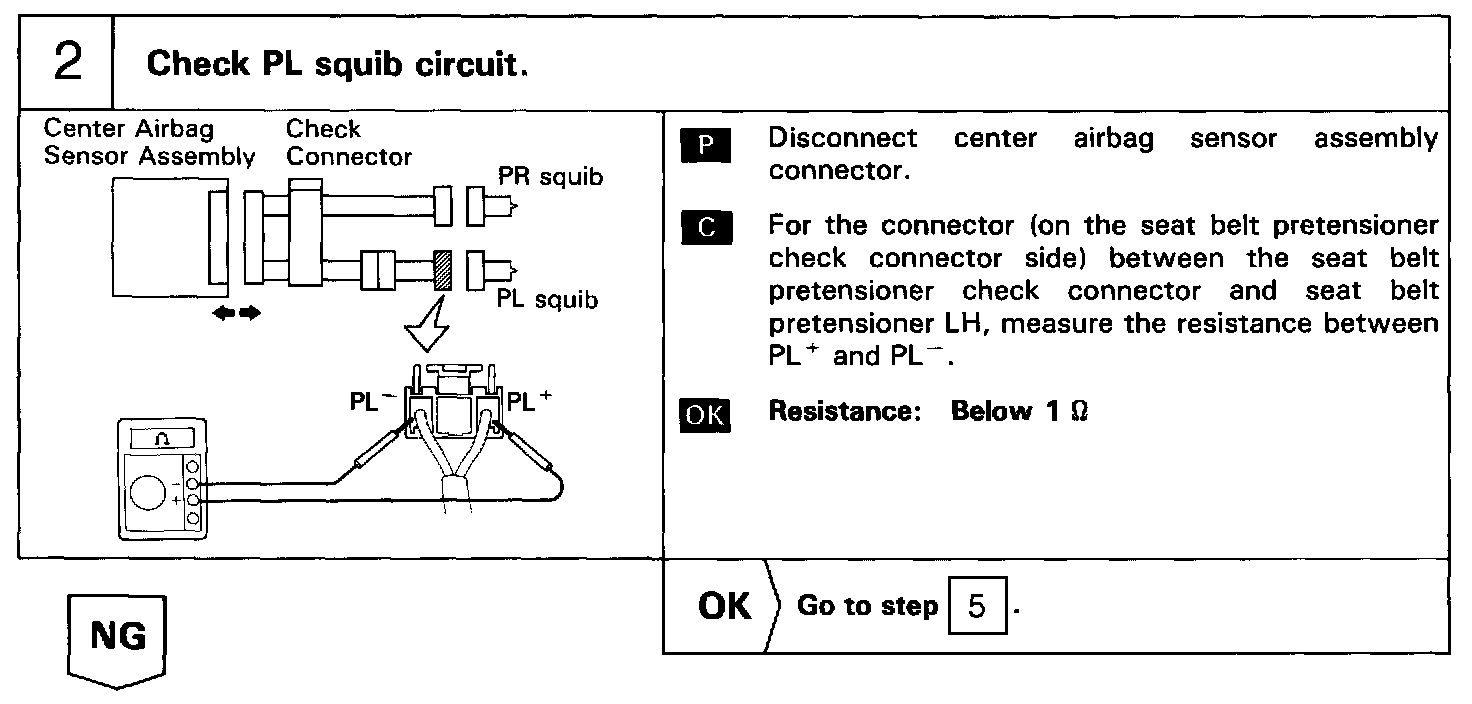

Step 2:

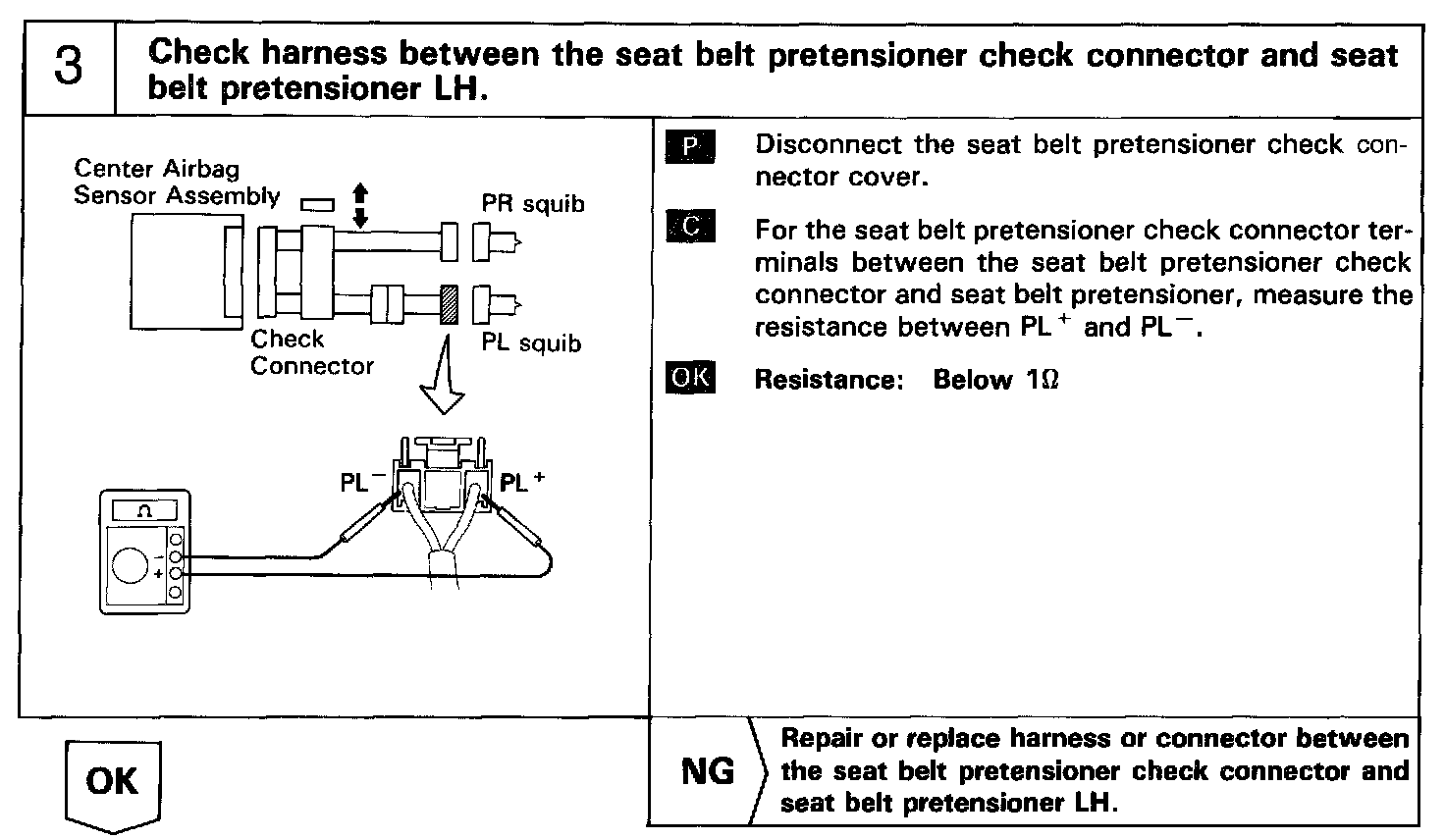

Step 3:

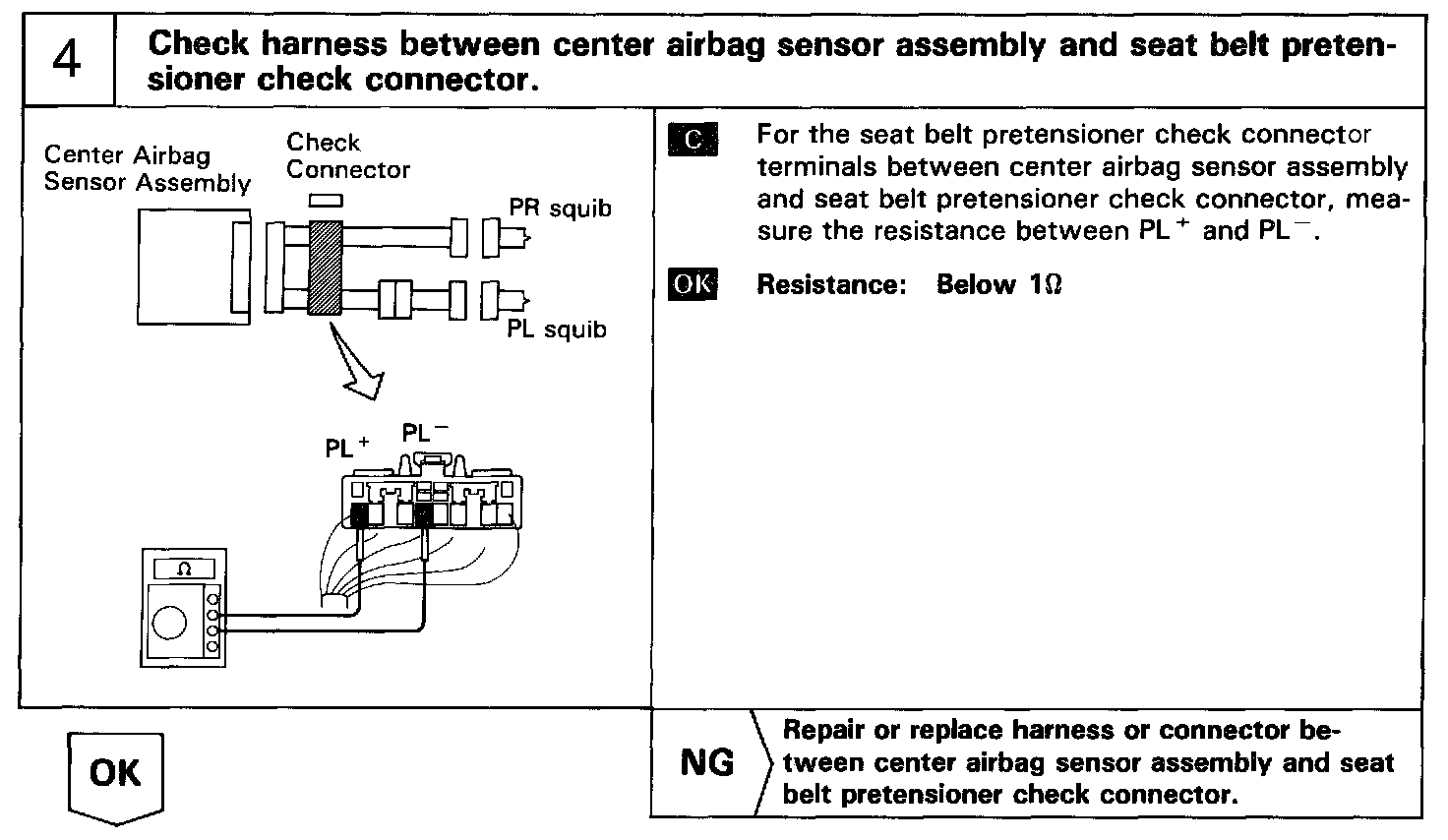

Step 4:

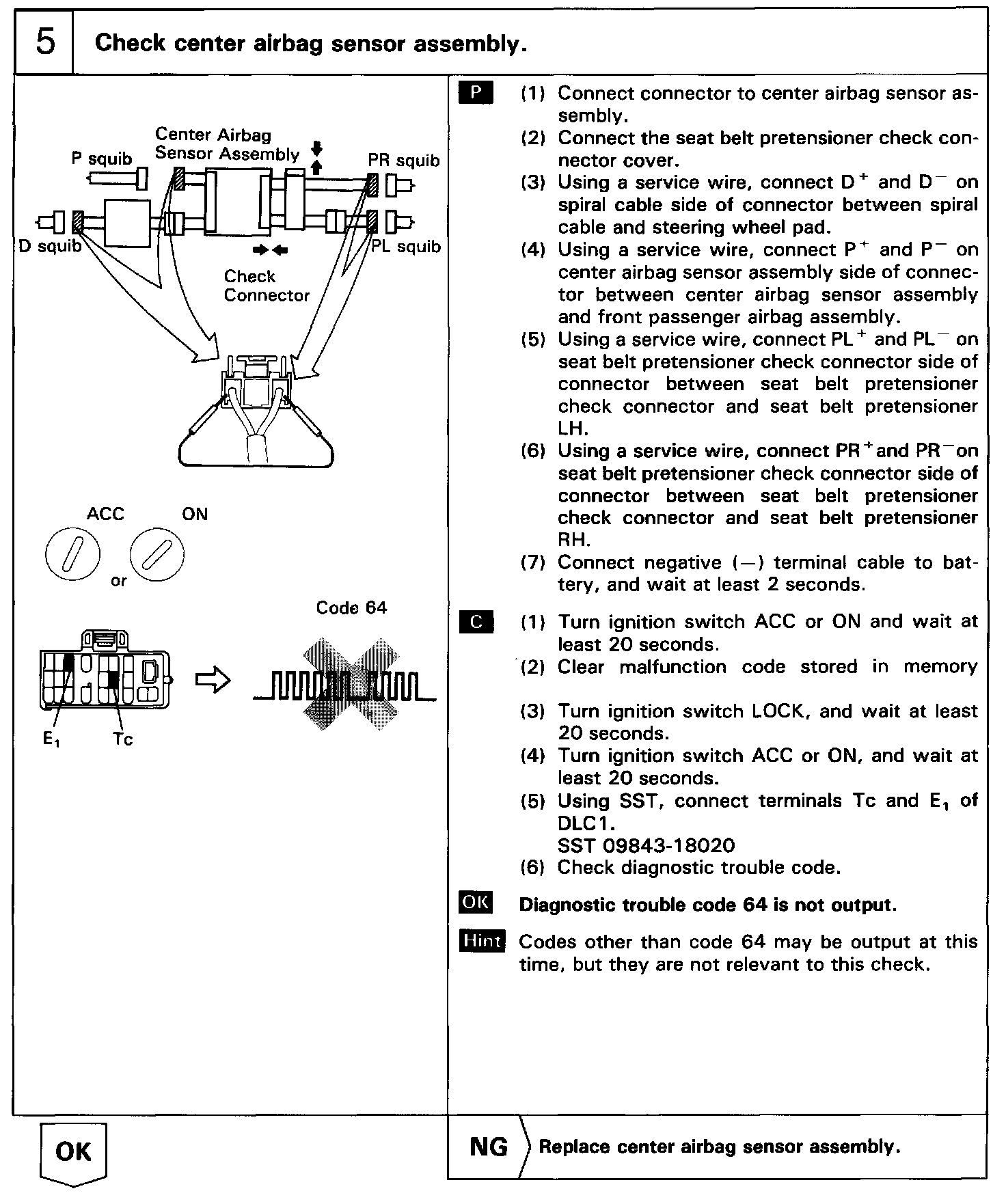

Step 5:

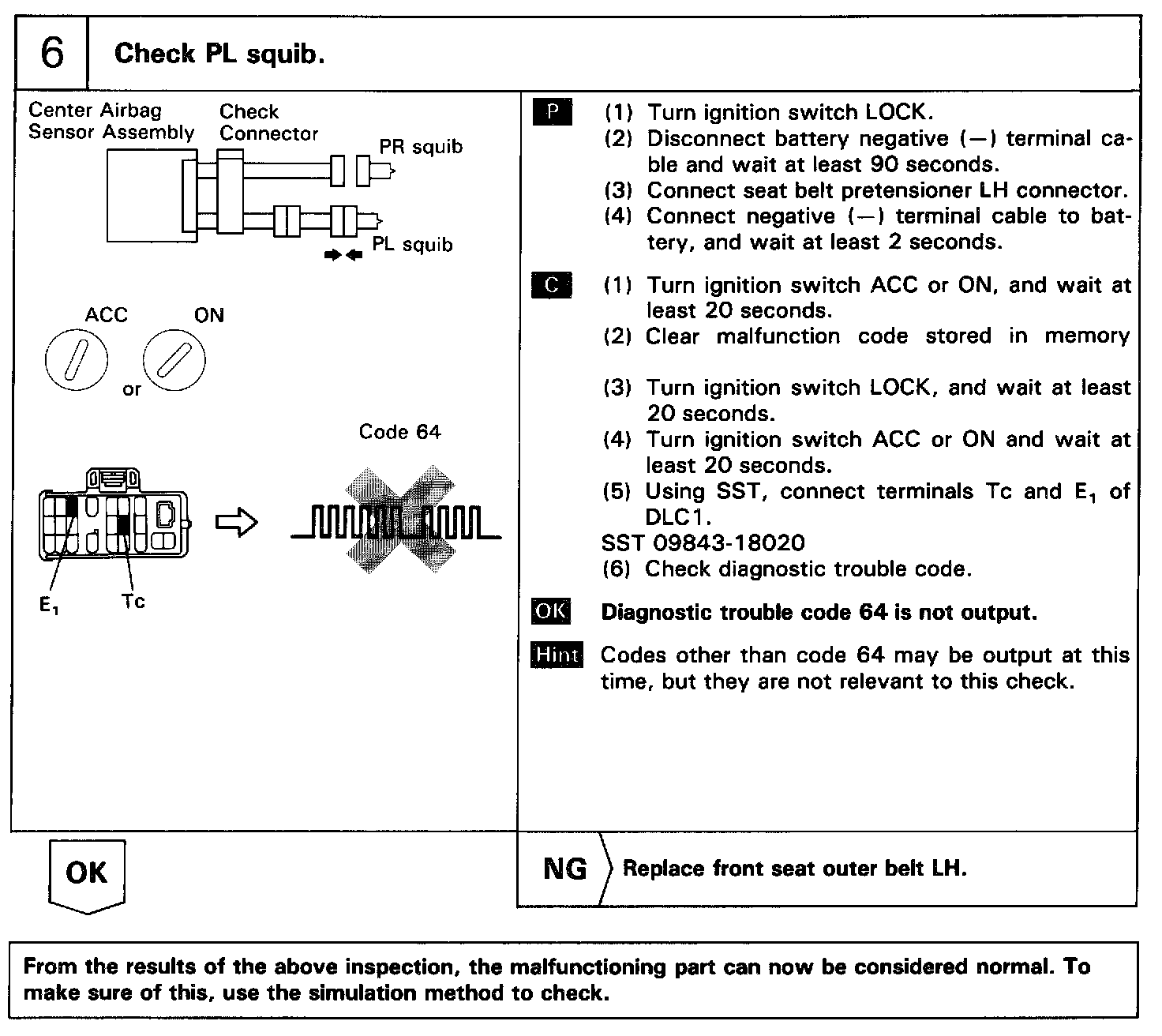

Step 6:
