DTC 13

Circuit Description

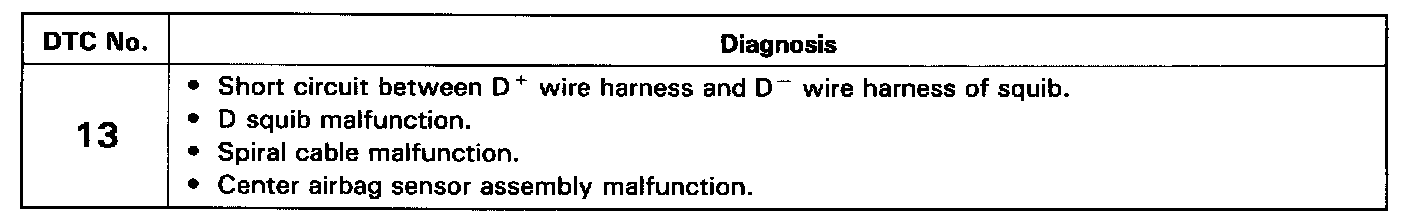

The D squib circuit consists of the center airbag sensor assembly, spiral cable and the steering wheel pad (squib). It causes the airbag to deploy when the airbag deployment conditions are satisfied. Diagnostic trouble code 13 is recorded when a short is detected in the D+ wire harness and D- wire harness of the squib circuit.

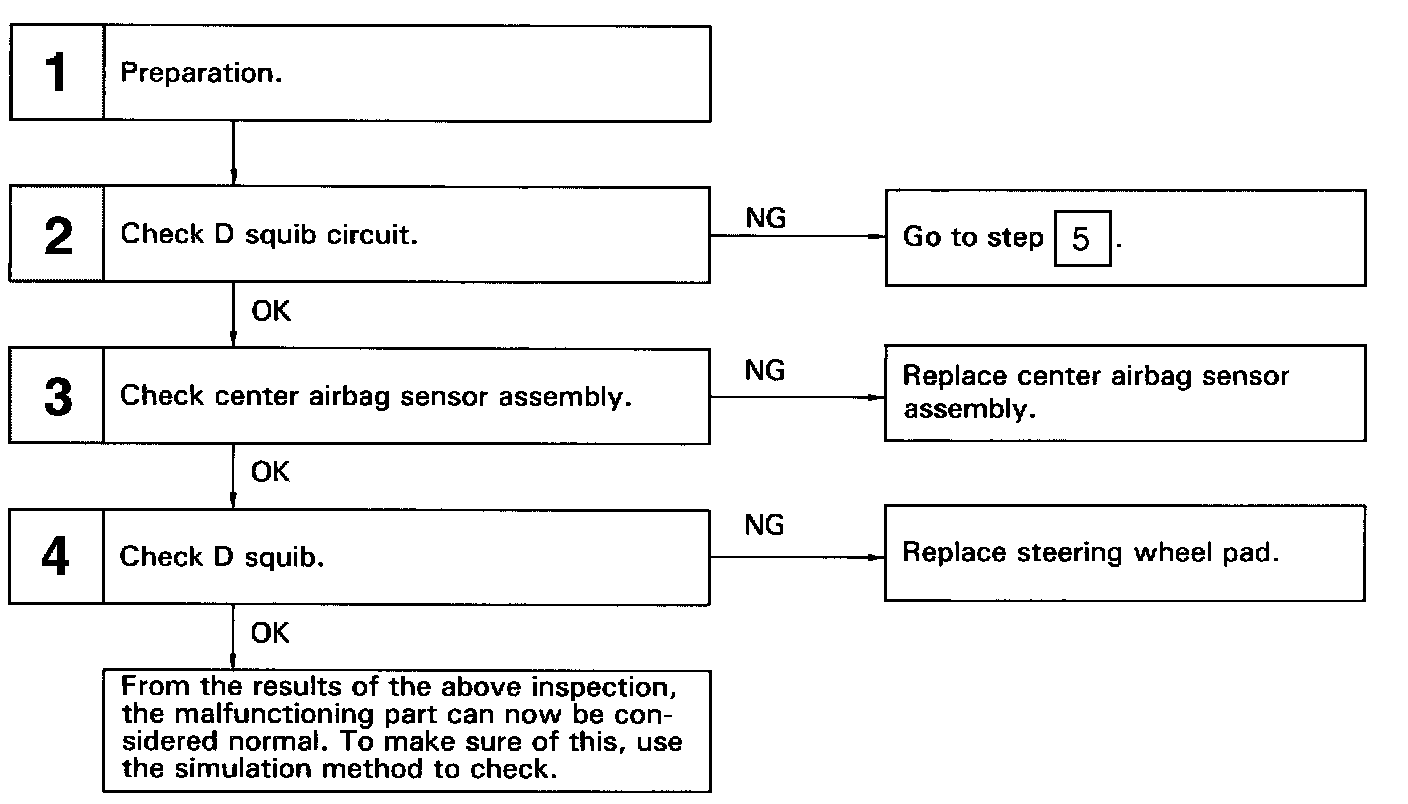

Diagnostic Chart:

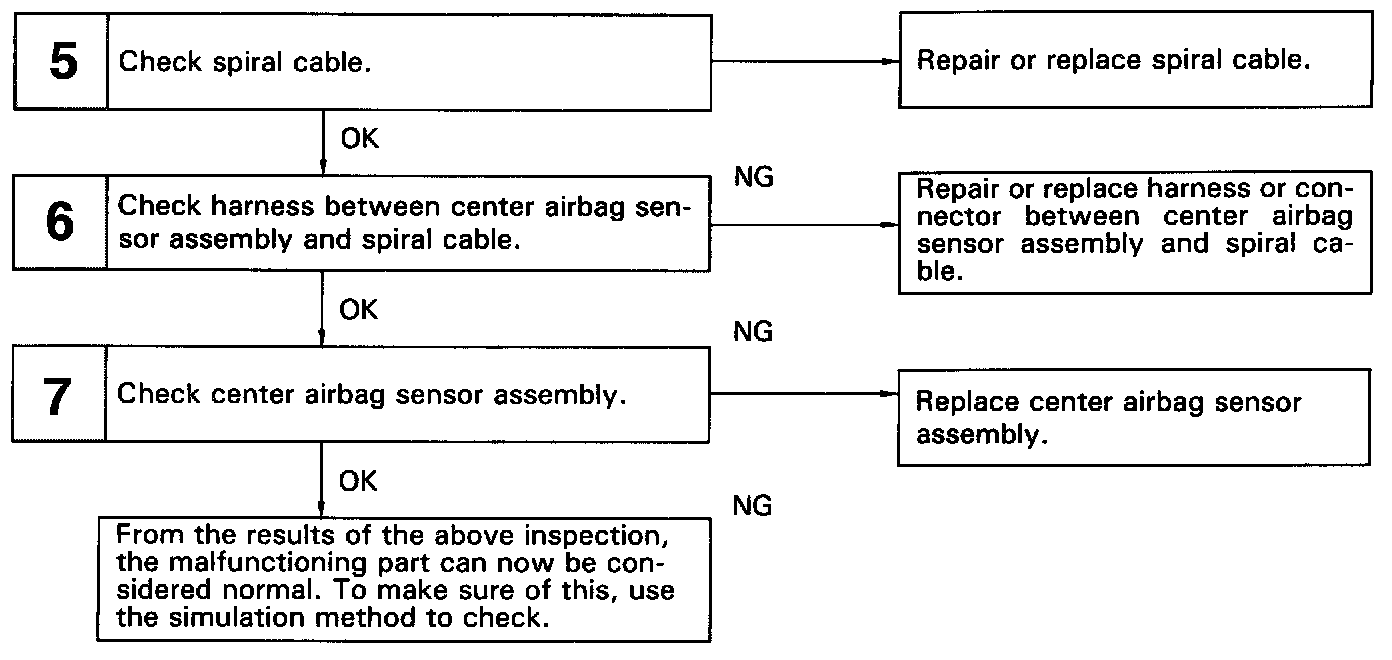

Diagnostic Chart (Cont'd):

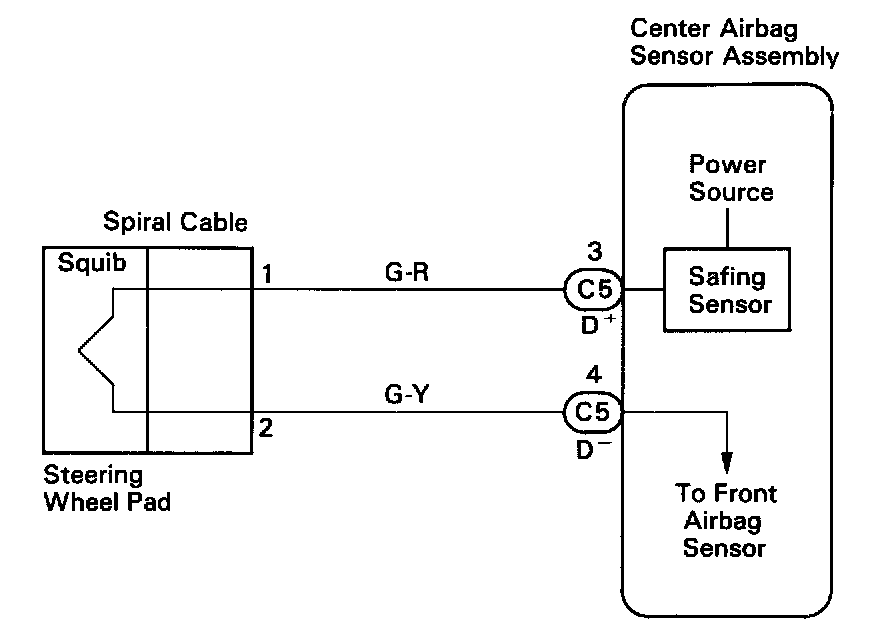

Wiring Diagram:

Inspection Procedures

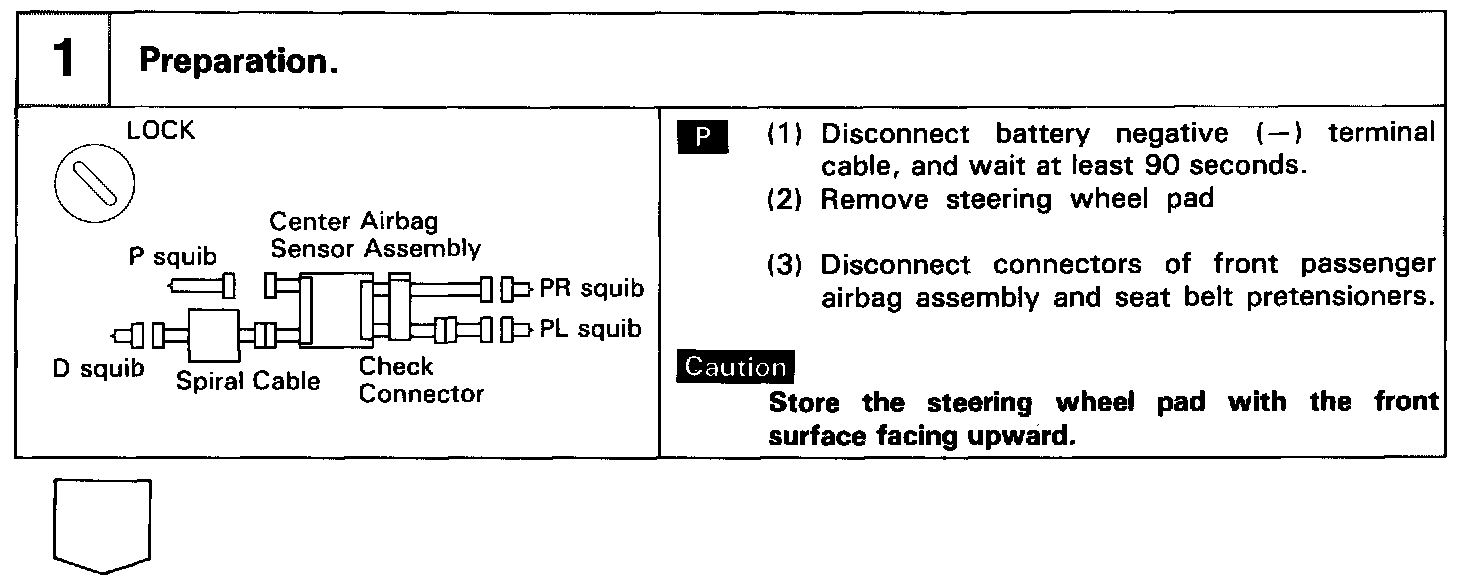

Step 1:

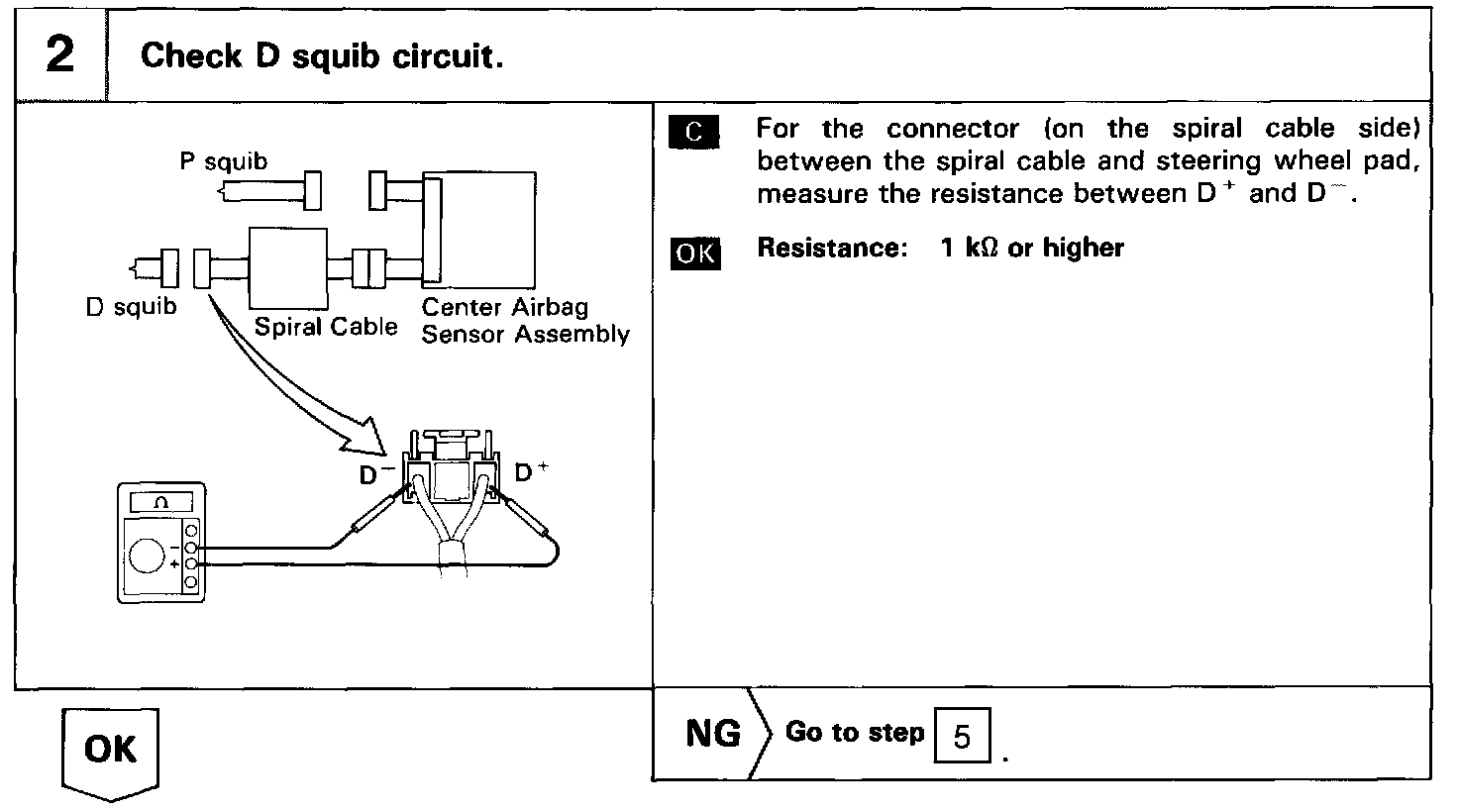

Step 2:

Step 3:

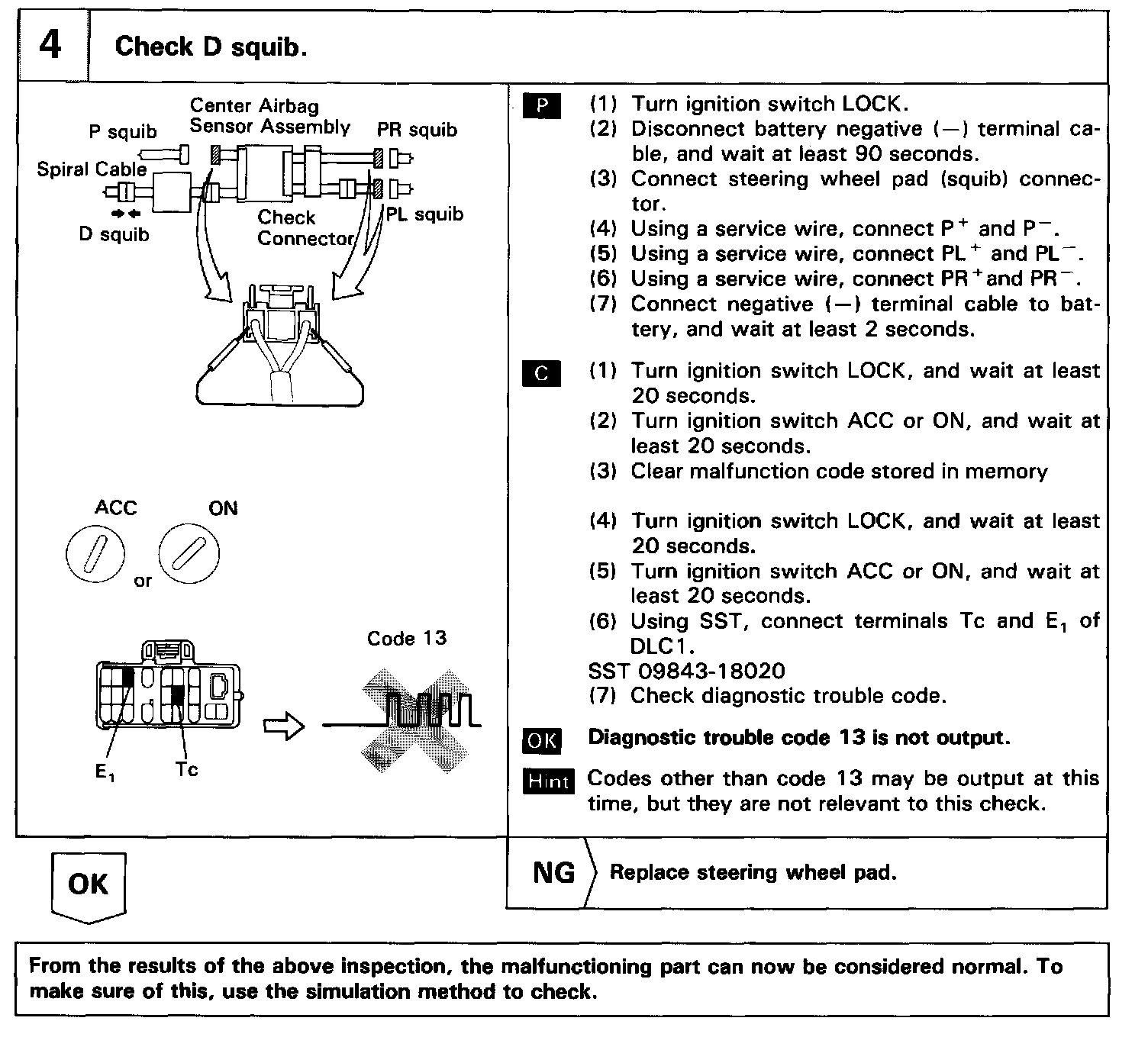

Step 4:

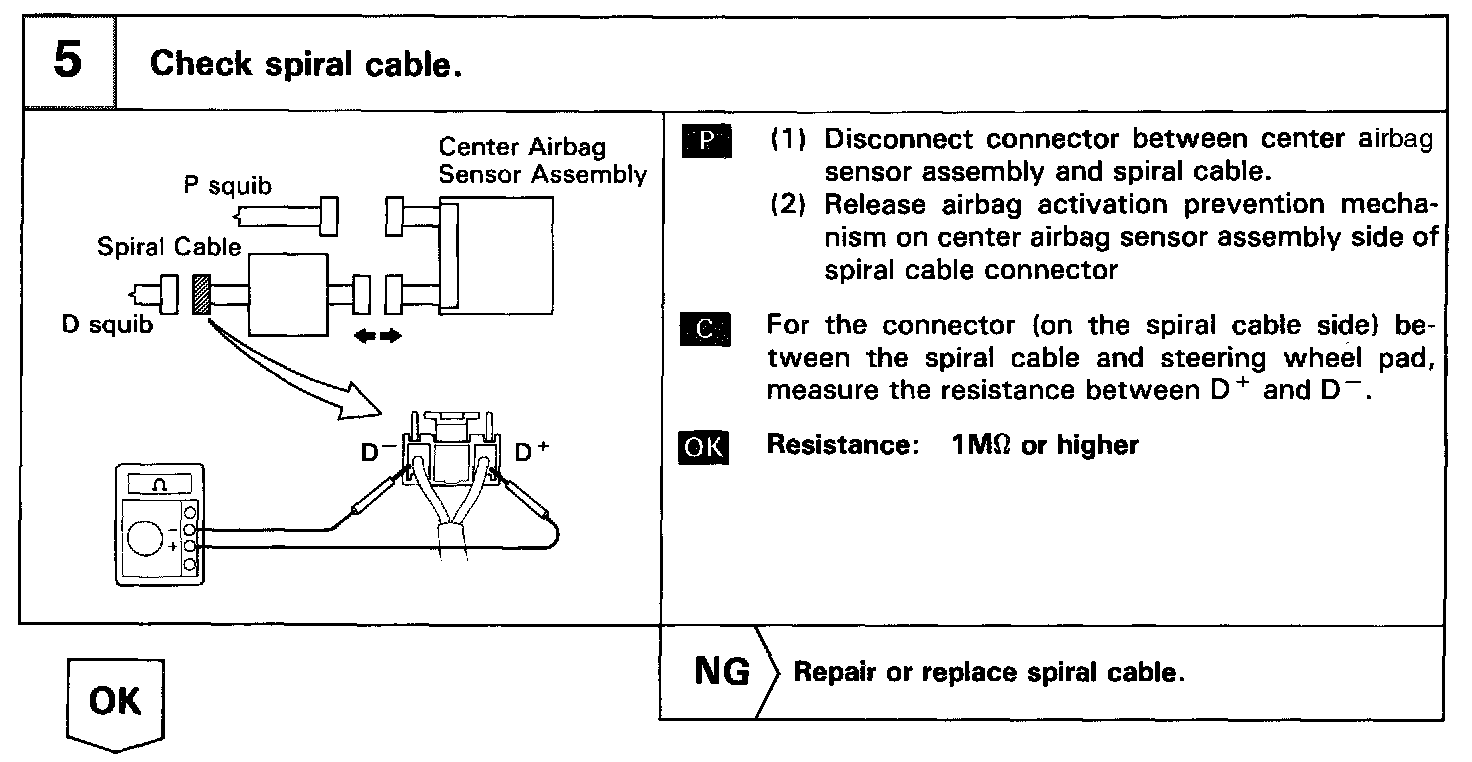

Step 5:

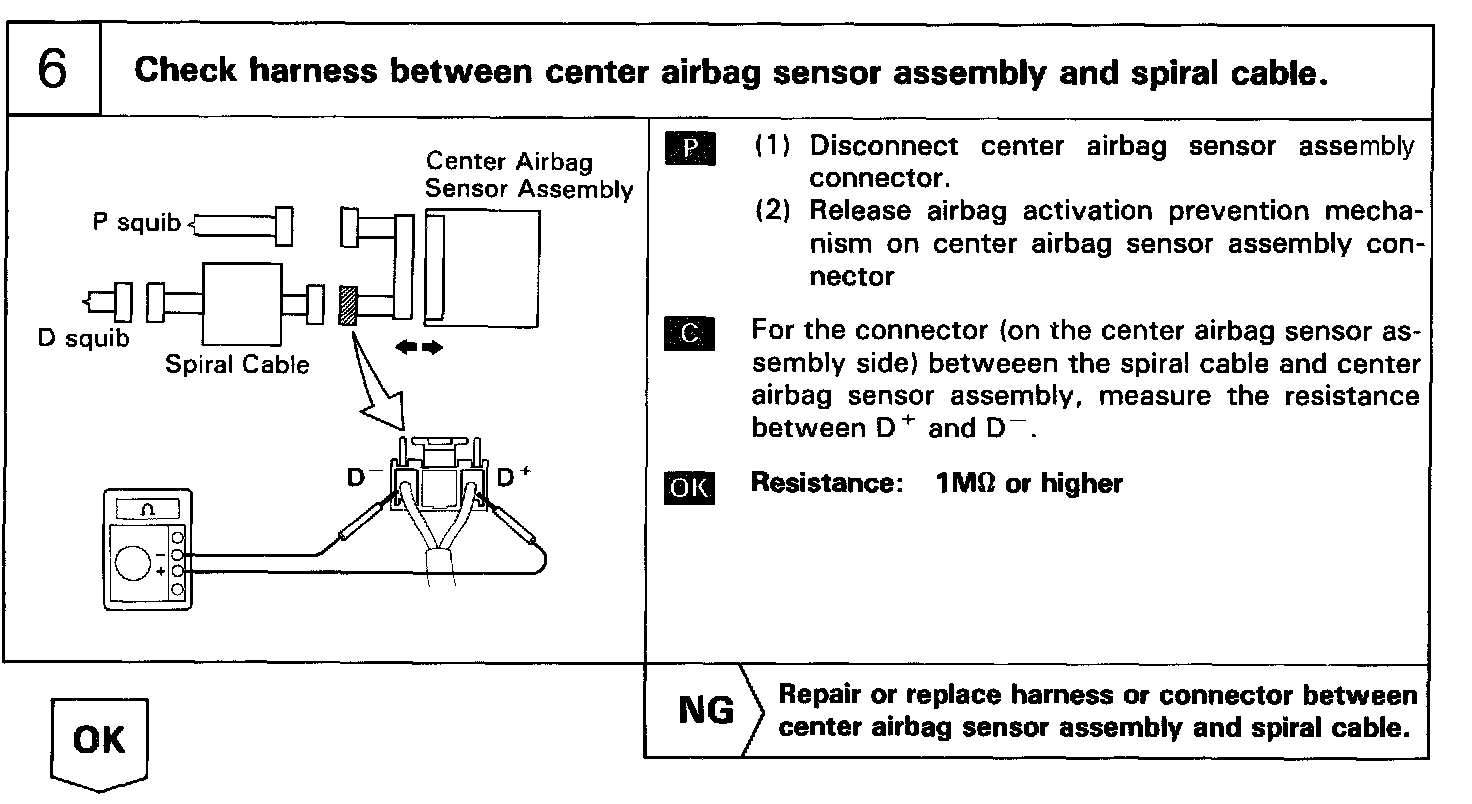

Step 6:

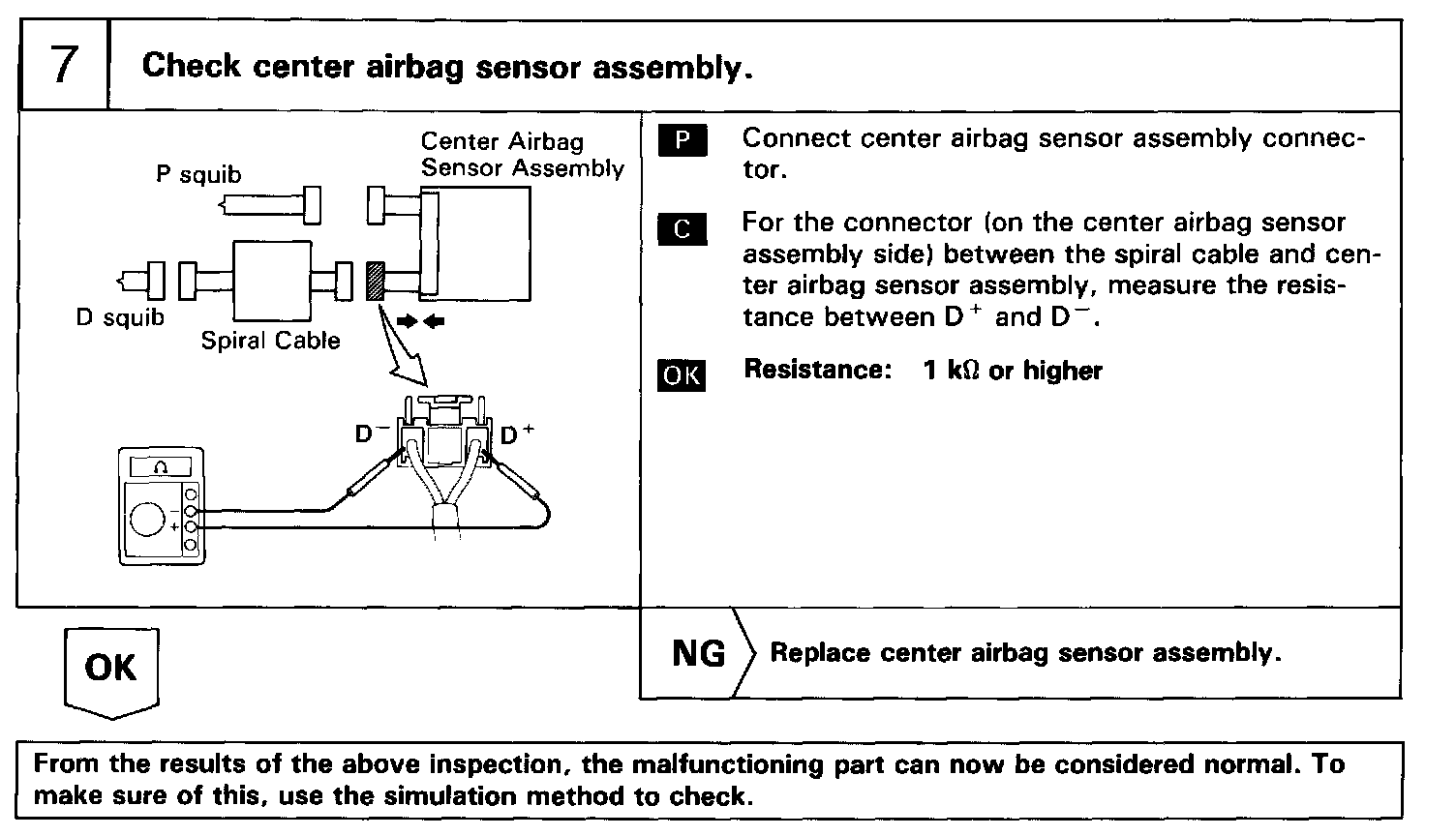

Step 7:
