Home >> Lexus >> 1993 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS (Antilock Brake System) >> DTC 53

DTC 53

Fig. 94 Codes 53, 56 & 57: TRAC Pump Motor Long Time Energizing, Open Or Short In Pressure Sensor Circuit Or Pressure Sensor Malfunction:

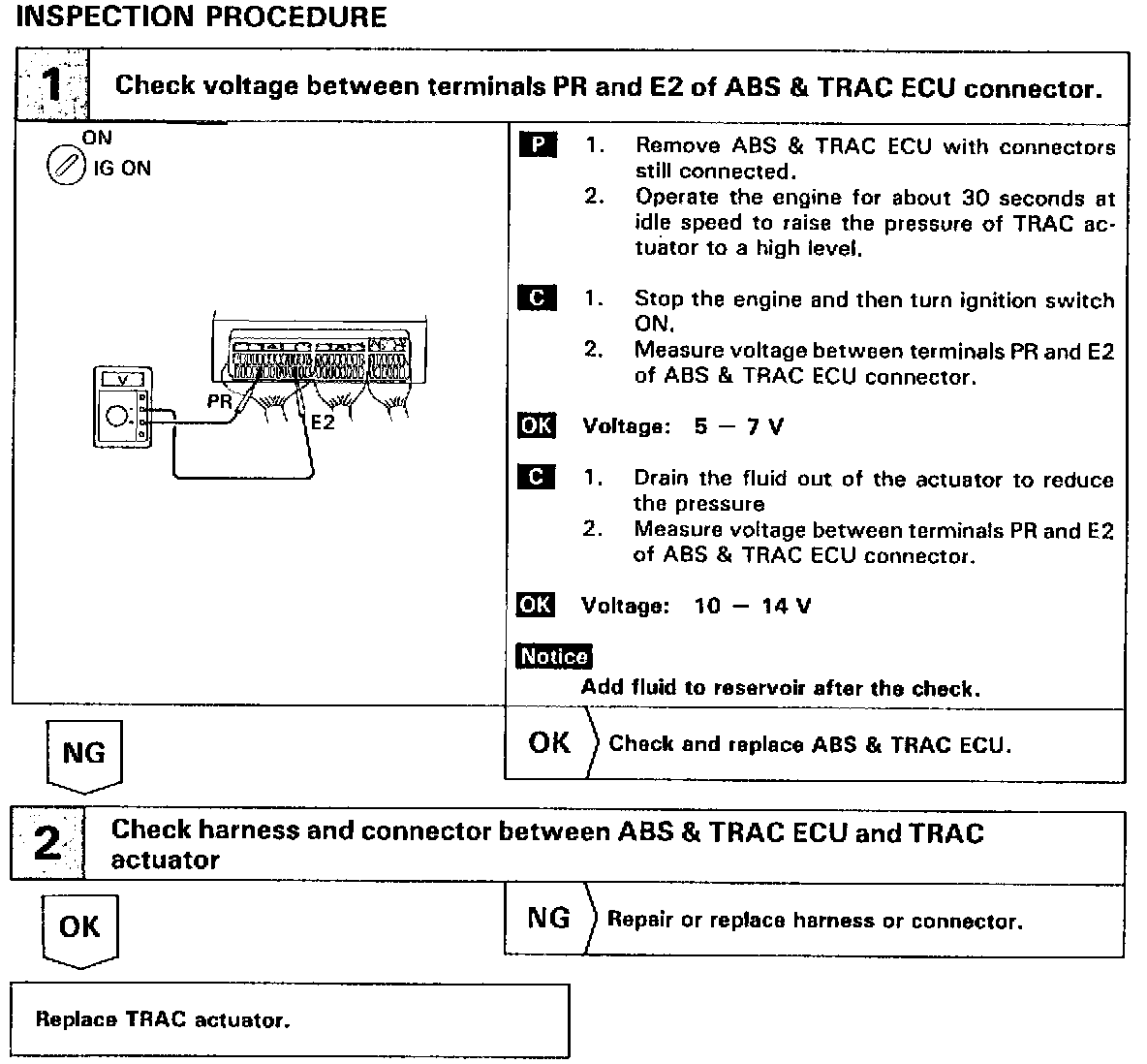

Fig. 97 Code 53: TRAC Pump Motor Long Time Energizing (Part 1 Of 2):
