Home >> Lexus >> 1993 >> ES 300 V6-3.0L (3VZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> TE1 Terminal Circuit

TE1 Terminal Circuit

CIRCUIT DESCRIPTION
The Electronic Control Unit (ECU) displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DCL2 or DCL1 are connected.

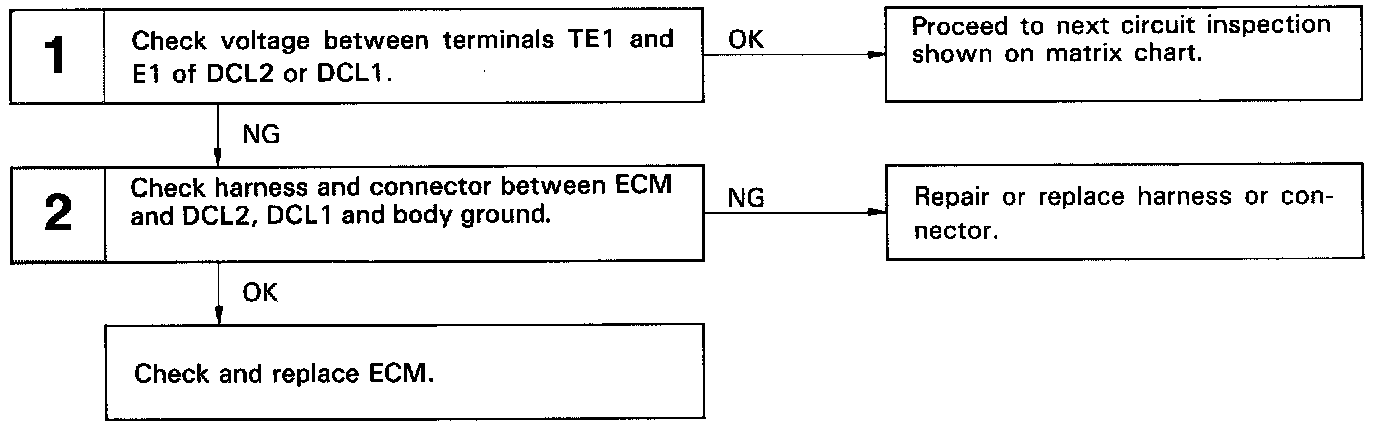

DIAGNOSTIC CHART

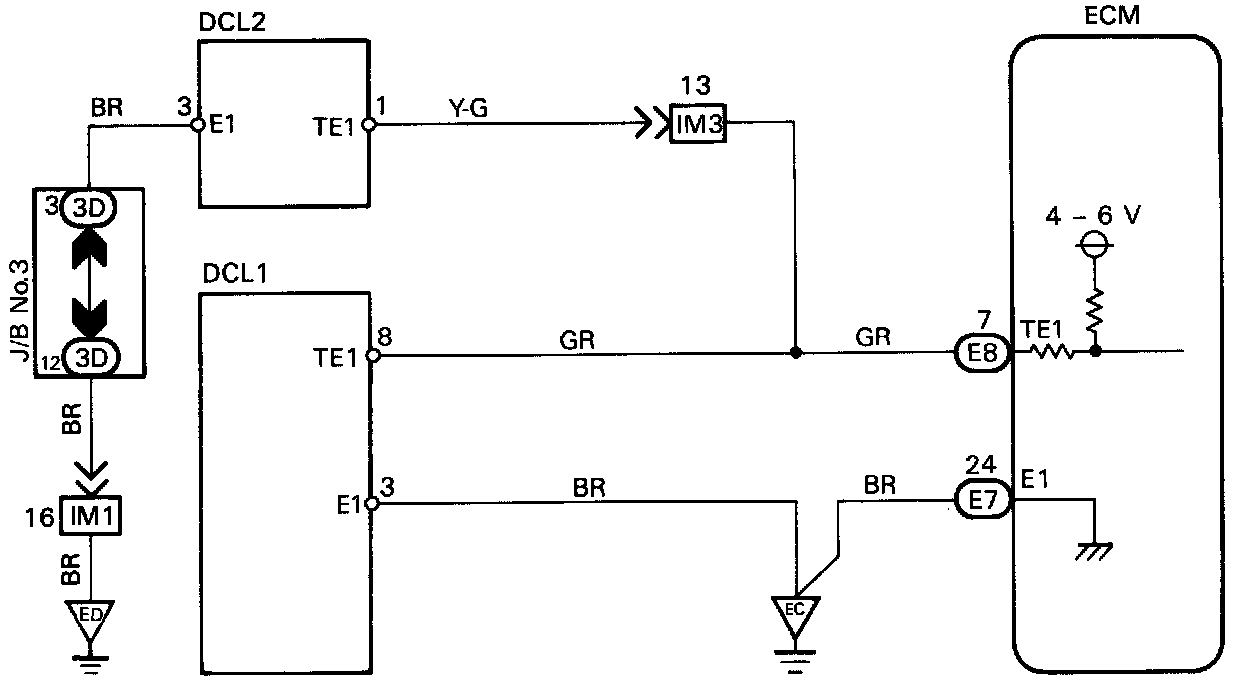

WIRING DIAGRAM

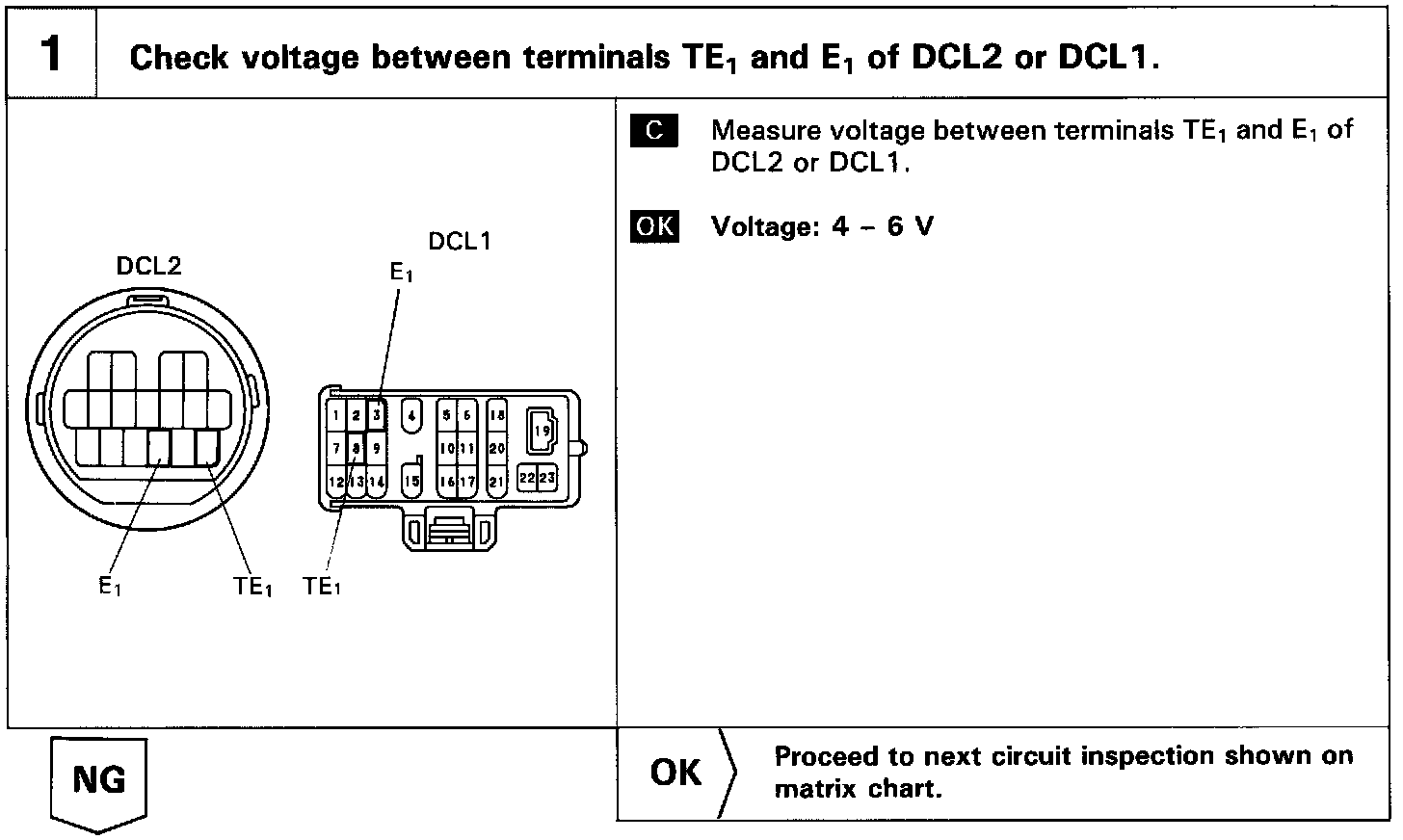

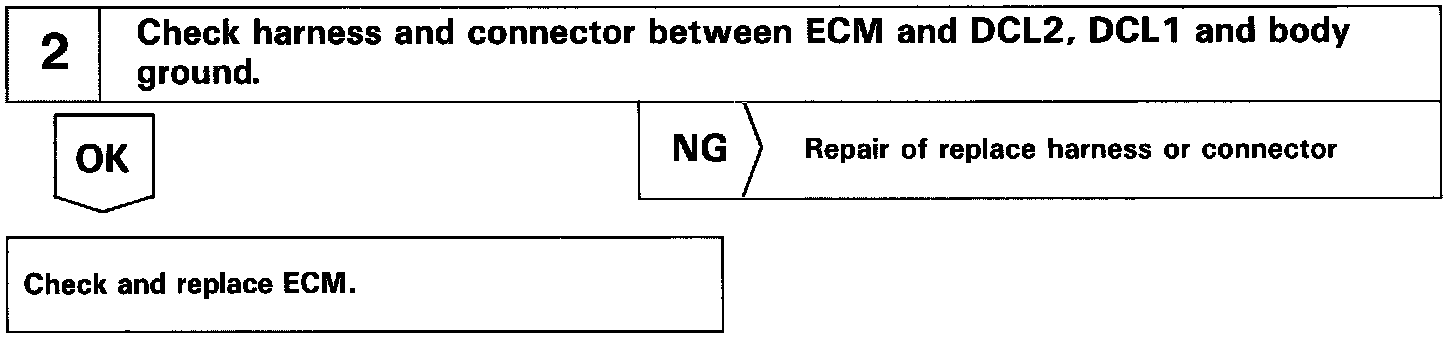

INSPECTION PROCEDURE
