Fuse - Short Pin Install During PDS
ELECTRICALEL93-005
SEPTEMBER 24, 1993
Models: ES 300
Title:
SHORT PIN INSTALLATION DURING PDS
To minimize battery discharge during transportation & storage, a Short Pin located in relay block No. 2 will be removed at the assembly plant.

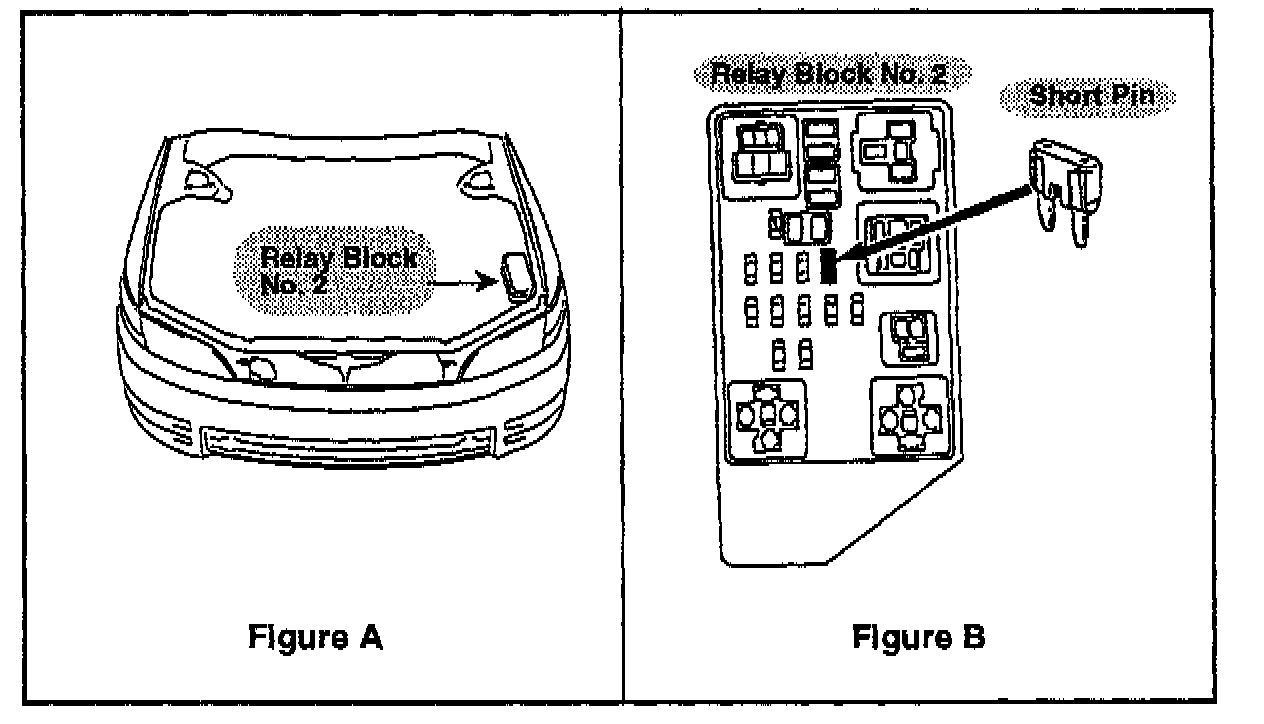

The removed Short Pin is attached to the inside of Relay Block No. 2 cover in the engine compartment as shown in Figure A.
Please install the Short Pin in the correct position during PDS (Pre-Delivery Service) as shown in Figure B.
PART NUMBER INFORMATION:
P/N PART NAME
82824-20140 Short Pin
Note:
The short pin does not function as a fuse, so only install it in the position shown.
PRODUCTION EFFECTIVE:
From August 1993 (1994 Model Year)
