Power Source Chart

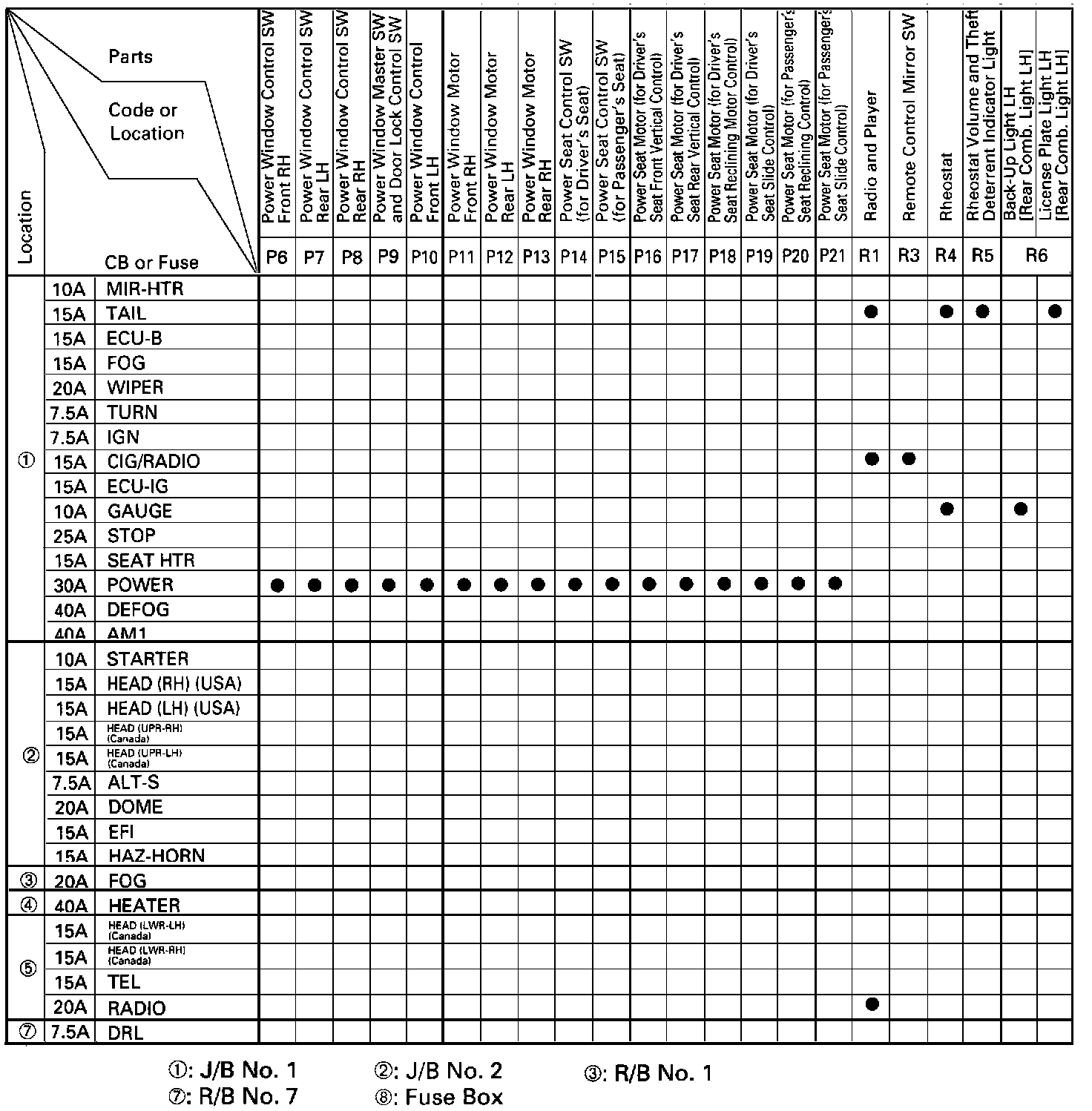

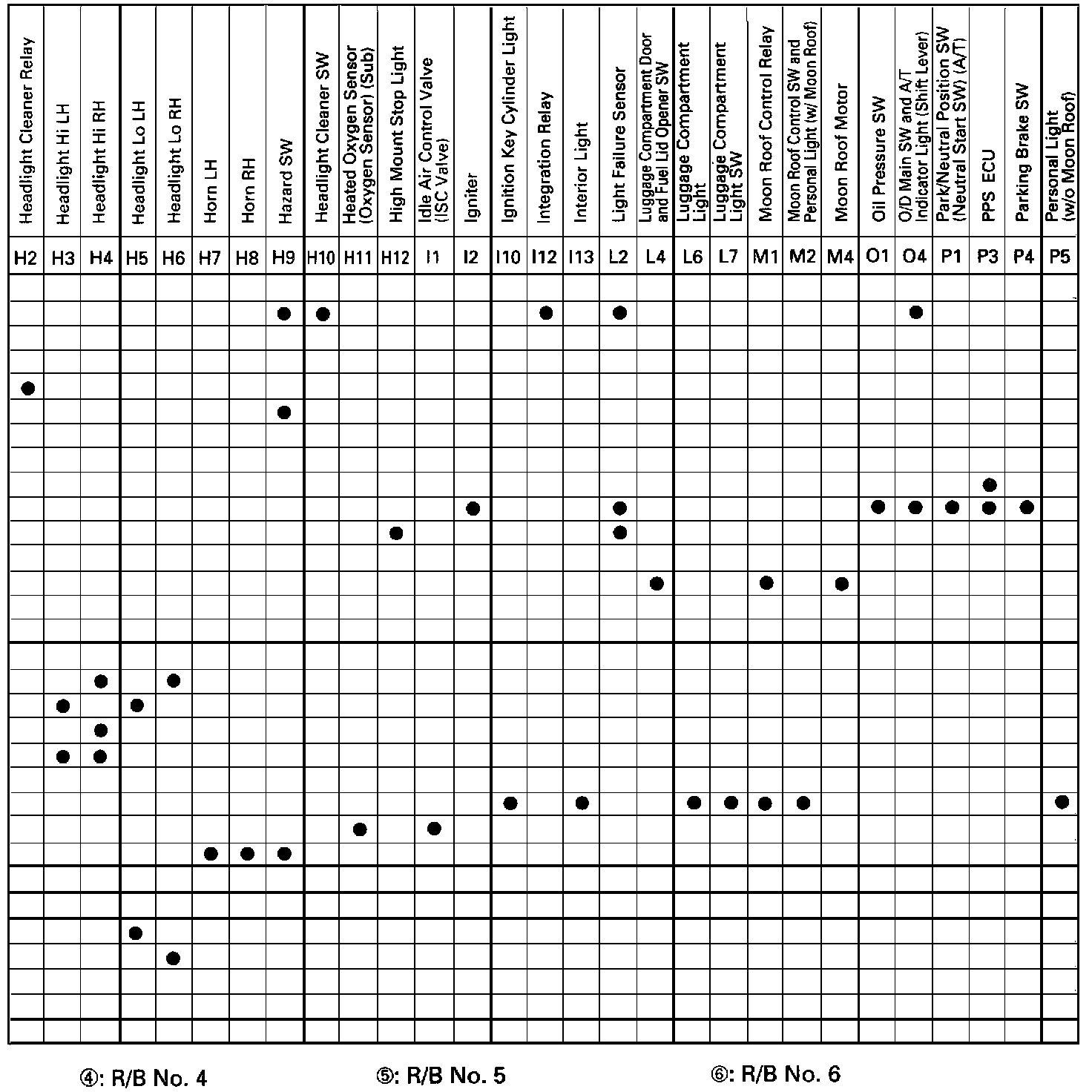

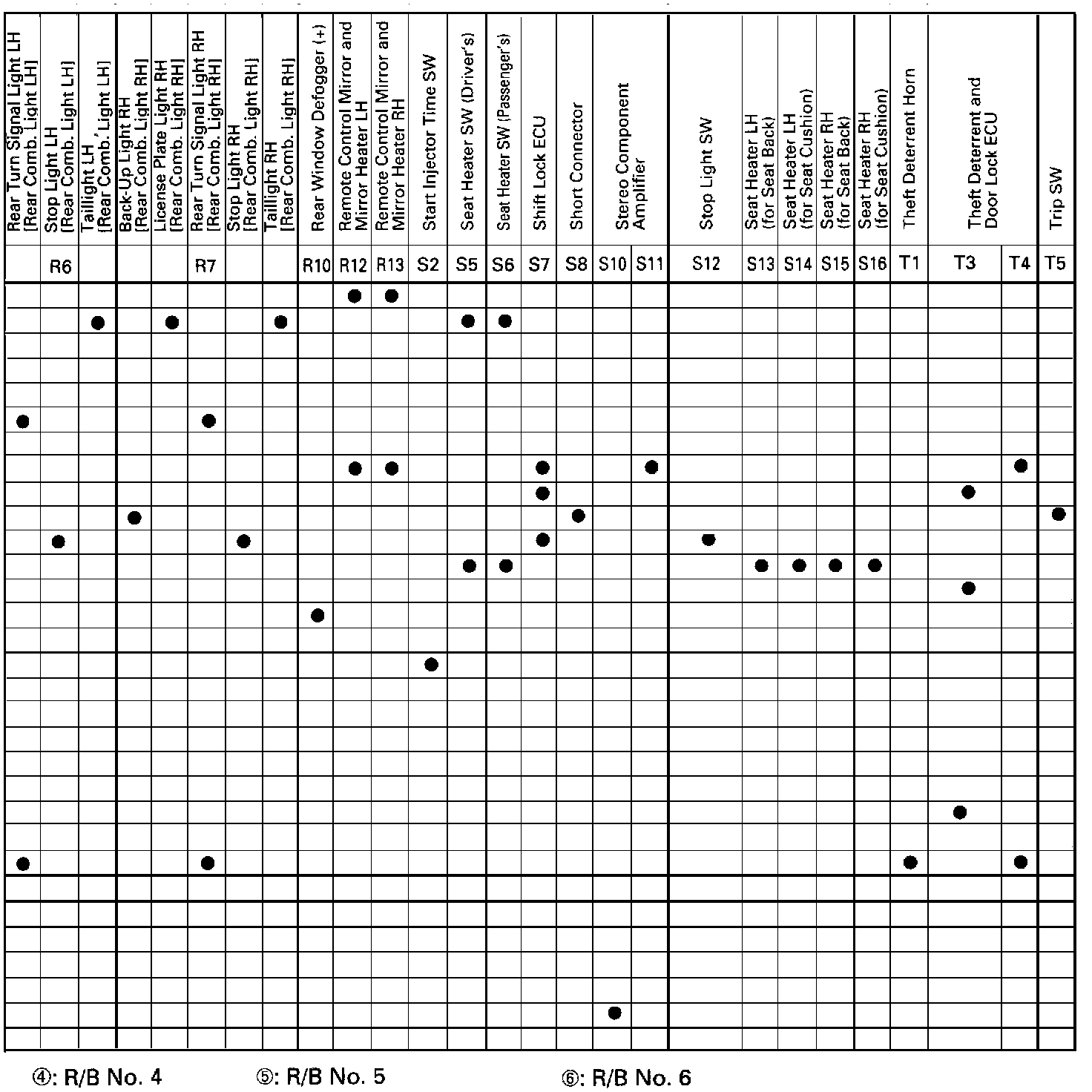

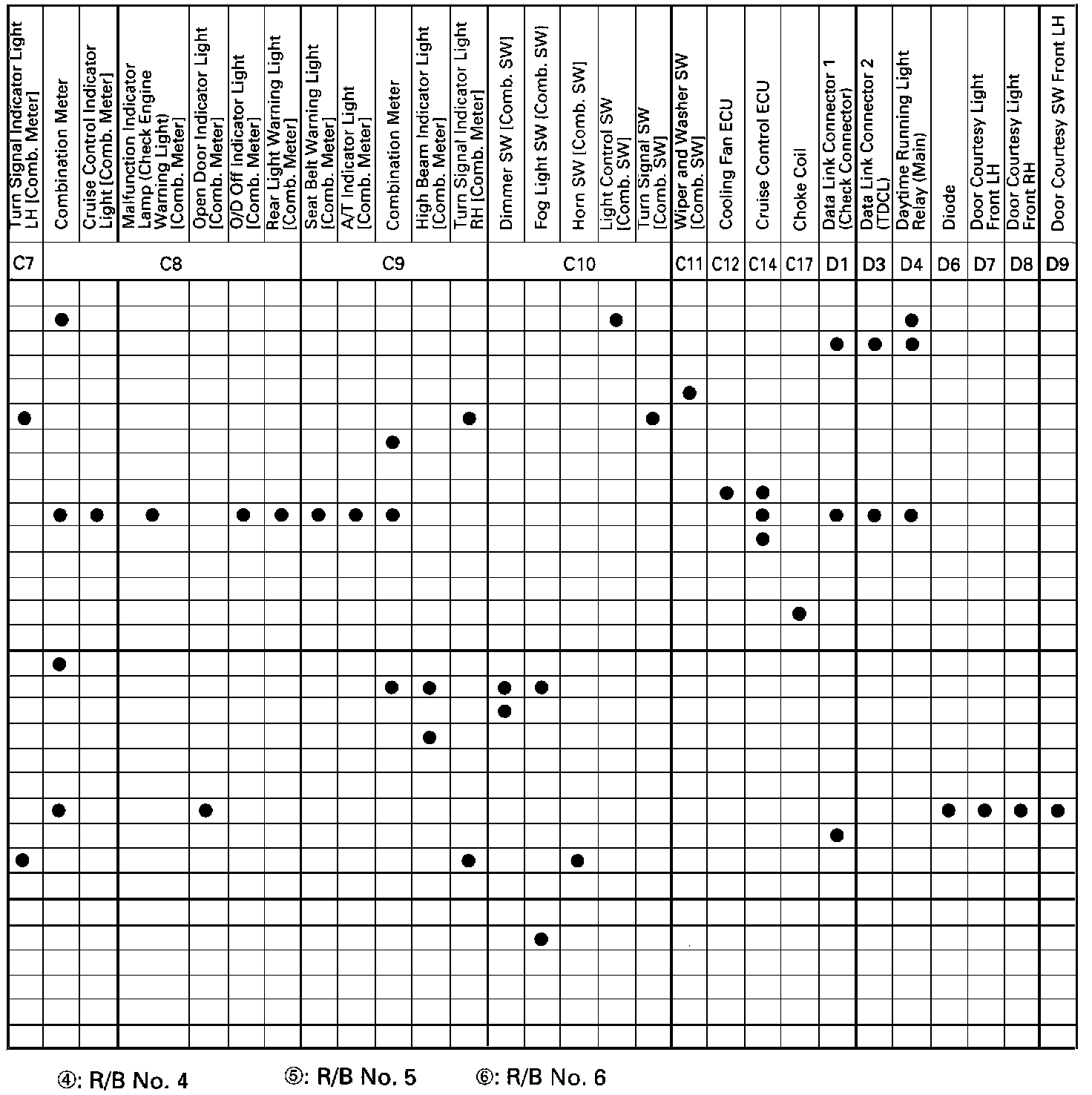

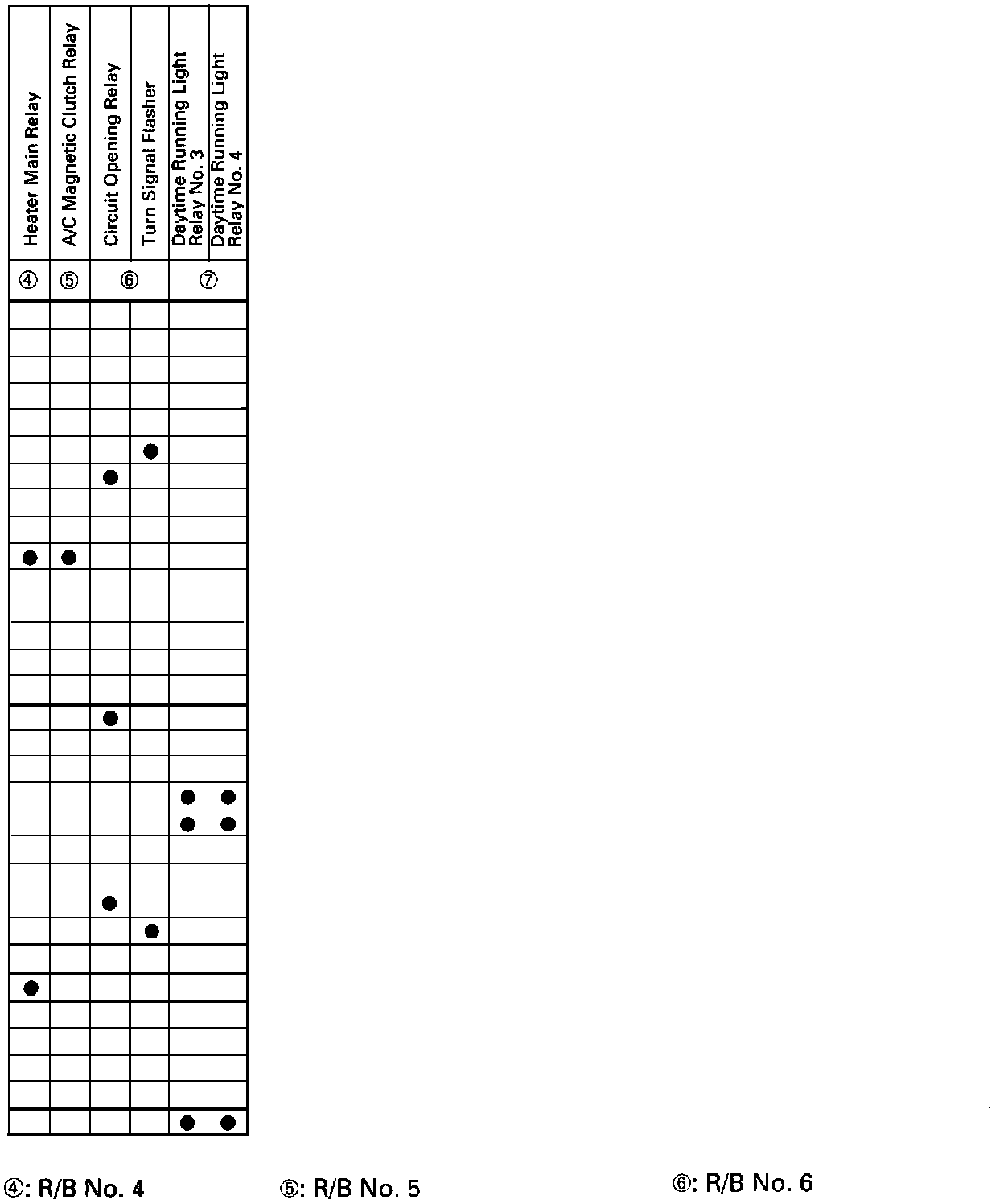

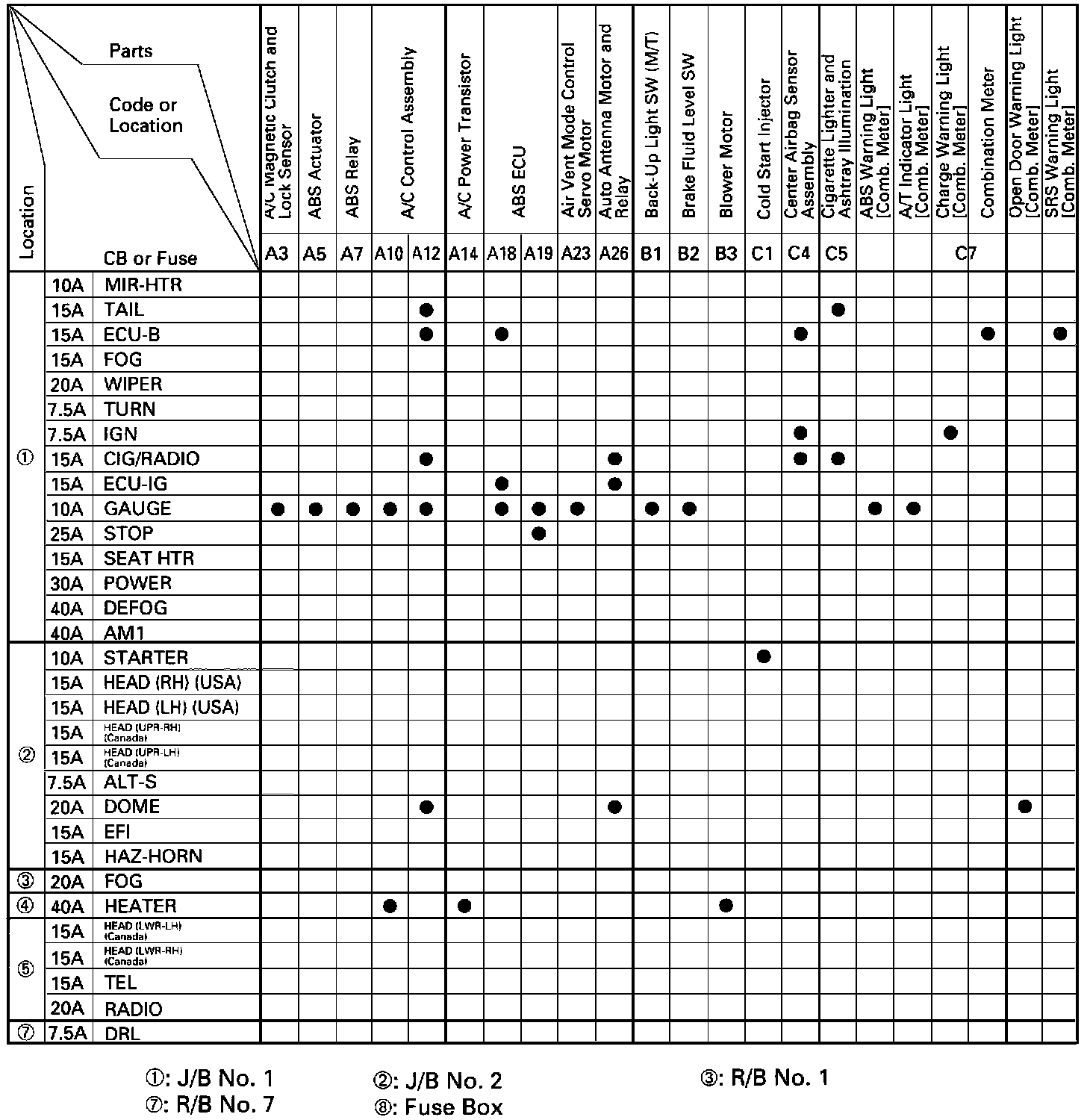

Power Source (Current Flow Chart) (Part 1 Of 2):

Power Source (Current Flow Chart) (Part 2 Of 2):

60 Starting and Ignition
64 Charging
66 Engine Control
76 Electronically Controlled Hydraulic Cooling Fan
78 Headlight (for USA)
80 Headlight and Fog Light (for Canada)
86 Interior Light
90 Taillight
94 Illumination
100 Turn Signal and Hazard Warning Light
103 Stop Light
106 Back-Up Light
112 Wiper and Washer
125 Unlock and Seat Belt Warning
142 PPS (Progressive Power Steering)
144 Cruise Control
150 Electronic Controlled Transmission and A/T Indicator
158 ABS (Anti-Lock Brake System)
163 Supplement Restraint System
169 Cigarette Lighter and Clock
170 Rear Window Defogger and Mirror Heater
177 Horn
182 Auto Antenna
192 Combination Meter
198 Automatic Air Conditioning

Power Source (Current Flow Chart) (Part 1 Of 2):

Power Source (Current Flow Chart) (Part 2 Of 2):

64 Charging
66 Engine Control
78 Headlight (for USA)
80 Headlight and Fog Light (for Canada)
86 Interior Light
90 Taillight
94 Illumination
98 Front Fog Light (for USA)
100 Turn Signal and Hazard Warning Light
103 Stop Light
106 Back-Up Light
108 Headlight Cleaner (for Canada)
132 Theft Deterrent and Door Lock Control
142 PPS (Progressive Power Steering)
150 Electronic Controlled Transmission and A/T Indicator
172 Moon Roof
177 Horn
192 Combination Meter
198 Automatic Air Conditioning

Power Source (Current Flow Chart) (Part 1 Of 2):

Power Source (Current Flow Chart) (Part 2 Of 2):

60 Starting and Ignition
86 Interior Light
90 Taillight
94 Illumination
100 Turn Signal and Hazard Warning Light
103 Stop Light
106 Back-Up Light
116 Power Window
120 Seat Heater
122 Power Seat
128 Wireless Door Lock Remote Control
132 Theft Deterrent and Door Lock Control
140 Remote Control Mirror
144 Cruise Control
150 Electronic Controlled Transmission and A/T Indicator
156 Shift Lock
158 ABS (Anti-Lock Brake System)
170 Rear Window Defogger and Mirror Heater
172 Moon Roof
182 Auto Antenna
184 Radio and Player (W/ CD Changer)
188 Radio and Player (W/O CD Changer)
192 Combination Meter

Power Source (Current Flow Chart) (Part 1 Of 2):

Power Source (Current Flow Chart) (Part 2 Of 2):

56 Power Source
66 Engine Control
80 Headlight and Fog Light (for Canada)
86 Interior Light
98 Front Fog Light (for USA)
100 Turn Signal and Hazard Warning Light
110 Light Auto Turn Off
112 Wiper and Washer
116 Power Window
125 Unlock and Seat Belt Warning
128 Wireless Door Lock Remote Control
132 Theft Deterrent and Door Lock Control
142 PPS (Progressive Power Steering)
150 Electronic Controlled Transmission and A/T Indicator
170 Rear Window Defogger and Mirror Heater
172 Moon Roof
177 Horn
178 Cellular Mobile Telephone
192 Combination Meter
198 Automatic Air Conditioning
