System Specifications

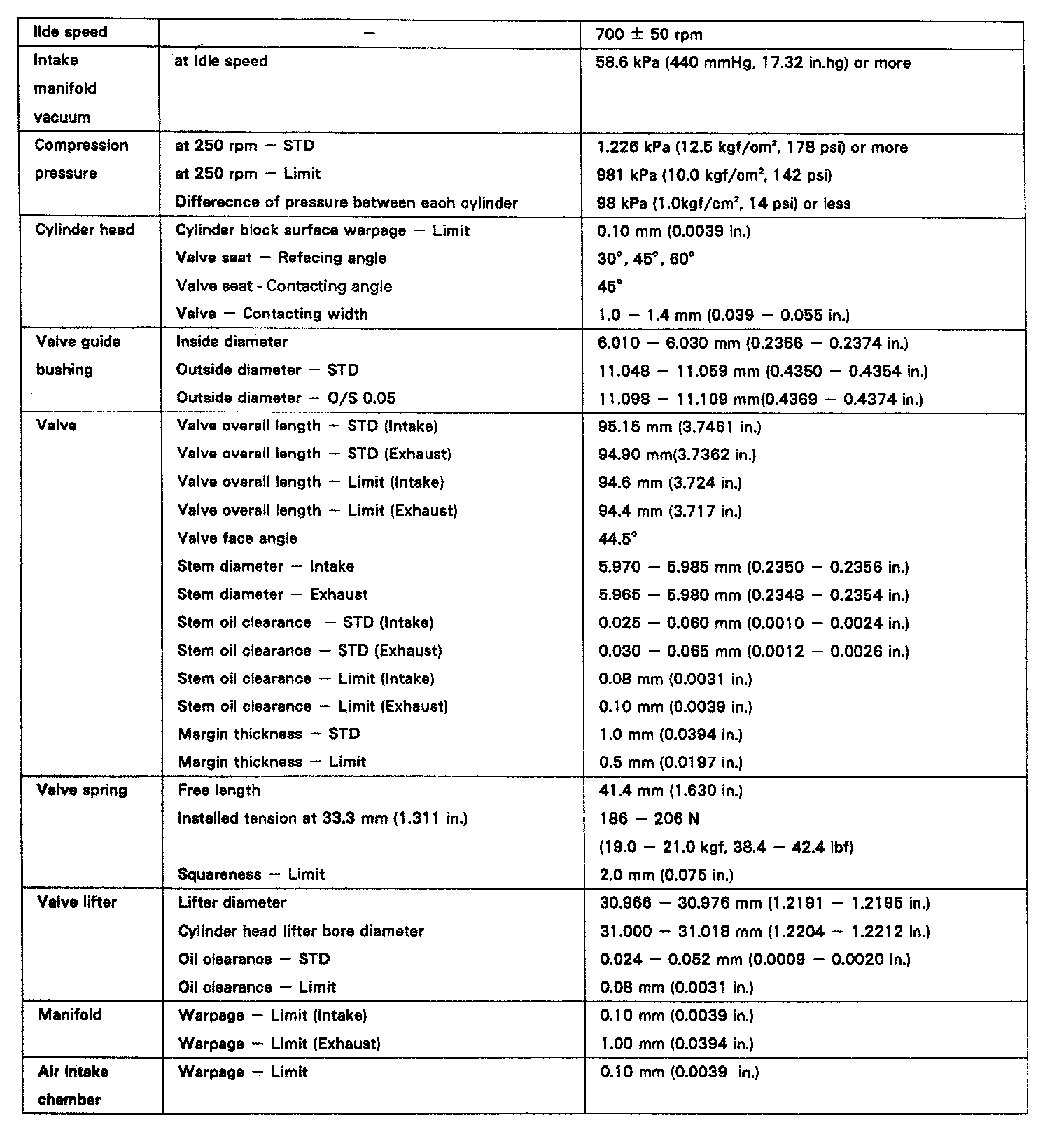

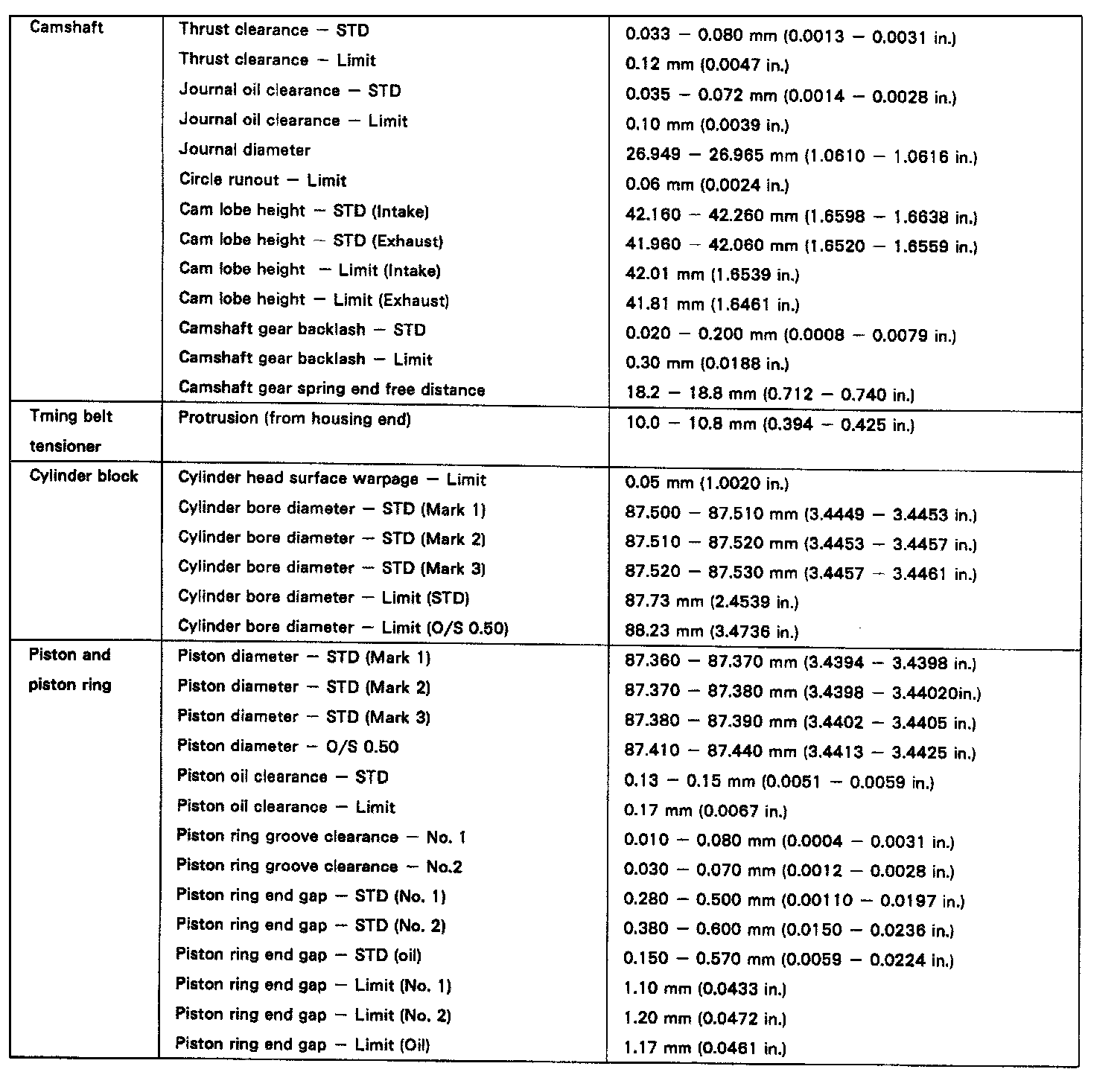

ENGINE SPECIFICATIONS

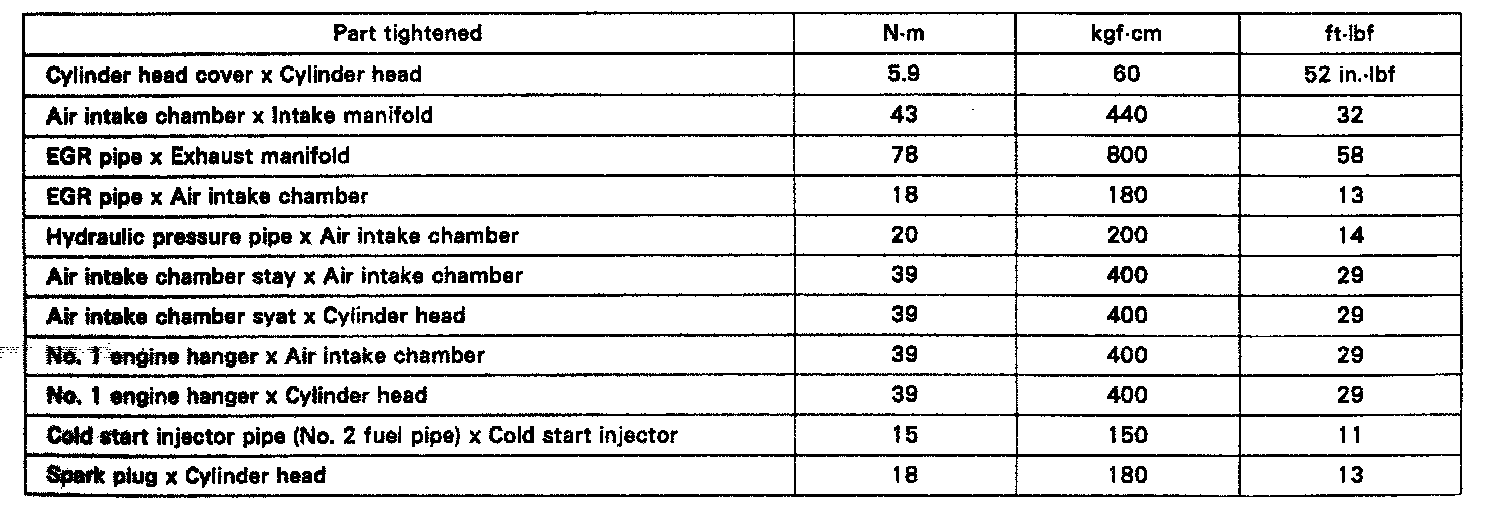

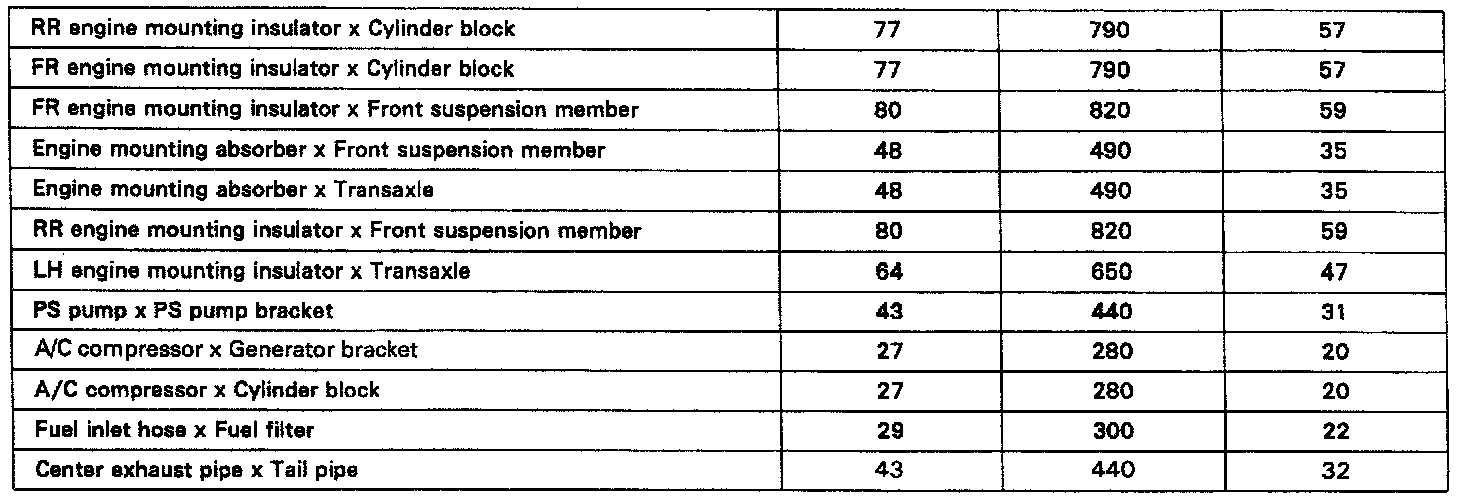

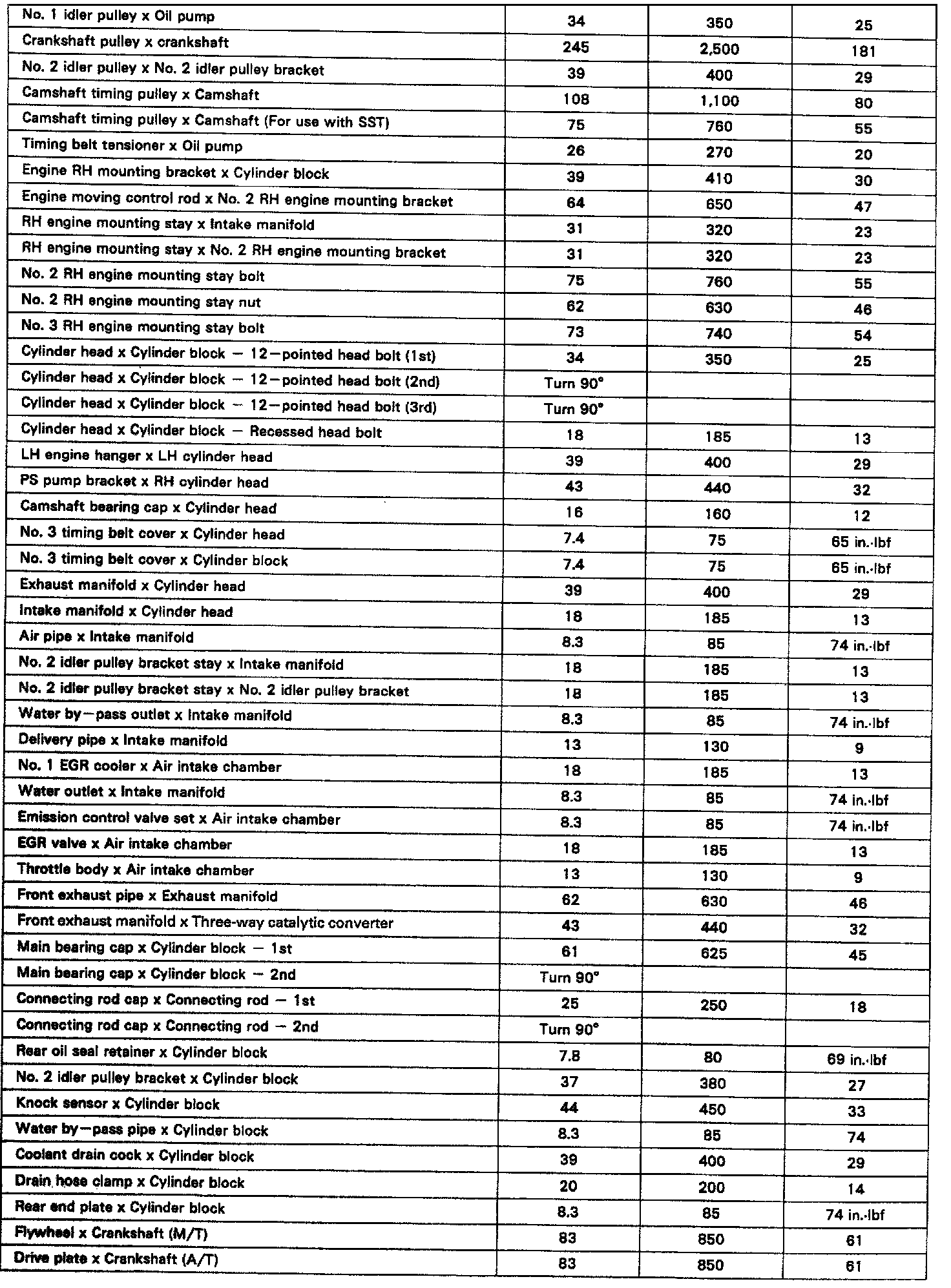

TIGHTENING SPECIFICATIONS

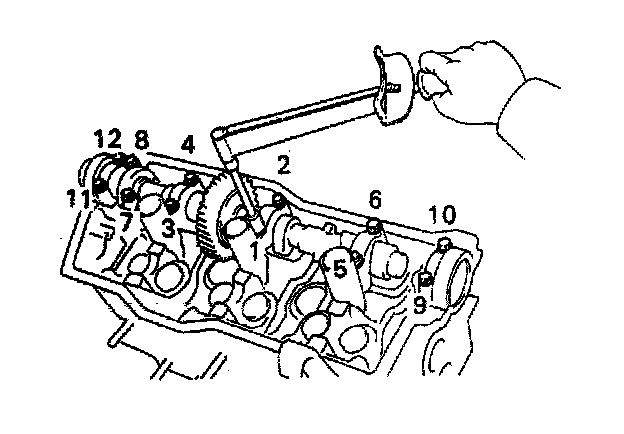

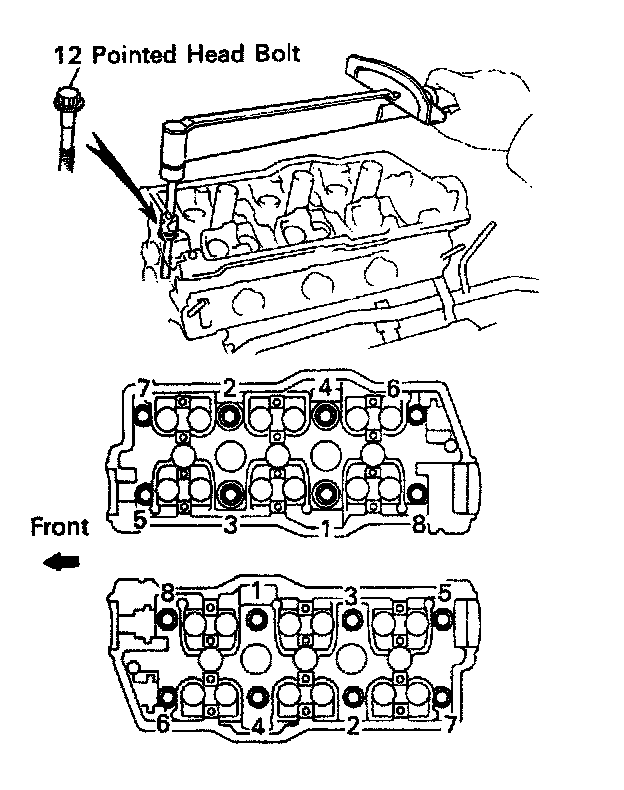

CYLINDER HEAD TIGHTENING SEQUENCE

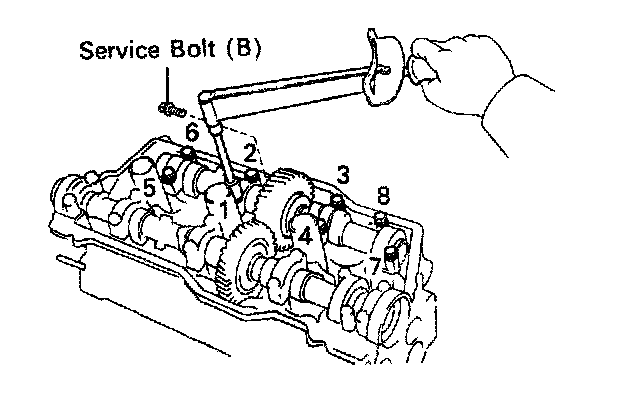

RH CAM TIGHTENING SEQUENCE

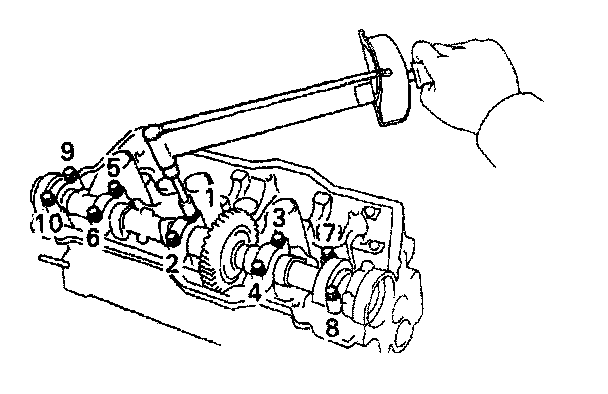

LH CAM TIGHTENING SEQUENCE

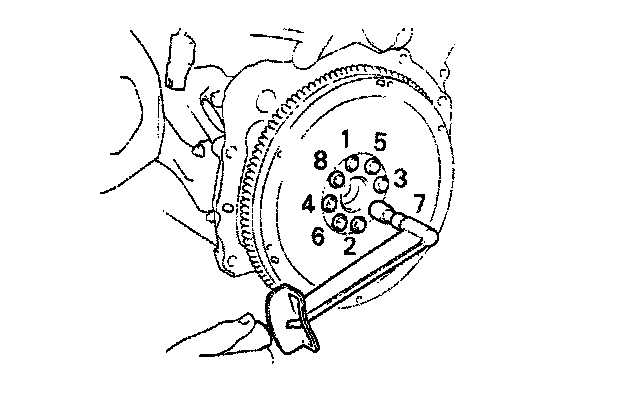

FLYWHEEL TIGHTENING SEQUENCE
