Home >> Lexus >> 1993 >> ES 300 V6-3.0L (3VZ-FE) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Coolant Temperature Sensor/Switch (For Computer)

Coolant Temperature Sensor/Switch (For Computer)

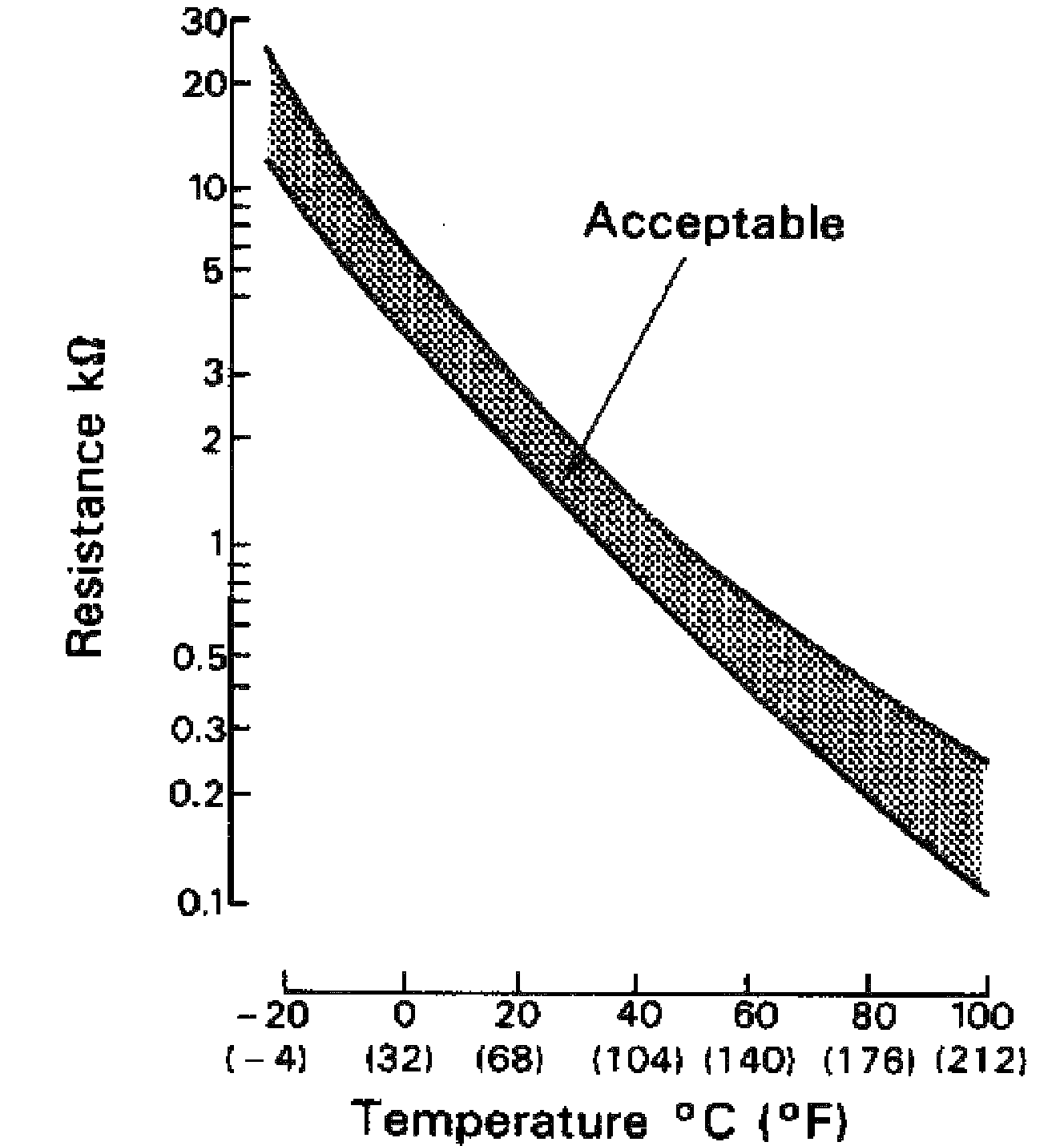

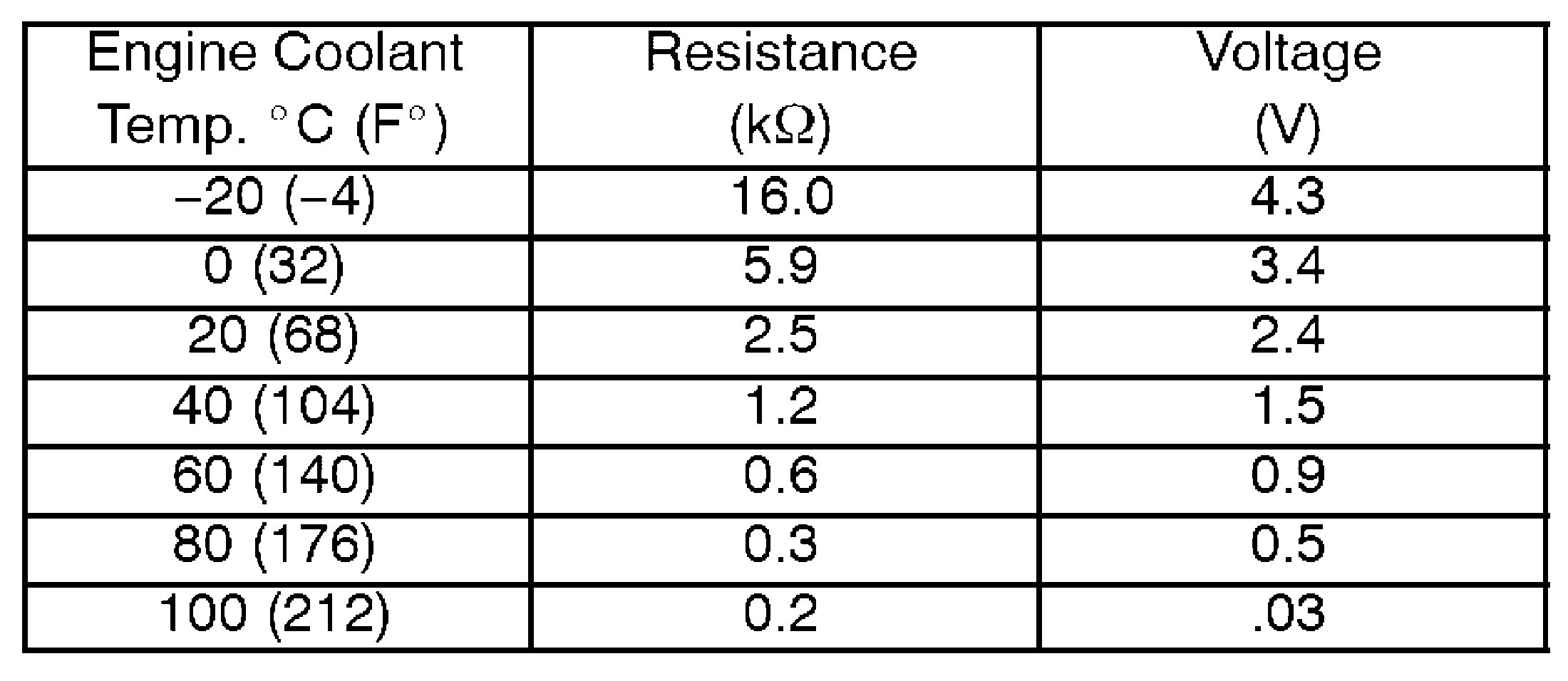

Resistance Values
