Air Bag Control Module: Testing and Inspection
INSPECTION ITEMS AND REPLACEMENT REQUIREMENTSIf a vehicle is brought in for an airbag system inspection, or if a vehicle which has been involved in a collision is inspected, perform the inspection in accordance with the following procedure. If any problems are discovered, replace the affected part with a new one.
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
^ Perform a diagnostic system check.
Displaying & Reading Trouble Codes
2. VEHICLES INVOLVED IN A COLLISION
IF THE AIRBAG IS NOT DEPLOYED
^ Perform a diagnostic system check.
Displaying & Reading Trouble Codes
IF THE AIRBAG IS DEPLOYED
^ Replace the airbag sensor assembly certainly.
REPLACEMENT REQUIREMENTS

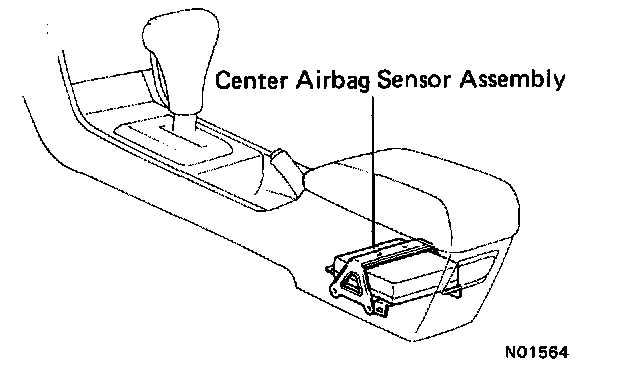

In the following cases, replace the center airbag sensor assembly.
Service and Repair
^ f the airbag is DEPLOYED.
^ If the center airbag sensor assembly has been found to be faulty in troubleshooting.
^ If the center airbag sensor assembly has been found to be faulty as following:
(1) Deformation of the bracket or case
(2) Vinyl seal broken
(3) Damage to the connector
^ If the center airbag sensor assembly has been dropped.
