Installation

Throttle Body Fasteners:

INSTALL THROTTLE BODY

Install a new gasket and the throttle body with the two bolts and two nuts.

Torque: 13 N-m (130 kgf.cm, 9 ft.lbs)

Throttle Body Vacuum Hoses:

CONNECT HOSES TO THROTTLE BODY

(a) Water by-pass hose

(b) Emission control vacuum hoses

CONNECT THROTTLE POSITION SENSOR CONNECTOR

Air Cleaner Hose:

INSTALL AIR CLEANER CAP, VOLUME AIR FLOW METER AND AIR CLEANER HOSE

(a) Connect the air cleaner hose, and install the air cleaner cap and volume air flow meter with the four clips.

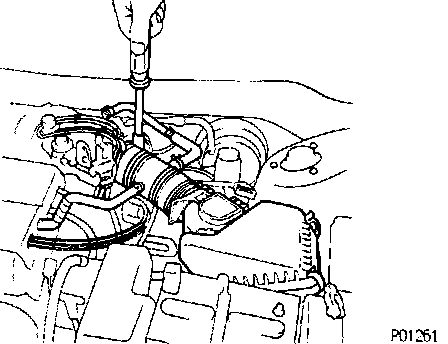

(b) Tighten the air cleaner hose clamp bolt.

(c) Connect the air hoses.

(d) Connect the coil cord clamp.

(e) Connect the volume air flow meter connection



(A/T) CONNECT THROTTLE CABLE

CONNECT ACCELERATOR CABLE

FILL WITH ENGINE COOLANT

CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
