Cold Start Injector: Service and Repair

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY

CAUTION (W / Airbag): Work must be started after approx. 30 seconds or longer from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. DISCONNECT COLD START INJECTOR CONNECTOR

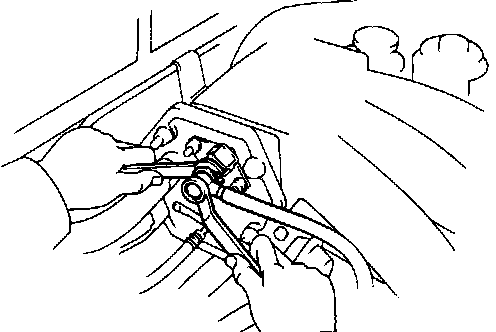

Fuel Pipe No. 2:

3. DISCONNECT COLD START INJECTOR PIPE (No.2 FUEL PIPE)

(a) Put a suitable container or shop towel under the injector pipe,

(b) Remove the union bolt and two gaskets, and disconnect the injector pipe.

HINT: Slowly loosen the union bolt.

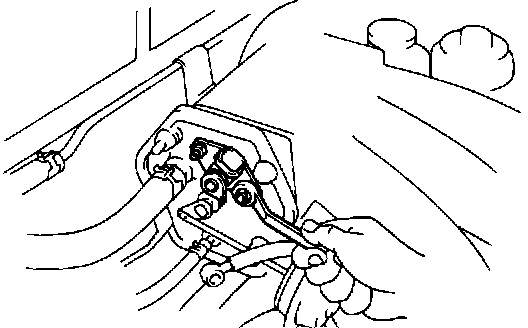

Cold Start Injector:

4. REMOVE COLD START INJECTOR Remove the two nuts, cold start injector and gasket.

Cold Start Injector:

1. INSTALL COLD START INJECTOR

Install a new gasket and the injector with the two nuts.

Torque: 8.3 N-m (85 kgf.cm, 74 in.lbs)

Fuel Pipe No. 2:

2. CONNECT COLD START INJECTOR PIPE (NO. 2 FUEL PIPE)

Connect the injector pipe with two new gaskets and the union bolt.

Torque: 15 N-m (150 kgf.cm. 11 in.lbs)

3. CONNECT COLD START INJECTOR CONNECTOR

4. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY

5. CHECK FOR FUEL LEAKAGE
