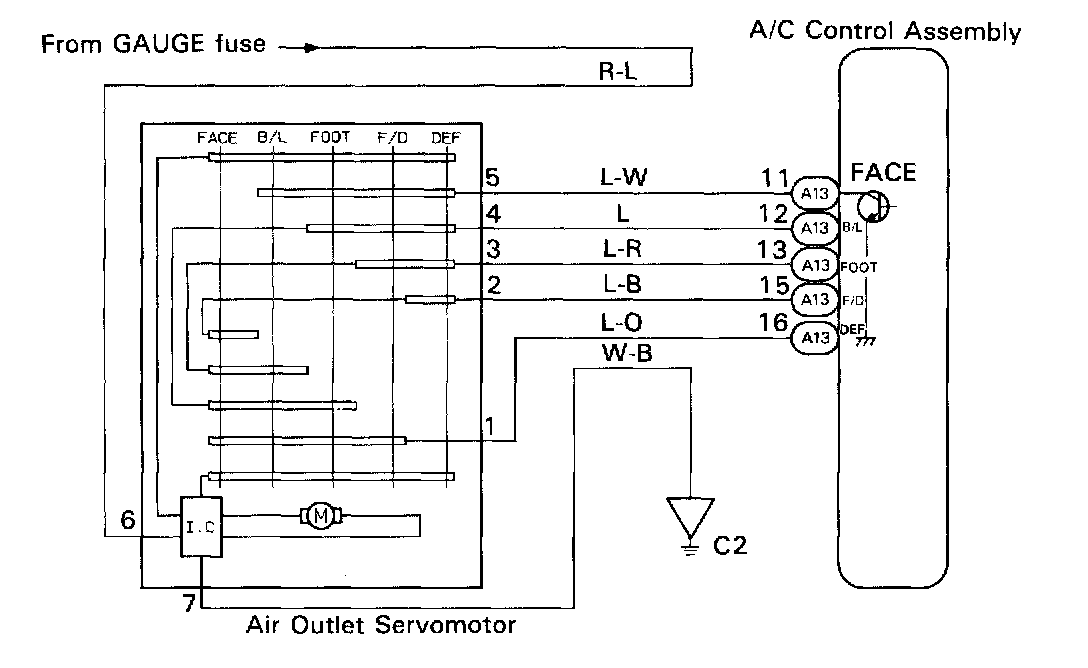

Air Outlet Damper Control Servomotor Circuit

This circuit turns the servomotor and changes each mode damper position by signals from the ECU. When the AUTO switch is on, the ECU changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.
