System Circuit Test W/Computer Connector Connected

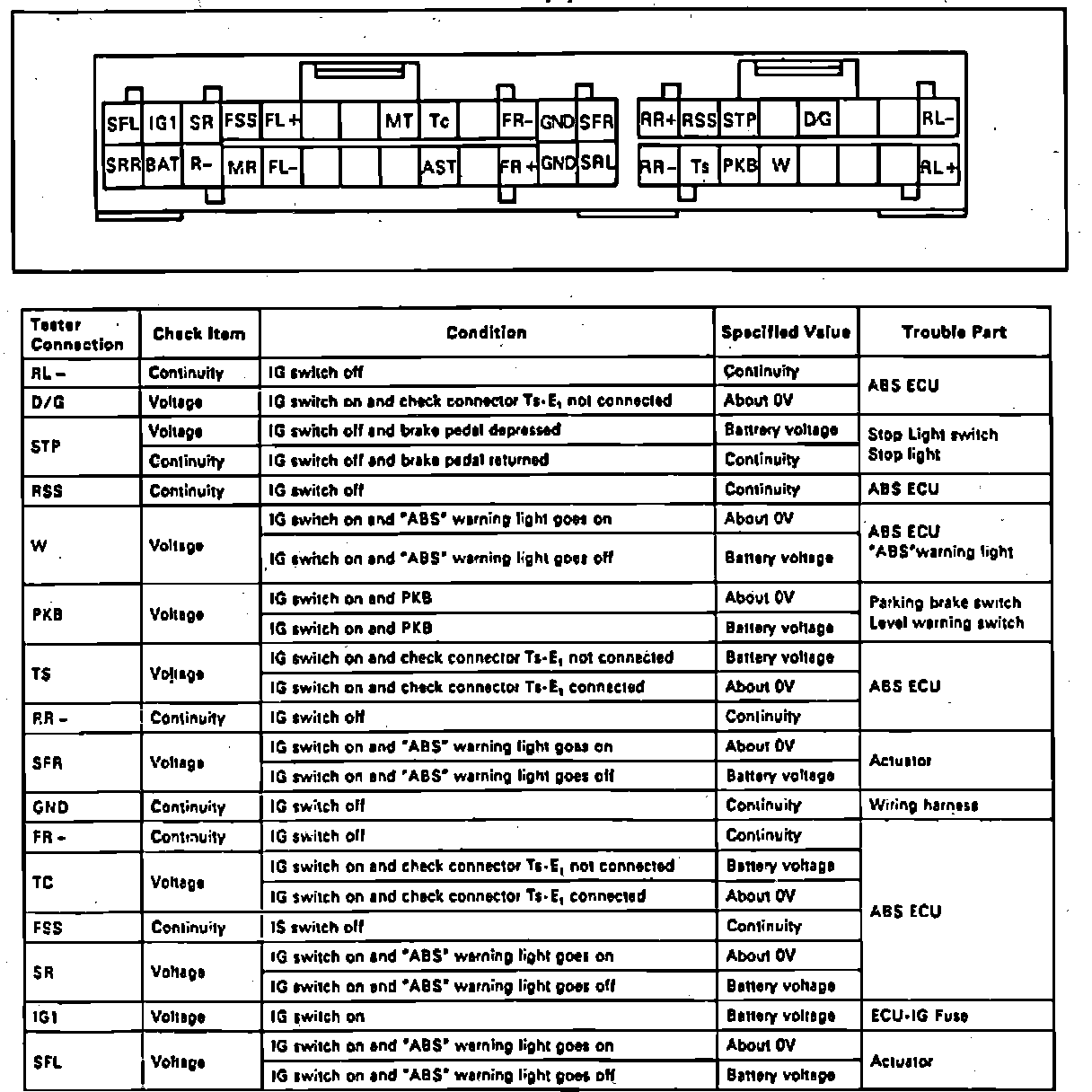

Fig. 76 Anti-lock Brake System Circuit Test (w/Computer Connector Connected, Part 1 Of 2). 1992-93 Camry:

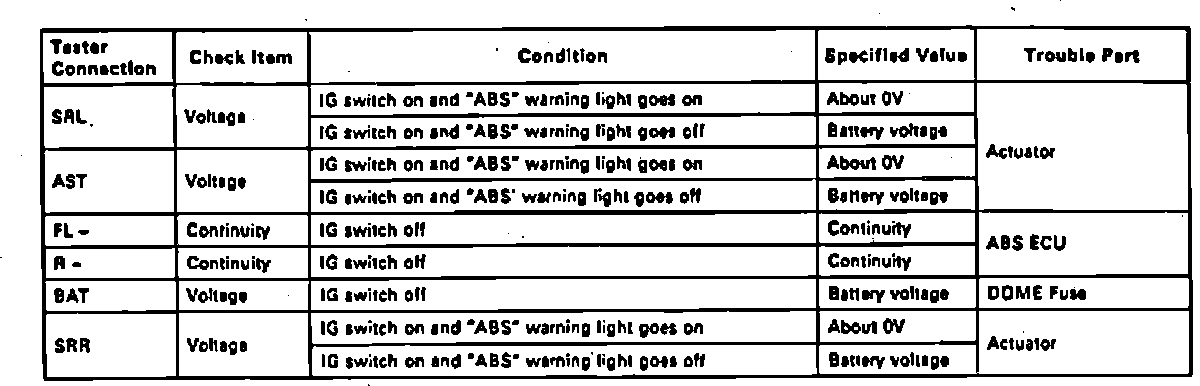

Fig. 76 Anti-lock Brake System Circuit Test (w/Computer Connector Connected, Part 2 Of 2). 1992-93 Camry:
