Tc Terminal Circuit

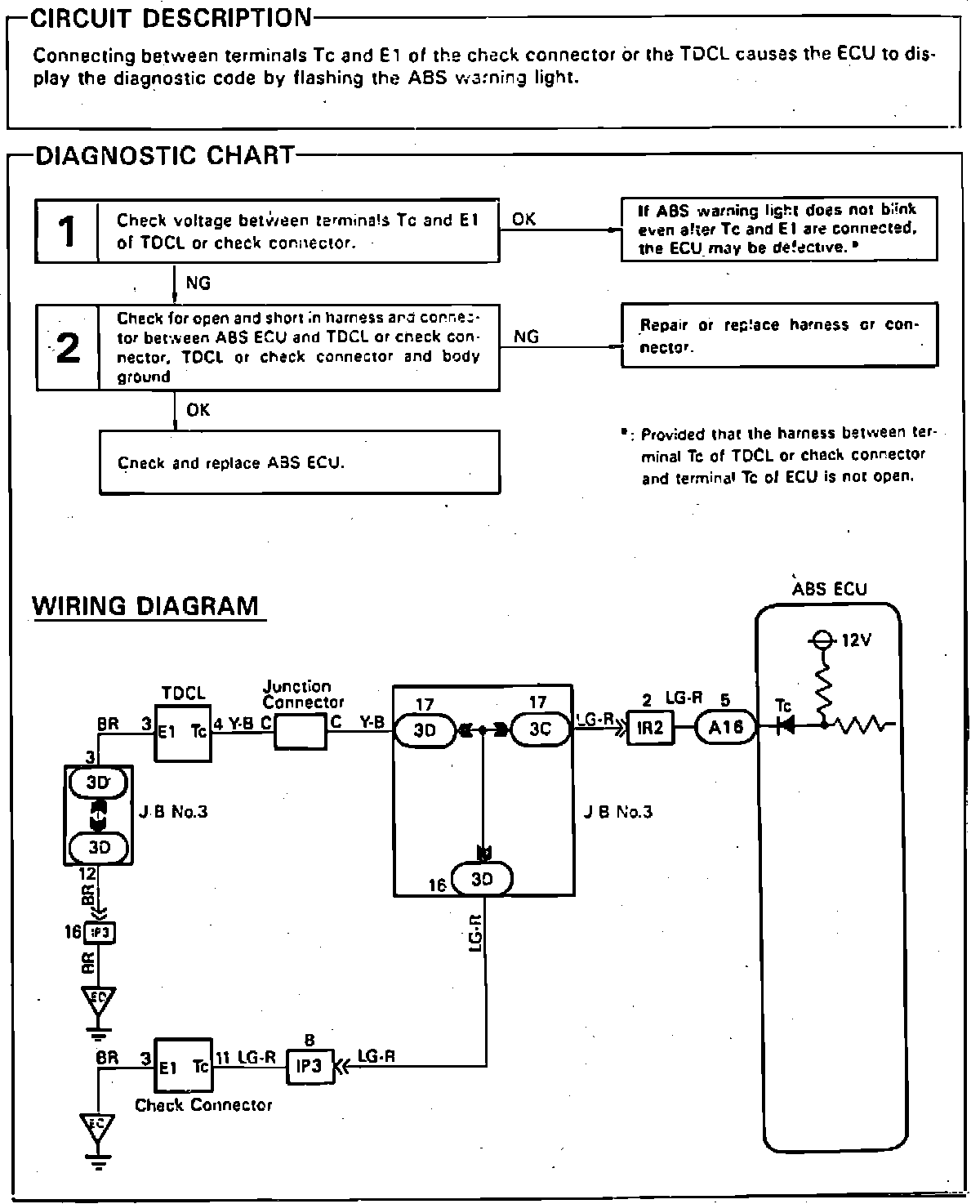

Fig. 48 Tc Terminal Circuit Inspection & Testing (Part 1 Of 2).:



Fig. 48 Tc Terminal Circuit Inspection & Testing (Part 2 Of 2).:
