Stop Light Switch Circuit
Stop Light Switch Circuit

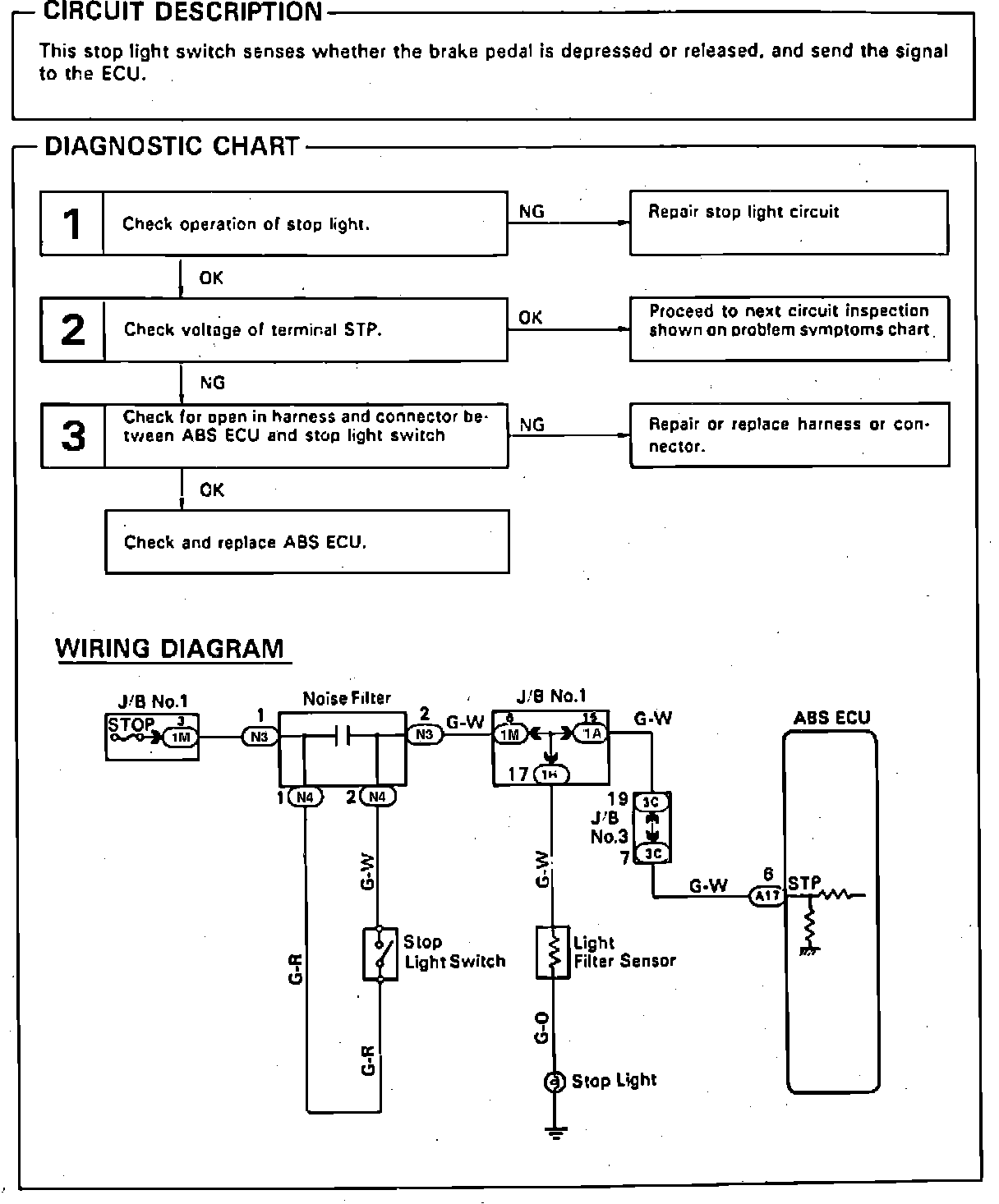

Fig. 46 Stop Light Circuit Inspection & Testing (Part 1 Of 2).:

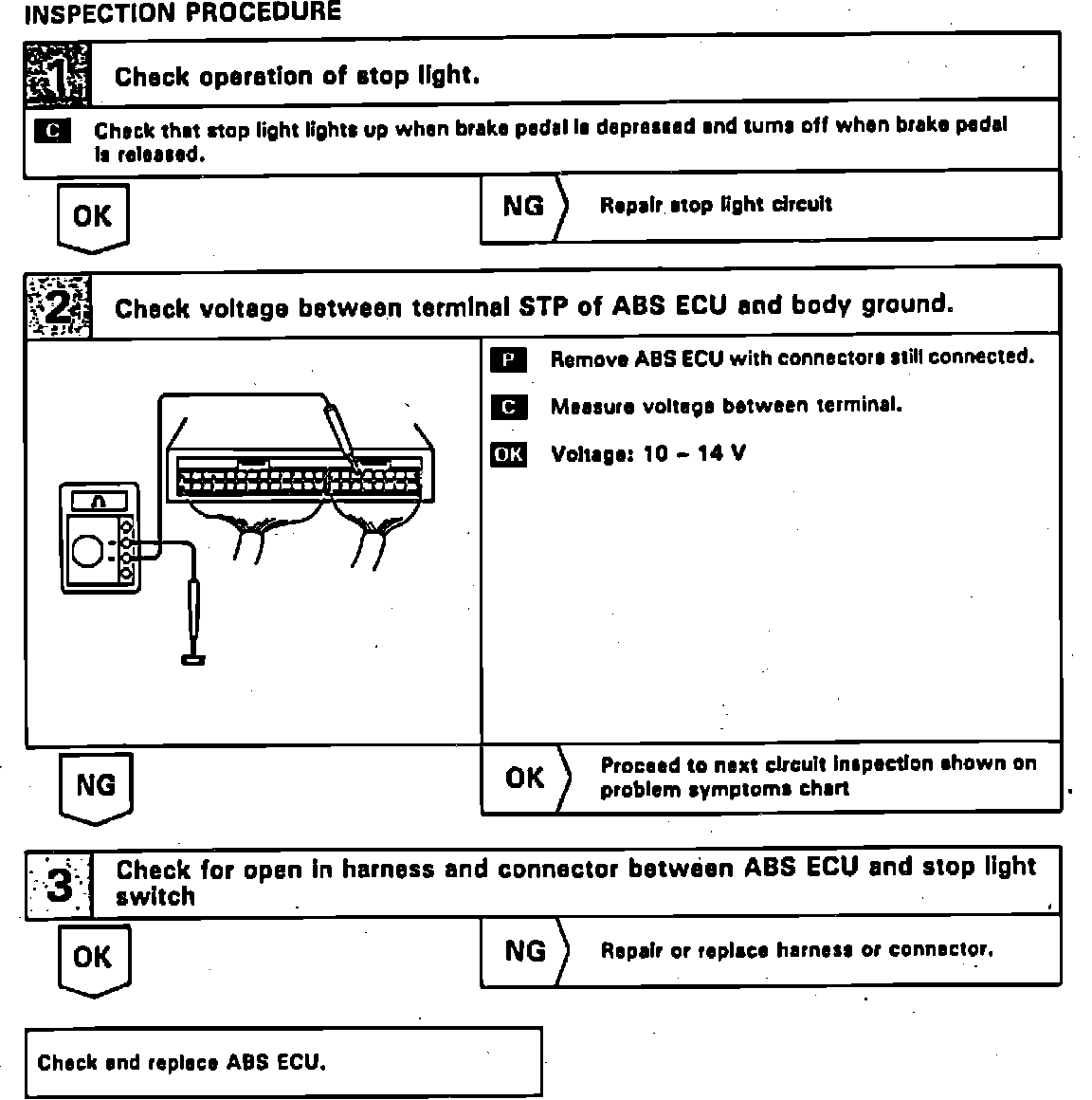

Fig. 46 Stop Light Circuit Inspection & Testing (Part 2 Of 2).:
