DTC 63
CIRCUIT DESCRIPTIONShifting from 1st to O/D is performed in combination with ON and OFF of the No. 1 and No. 2 solenoid valves controlled by the Electronic Control Unit (ECU). If an open or short circuit occurs in either of the solenoid valves, the ECU controls the remaining normal solenoid to allow the vehicle to be operated smoothly (Fail safe function).
Fail Safe Function

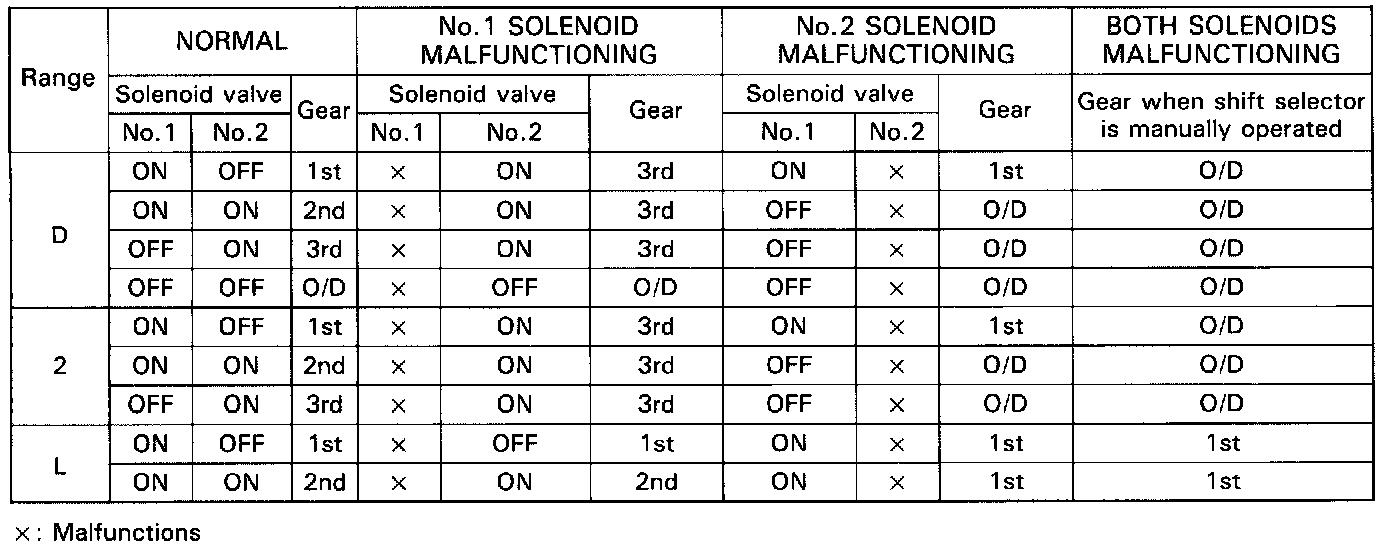

If either of the solenoid valve circuits develops a short or an open, the ECU turns the other solenoid ON and OFF to shift to the gear positions shown in the table below. The ECU also turns the lock-up solenoid valve OFF at this time. If both solenoids malfunction, hydraulic control cannot be performed electronically and must be done manually. Manual shifting as shown in the table must be done. (In the case of a short circuit, the ECU stops sending current to the short circuited solenoid).
Check the No. 1 solenoid when diagnostic trouble code 62 is output and check the No. 2 solenoid when diagnostic trouble code 63 is output.

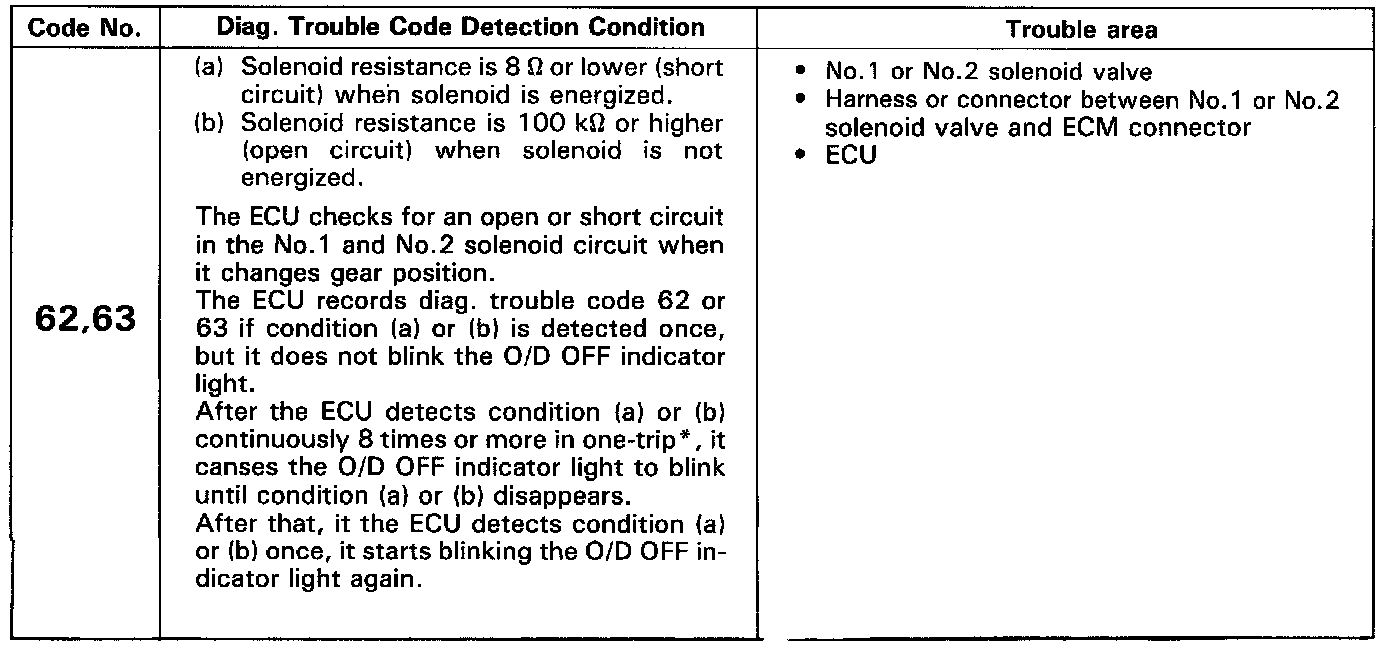

DETECTING CONDITION

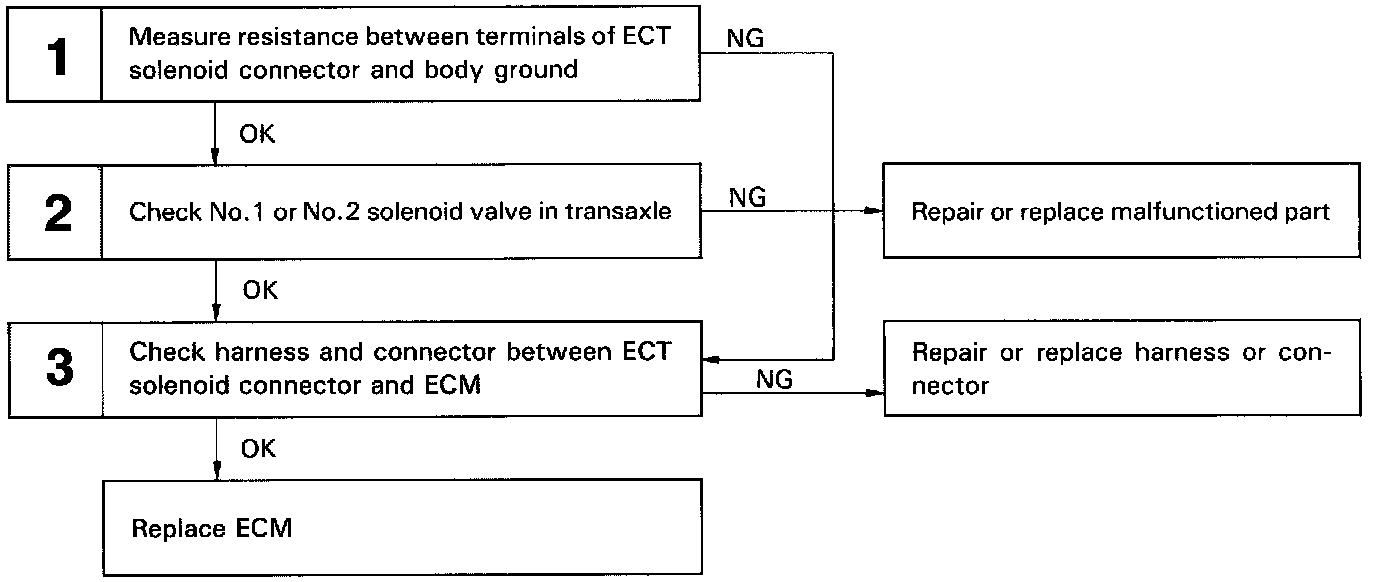

DIAGNOSTIC CHART

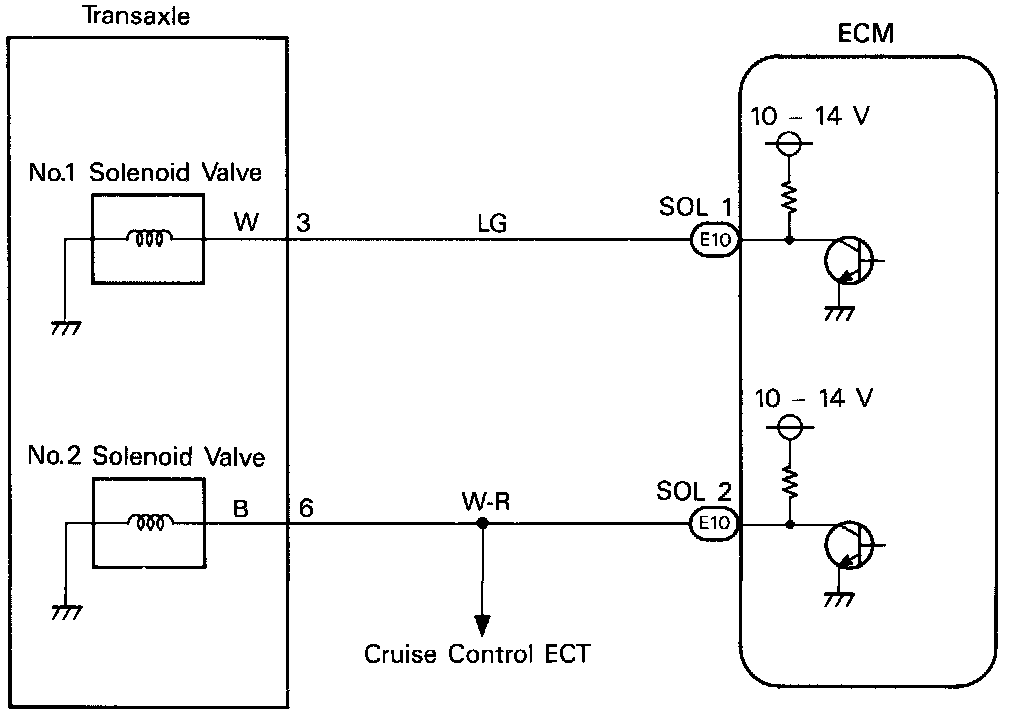

WIRING DIAGRAM

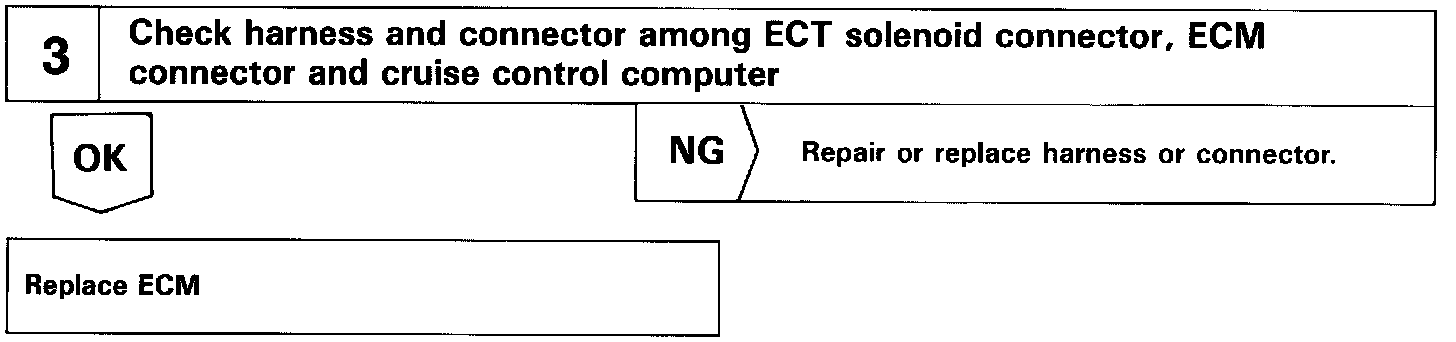

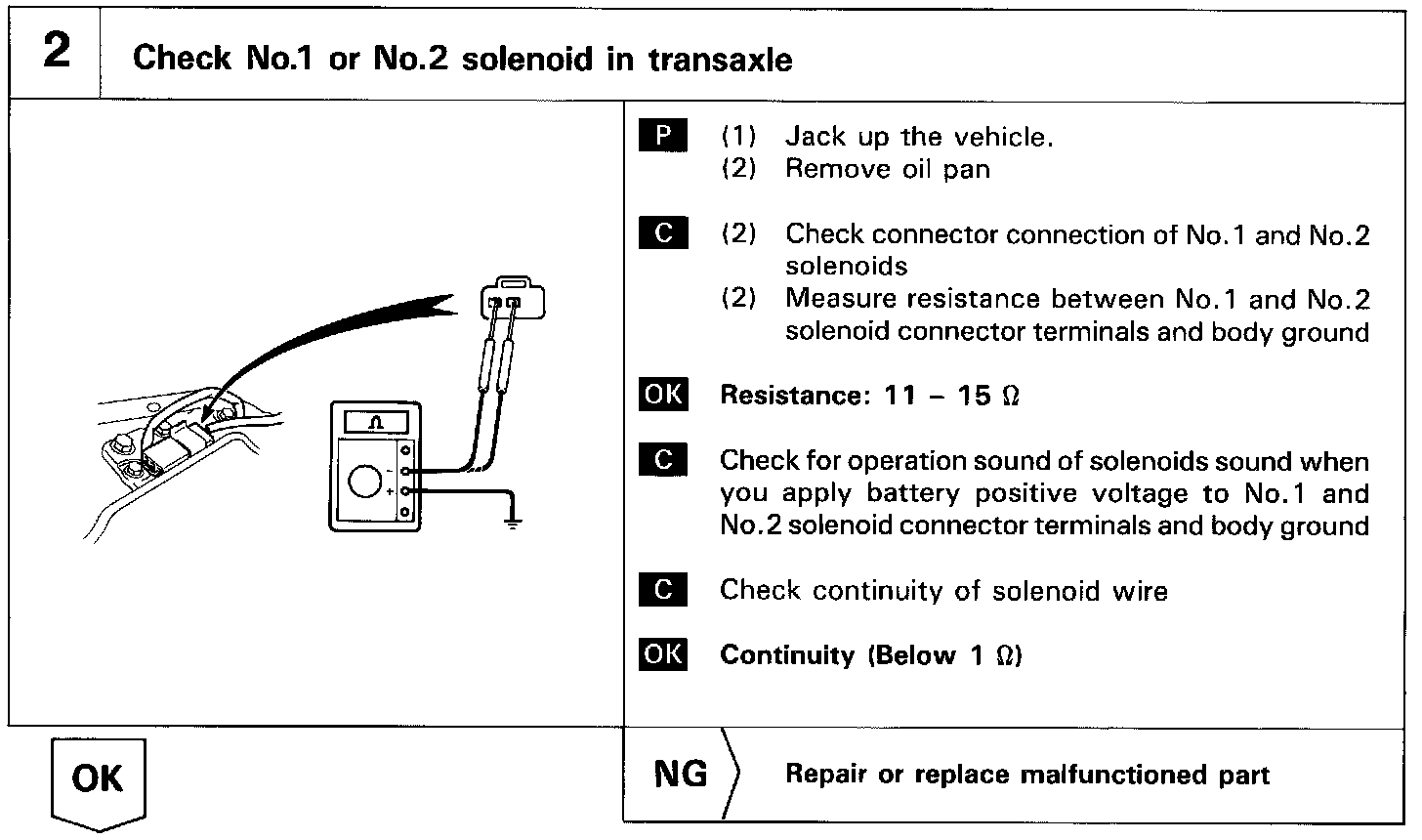

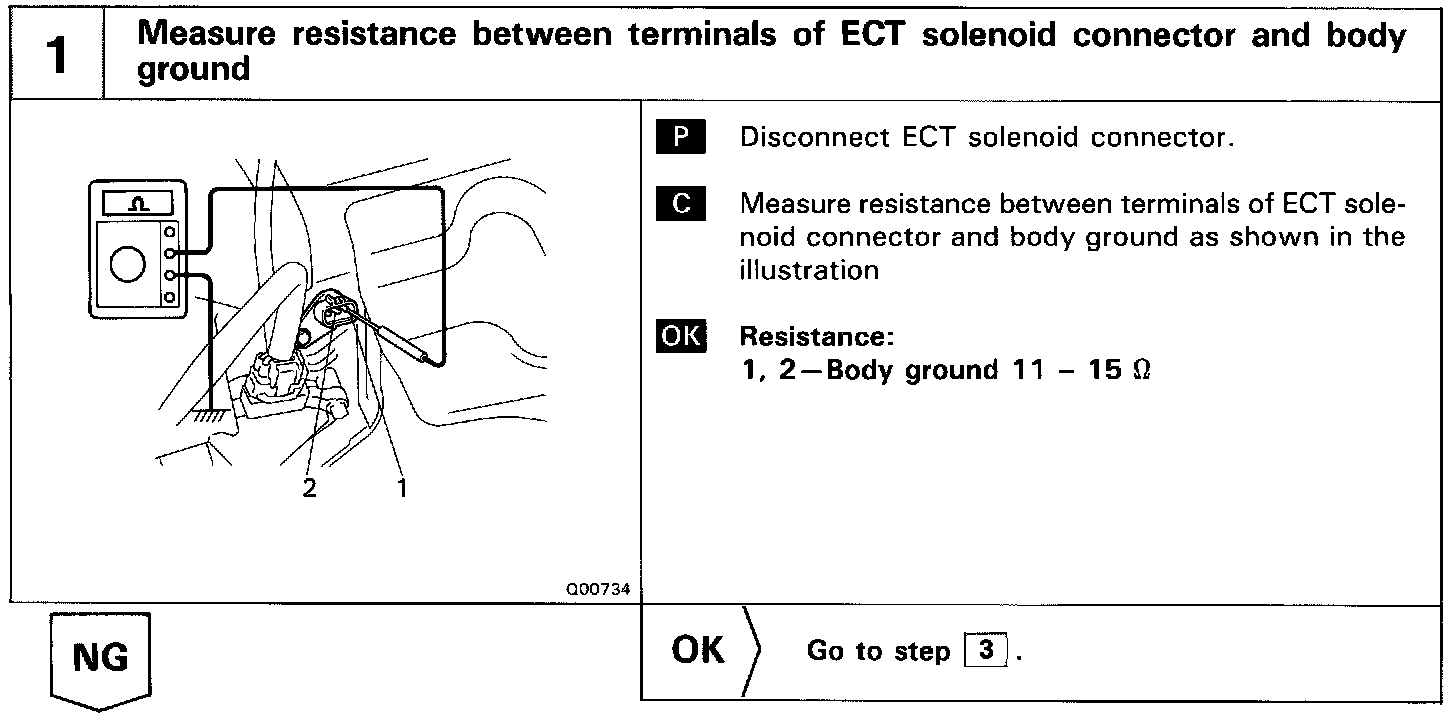

INSPECTION PROCEDURE
