DTC 21

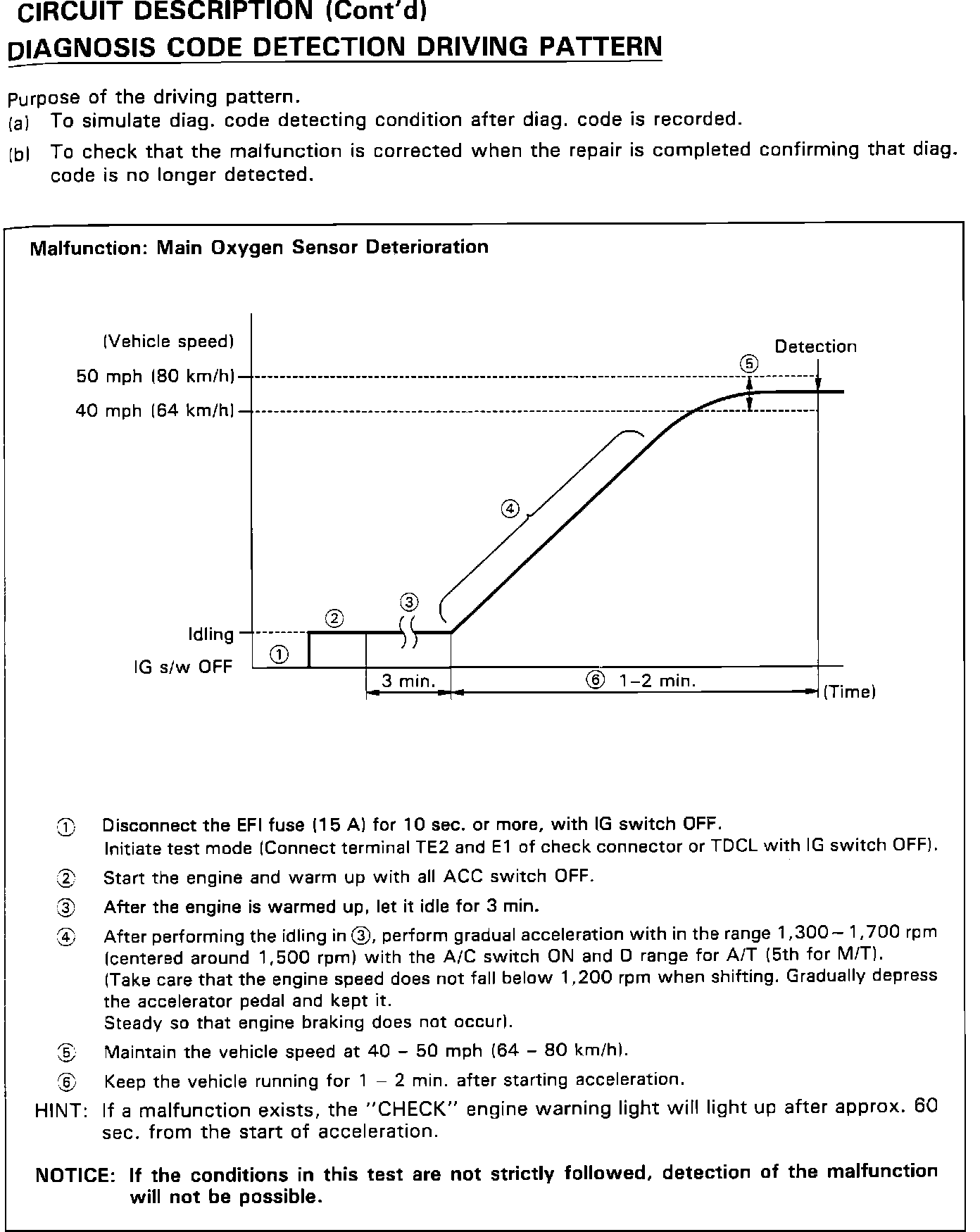

Fig. 9 Diagnostic Codes 21 & 28 (Main Oxygen Sensor & Heater Signal, Part 1 Of 4):

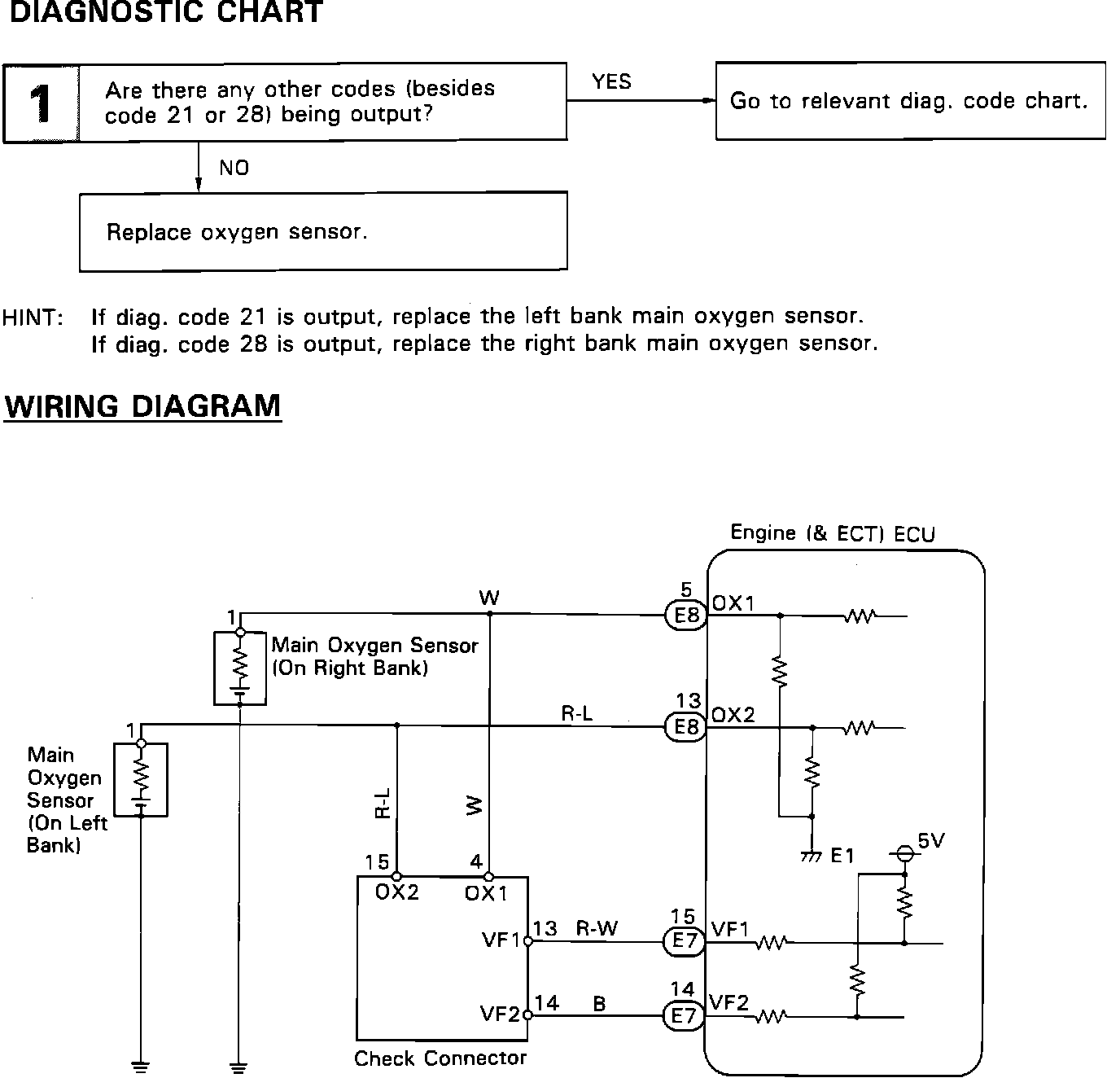

Fig. 9 Diagnostic Codes 21 & 28 (Main Oxygen Sensor & Heater Signal, Part 2 Of 4):

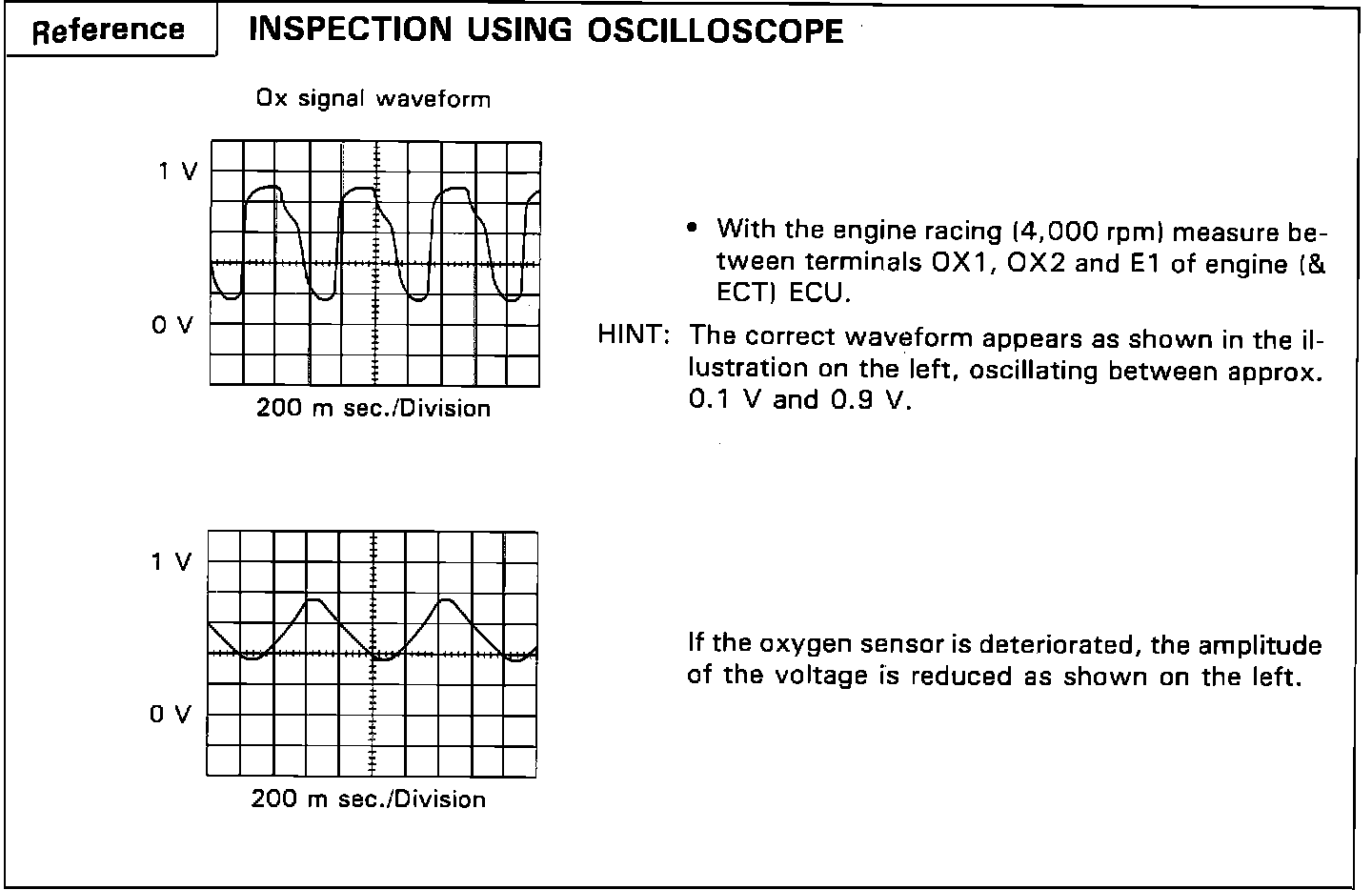

Fig. 9 Diagnostic Codes 21 & 28 (Main Oxygen Sensor & Heater Signal, Part 3 Of 4):



Fig. 9 Diagnostic Codes 21 & 28 (Main Oxygen Sensor & Heater Signal, Part 4 Of 4):
